THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

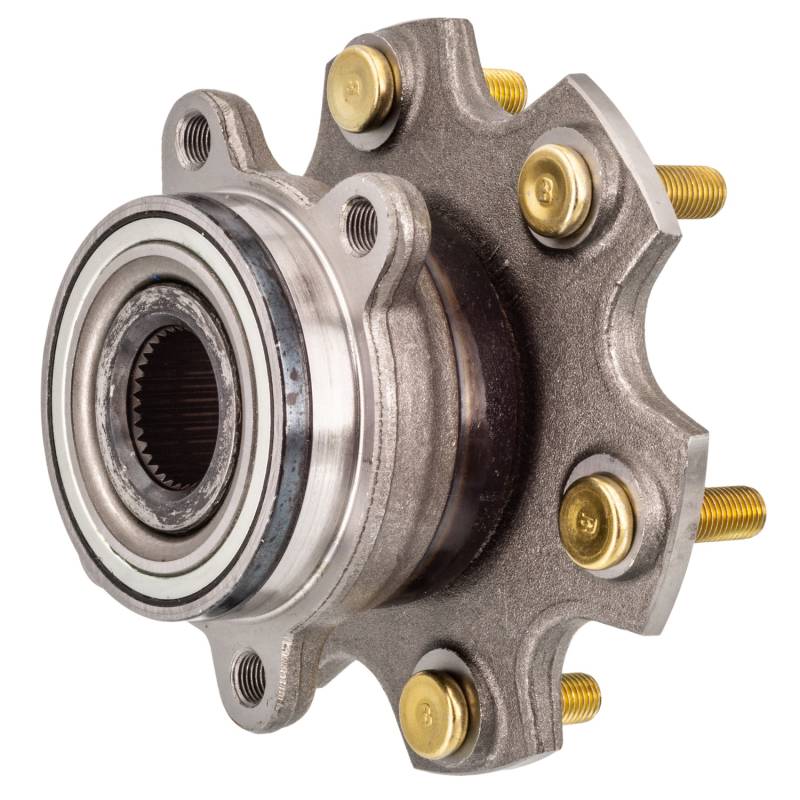

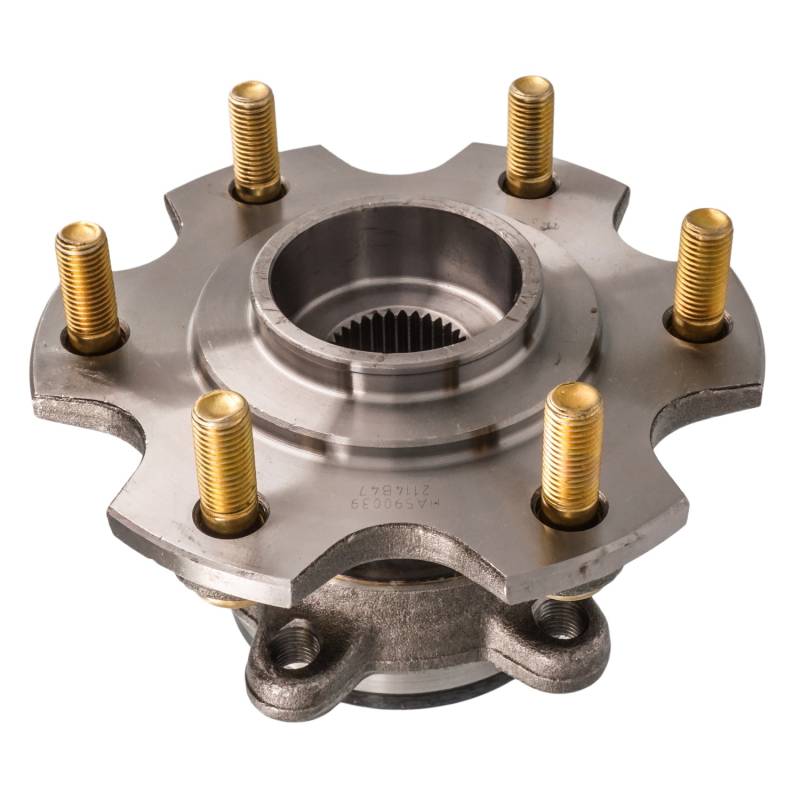

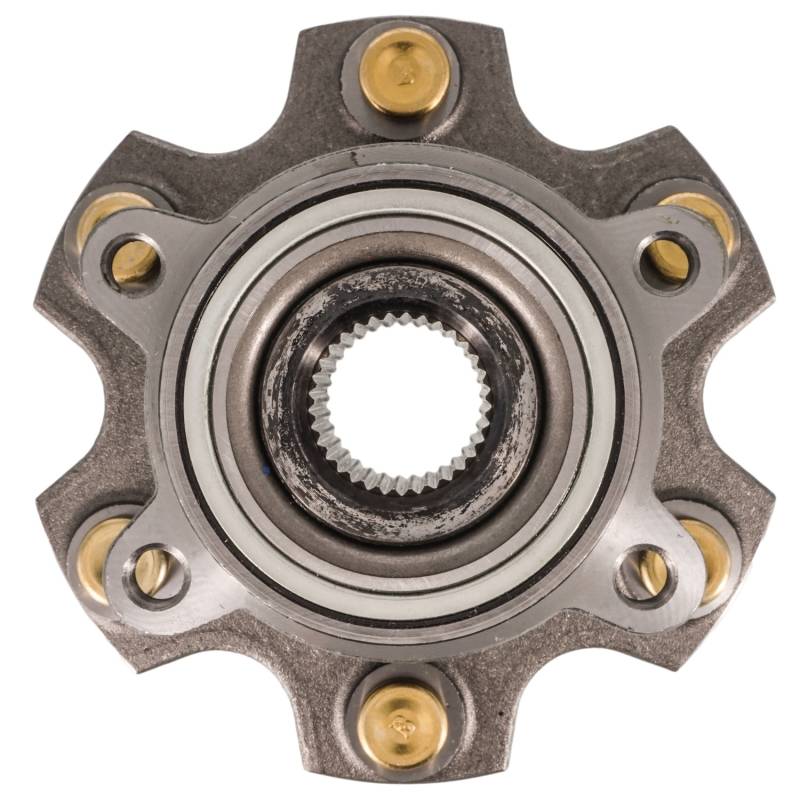

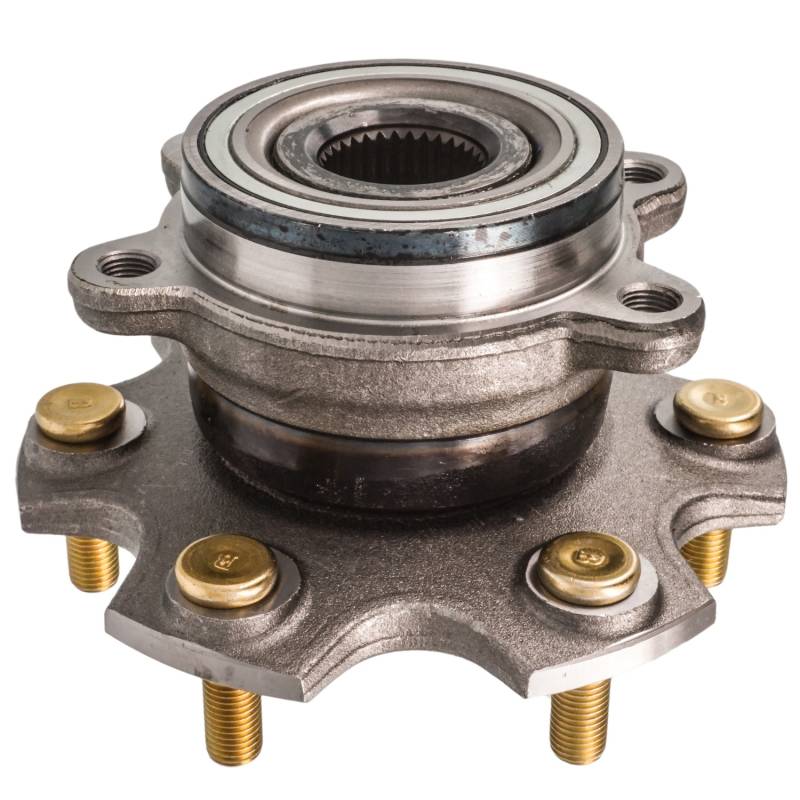

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.232
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.701
FLANGE OFFSET (INCH): 2.429
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.504
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 6.665
HUB PILOT DIAMETER (INCH): 3.583
LUG BOLT THREAD SIZE: M12-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 6.665
TOTAL HUB DIAMETER (MM): 169
TOTAL HUB HEIGHT (IN): 4.421
TOTAL HUB HEIGHT (MM): 112
REPLACES:
AUTOPART INTERNATIONAL: 1411-44930
BECK/ARNLEY: 051-6389
CENTRIC PARTS: 40046007E
GSP: 512012
MEVOTECH: H541012
MOOG HUB ASSEMBLIES: 541012
NAPA: PBR930673
APPLICATIONS:
MITSUBISHI MONTERO SPORT (2001-2006)
MITSUBISHI MONTERO (2001-2006)
