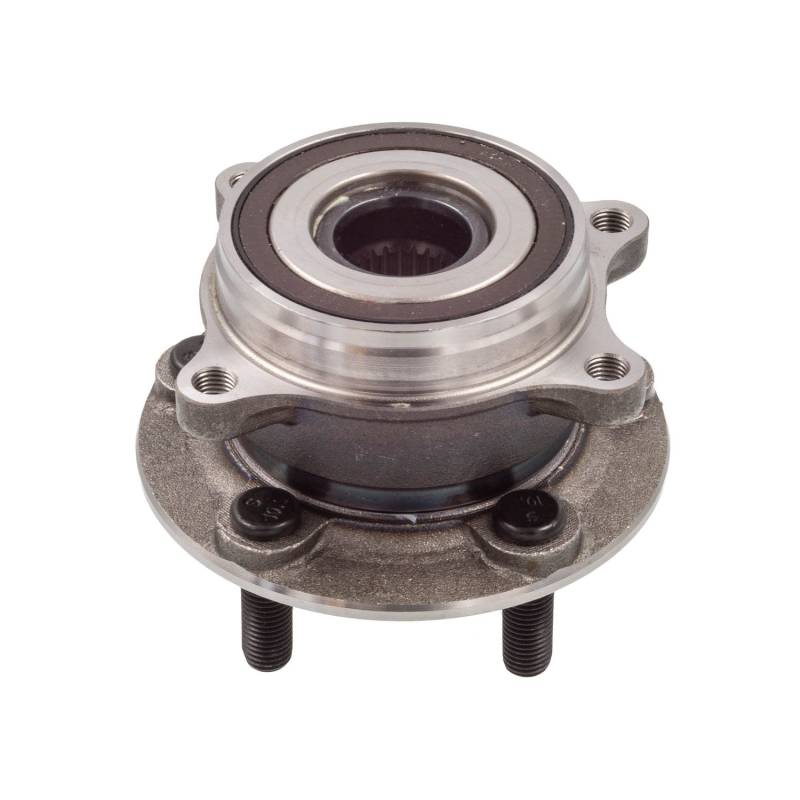

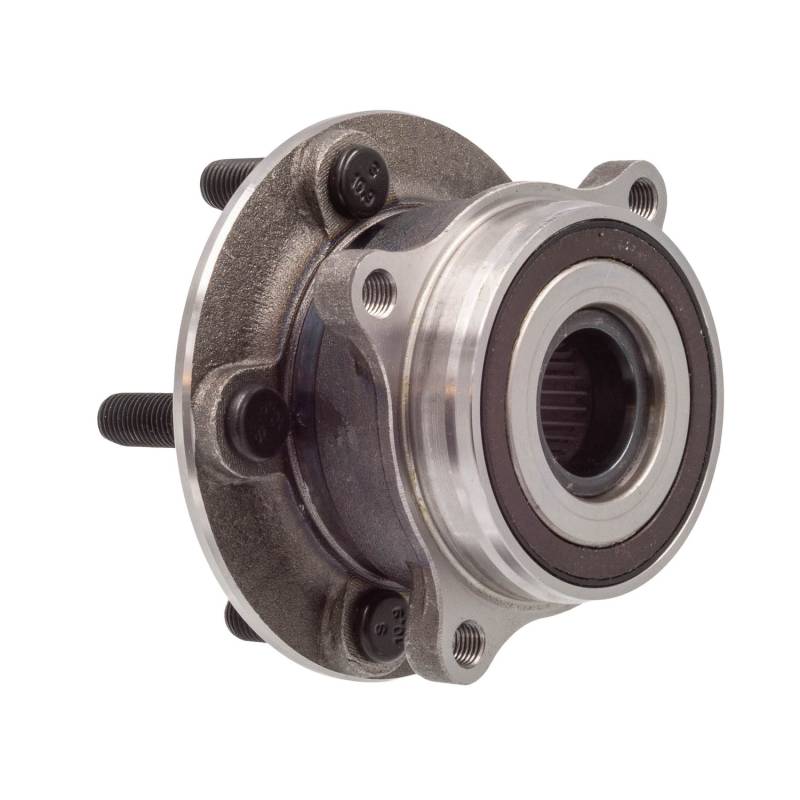

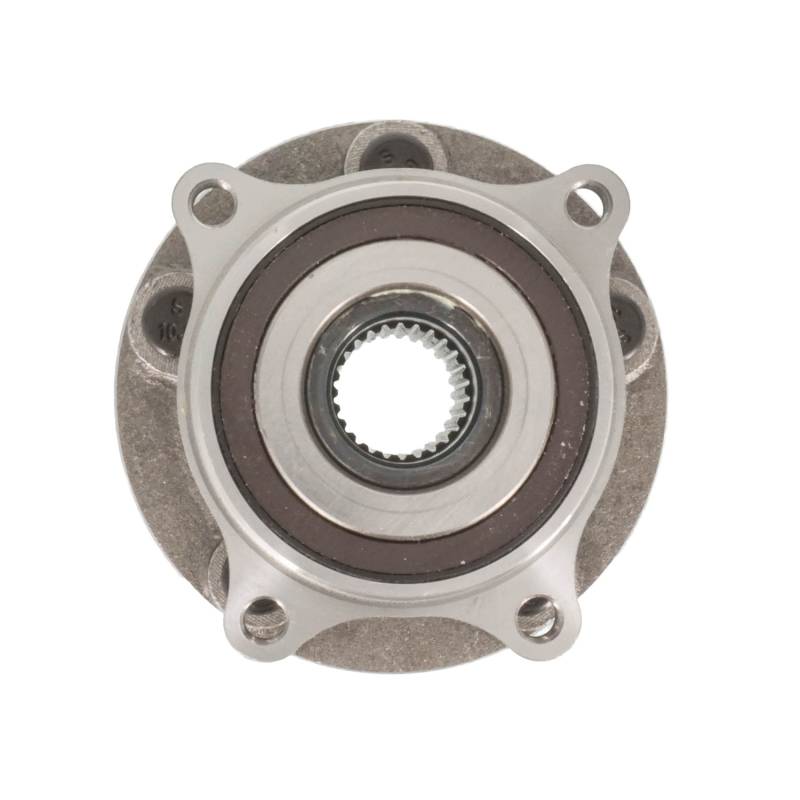

New Hub Assembly Compatible With Toyota Lexus Prius Ct200h Prius C Prius Plug-In Prius V 1.5L 1.8L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

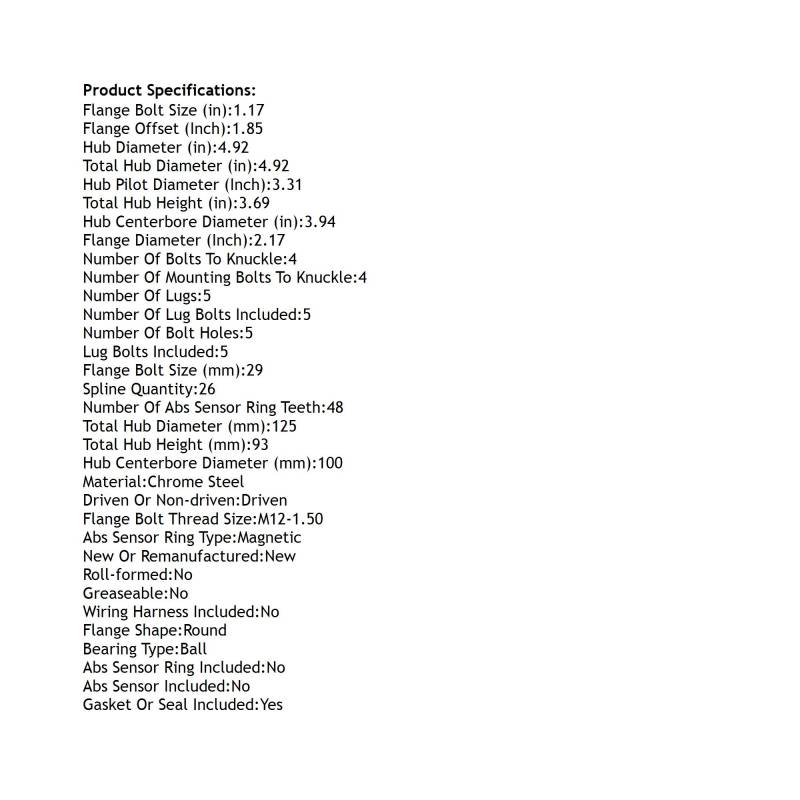

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.17
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 1.85
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.92
HUB PILOT DIAMETER (INCH): 3.31
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 4.92
TOTAL HUB DIAMETER (MM): 125
TOTAL HUB HEIGHT (IN): 3.69
TOTAL HUB HEIGHT (MM): 93
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-424989
BCA: WE61648
BECK/ARNLEY: 051-6425
CENTRIC PARTS: 40144002E 40144002
FAG US: 102231
GSP: 694287
MEVOTECH: H513287
MOOG HUB ASSEMBLIES: 513287
NAPA: PBR930660

APPLICATIONS:
TOYOTA PRIUS (2010-2016)
LEXUS CT200H (2011-2017)
TOYOTA PRIUS C (2012-2016)
TOYOTA PRIUS PLUG-IN (2012-2015)
TOYOTA PRIUS V (2012-2016)
