THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

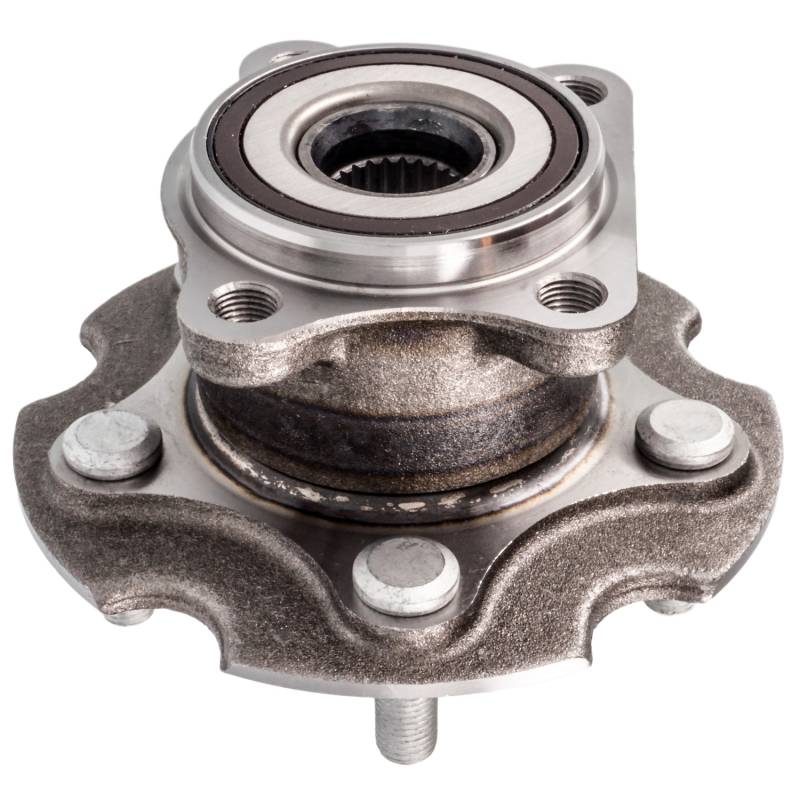

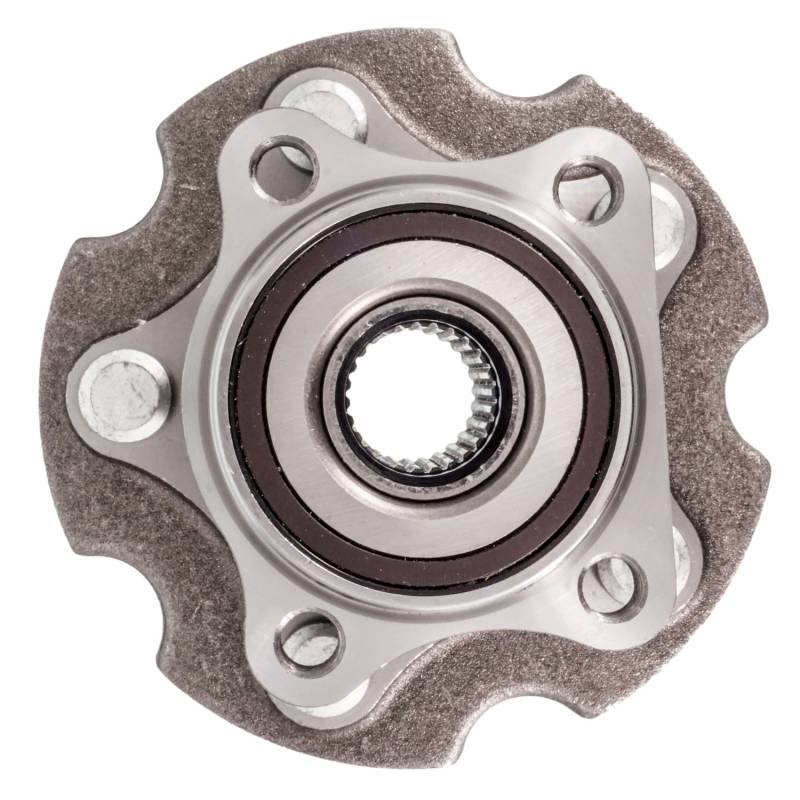

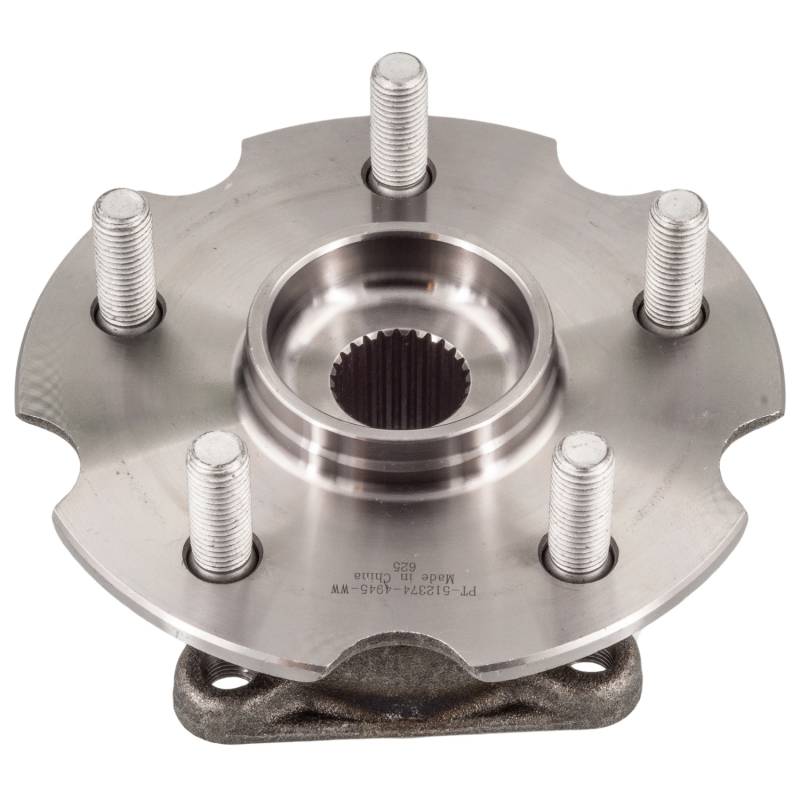

PRODUCT TYPE: HUB ASSEMBLY

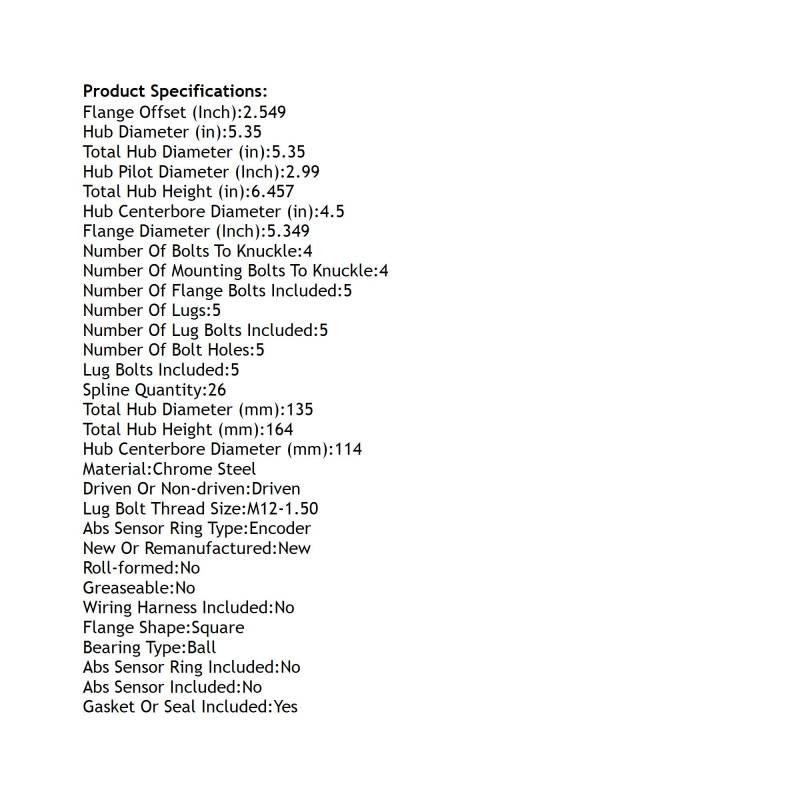

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 5.349
FLANGE OFFSET (INCH): 2.549
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 2.99
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 6.457
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-258930
BCA: WE61617
BECK/ARNLEY: 051-6261
CENTRIC PARTS: 40044009
FAG US: 102340
GSP: 693374
MEVOTECH: H512374
MOOG HUB ASSEMBLIES: 512374
NAPA: PBR930765
APPLICATIONS:
TOYOTA RAV4 (2006-2018)
LEXUS NX200T (2015-2017)
LEXUS NX300H (2015-2021)
LEXUS NX300 (2018-2021)
