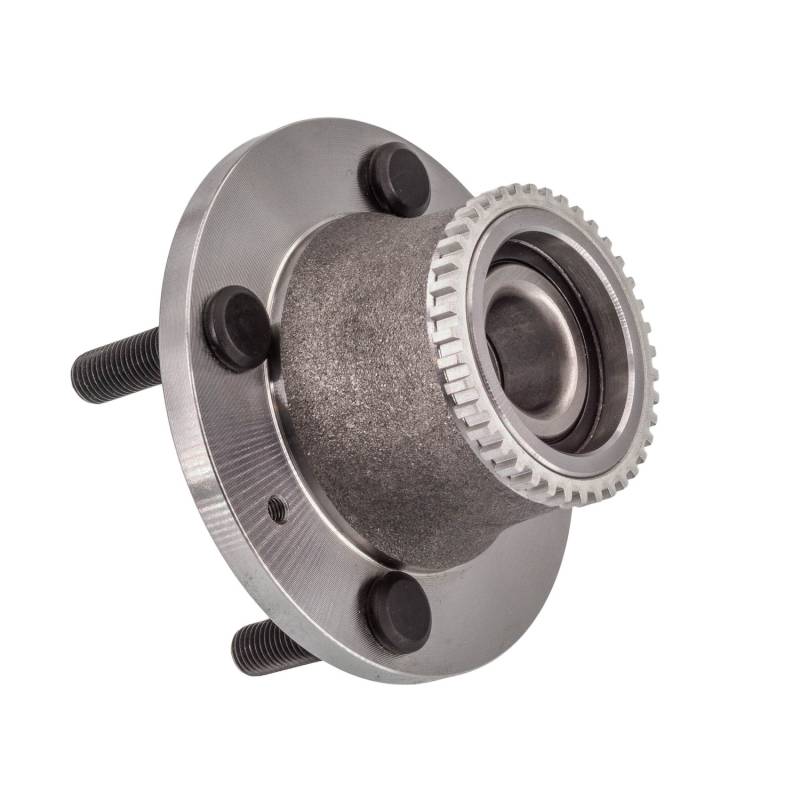

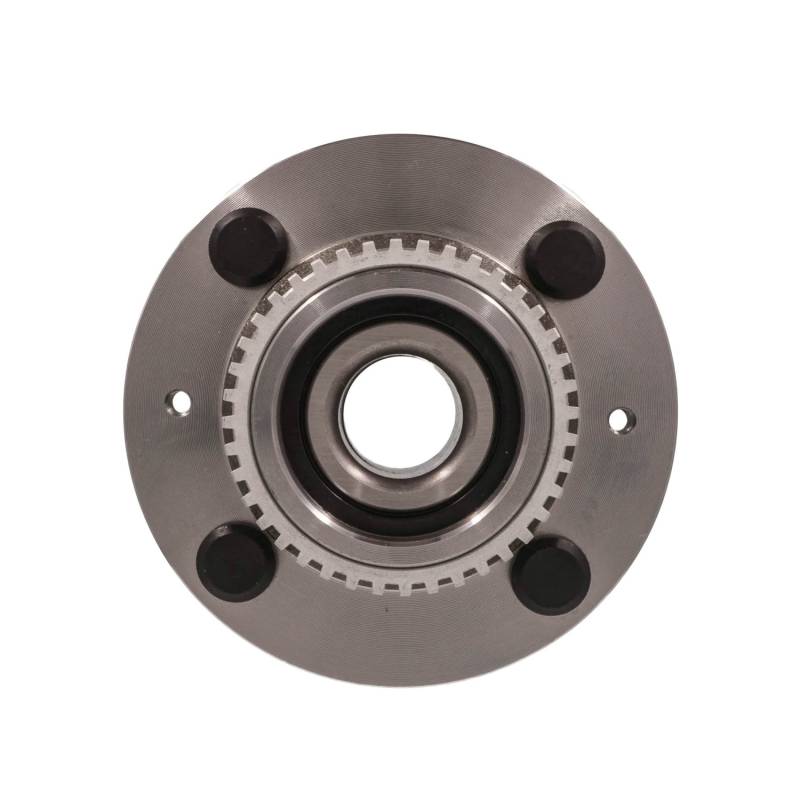

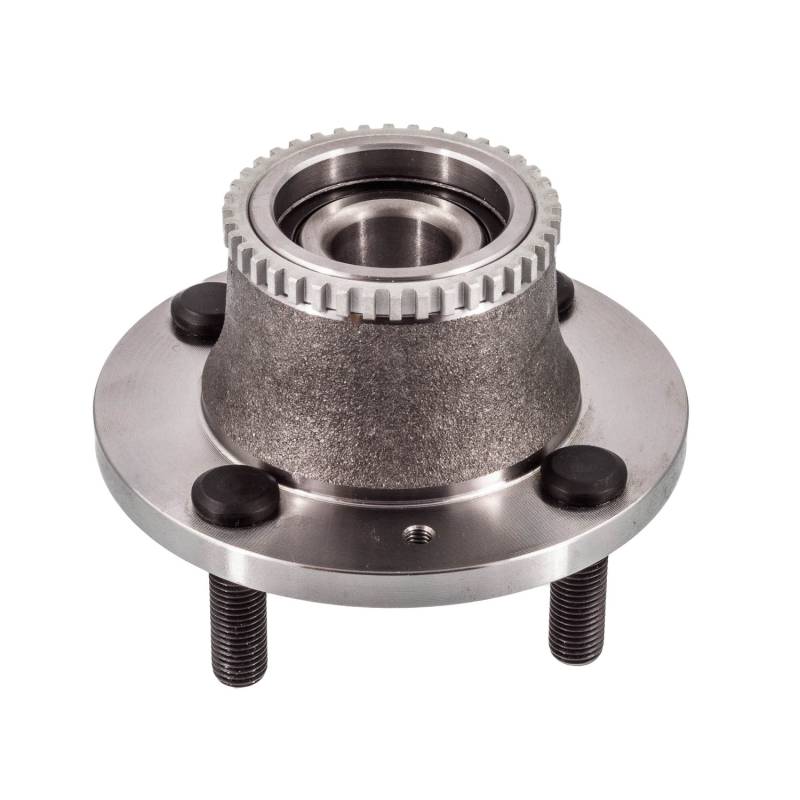

New Hub Assembly Compatible With Chevrolet Suzuki Pontiac Aveo Aveo5 Swift+ G3 Wave G3 1.6L 2004

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

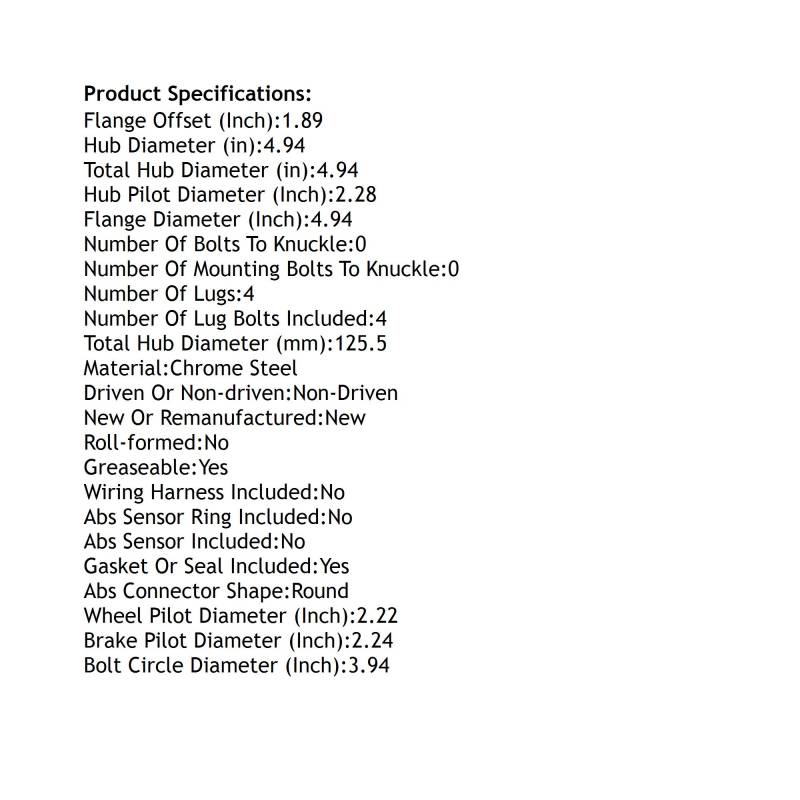

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BOLT CIRCLE DIAMETER (INCH): 3.94
BRAKE PILOT DIAMETER (INCH): 2.24
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 4.94
FLANGE OFFSET (INCH): 1.89
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB DIAMETER (IN): 4.94
HUB PILOT DIAMETER (INCH): 2.28
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 4.94
TOTAL HUB DIAMETER (MM): 125.5
WHEEL PILOT DIAMETER (INCH): 2.22
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT541009
SKF: GRW275
TIMKEN: HA590422
ACDELCO: RW20-90
AUTOPART INTERNATIONAL: 1411-423163
GENERAL MOTORS: 95903586
GSP: 102009
MEVOTECH: MB50303
MOOG HUB ASSEMBLIES: 541009

APPLICATIONS:
CHEVROLET AVEO (2004-2011)
CHEVROLET AVEO5 (2007-2011)
SUZUKI SWIFT+ (2008-2009)
PONTIAC G3 WAVE (2009-2009)
PONTIAC G3 (2009-2010)
