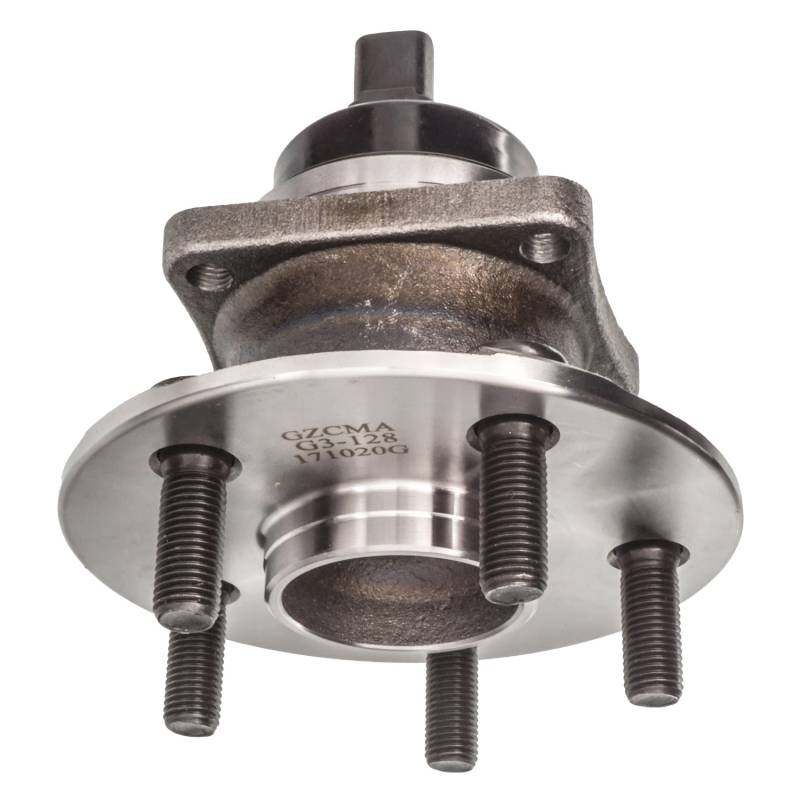

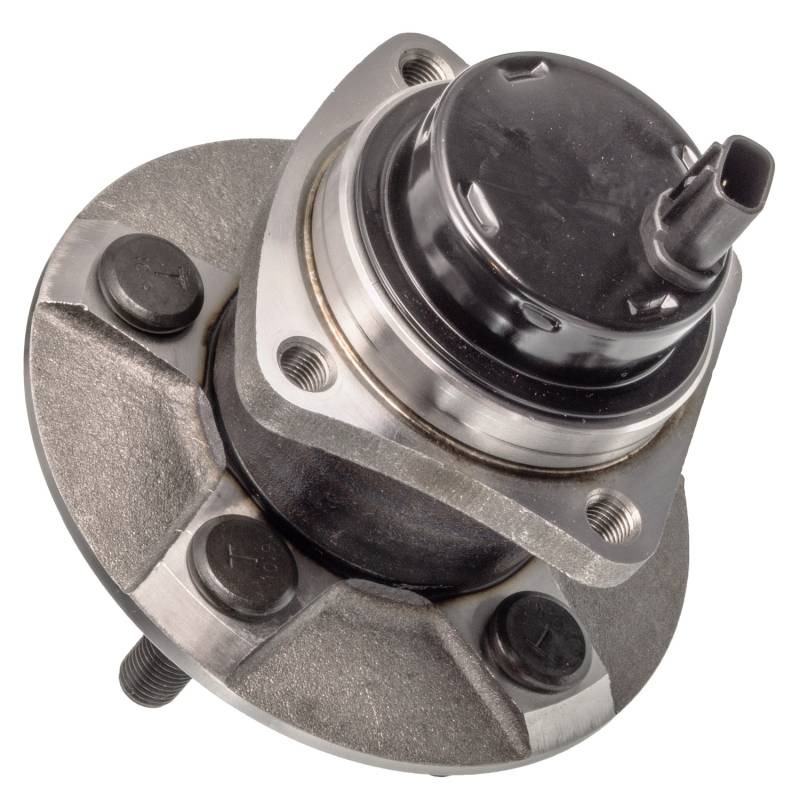

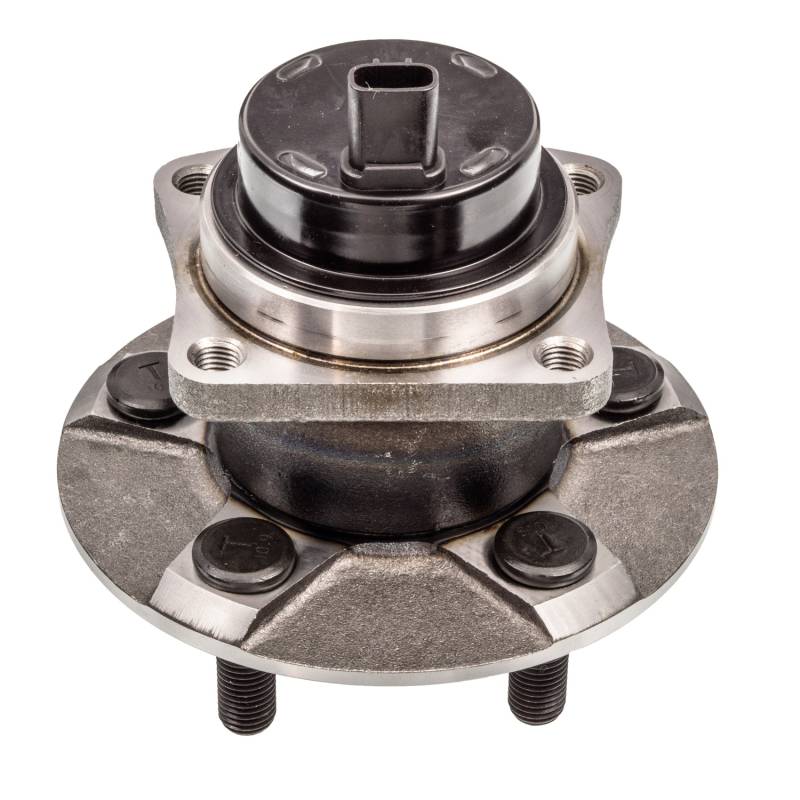

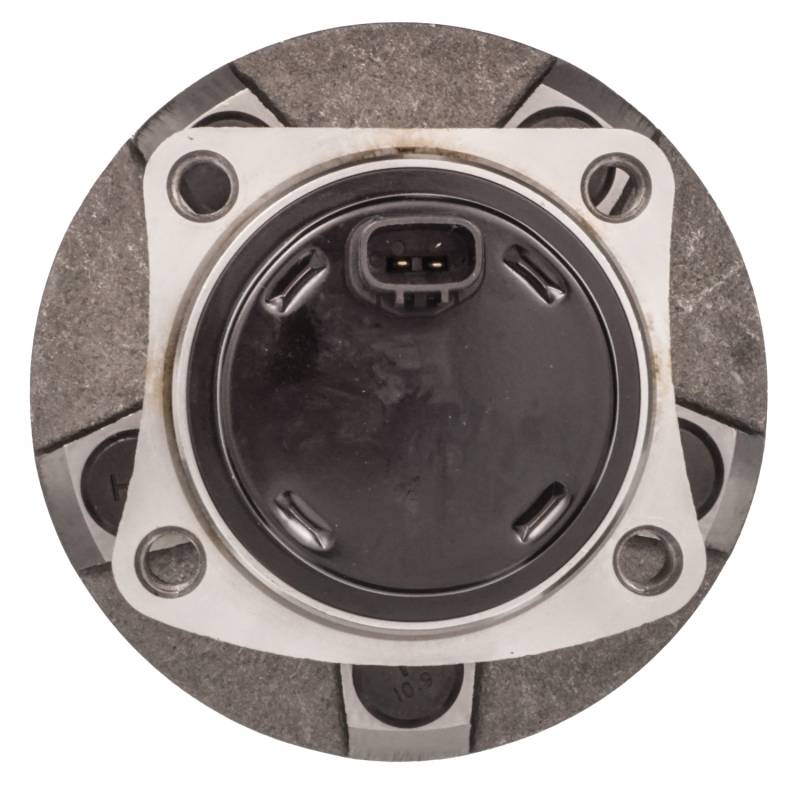

New Hub Assembly Compatible With Pontiac Toyota Vibe Corolla Matrix Prius 1.5L 1.8L 2003 2004 2005

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.209
FLANGE BOLT SIZE (MM): 30.7
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.165
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.315
HUB PILOT DIAMETER (INCH): 2.913
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.315
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 5.402
TOTAL HUB HEIGHT (MM): 137.2
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-77
AUTOPART INTERNATIONAL: 1411-49103
BCA: WE60791
BECK/ARNLEY: 051-6160
CENTRIC PARTS: 40744012
FAG US: 102217 102503
GENERAL MOTORS: 88970098
GSP: 103217
MEVOTECH: H512217
MOOG HUB ASSEMBLIES: 512217
NAPA: PBR930310

APPLICATIONS:
PONTIAC VIBE (2003-2008)
TOYOTA COROLLA (2003-2008)
TOYOTA MATRIX (2003-2008)
TOYOTA PRIUS (2004-2009)
