THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

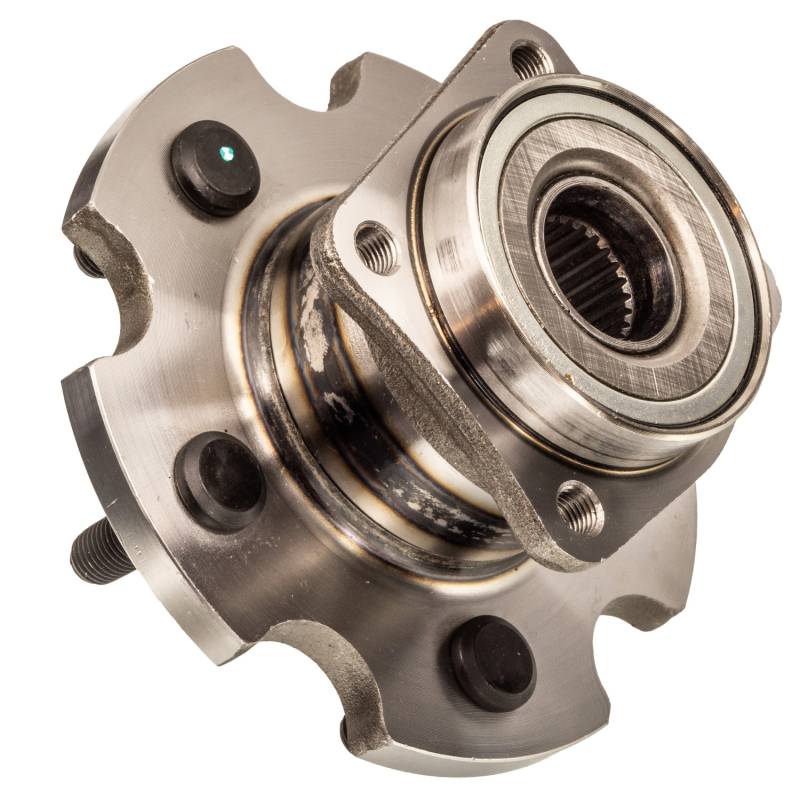

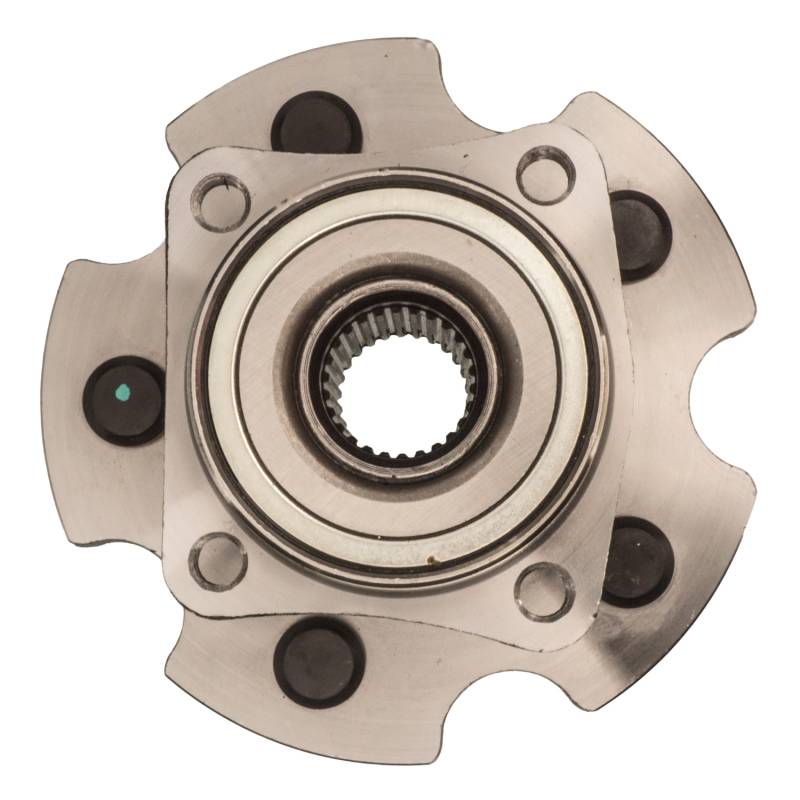

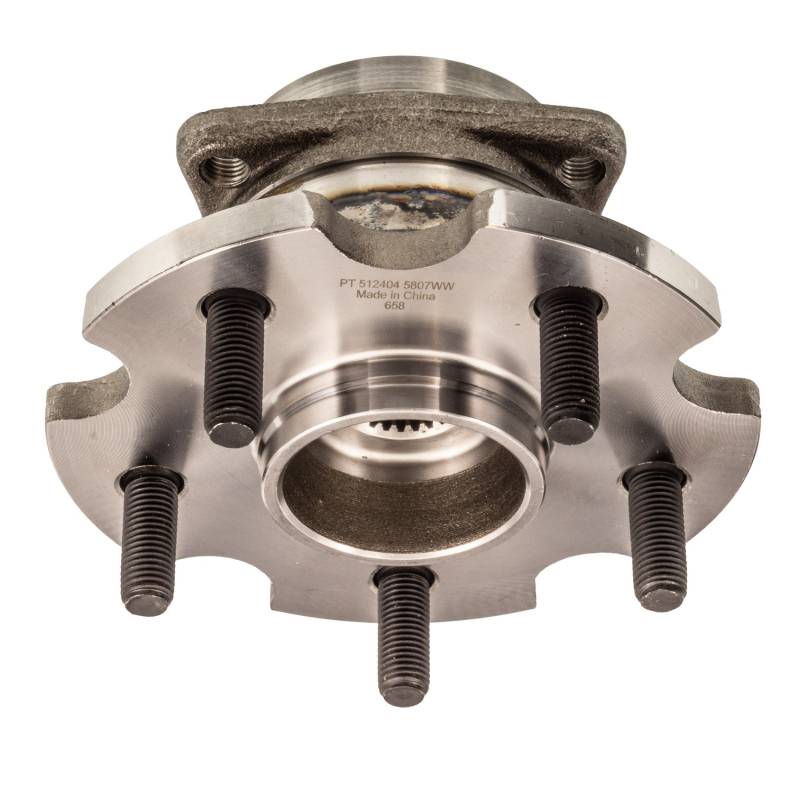

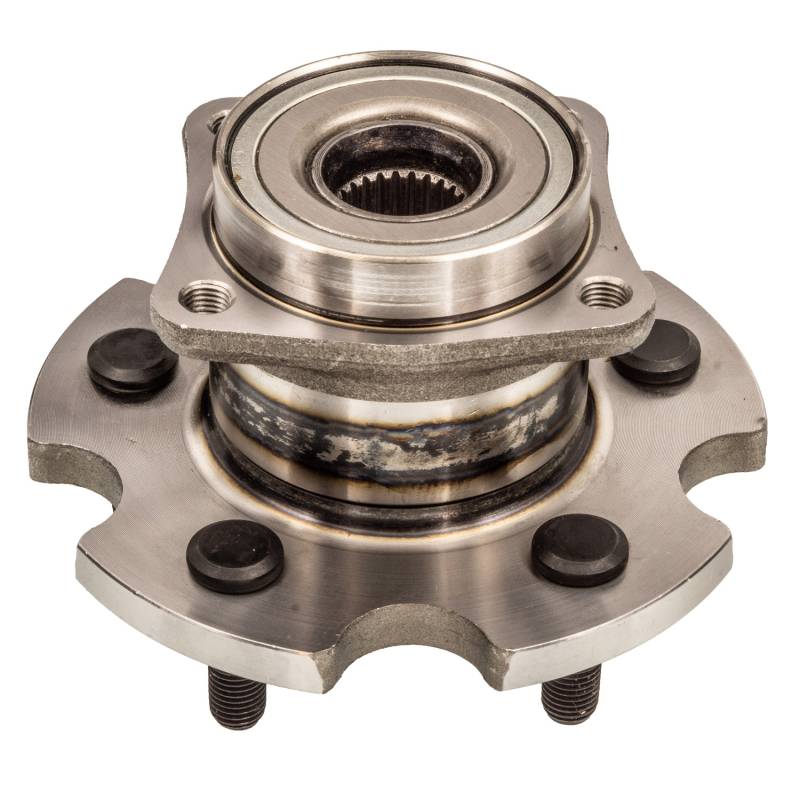

PRODUCT TYPE: HUB ASSEMBLY

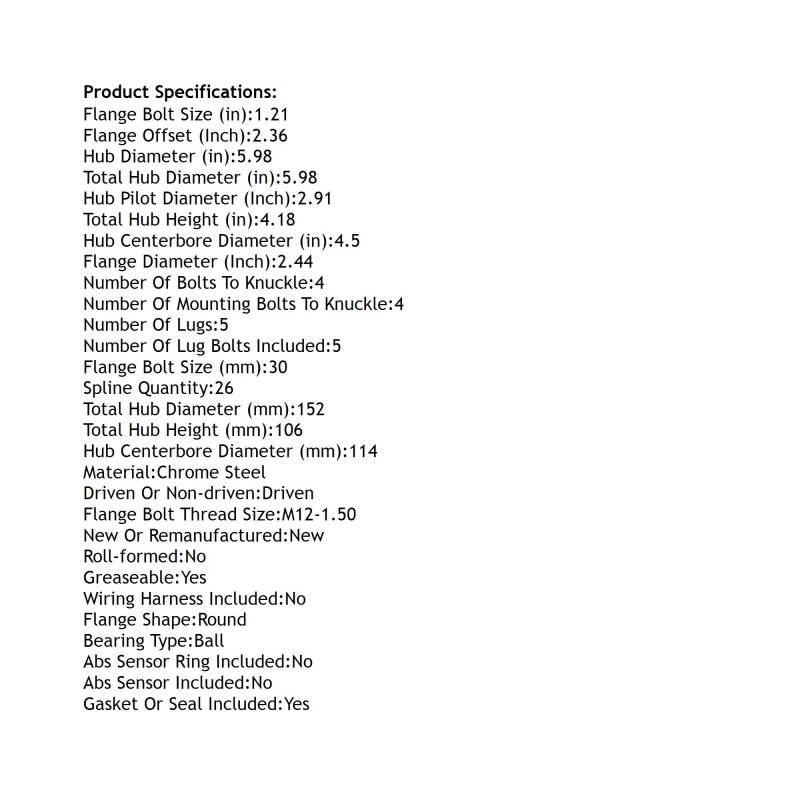

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.21
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.44
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 2.91
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.98
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 4.18
TOTAL HUB HEIGHT (MM): 106
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: RW20-116
AUTOPART INTERNATIONAL: 1411-424985
BCA: WE61489
BECK/ARNLEY: 051-6331
CENTRIC PARTS: 40044000
FAG US: 102280
GENERAL MOTORS: 19184275
GSP: 103404
MEVOTECH: H512404
MOOG HUB ASSEMBLIES: 512404
NAPA: PBR930717
APPLICATIONS:
PONTIAC VIBE (2009-2010)
TOYOTA MATRIX (2009-2013)
