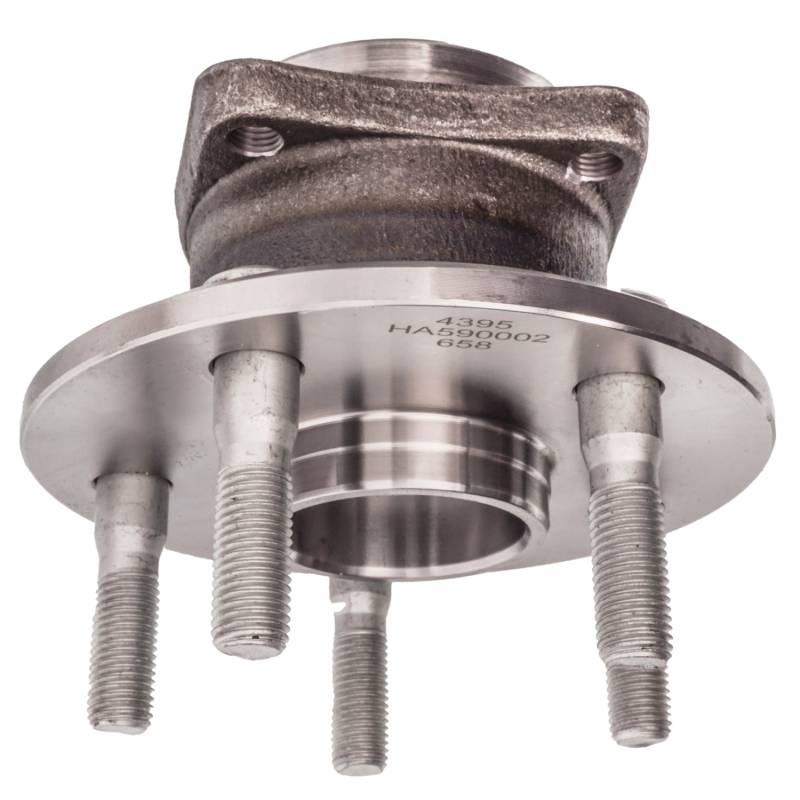

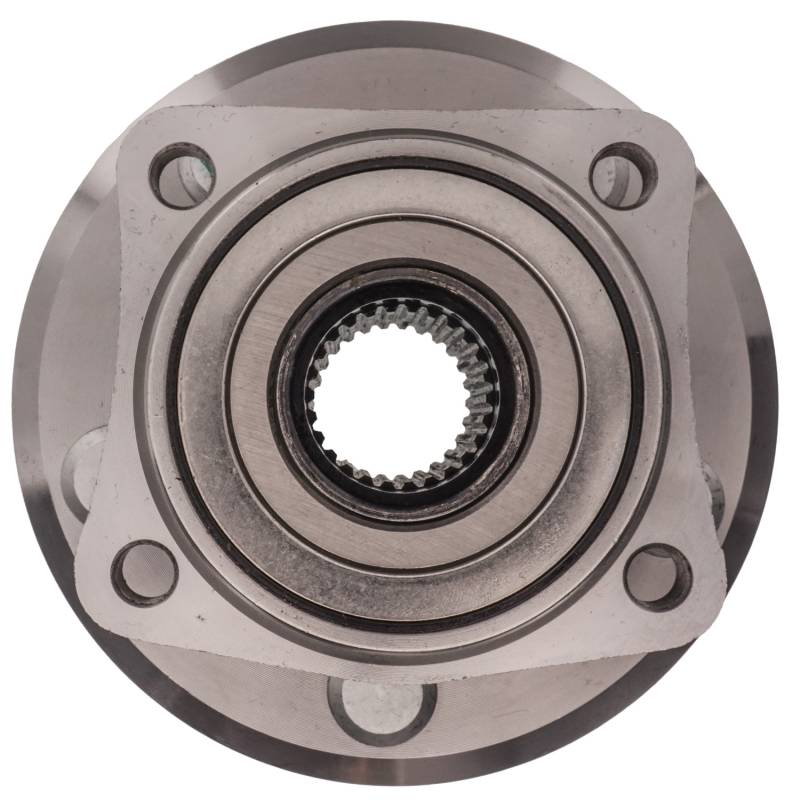

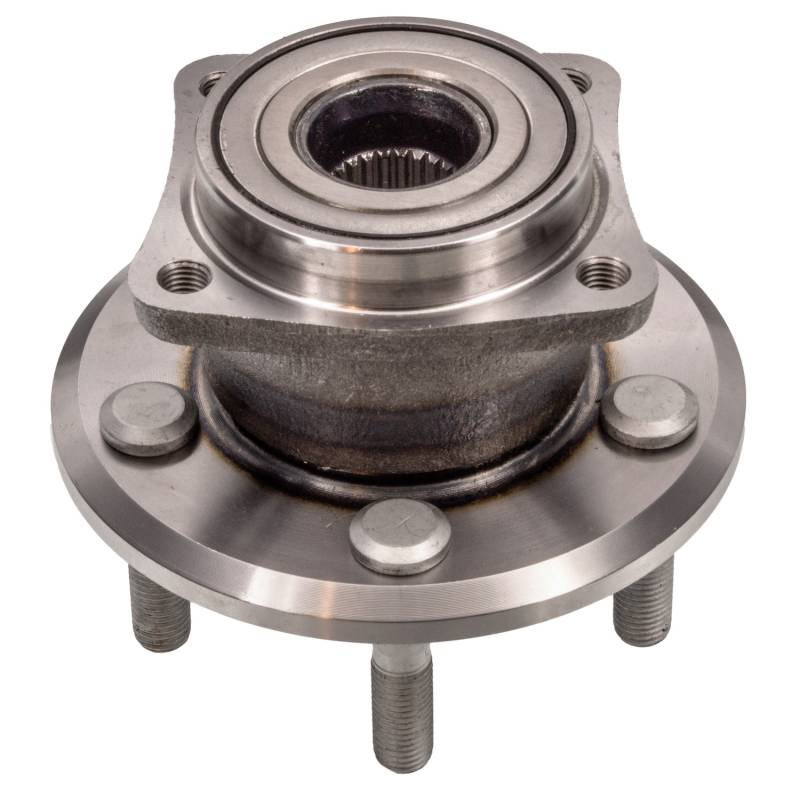

New Hub Assembly Compatible With Pontiac Toyota Vibe Matrix 1.8L 2003 2004 2005 2006 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.77
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 2.15
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.31
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.31
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 4.45
TOTAL HUB HEIGHT (MM): 113
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-64
AUTOPART INTERNATIONAL: 1411-09878
BCA: WE61391
BECK/ARNLEY: 051-6333
CENTRIC PARTS: 40044007E
FAG US: 102289
GENERAL MOTORS: 88970102
GSP: 693512
MEVOTECH: MB86301
MOOG HUB ASSEMBLIES: 512512
NAPA: PBR930920

APPLICATIONS:
PONTIAC VIBE (2003-2006)
TOYOTA MATRIX (2003-2006)
