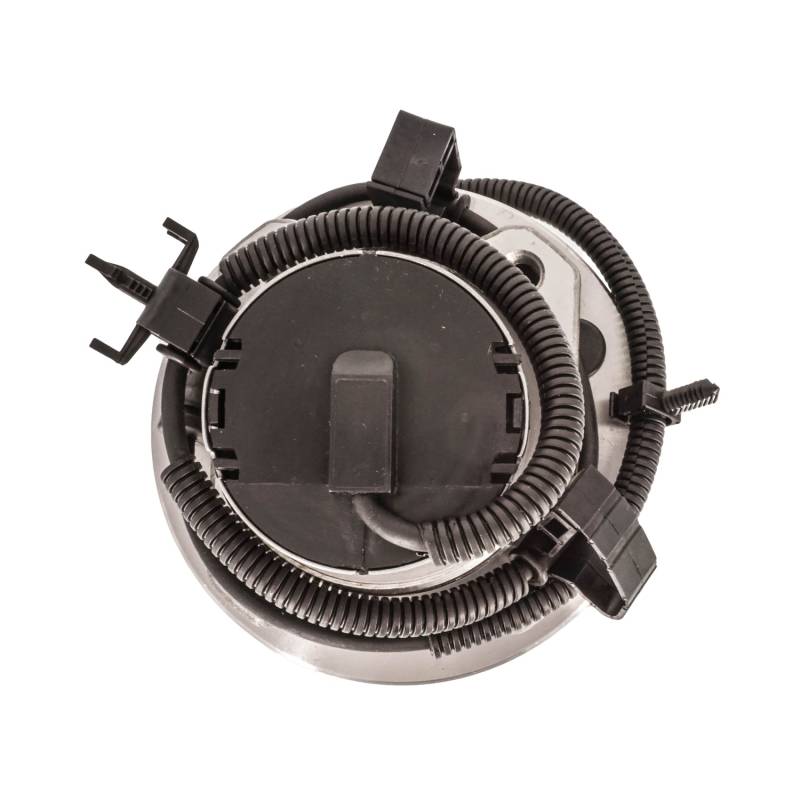

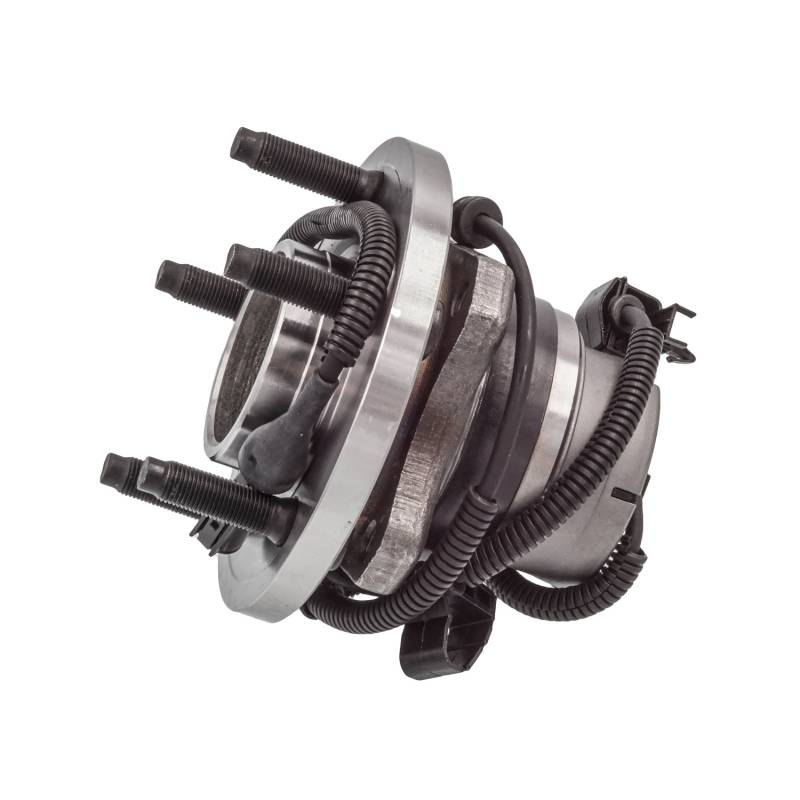

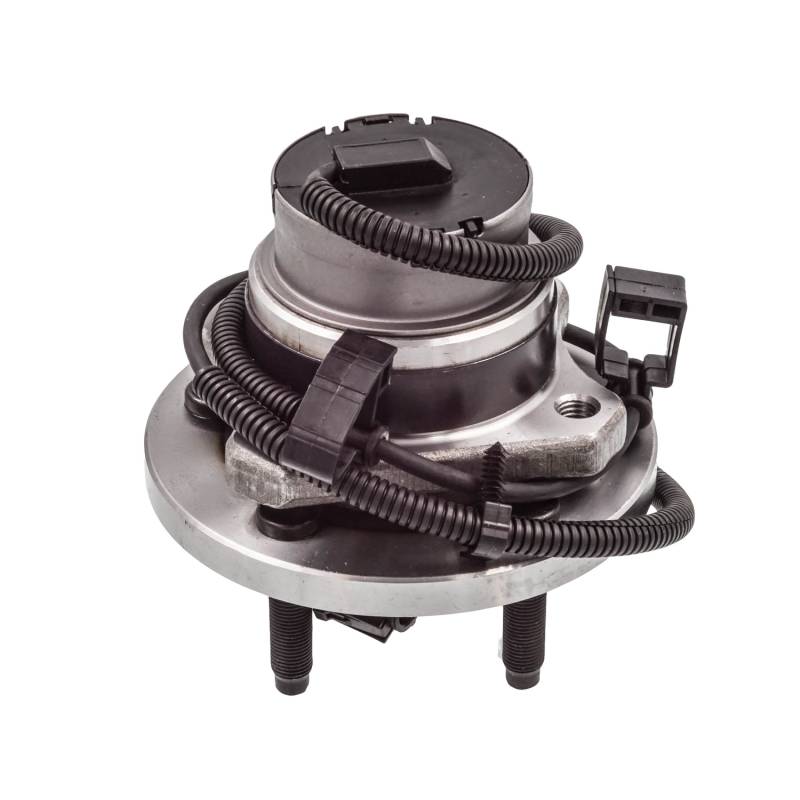

New Hub Assembly Compatible With Ford Mercury Lincoln Crown Victoria Grand Marquis Town Car 4.6L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.244
ABS SENSOR RING DIAMETER (MM): 57
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.748
FLANGE BOLT SIZE (MM): 44.4
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.819
FLANGE OFFSET (INCH): 1.476
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.953
HUB PILOT DIAMETER (INCH): 3.524
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.953
TOTAL HUB DIAMETER (MM): 151.2
TOTAL HUB HEIGHT (IN): 5.984
TOTAL HUB HEIGHT (MM): 152
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 46.457

REPLACES:
AUTOPART INTERNATIONAL: 1411-202794
BCA: WE60903
CENTRIC PARTS: 40761000E
FAG US: 102460
FORD: 7W1Z 1104 A H2MZ 1104 X
GSP: 114230
MEVOTECH: H513230
MOOG HUB ASSEMBLIES: 513230
MOTORCRAFT: HUB35 NHUB63 PT513230
NAPA: PBR930506

APPLICATIONS:
FORD CROWN VICTORIA (2005-2011)
MERCURY GRAND MARQUIS (2005-2011)
LINCOLN TOWN CAR (2006-2011)
