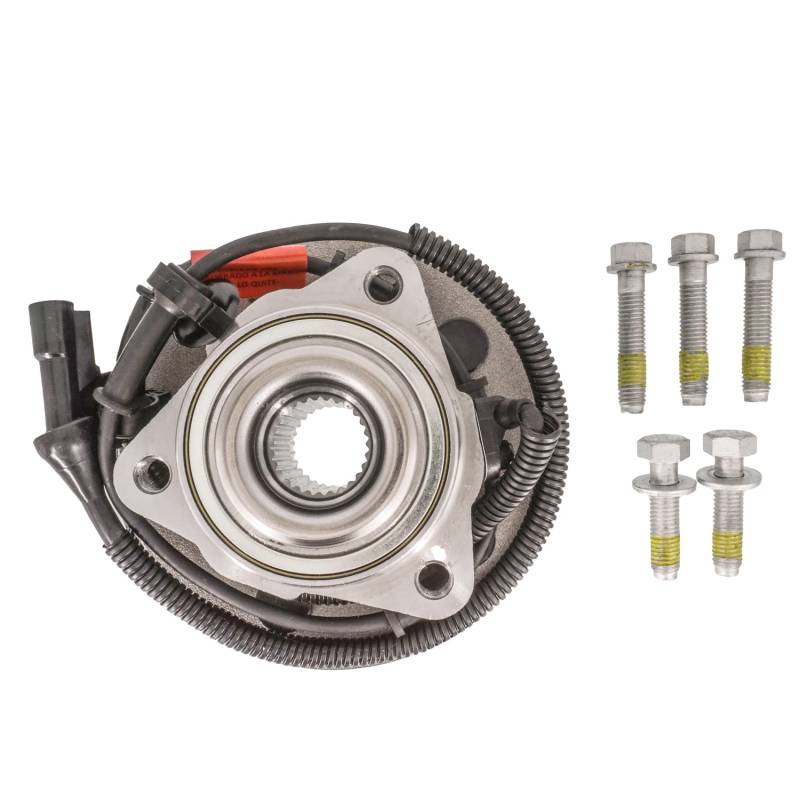

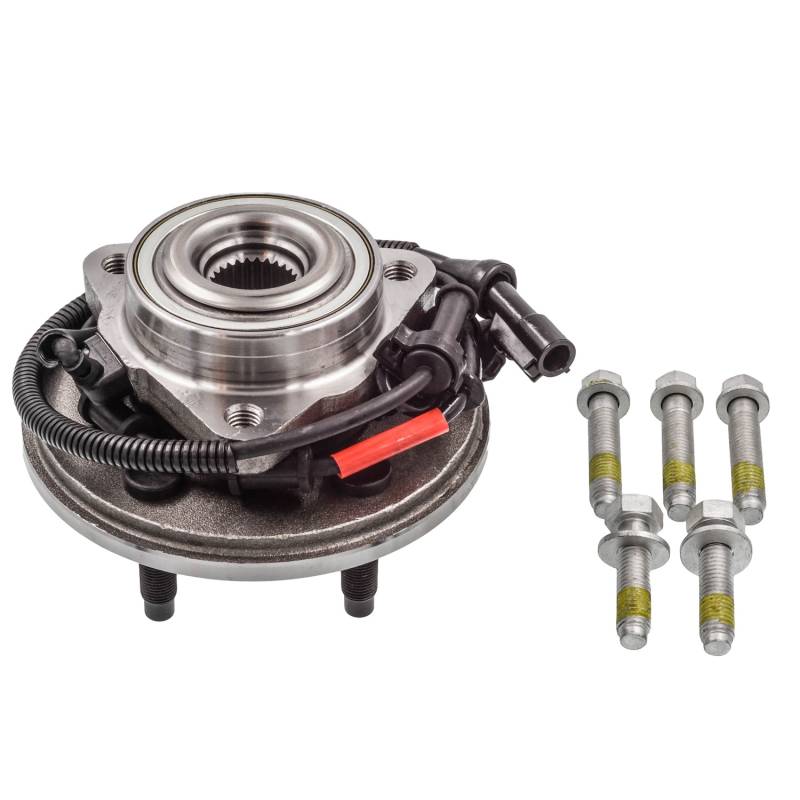

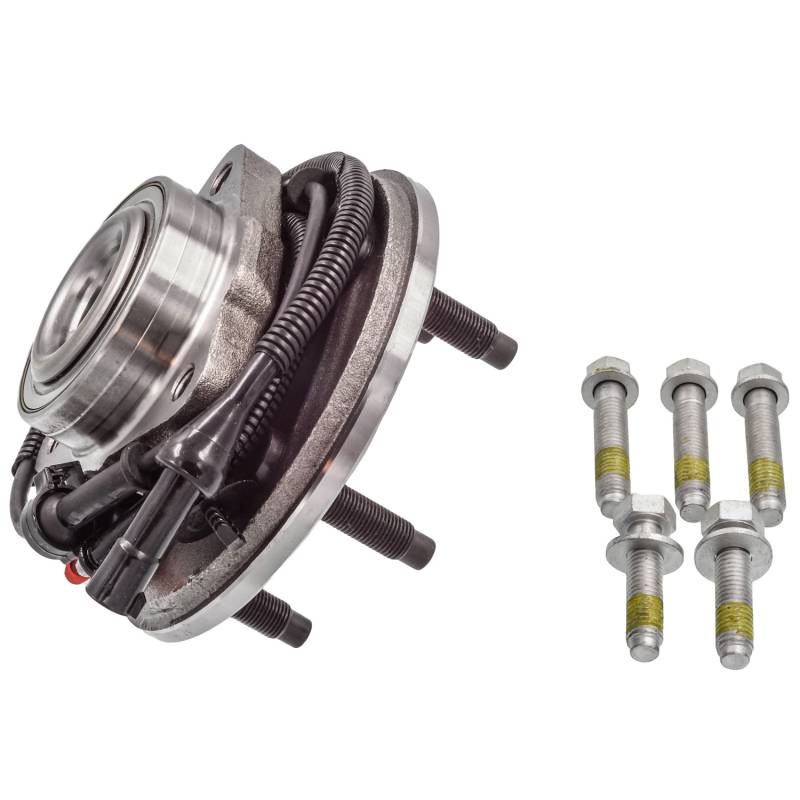

New Hub Assembly Compatible With Ford Mercury Lincoln Explorer Sport Trac Explorer Sport Explorer

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.65
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 3.22
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: TRIANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 6.3
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLT THREAD SIZE: 43832
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.3
TOTAL HUB DIAMETER (MM): 160
TOTAL HUB HEIGHT (IN): 4.57
TOTAL HUB HEIGHT (MM): 116
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 43.688

REPLACES:
AUTOPART INTERNATIONAL: 1411-49107
BCA: WE60726
CENTRIC PARTS: 40265009
FAG US: 102001
FORD: G2MZ 1104 AE H2MZ 1104 Q
GSP: 116050HD
MEVOTECH: H515050
MOOG HUB ASSEMBLIES: 515050
MOTORCRAFT: NHUB-30 NHUB30 NHUB85
NAPA: PBR930456

APPLICATIONS:
FORD EXPLORER SPORT TRAC (2002-2005)
FORD EXPLORER SPORT (2002-2003)
FORD EXPLORER (2002-2005)
MERCURY MOUNTAINEER (2002-2005)
LINCOLN AVIATOR (2003-2005)
