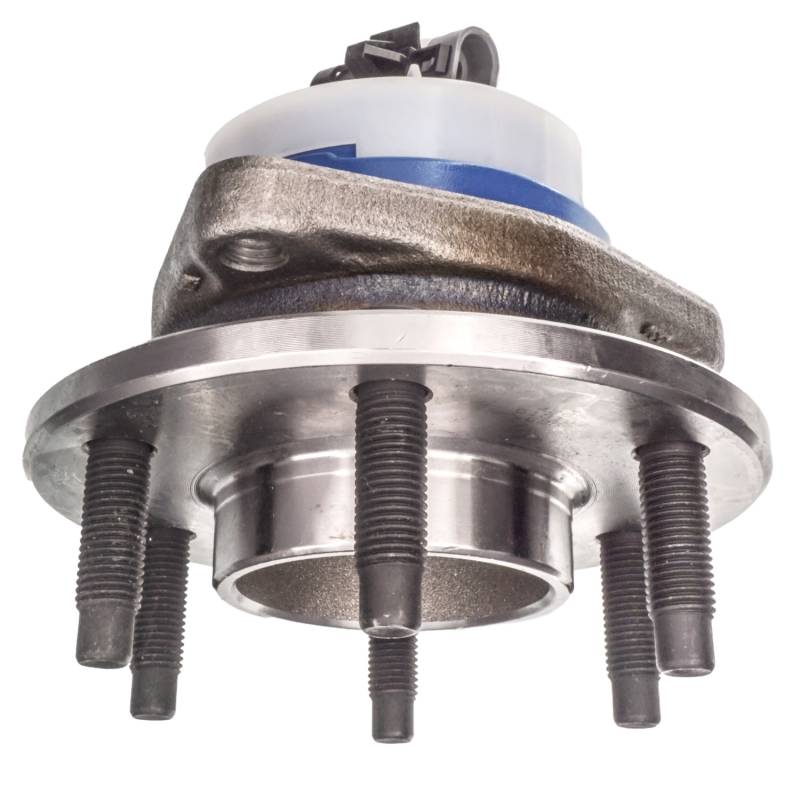

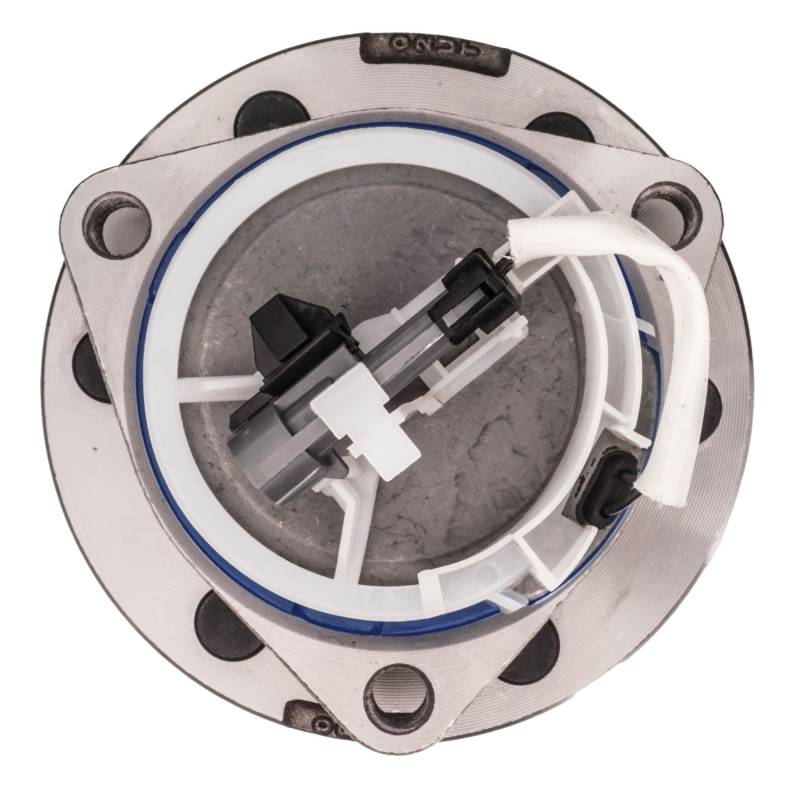

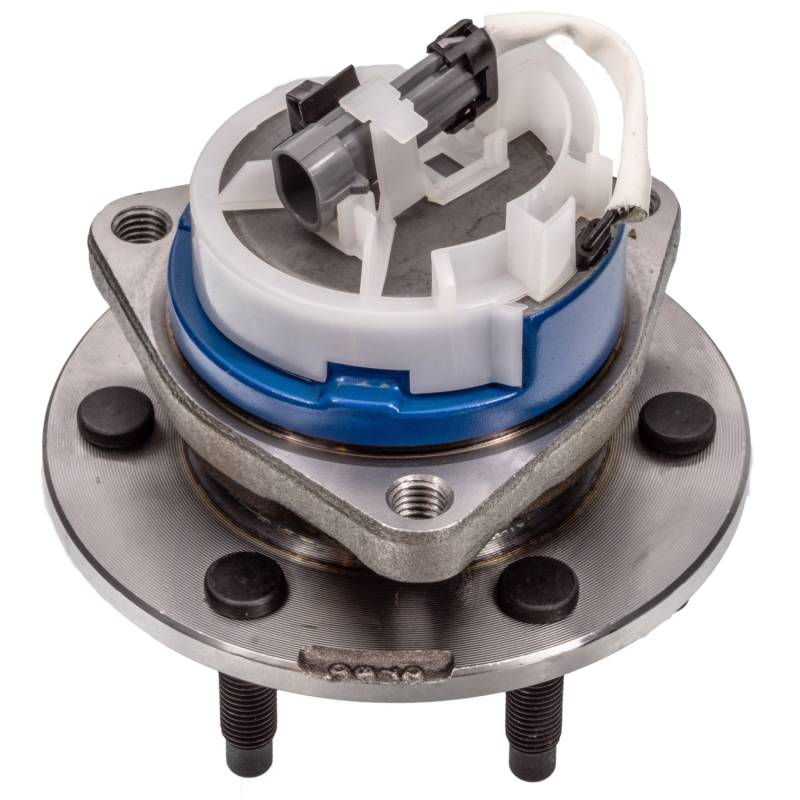

New Hub Assembly Compatible With Cadillac Buick Chevrolet Pontiac Cts Srx Sts Terraza Uplander

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

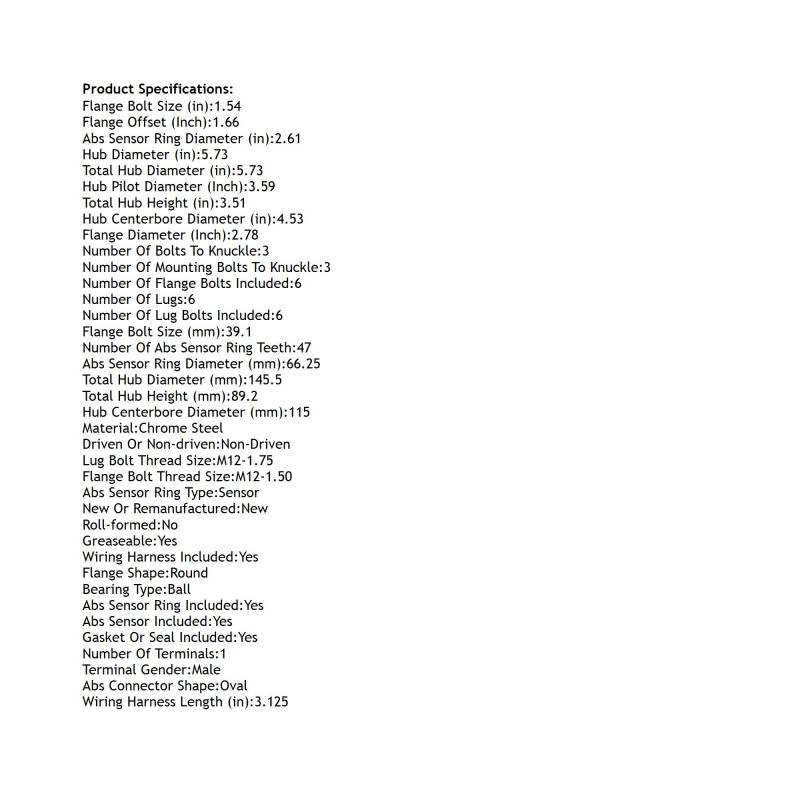

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.61
ABS SENSOR RING DIAMETER (MM): 66.25
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39.1
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.66
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 3.51
TOTAL HUB HEIGHT (MM): 89.2

REPLACES:
ACDELCO: RW20-83 FW149
AUTOPART INTERNATIONAL: 1411-44702
BCA: WE61042
CENTRIC PARTS: 40762017
FAG US: 102267 122210
GENERAL MOTORS: 10368309 12413103
GSP: 104197
MEVOTECH: H513197
MOOG HUB ASSEMBLIES: 513197
NAPA: PBR930313

APPLICATIONS:
CADILLAC CTS (2004-2007)
CADILLAC SRX (2004-2009)
CADILLAC STS (2005-2011)
BUICK TERRAZA (2006-2007)
CHEVROLET UPLANDER (2006-2009)
PONTIAC MONTANA (2007-2009)
