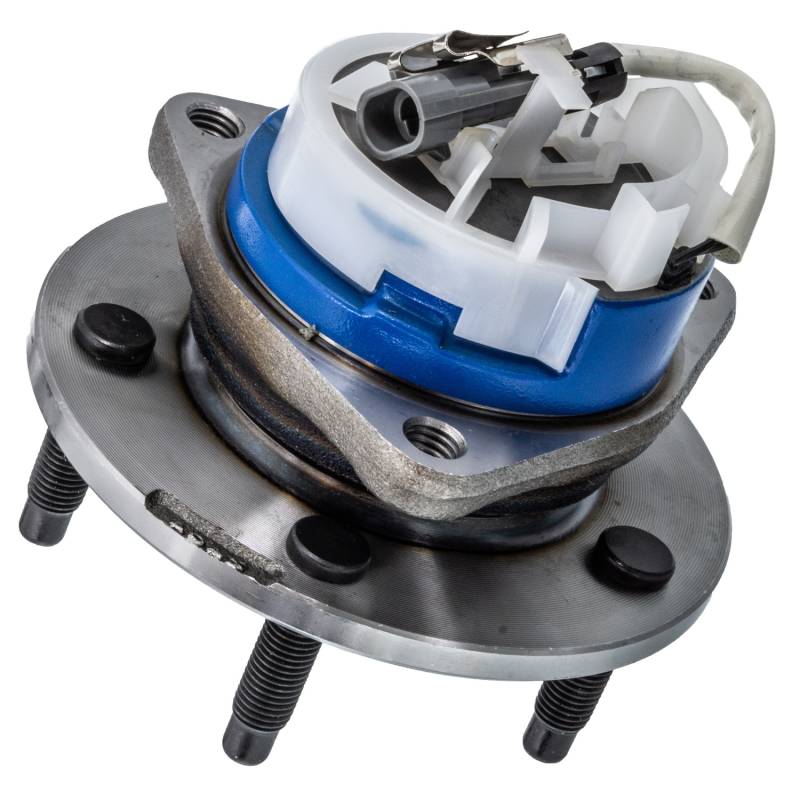

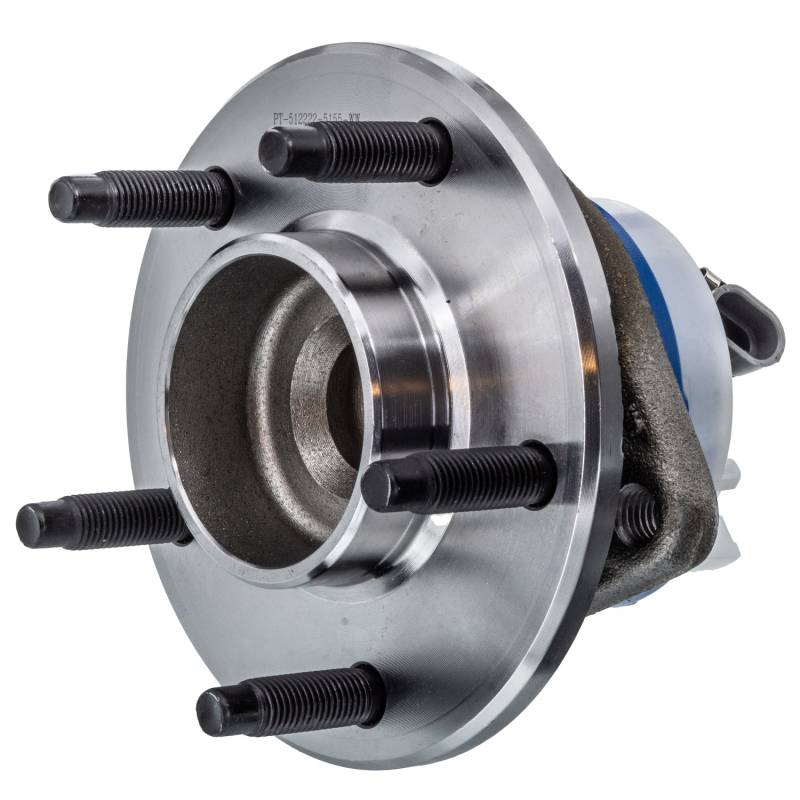

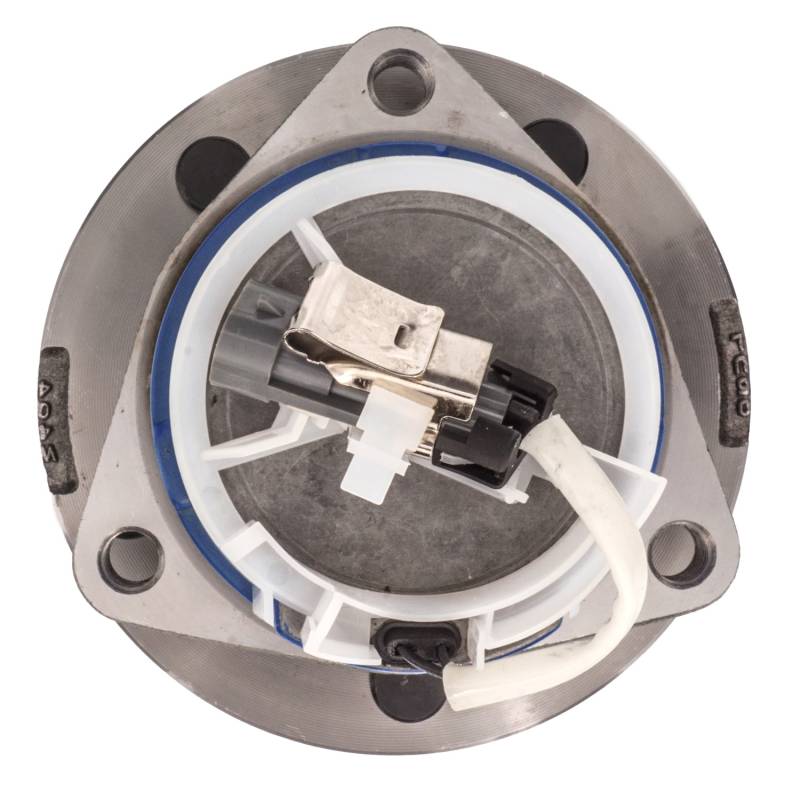

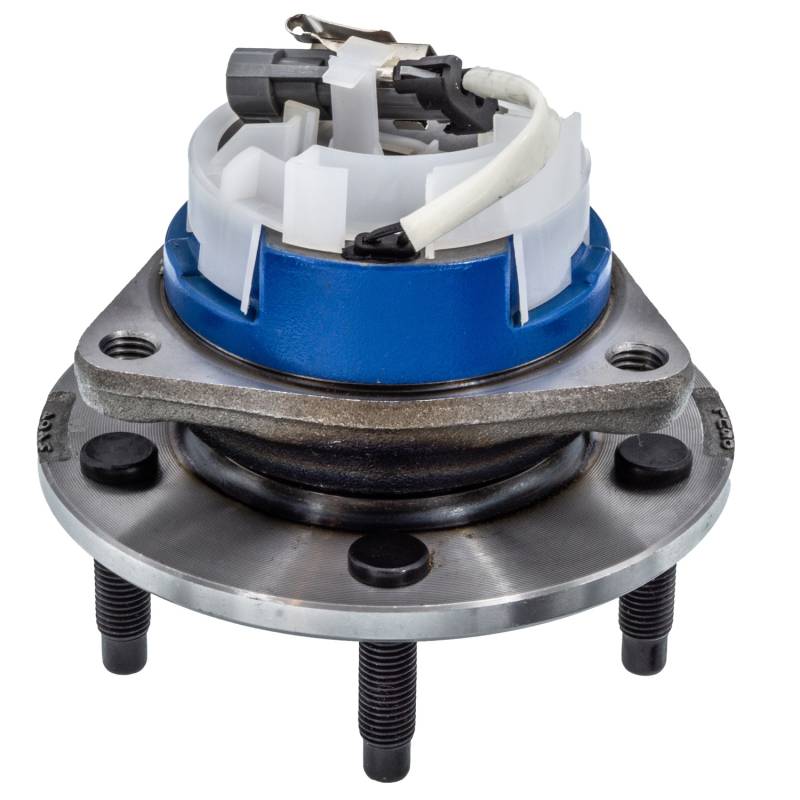

New Hub Assembly Compatible With Cadillac Buick Chevrolet Pontiac Saturn Cts Terraza Uplander

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

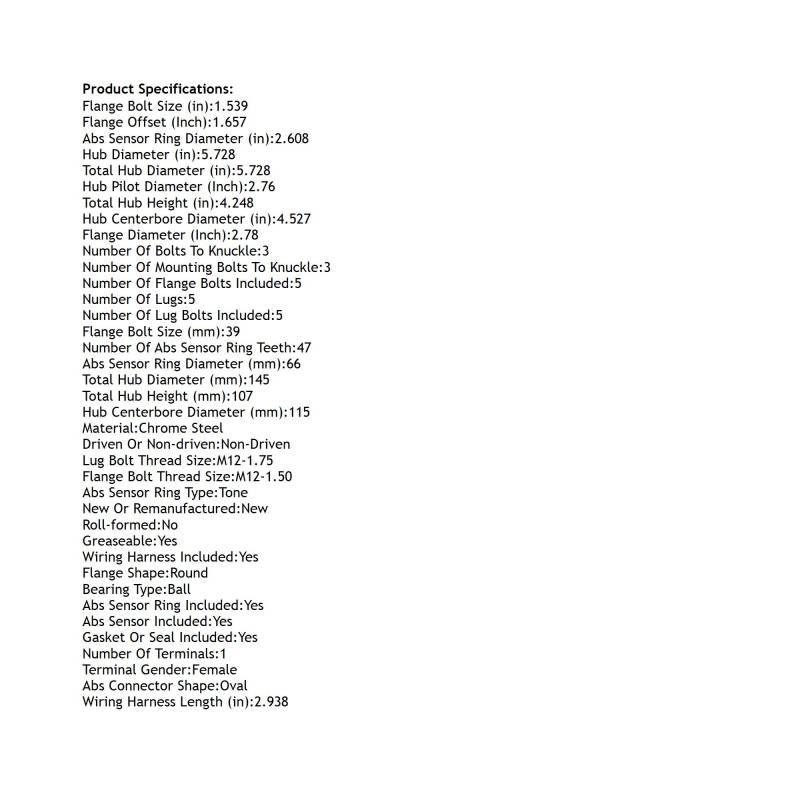

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.608
ABS SENSOR RING DIAMETER (MM): 66
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.539
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.657
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.527
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 2.76
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.248
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 2.938

REPLACES:
ACDELCO: RW20-112
AUTOPART INTERNATIONAL: 1411-246654
BCA: WE61335
CENTRIC PARTS: 40762004
FAG US: 102262
GENERAL MOTORS: 88964105
GSP: 103246
MEVOTECH: H512246
MOOG HUB ASSEMBLIES: 512246
NAPA: PBR930608

APPLICATIONS:
CADILLAC CTS (2003-2007)
BUICK TERRAZA (2005-2005)
CHEVROLET UPLANDER (2005-2005)
PONTIAC MONTANA (2005-2005)
SATURN RELAY (2005-2007)
