THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

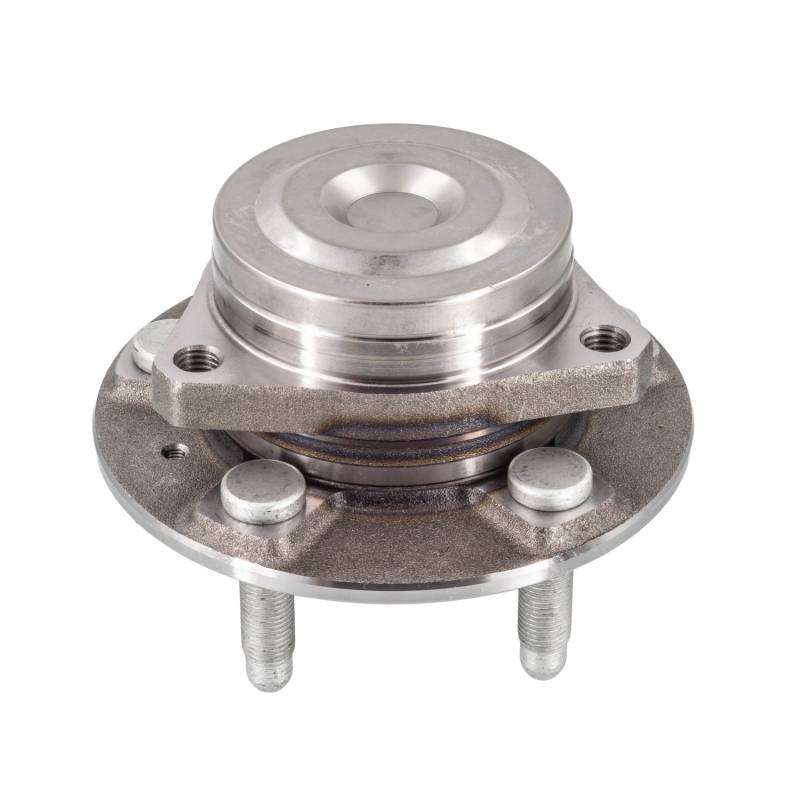

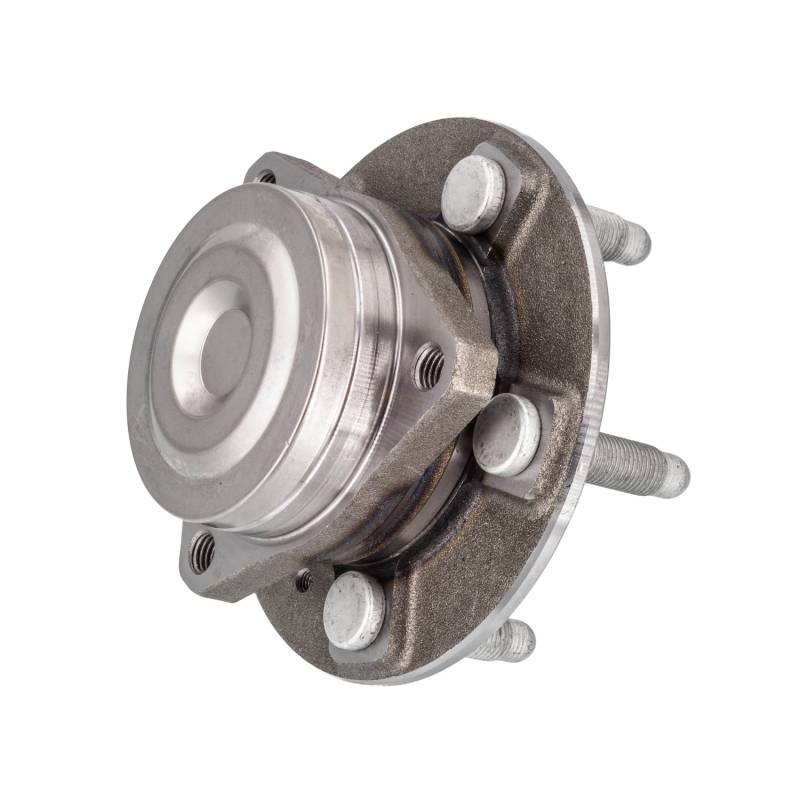

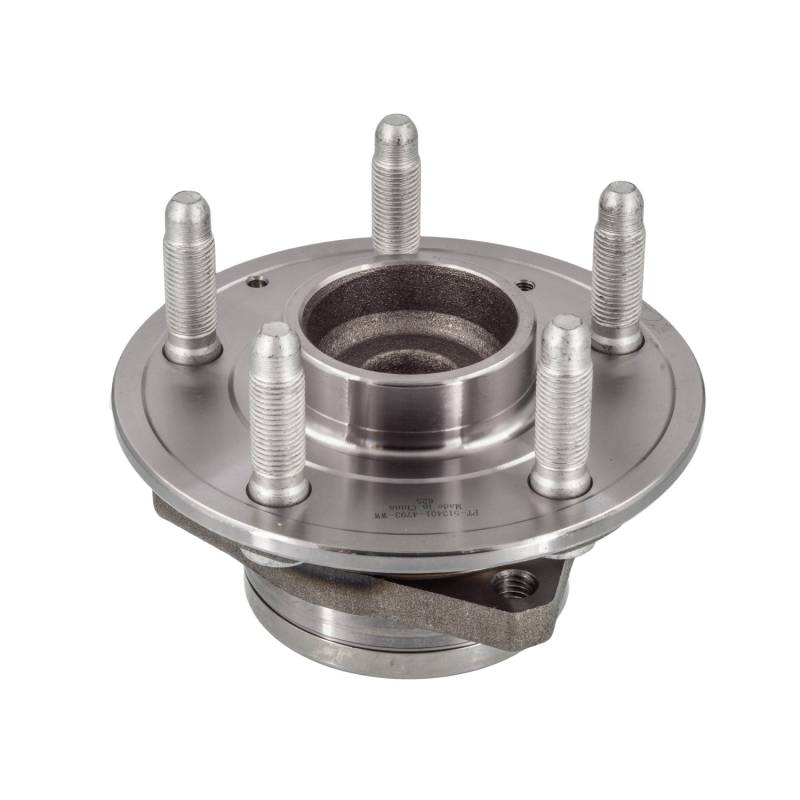

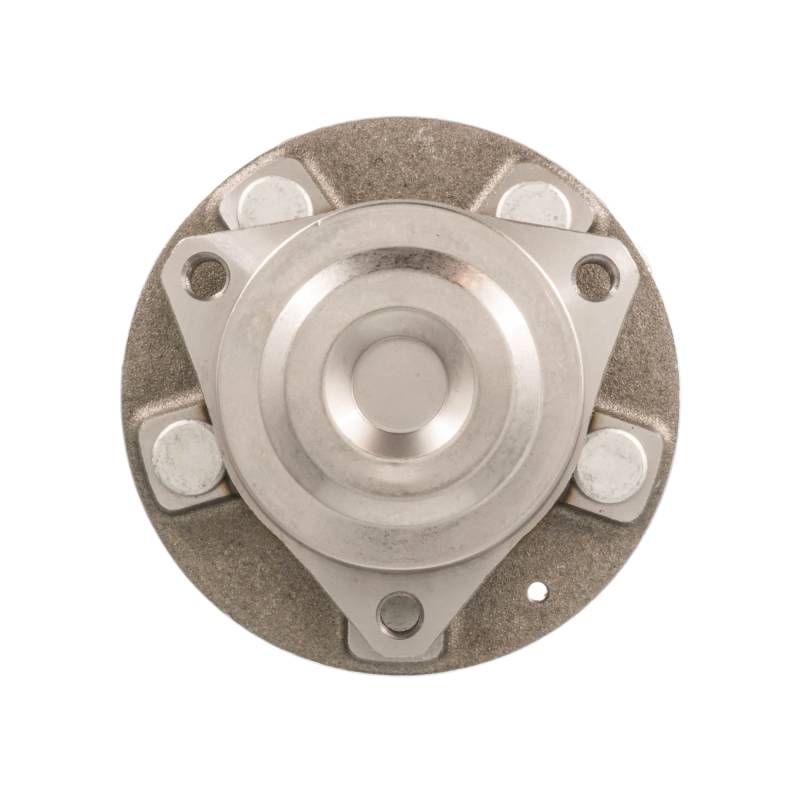

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.831
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.181
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 6.181
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 4.535
TOTAL HUB HEIGHT (MM): 115
REPLACES:
AUTOPART INTERNATIONAL: 1411-605227
MOOG HUB ASSEMBLIES: 513401
APPLICATIONS:
CADILLAC ATS (2016-2019)
CADILLAC CT6 (2016-2019)
CADILLAC CTS (2016-2019)
CHEVROLET CAMARO (2016-2021)
BUICK ENVISION (2019-2023)
