THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

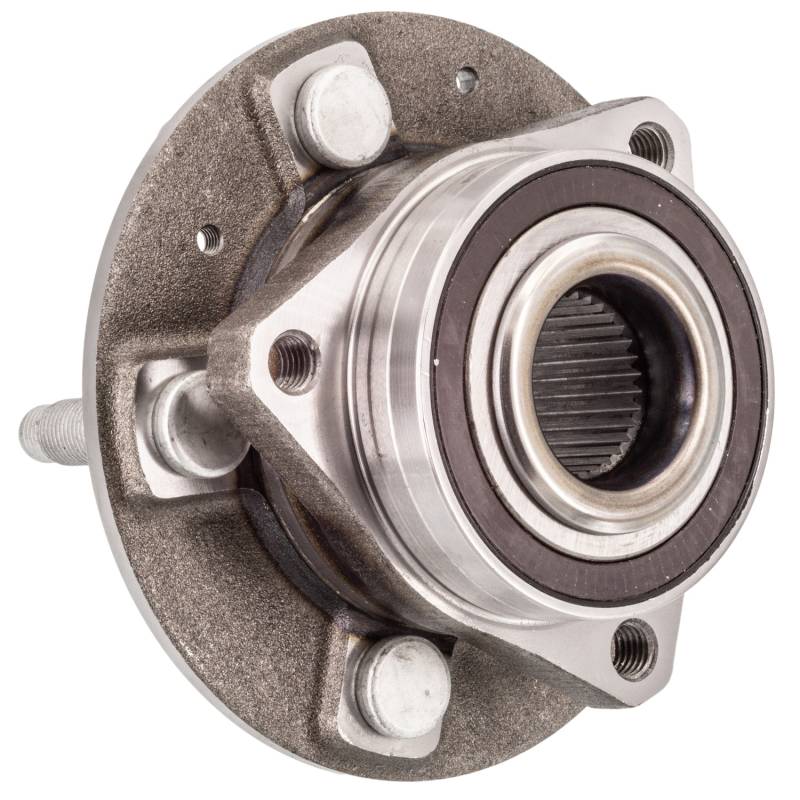

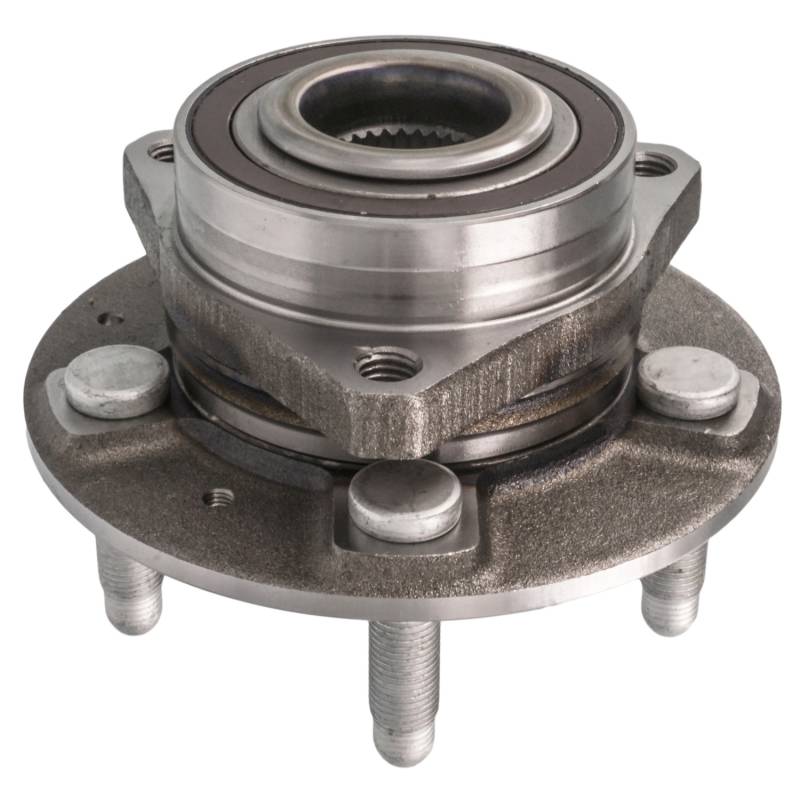

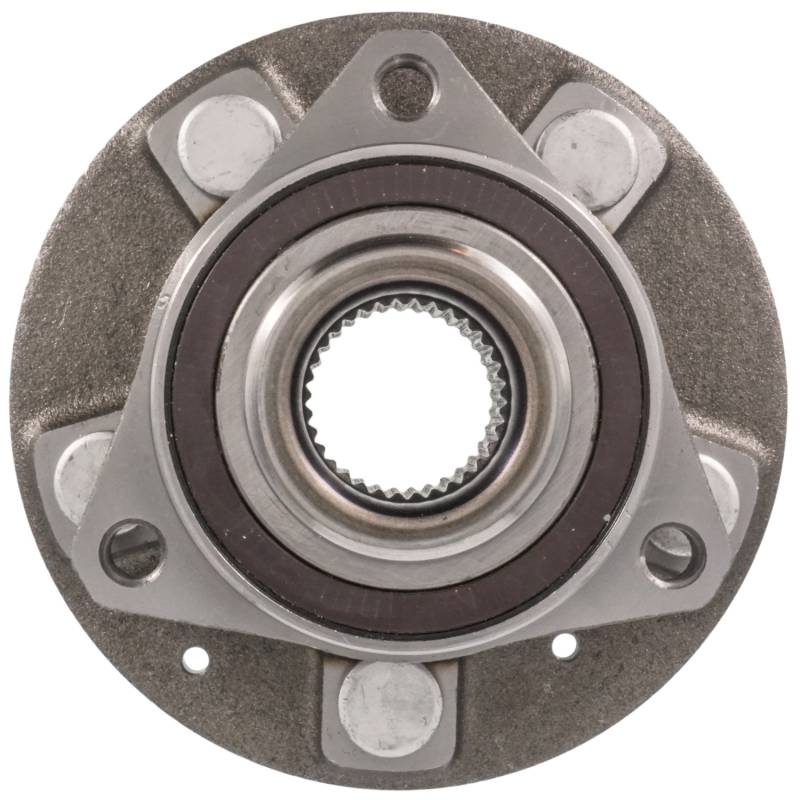

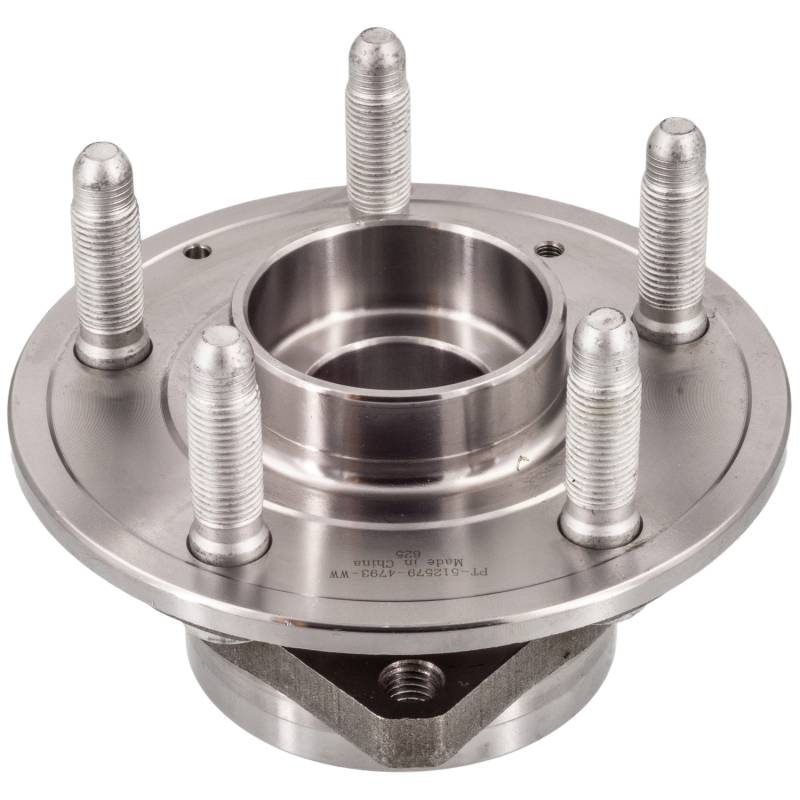

PRODUCT TYPE: HUB ASSEMBLY

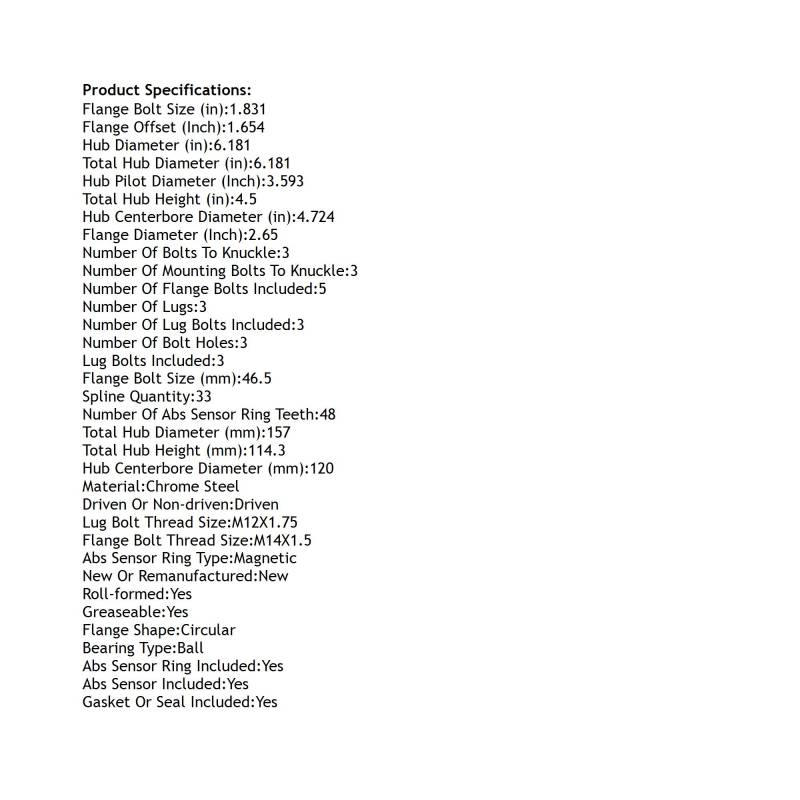

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.831
FLANGE BOLT SIZE (MM): 46.5
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.181
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 6.181
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 4.5
TOTAL HUB HEIGHT (MM): 114.3
REPLACES:
ACDELCO: 13544843 RW20-178 FW469
AUTOPART INTERNATIONAL: 1411-605226
COAST TO COAST: 900019
GENERAL MOTORS: 13512894
GSP: 100007
MOOG HUB ASSEMBLIES: 512579
APPLICATIONS:
CADILLAC CT6 (2016-2020)
CADILLAC CTS (2016-2019)
CHEVROLET CAMARO (2016-2021)
CADILLAC ATS (2018-2019)
BUICK ENVISION (2019-2023)
CADILLAC XT4 (2019-2023)
CADILLAC CT4 (2023-2023)
