THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

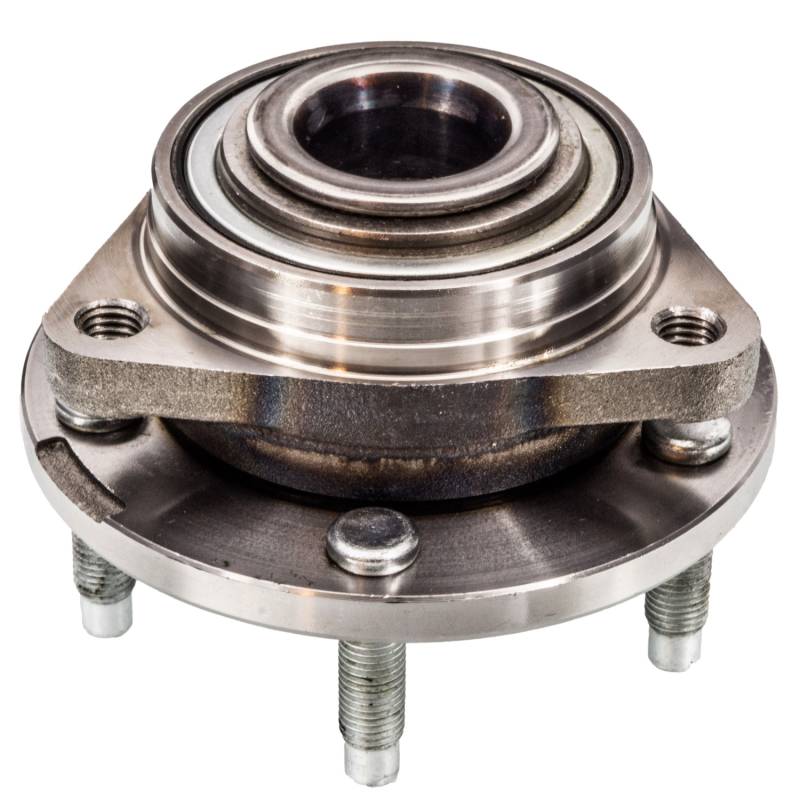

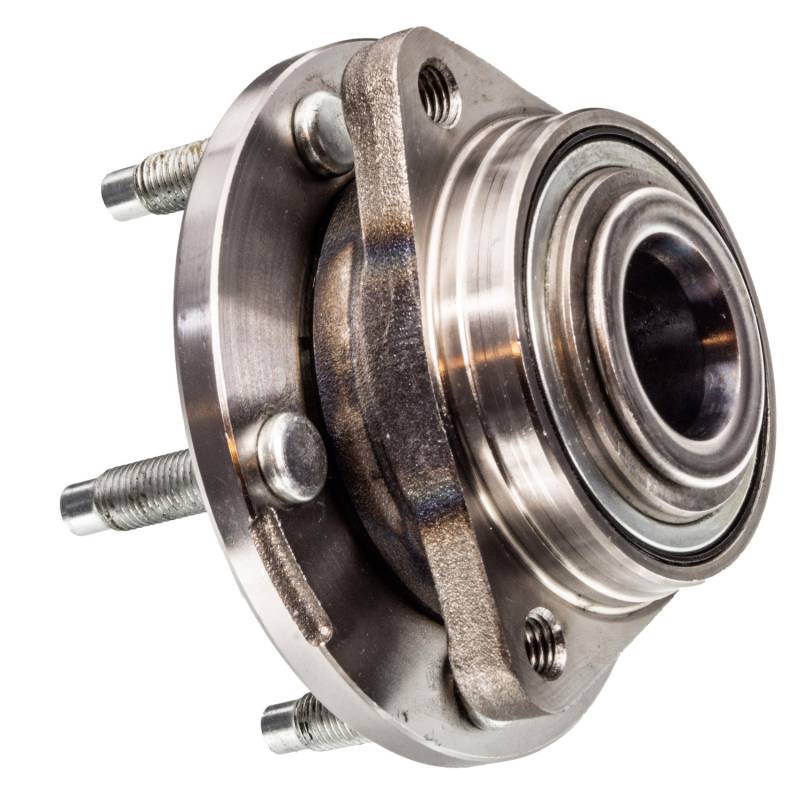

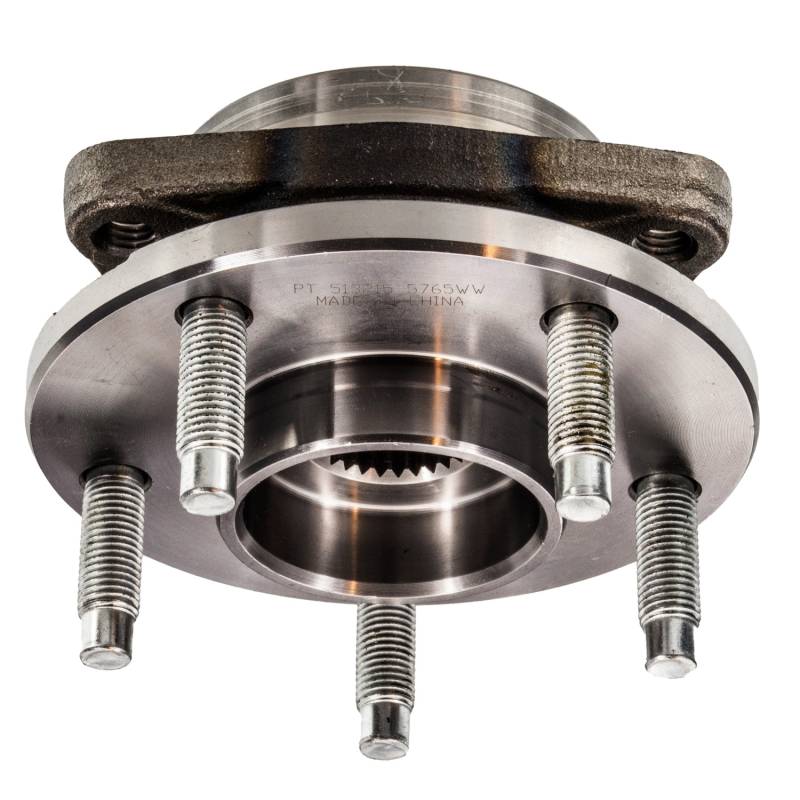

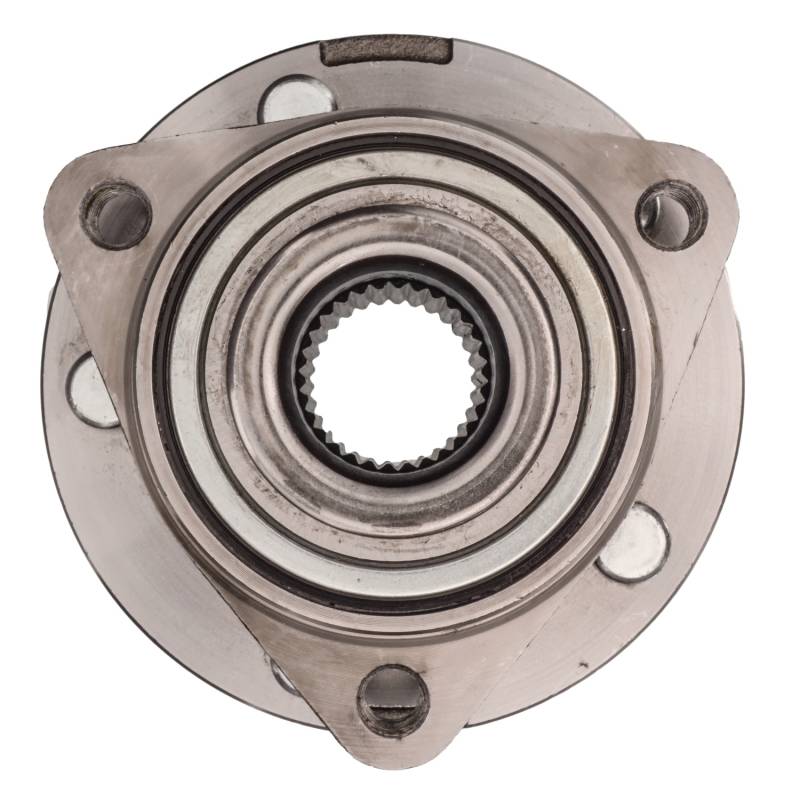

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.496
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.575
FLANGE OFFSET (INCH): 1.535
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.331
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.394
HUB PILOT DIAMETER (INCH): 3.543
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.394
TOTAL HUB DIAMETER (MM): 137
TOTAL HUB HEIGHT (IN): 3.984
TOTAL HUB HEIGHT (MM): 101.2
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT513215
SKF: BR930314
TIMKEN: HA590071
ACDELCO: FW323
AUTOPART INTERNATIONAL: 1411-49280
BCA: WE60975
CENTRIC PARTS: 40062008
FAG US: 102213
GENERAL MOTORS: 22706425
GSP: 104215
MEVOTECH: H513215
MOOG HUB ASSEMBLIES: 513215
NAPA: PBR930314
APPLICATIONS:
CHEVROLET MALIBU (2004-2007)
PONTIAC G6 (2005-2007)
