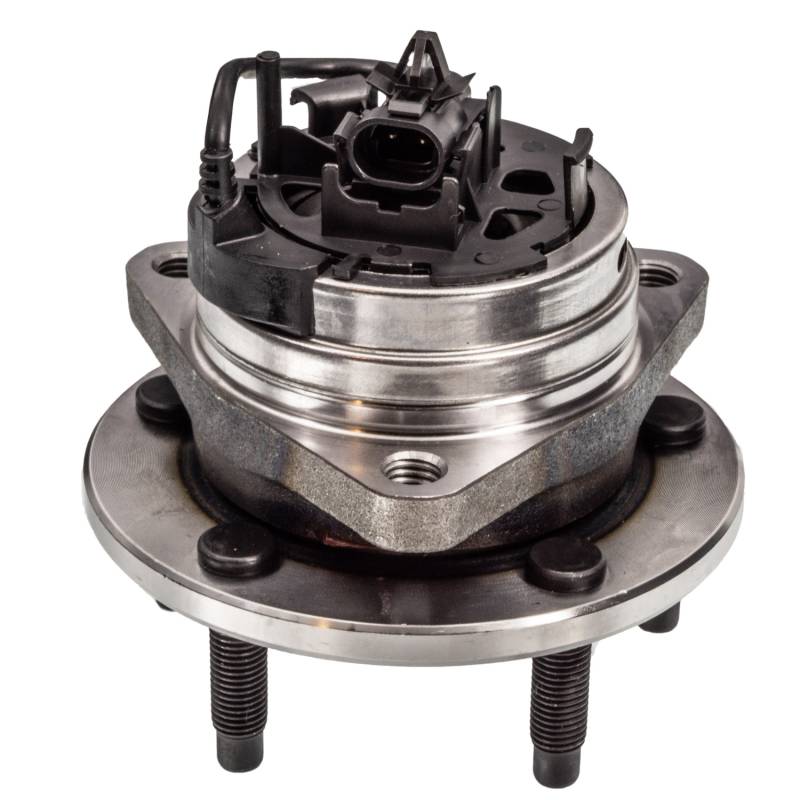

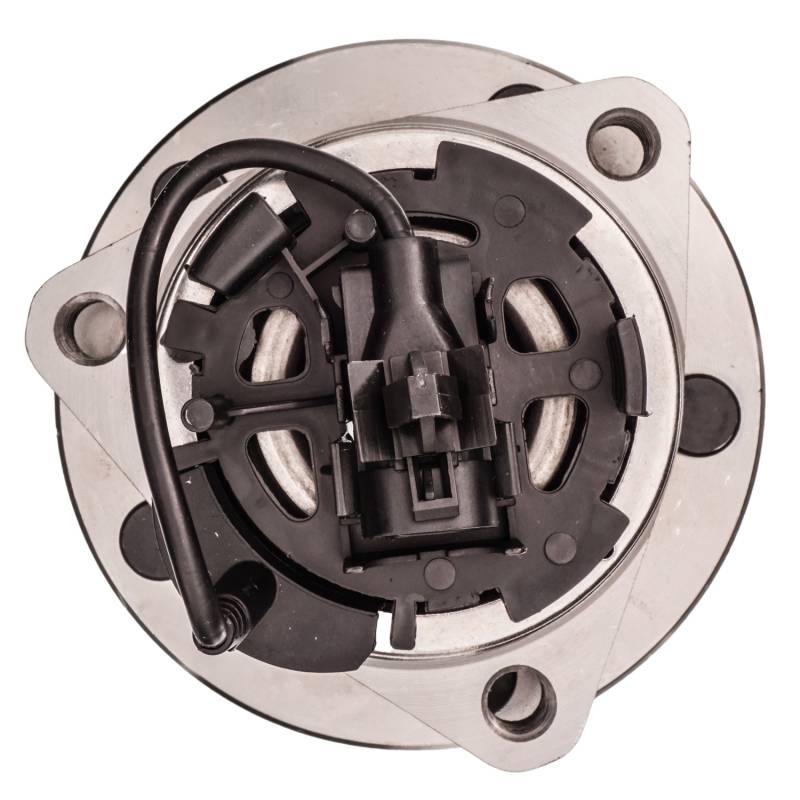

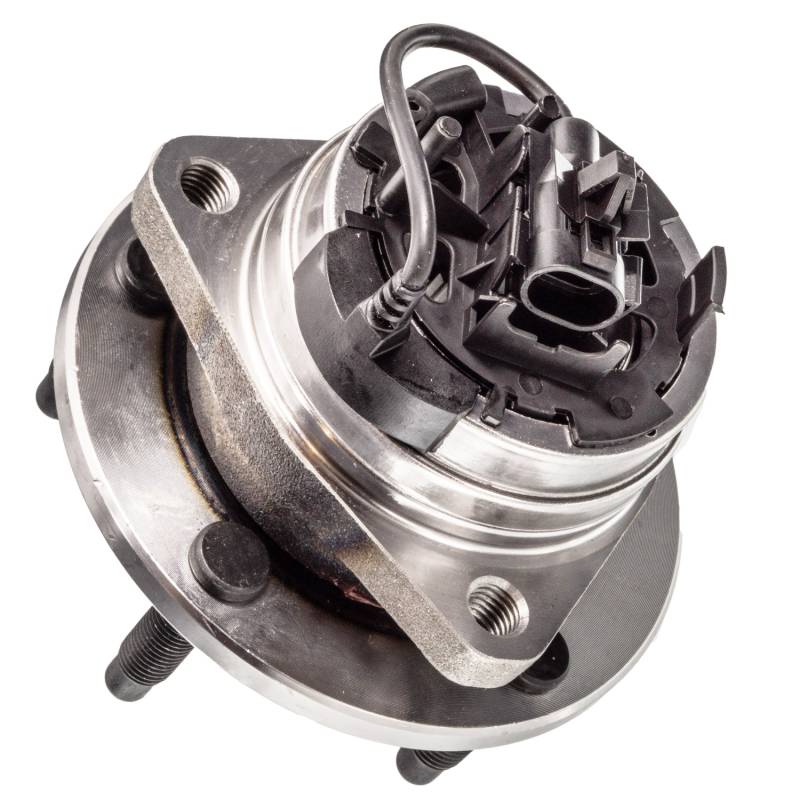

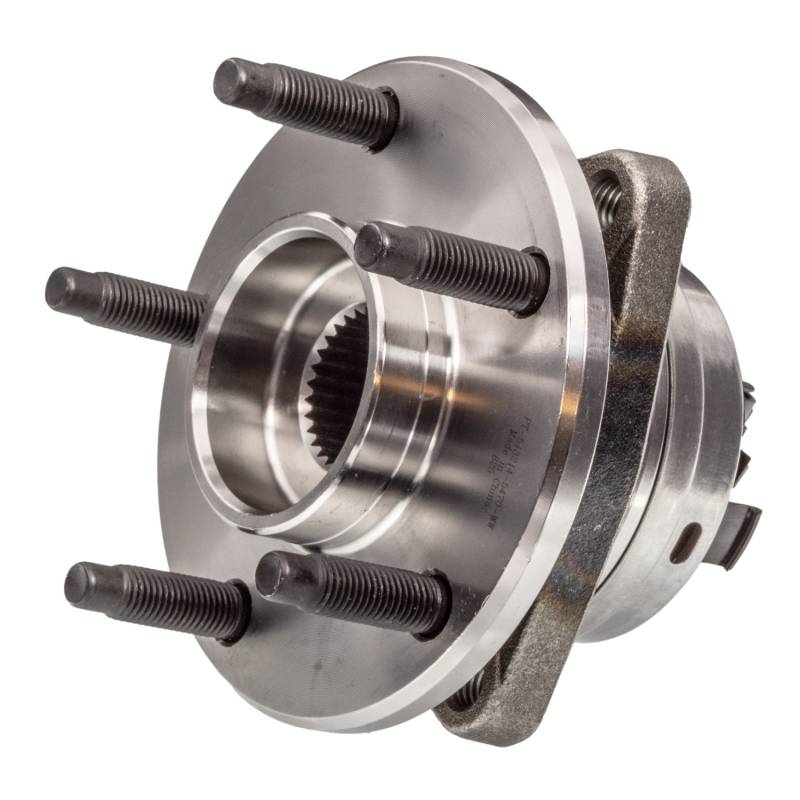

New Hub Assembly Compatible With Chevrolet Pontiac Saturn Malibu G6 Aura Cobalt Hhr 2004 2005 2006

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.5
FLANGE BOLT SIZE (MM): 38.2
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.58
FLANGE OFFSET (INCH): 1.54
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.33
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.39
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLT THREAD SIZE: M12-1.75-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.39
TOTAL HUB DIAMETER (MM): 137
TOTAL HUB HEIGHT (MM): 107.5
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513214
SKF: BR930317
TIMKEN: HA590070
ACDELCO: 19383952 22842004 513214A FW301 FW400
AUTOPART INTERNATIONAL: 1411-49265
BCA: WE60729
CENTRIC PARTS: 40262018
FAG US: 102042
GSP: 104214HD
MEVOTECH: H513214
MOOG HUB ASSEMBLIES: 513214
NAPA: PBR930317

APPLICATIONS:
CHEVROLET MALIBU (2004-2012)
PONTIAC G6 (2005-2010)
SATURN AURA (2007-2009)
CHEVROLET COBALT (2008-2010)
CHEVROLET HHR (2008-2010)
