THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

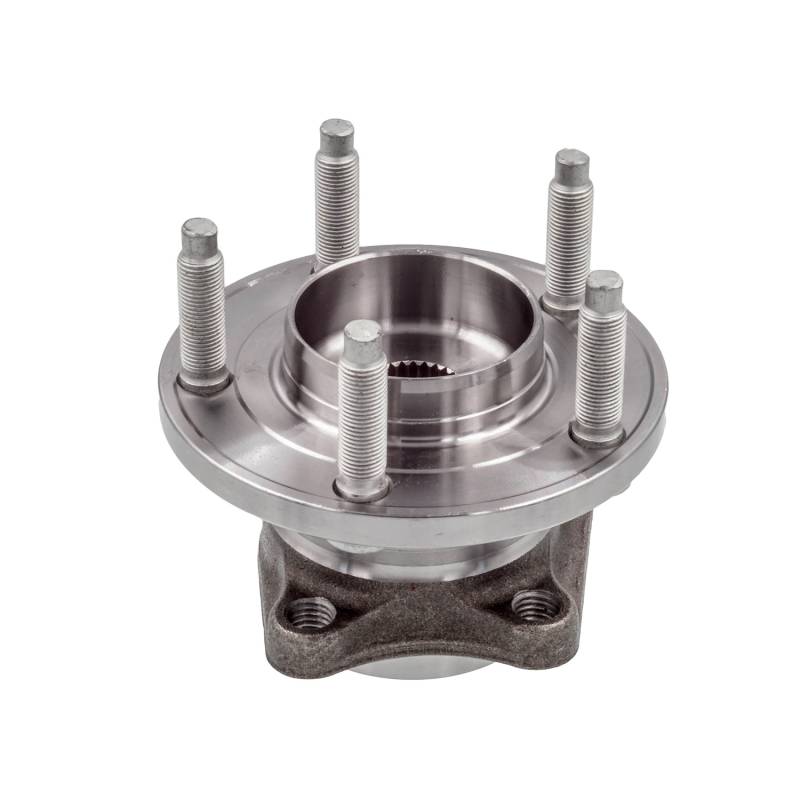

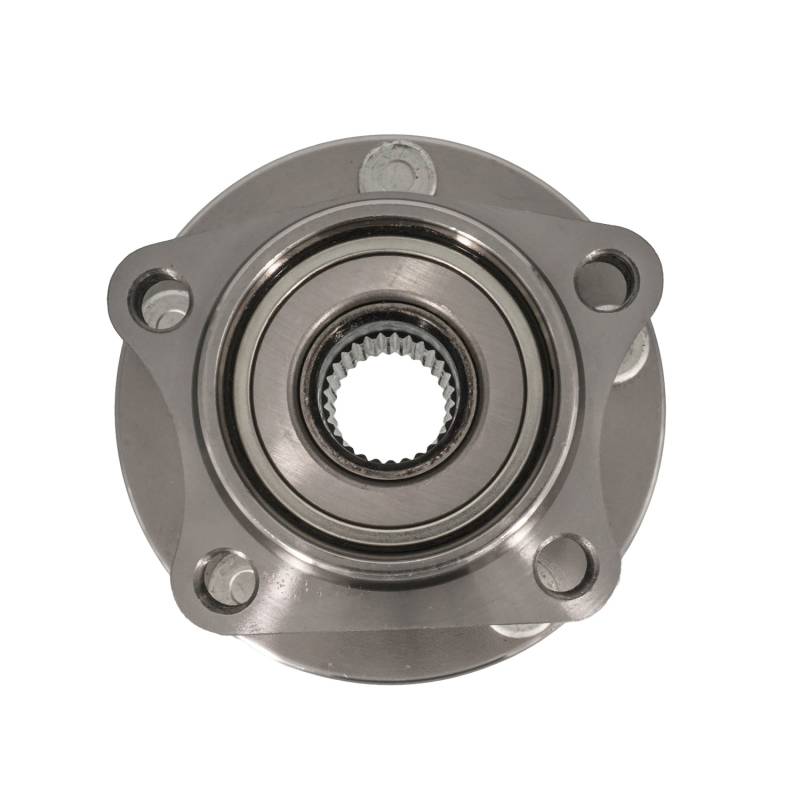

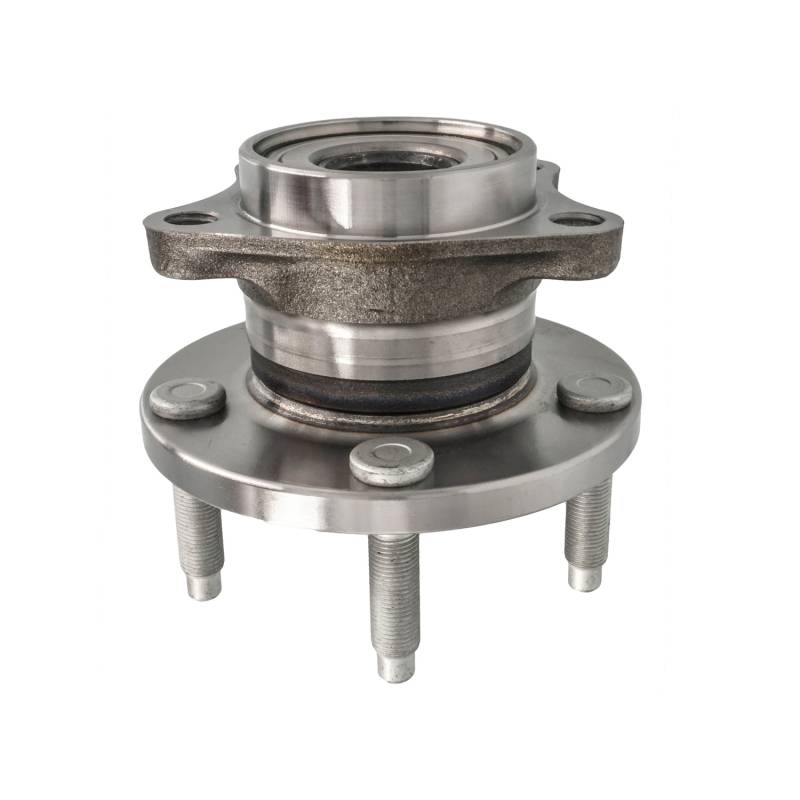

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.83
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.5
HUB PILOT DIAMETER (INCH): 3.07
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.5
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 4.93
TOTAL HUB HEIGHT (MM): 125
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-246670
BCA: WE60985
CENTRIC PARTS: 40261002
FAG US: 102274
FORD: 7T4Z 1104 C
GSP: 113335
MEVOTECH: H512335
MOOG HUB ASSEMBLIES: 512335
MOTORCRAFT: HUB34 NHUB-1 NHUB1
NAPA: PBR930636
APPLICATIONS:
FORD EDGE (2007-2010)
LINCOLN MKX (2007-2010)
