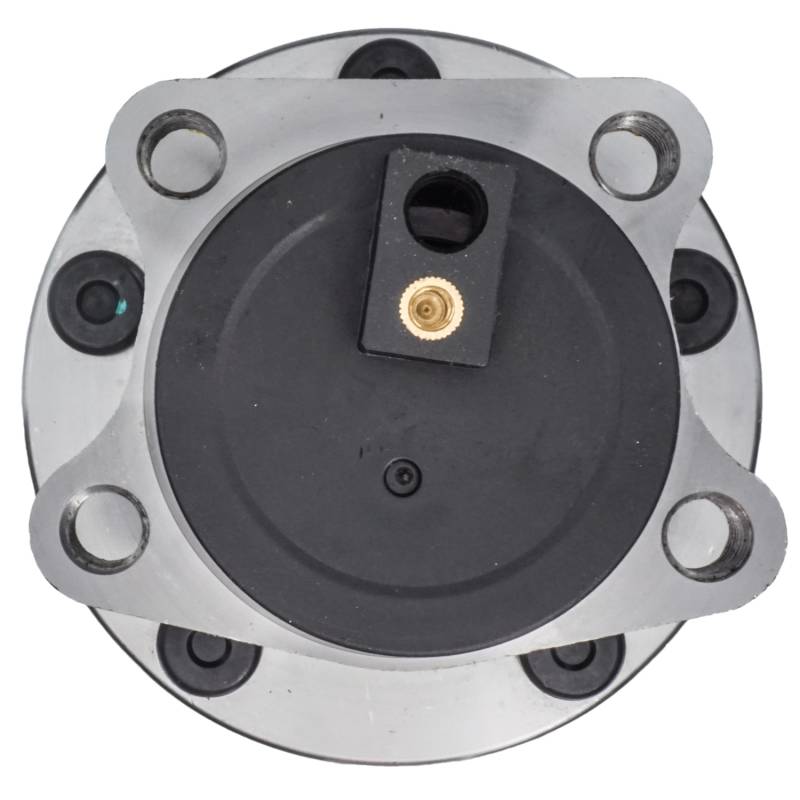

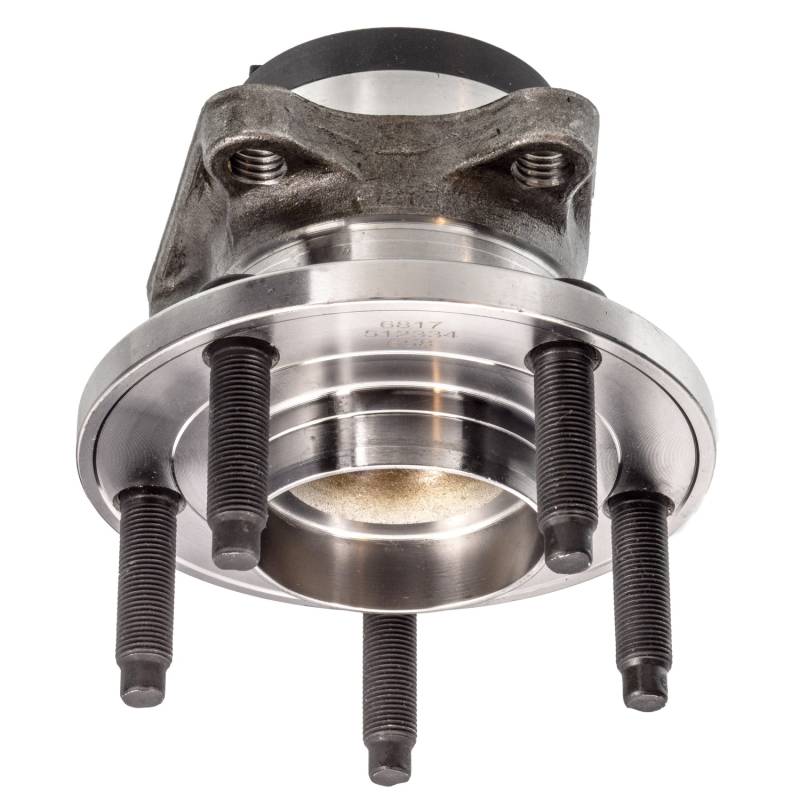

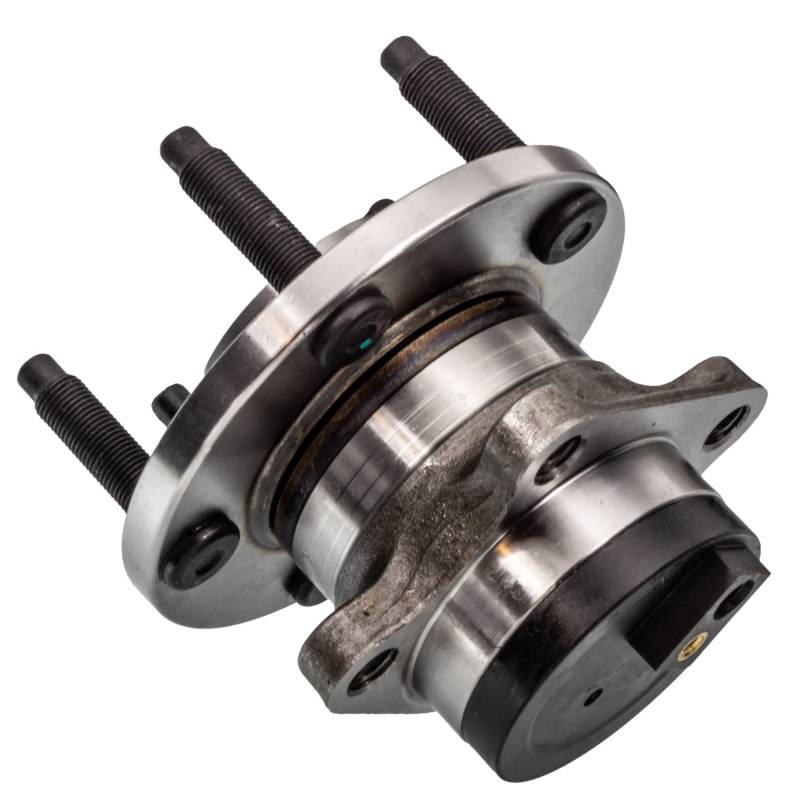

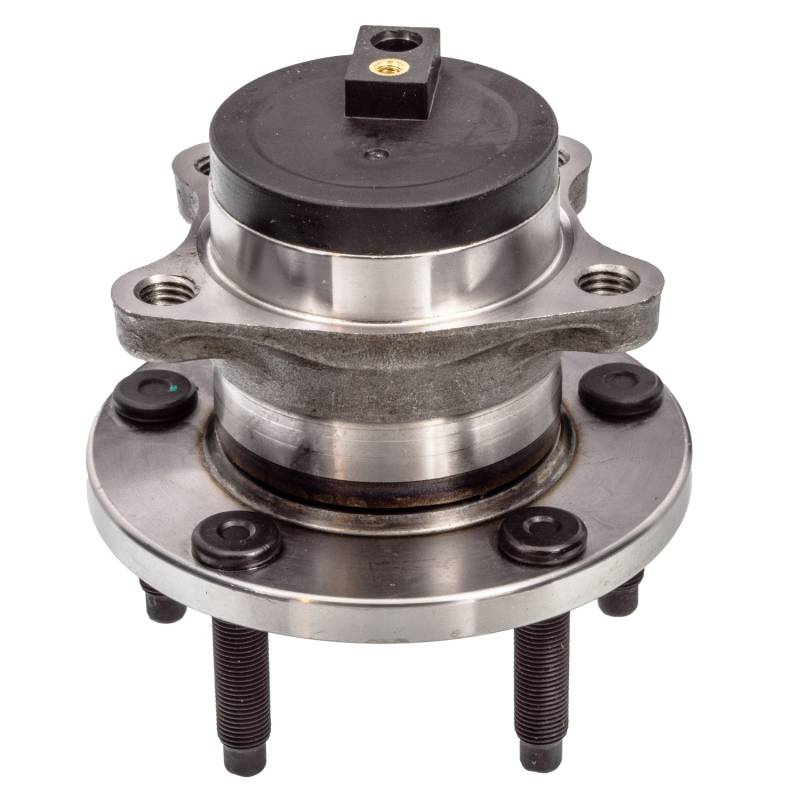

New Hub Assembly Compatible With Ford Lincoln Edge Mkx 3.5L 2007 2008 By Part Numbers Pt512334

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

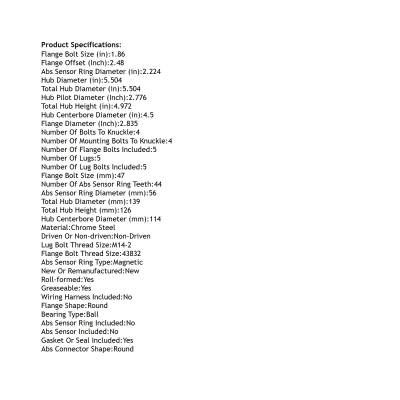

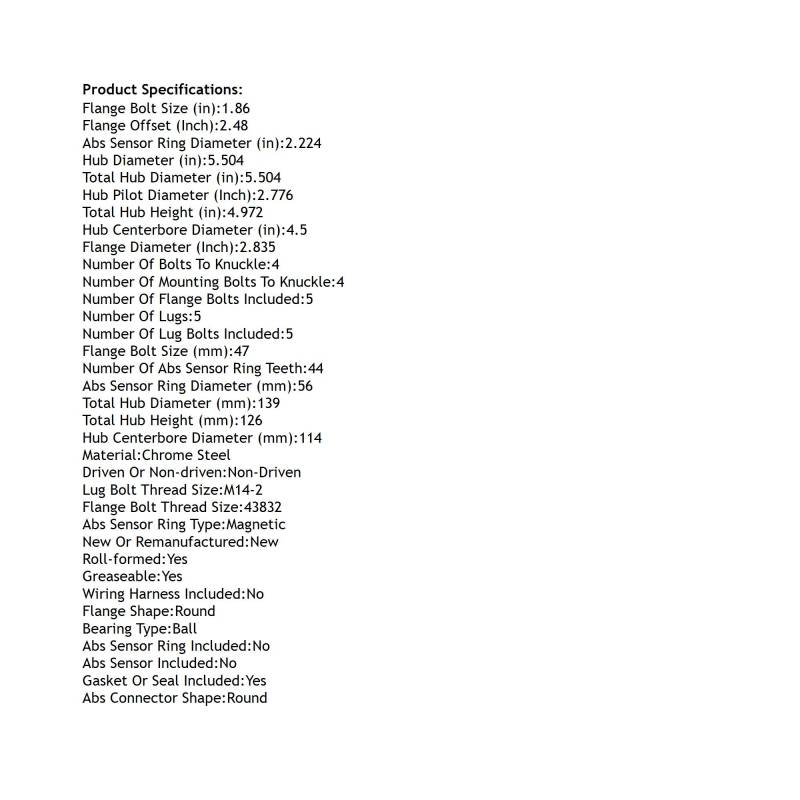

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 2.224
ABS SENSOR RING DIAMETER (MM): 56
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.86
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.835
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.504
HUB PILOT DIAMETER (INCH): 2.776
LUG BOLT THREAD SIZE: M14-2
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.504
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 4.972
TOTAL HUB HEIGHT (MM): 126
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-246669
BCA: WE61013
CENTRIC PARTS: 40761005
FAG US: 102273
FORD: 7T4Z1104B
GSP: 113334
MEVOTECH: H512334
MOOG HUB ASSEMBLIES: 512334
MOTORCRAFT: HUB33
NAPA: PBR930624 PBR930721

APPLICATIONS:
FORD EDGE (2007-2008)
LINCOLN MKX (2007-2008)
