THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

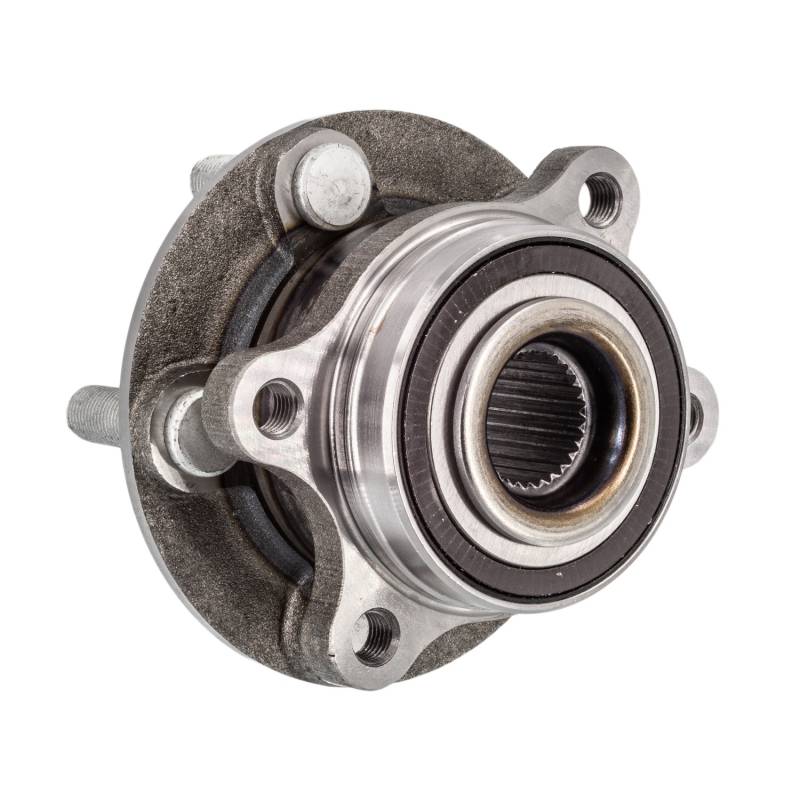

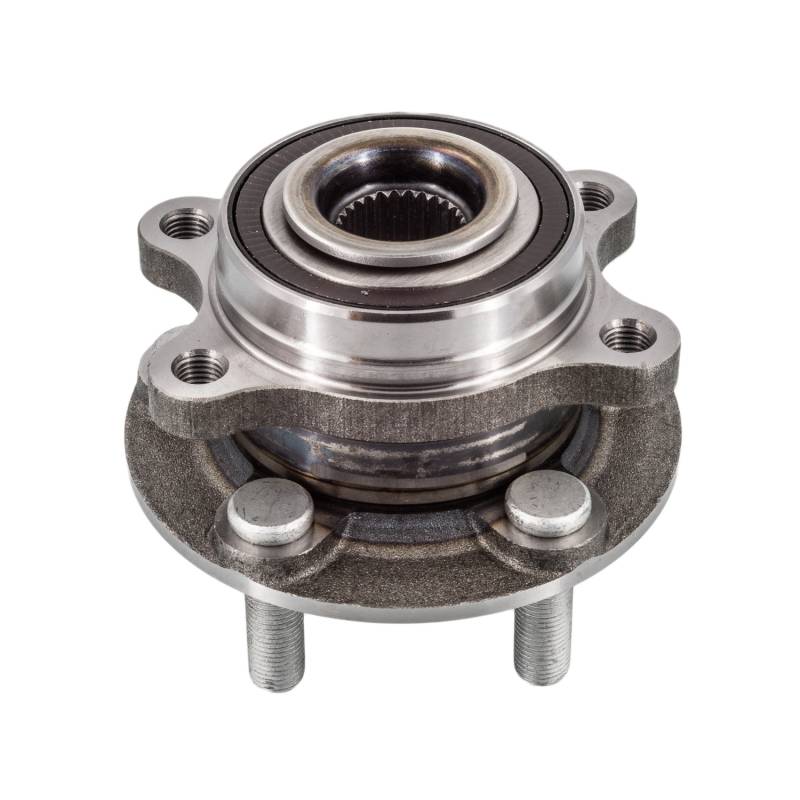

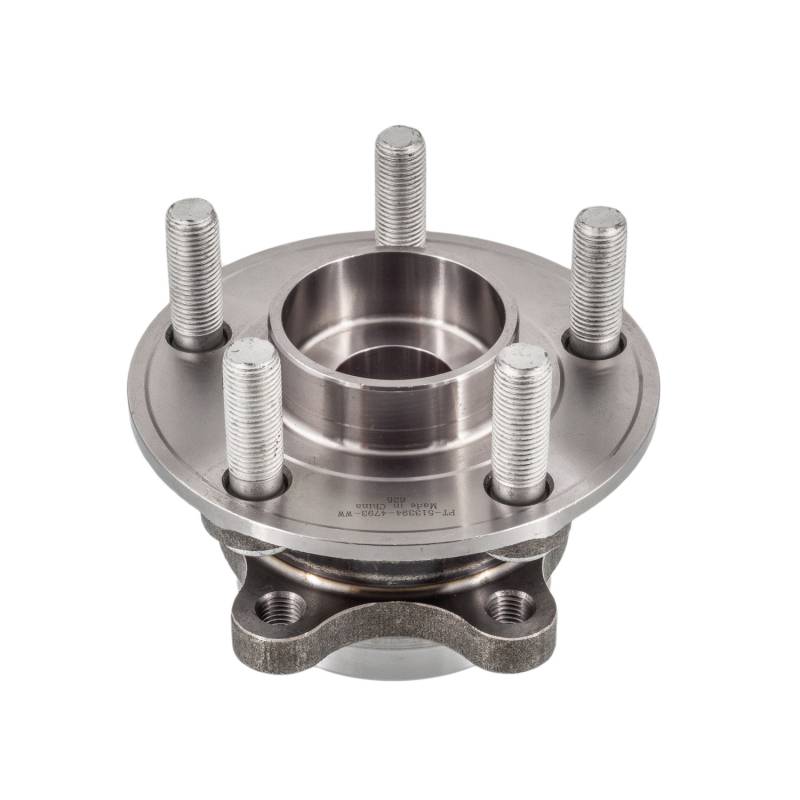

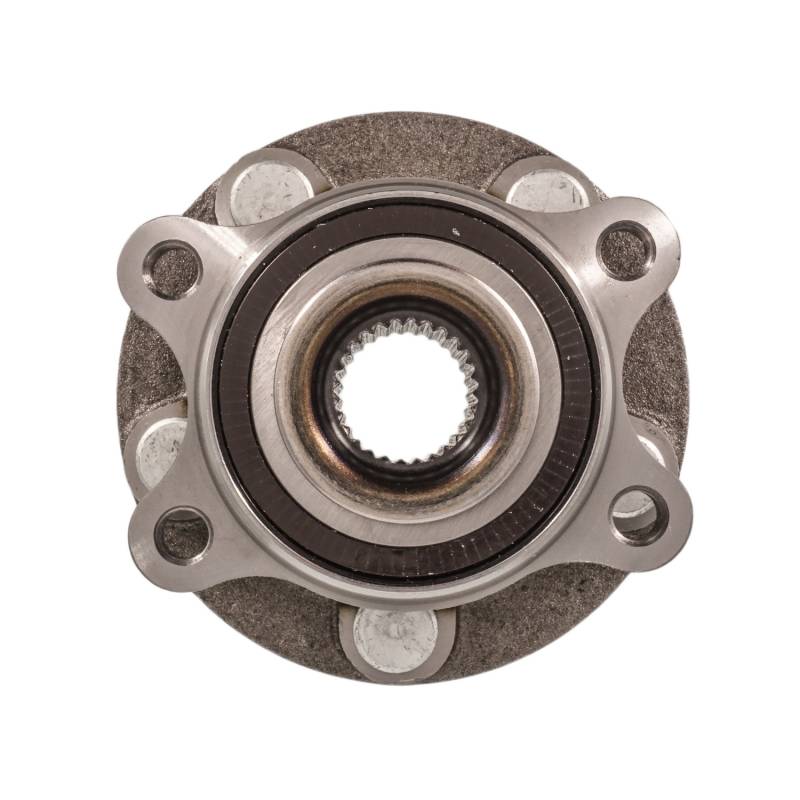

PRODUCT TYPE: HUB ASSEMBLY

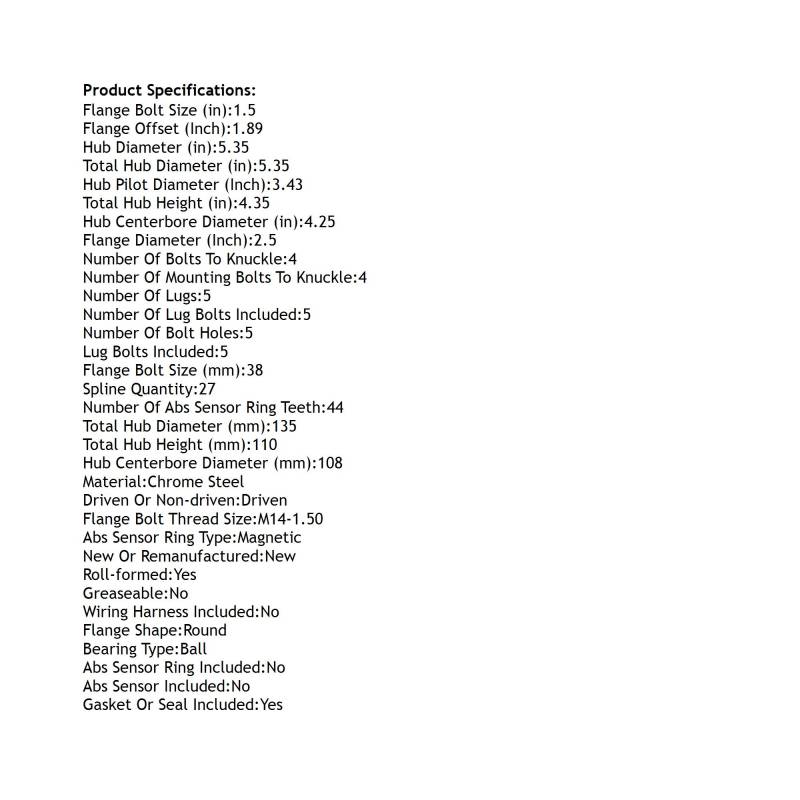

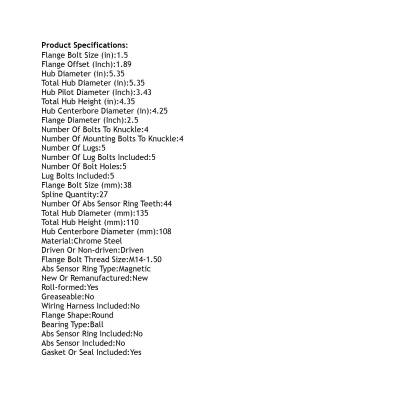

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.5
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.43
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 4.35
TOTAL HUB HEIGHT (MM): 110
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-605370
FORD: K2GZ 1104 A
MOOG HUB ASSEMBLIES: 513394
MOTORCRAFT: HUB421 HUB441 K2GZ1104A K2GZ1104B
NAPA: PBR931101
APPLICATIONS:
FORD EDGE (2015-2023)
LINCOLN MKX (2016-2018)
LINCOLN CONTINENTAL (2017-2020)
LINCOLN MKZ (2017-2020)
LINCOLN NAUTILUS (2019-2023)
