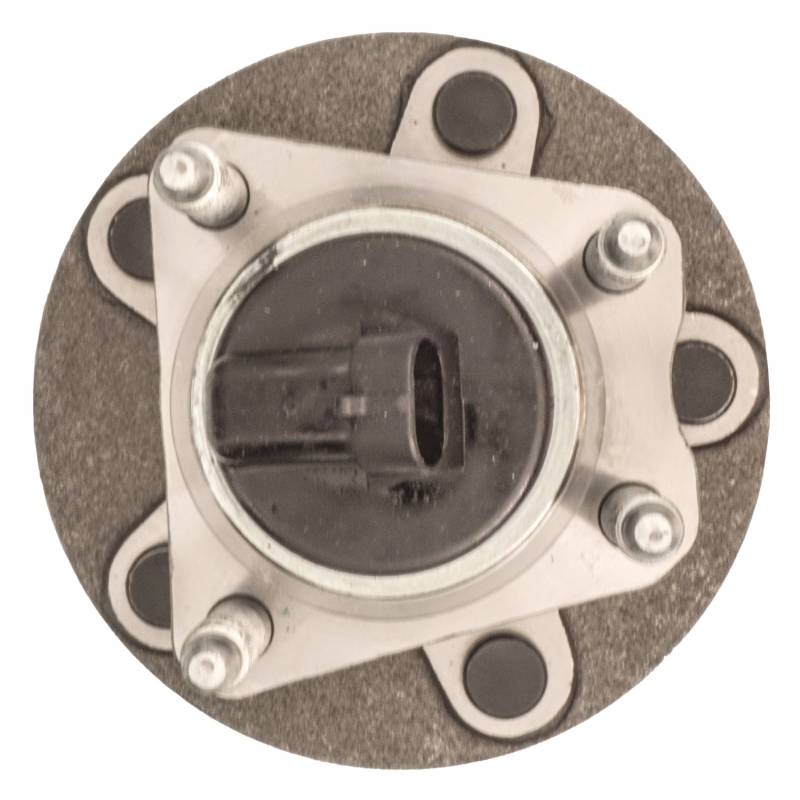

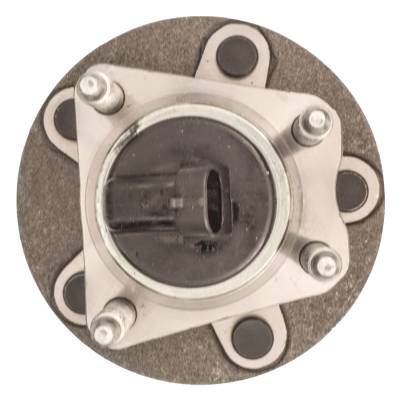

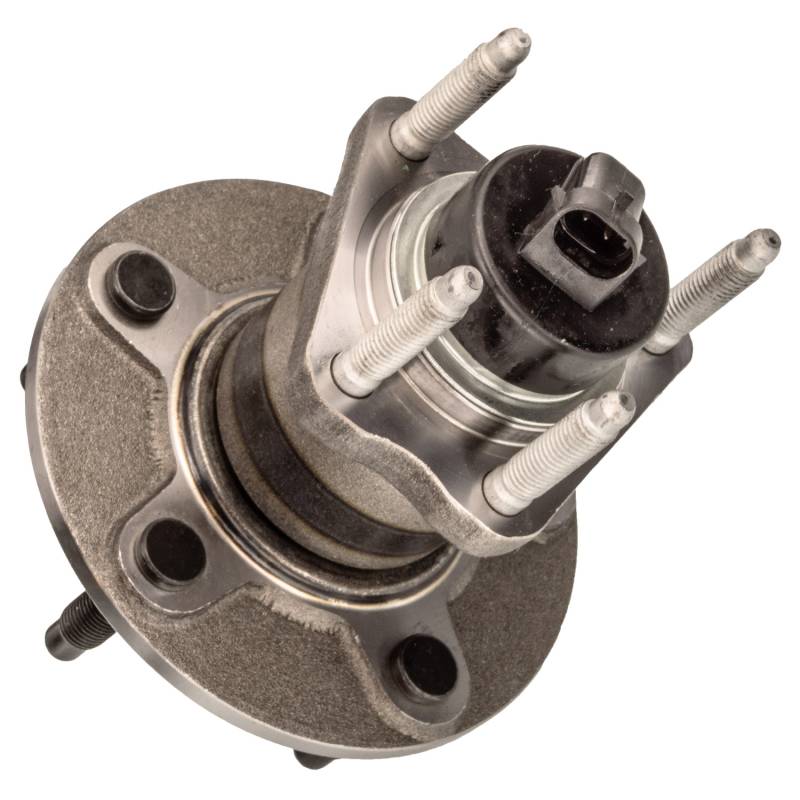

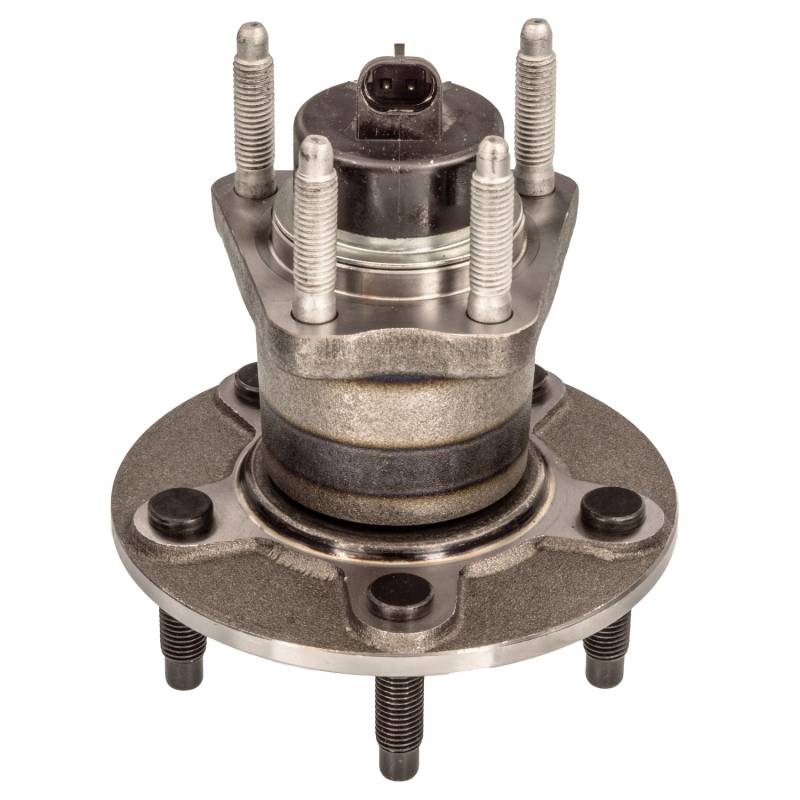

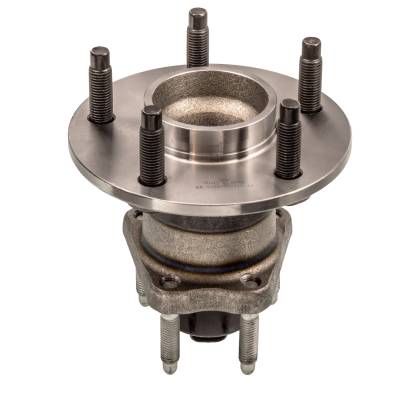

New Hub Assembly Compatible With Saturn Chevrolet Pontiac Ion Cobalt Pursuit Hhr G5 2.0L 2.2L 2.4L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

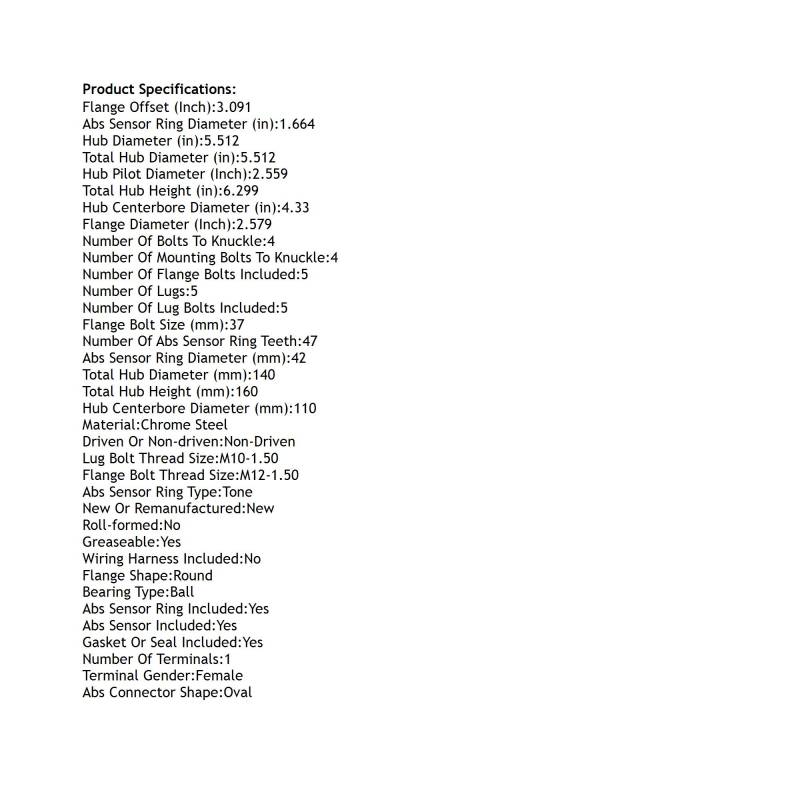

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.664
ABS SENSOR RING DIAMETER (MM): 42
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.579
FLANGE OFFSET (INCH): 3.091
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.33
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.512
HUB PILOT DIAMETER (INCH): 2.559
LUG BOLT THREAD SIZE: M10-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.512
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 6.299
TOTAL HUB HEIGHT (MM): 160
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-107
AUTOPART INTERNATIONAL: 1411-246639
BCA: WE60816
CENTRIC PARTS: 40762020
FAG US: 102106
GENERAL MOTORS: 15889806
GSP: 103250
MEVOTECH: H512250
MOOG HUB ASSEMBLIES: 512250
NAPA: PBR930488

APPLICATIONS:
SATURN ION (2004-2007)
CHEVROLET COBALT (2005-2010)
PONTIAC PURSUIT (2005-2006)
CHEVROLET HHR (2006-2011)
PONTIAC G5 (2007-2010)
