THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

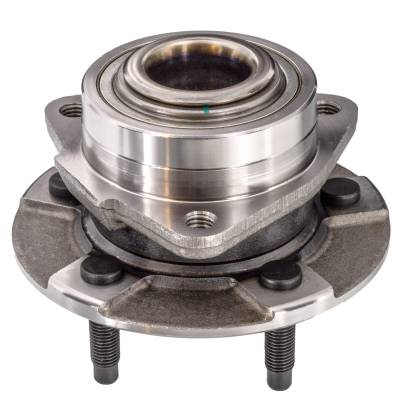

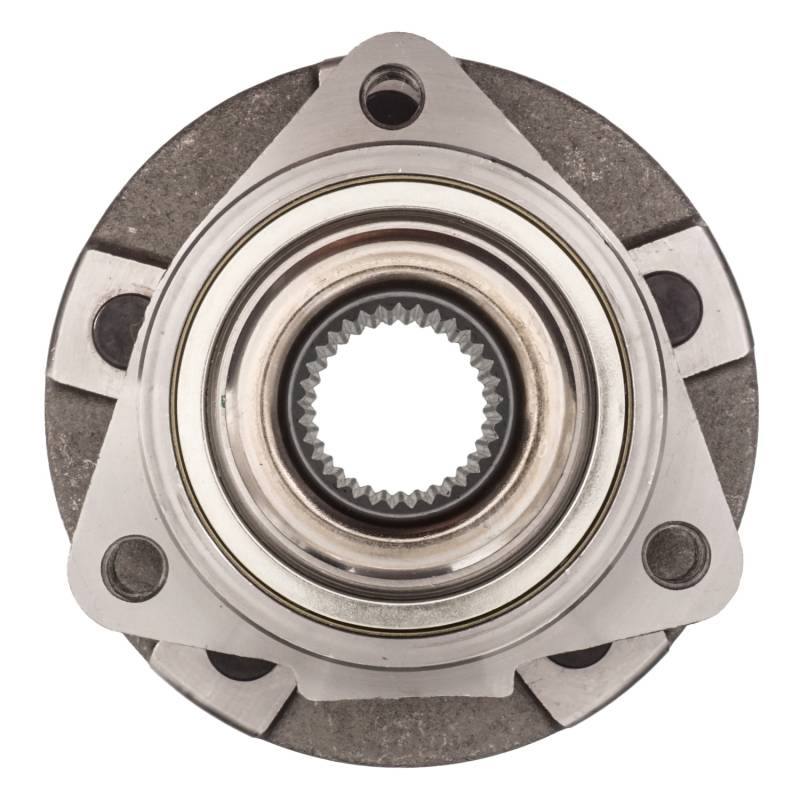

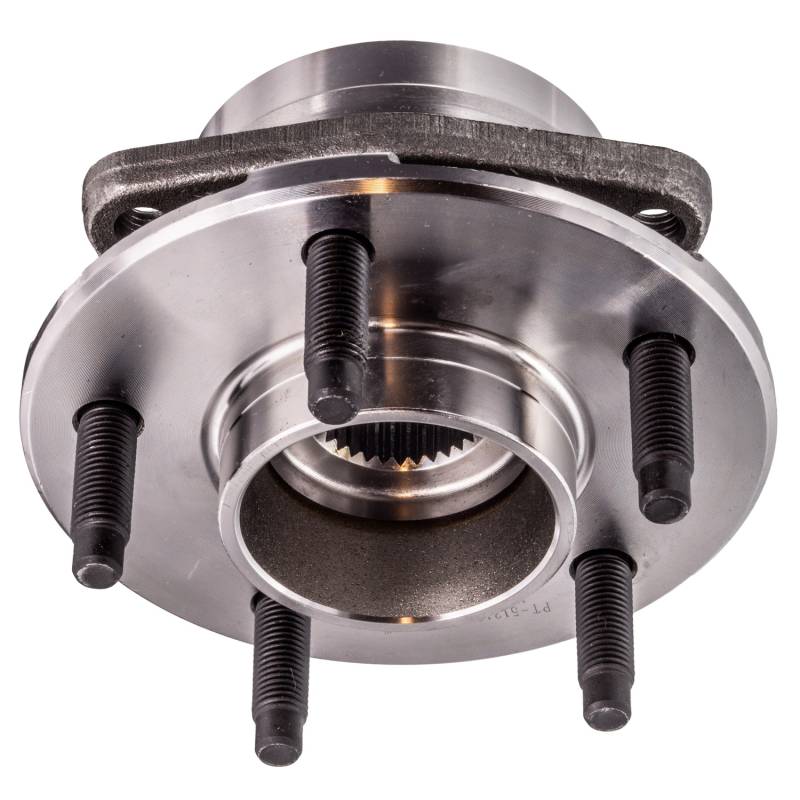

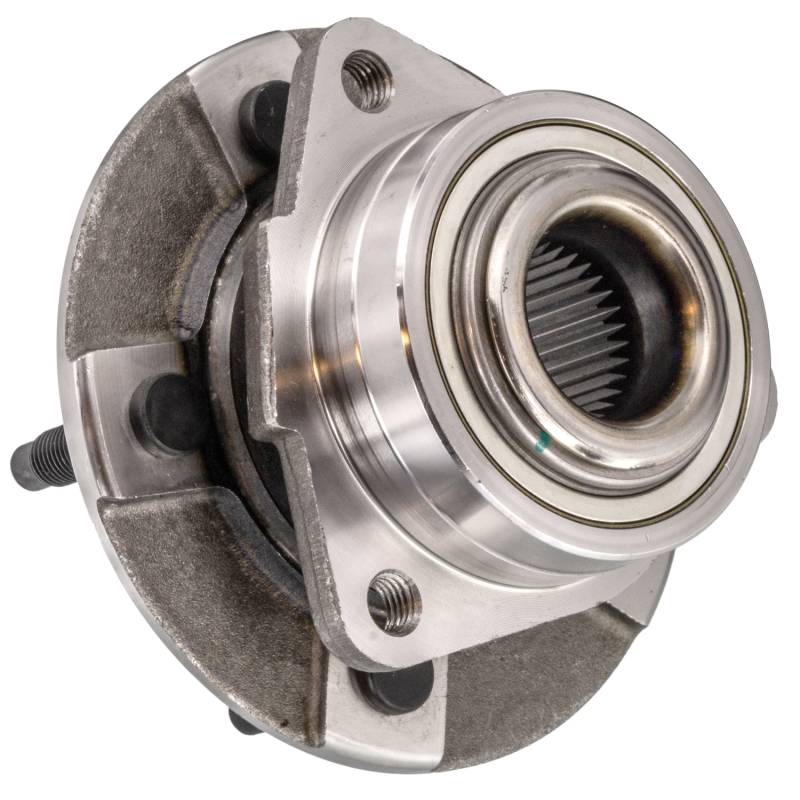

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

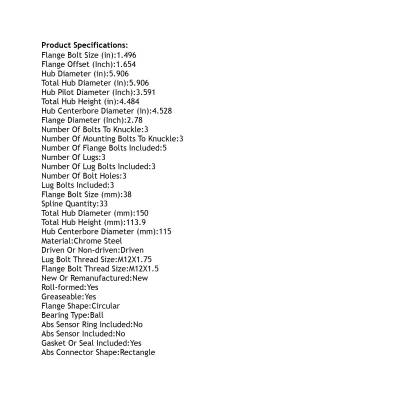

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.496
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.906
HUB PILOT DIAMETER (INCH): 3.591
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.906
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 4.484
TOTAL HUB HEIGHT (MM): 113.9
REPLACES:
OTHER PART NUMBER: PT513190
SKF: BR930323
TIMKEN: 513190
ACDELCO: FW336
AUTOPART INTERNATIONAL: 1411-44705
BCA: WE61216
CENTRIC PARTS: 40062006
FAG US: 102455
GSP: 104190
MEVOTECH: H513190
MOOG HUB ASSEMBLIES: 513190
NAPA: PBR930323
APPLICATIONS:
SATURN VUE (2002-2007)
CHEVROLET EQUINOX (2005-2005)
PONTIAC TORRENT (2006-2006)
