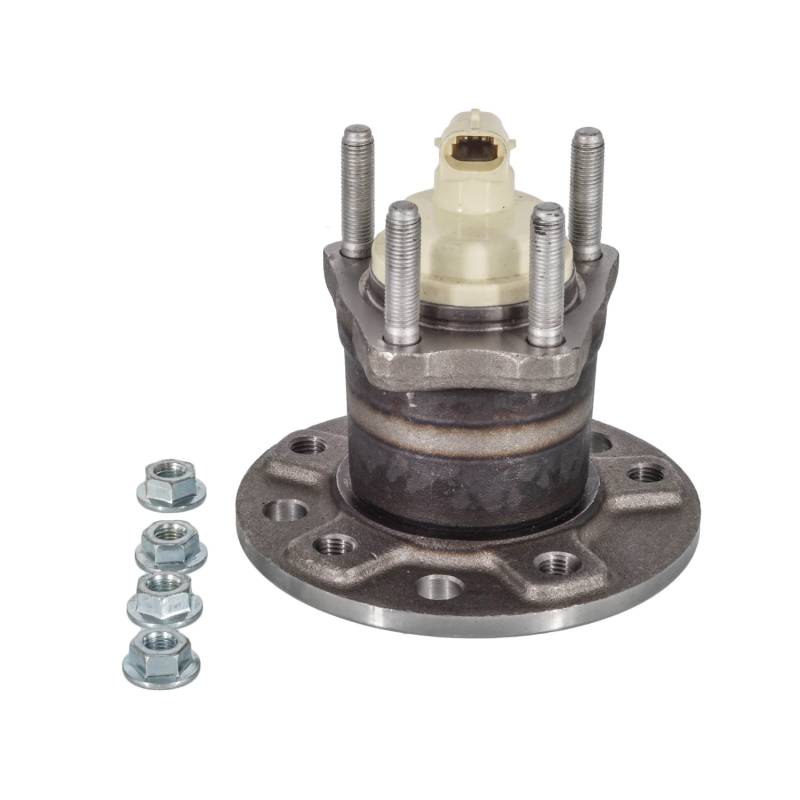

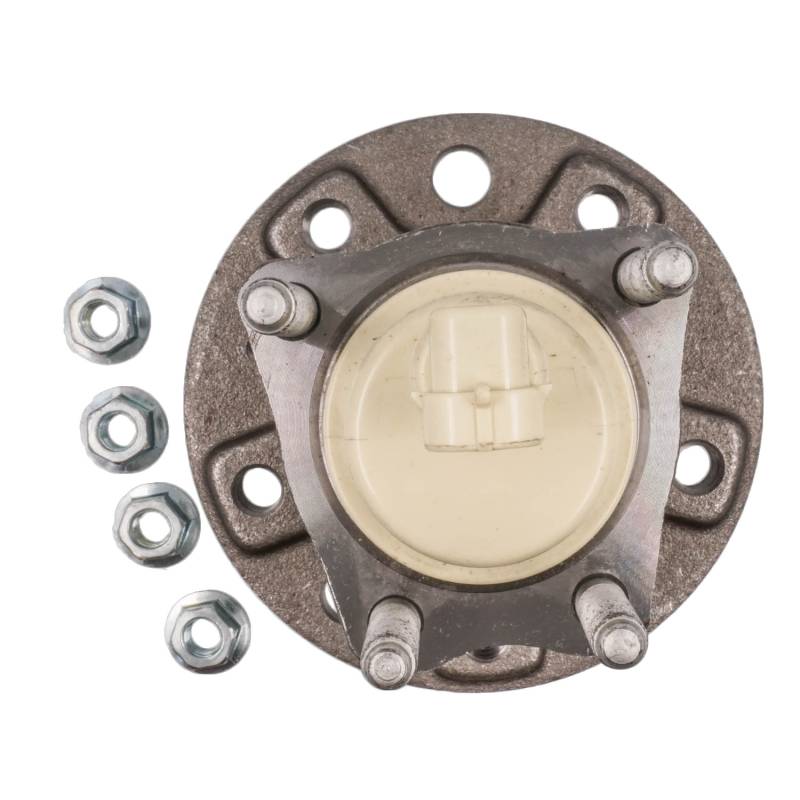

New Hub Assembly Compatible With Saturn Ls1 Ls2 Ls Lw1 Lw2 L100 L200 L300 Lw200 Lw300 2.2L 3.0L 2000

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

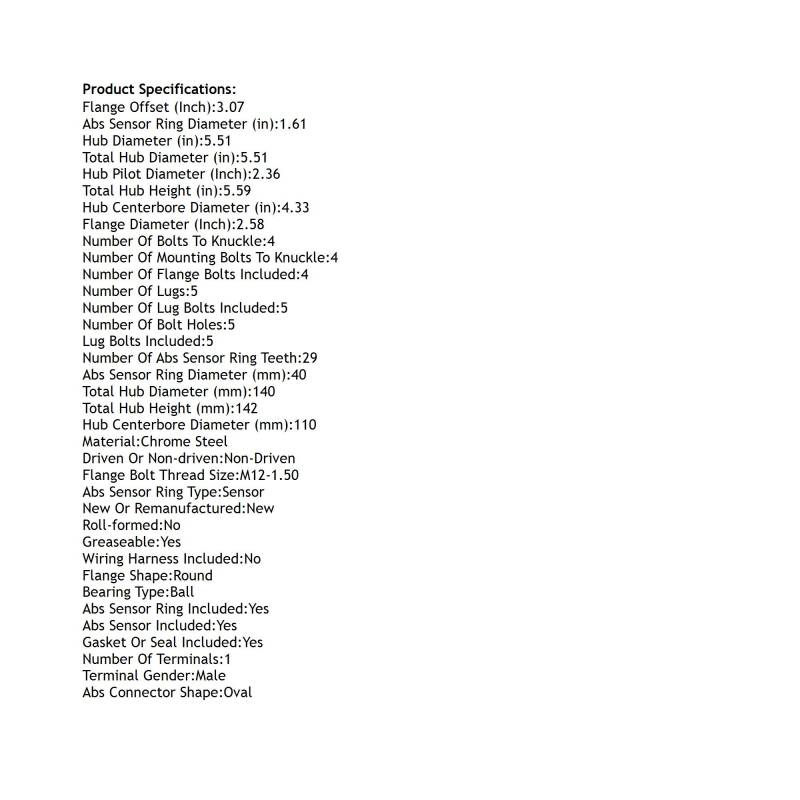

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.61
ABS SENSOR RING DIAMETER (MM): 40
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.58
FLANGE OFFSET (INCH): 3.07
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.33
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.51
HUB PILOT DIAMETER (INCH): 2.36
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 29
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.51
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 5.59
TOTAL HUB HEIGHT (MM): 142
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-00339
CENTRIC PARTS: 40762031E
FAG US: 102258
GSP: 103238
MEVOTECH: H512238
MOOG HUB ASSEMBLIES: 512238
NAPA: PBR930311

APPLICATIONS:
SATURN LS1 (2000-2000)
SATURN LS2 (2000-2000)
SATURN LS (2000-2000)
SATURN LW1 (2000-2000)
SATURN LW2 (2000-2000)
SATURN L100 (2001-2002)
SATURN L200 (2001-2003)
SATURN L300 (2001-2005)
SATURN LW200 (2001-2003)
SATURN LW300 (2001-2003)
