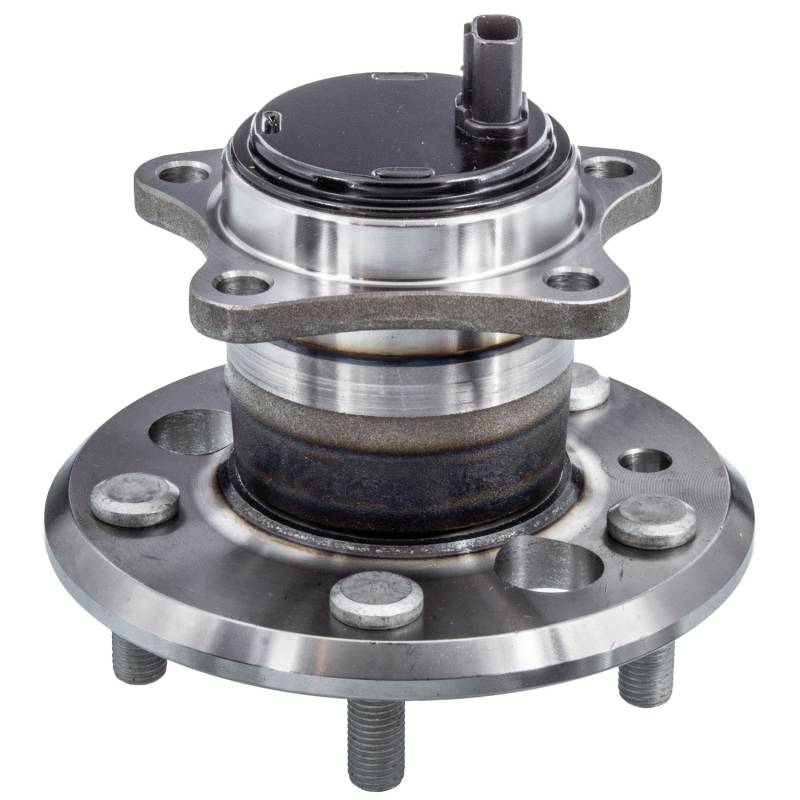

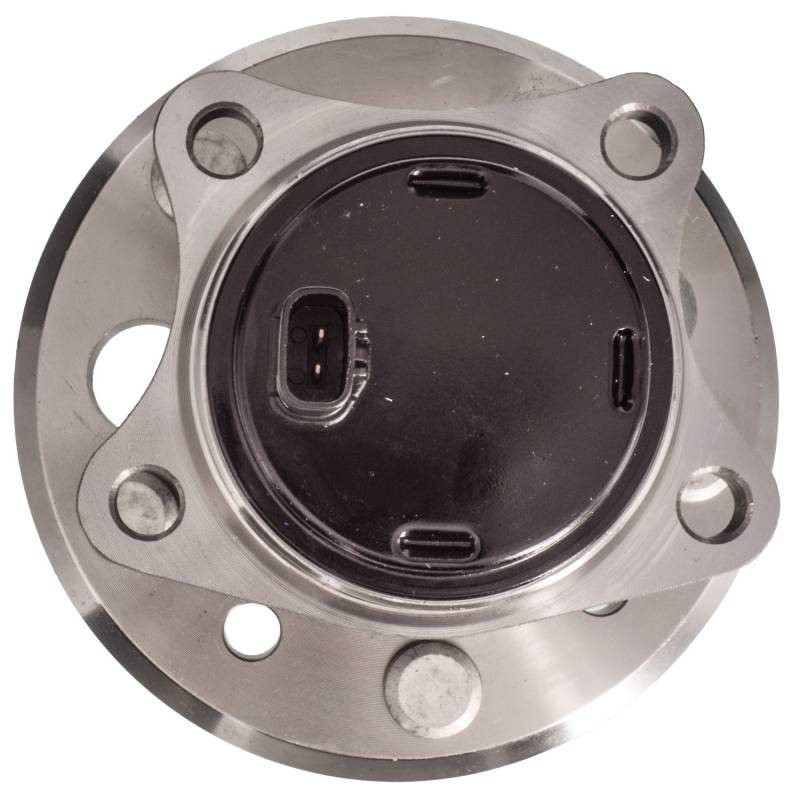

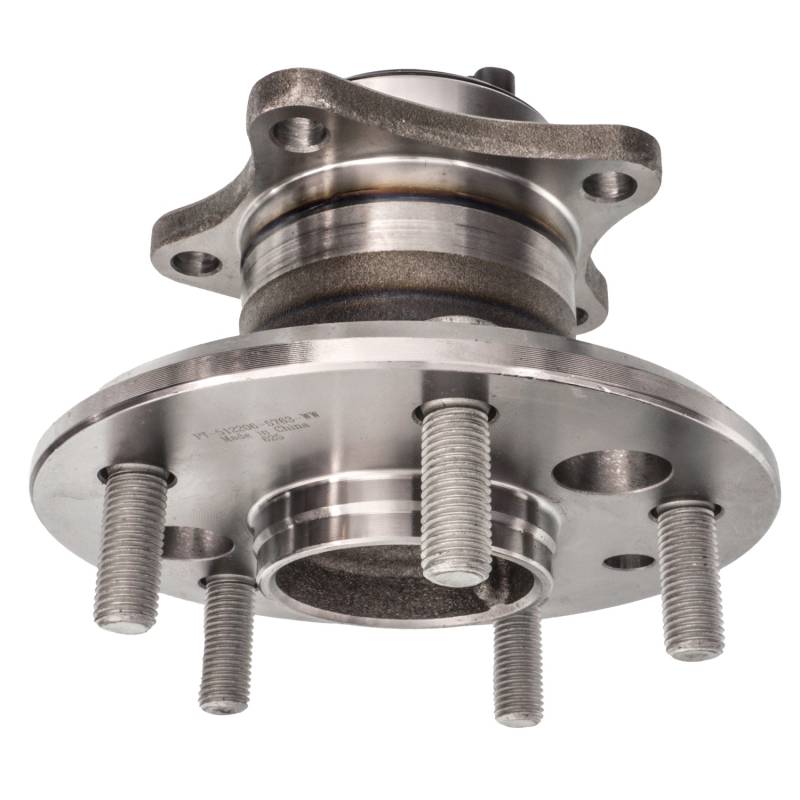

New Hub Assembly Compatible With Toyota Lexus Highlander Es300 Camry Es330 Solara Avalon Es350 2001

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.161
FLANGE BOLT SIZE (MM): 29.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 2.929
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.984
HUB PILOT DIAMETER (INCH): 2.909
LUG BOLT THREAD SIZE: 10.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.984
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 5.598
TOTAL HUB HEIGHT (MM): 142.2
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-04428
BCA: WE61475
BECK/ARNLEY: 051-6088
CENTRIC PARTS: 40744000
FAG US: 102096
GSP: 693206
MEVOTECH: H512206
MOOG HUB ASSEMBLIES: 512206
NAPA: PBR930267

APPLICATIONS:
TOYOTA HIGHLANDER (2001-2003)
LEXUS ES300 (2002-2003)
TOYOTA CAMRY (2002-2011)
LEXUS ES330 (2004-2006)
TOYOTA SOLARA (2004-2008)
TOYOTA AVALON (2005-2012)
LEXUS ES350 (2007-2012)
