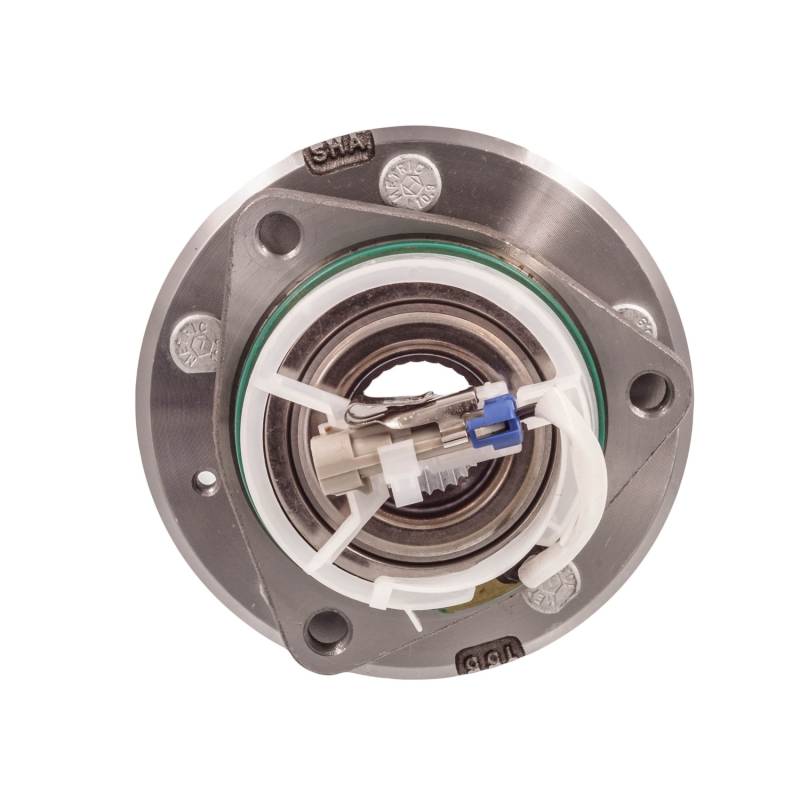

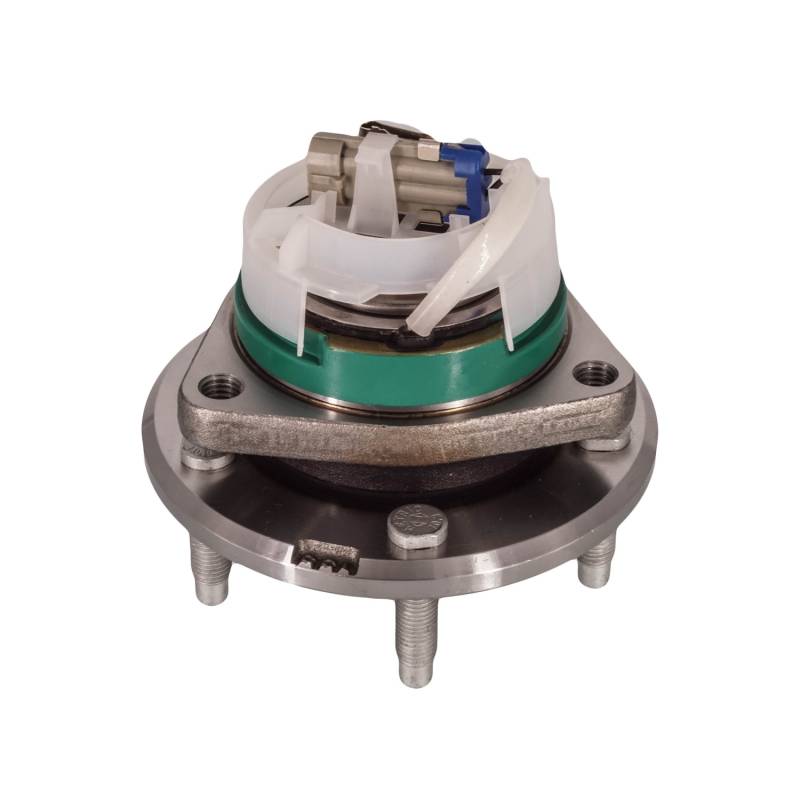

New Hub Assembly Compatible With Cadillac Cts Sts 2003 2004 2005 2006 2007 2008 2009 2010 2011 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

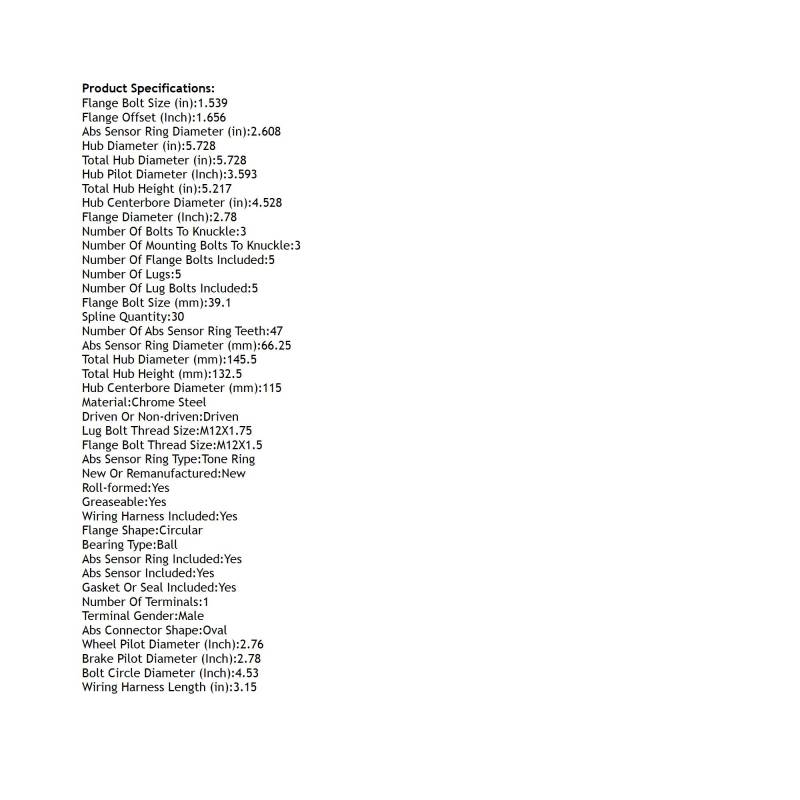

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.608
ABS SENSOR RING DIAMETER (MM): 66.25
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.53
BRAKE PILOT DIAMETER (INCH): 2.78
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.539
FLANGE BOLT SIZE (MM): 39.1
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.656
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 5.217
TOTAL HUB HEIGHT (MM): 132.5
WHEEL PILOT DIAMETER (INCH): 2.76
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 3.15

REPLACES:
ACDELCO: RW20-11
AUTOPART INTERNATIONAL: 1411-248332
BCA: WE60894
CENTRIC PARTS: 40262010 40405620
FAG US: 102217
GENERAL MOTORS: 25693148
GSP: 103223
MEVOTECH: H512223
MOOG HUB ASSEMBLIES: 512223
NAPA: PBR930081

APPLICATIONS:
CADILLAC CTS (2003-2007)
CADILLAC STS (2005-2011)
