New Hub Assembly Compatible With Hyundai Elantra 2.0L 2007 2008 2009 2010 By Part Numbers Pt512410

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

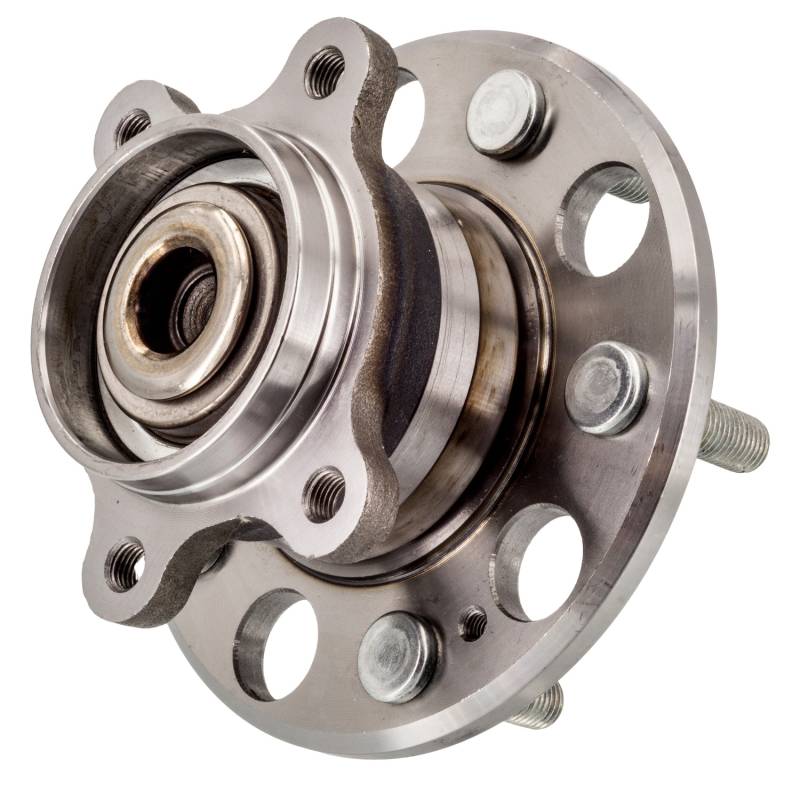

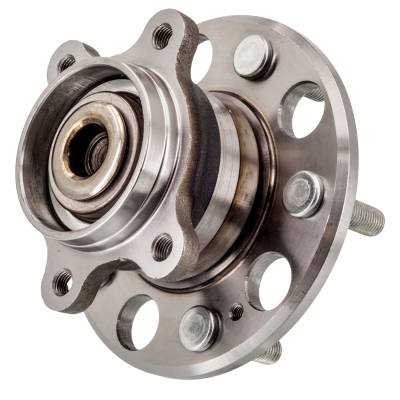

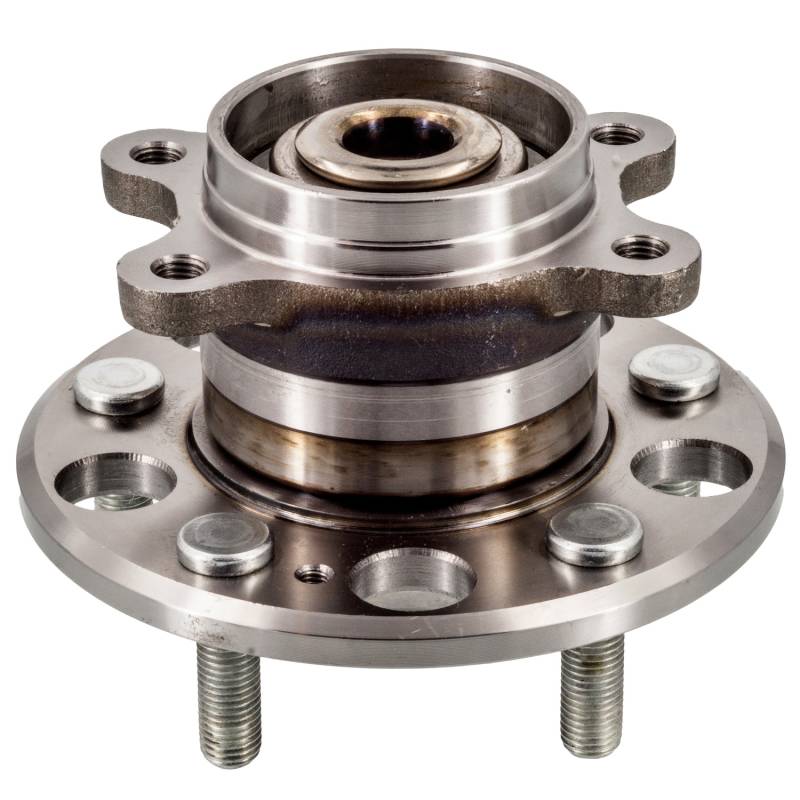

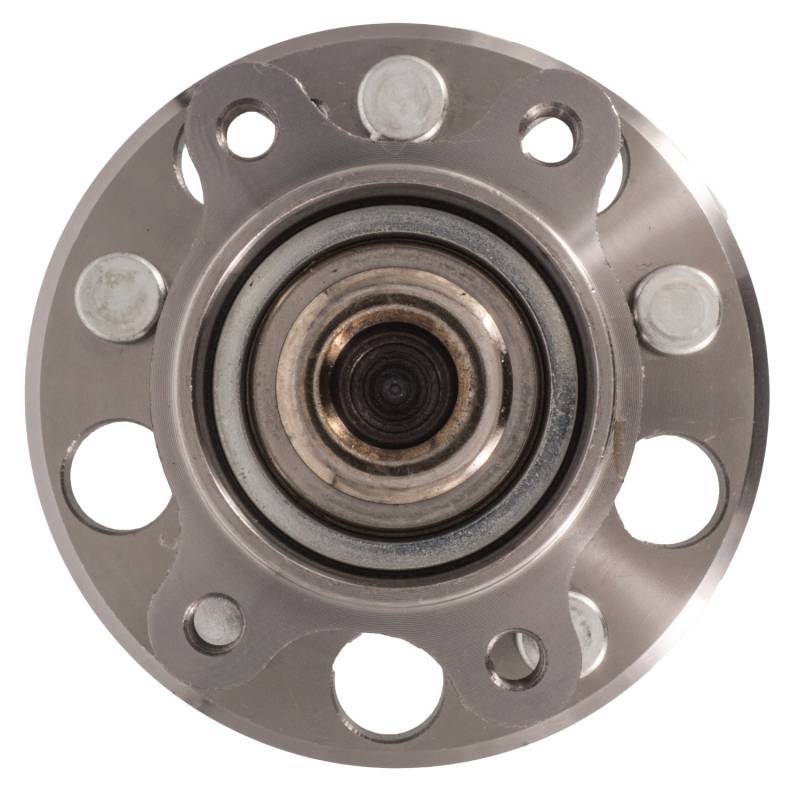

PRODUCT TYPE: HUB ASSEMBLY

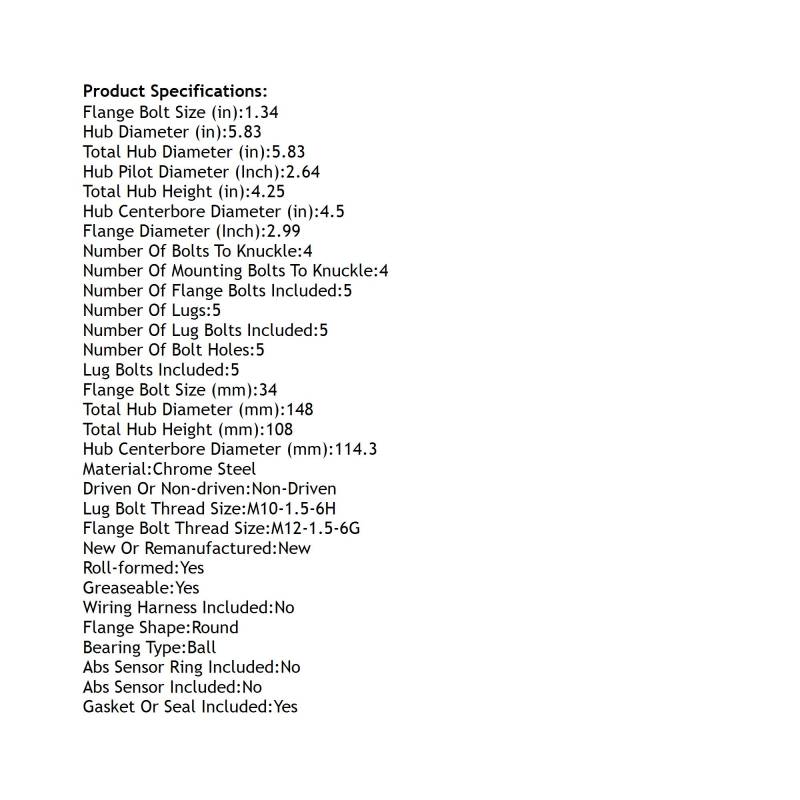

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.34
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.99
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.83
HUB PILOT DIAMETER (INCH): 2.64
LUG BOLT THREAD SIZE: M10-1.5-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.83
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 4.25
TOTAL HUB HEIGHT (MM): 108
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-425157
BECK/ARNLEY: 051-6304
CENTRIC PARTS: 40651013
GSP: 373410
MEVOTECH: H512410
MOOG HUB ASSEMBLIES: 512410
NAPA: PBR930654

APPLICATIONS:
HYUNDAI ELANTRA (2007-2010)
