THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

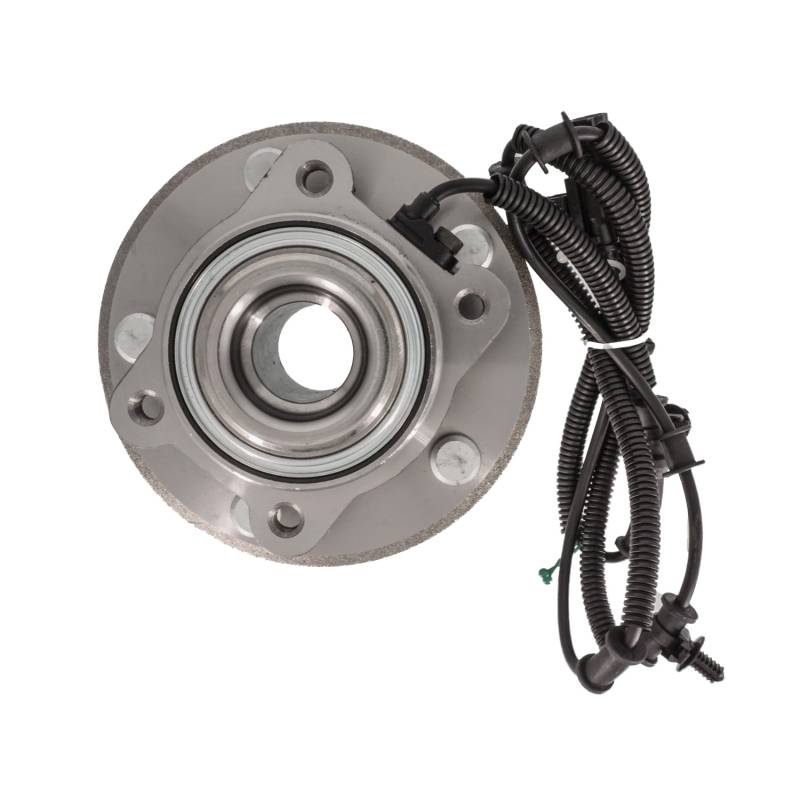

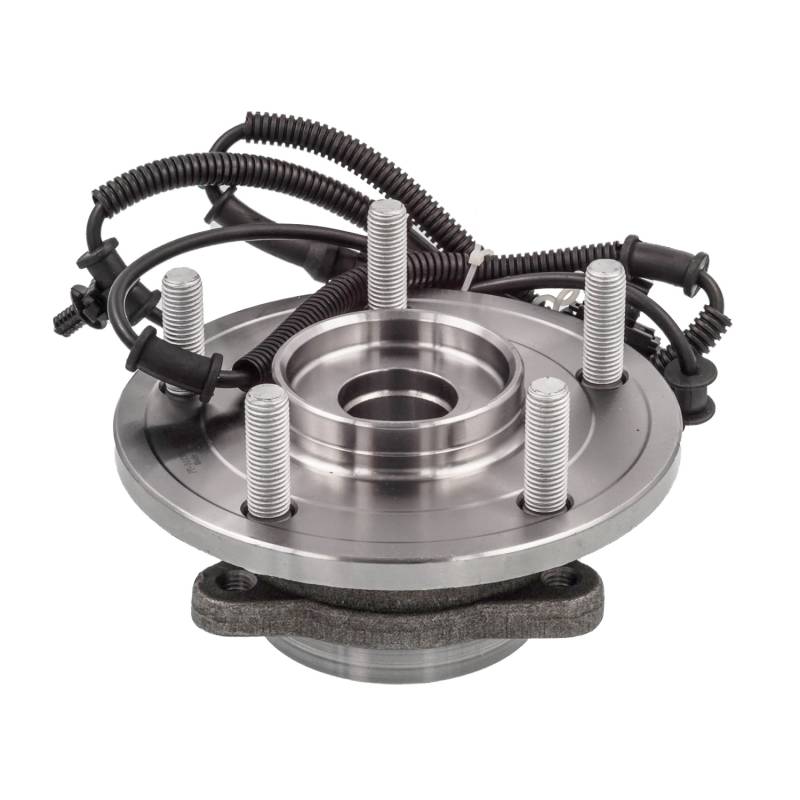

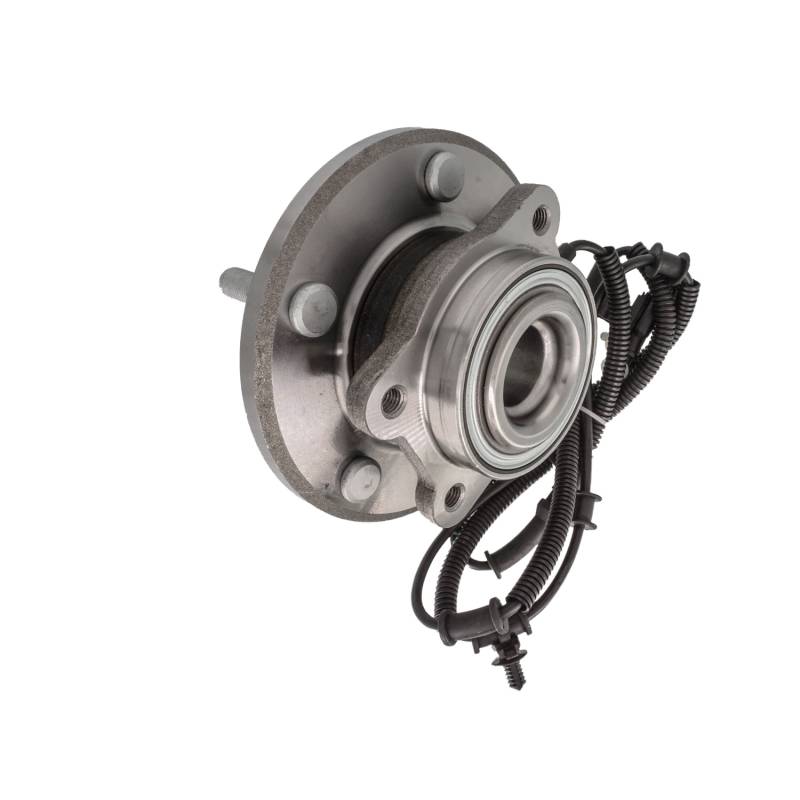

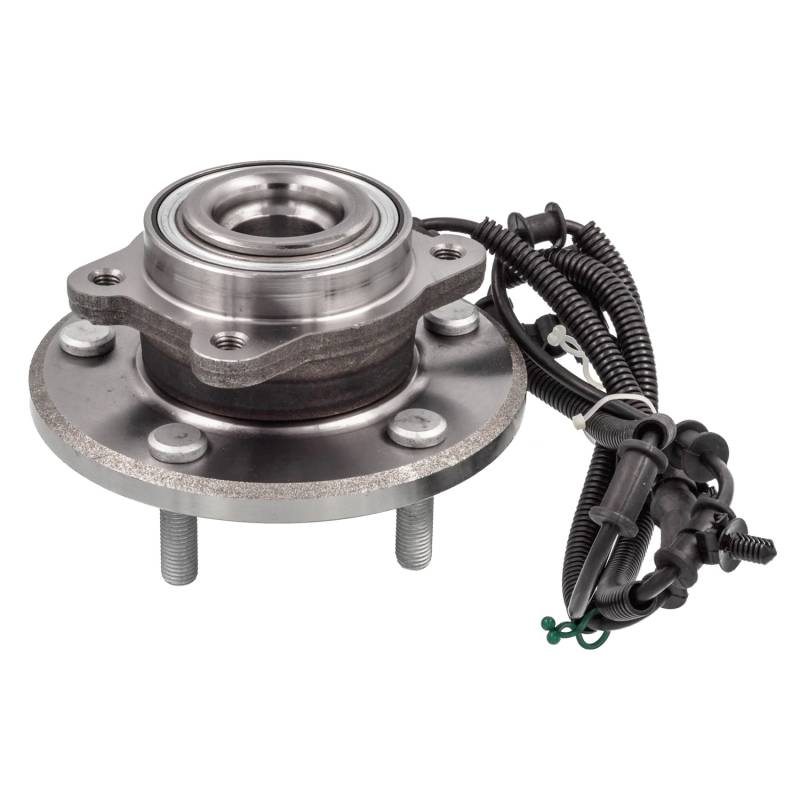

PRODUCT TYPE: HUB ASSEMBLY

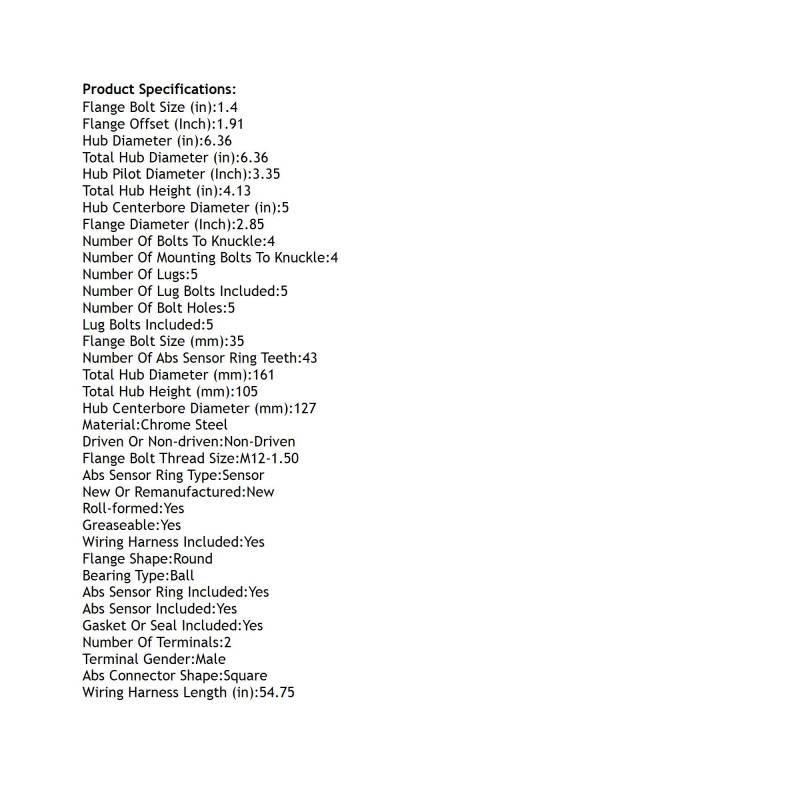

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.4
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.85
FLANGE OFFSET (INCH): 1.91
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.36
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 2
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.36
TOTAL HUB DIAMETER (MM): 161
TOTAL HUB HEIGHT (IN): 4.13
TOTAL HUB HEIGHT (MM): 105
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 54.75
REPLACES:
AUTOPART INTERNATIONAL: 1411-325767
BCA: WE61634
CENTRIC PARTS: 40763001
GSP: 123360
MEVOTECH: H512360
MOOG HUB ASSEMBLIES: 512360
NAPA: PBR930850
APPLICATIONS:
CHRYSLER TOWN & COUNTRY (2008-2011)
DODGE GRAND CARAVAN (2008-2011)
VOLKSWAGEN ROUTAN (2009-2011)
