THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

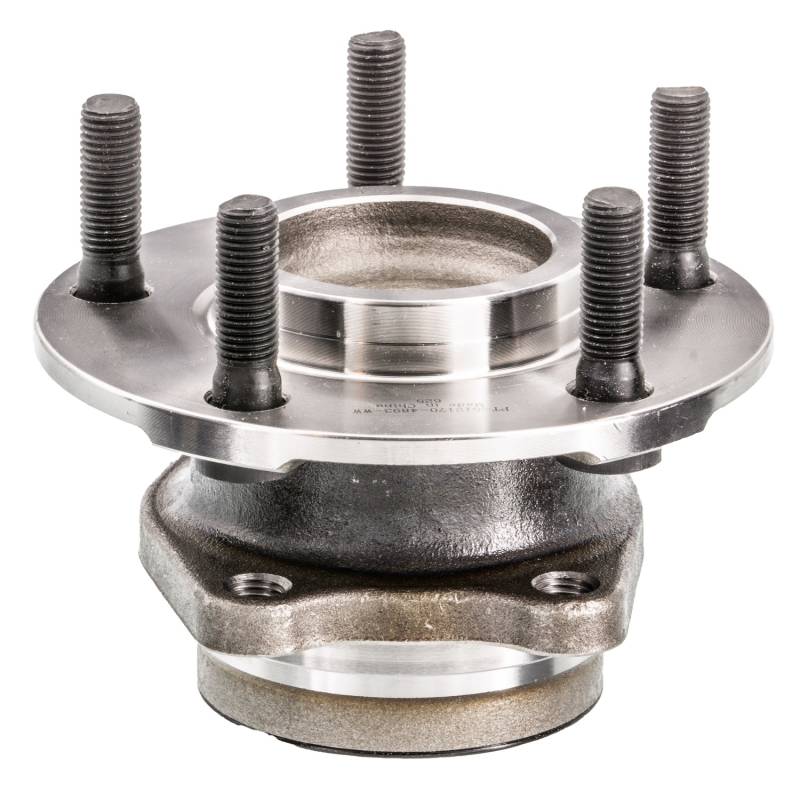

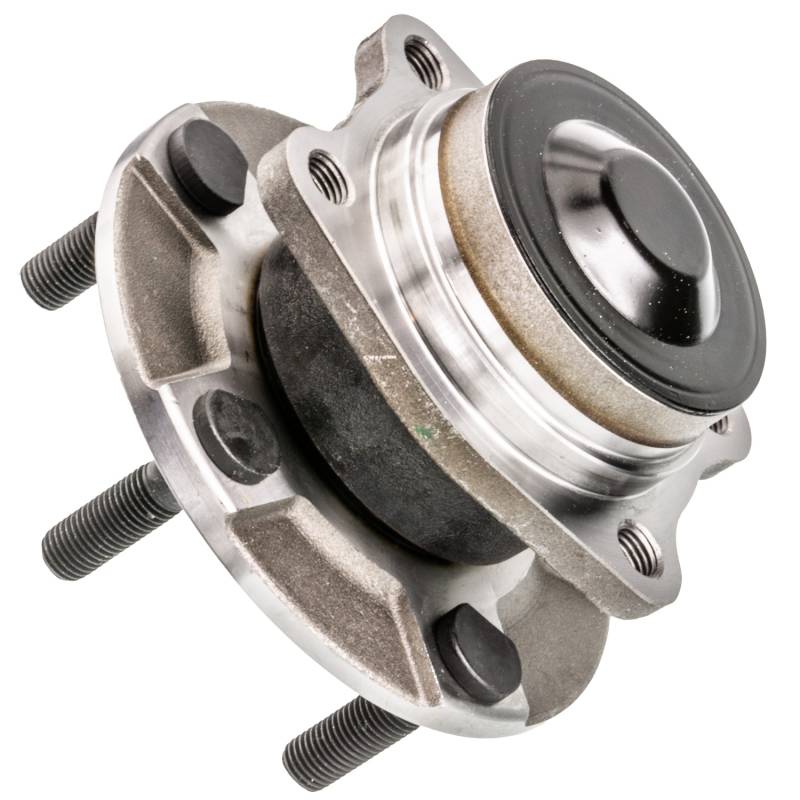

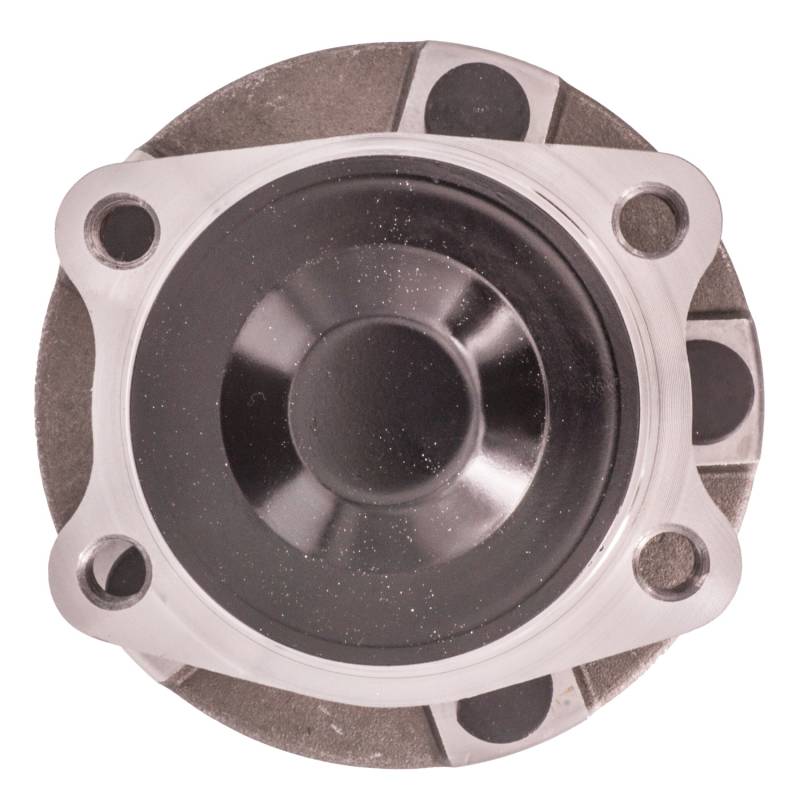

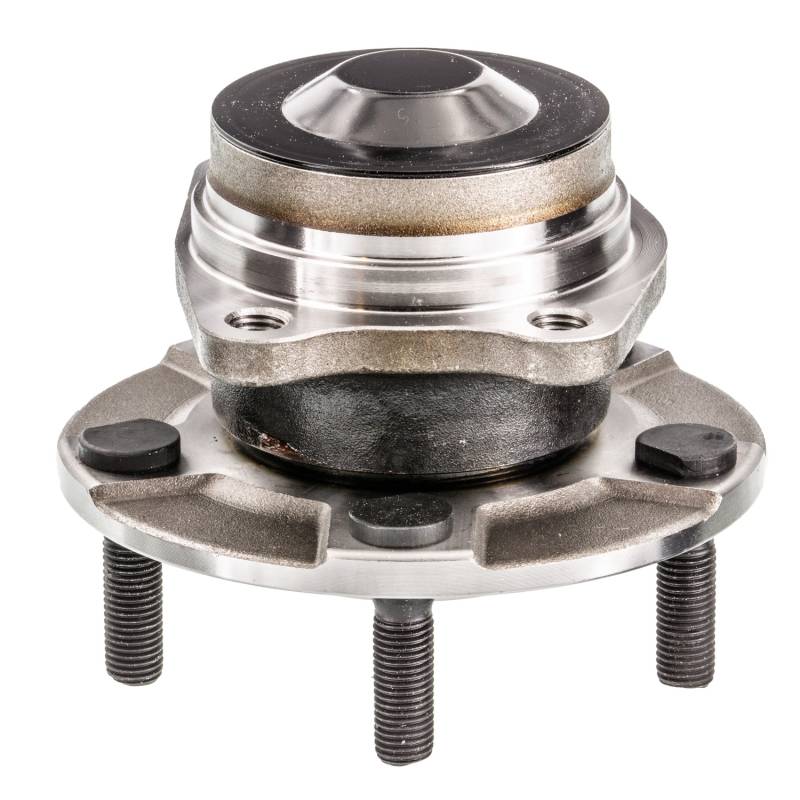

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

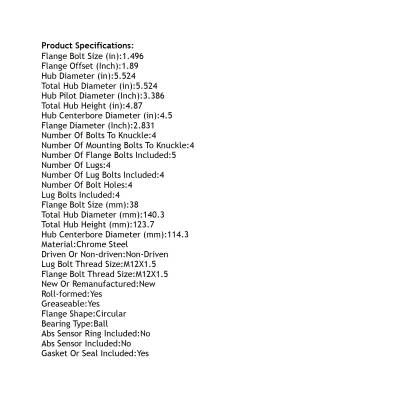

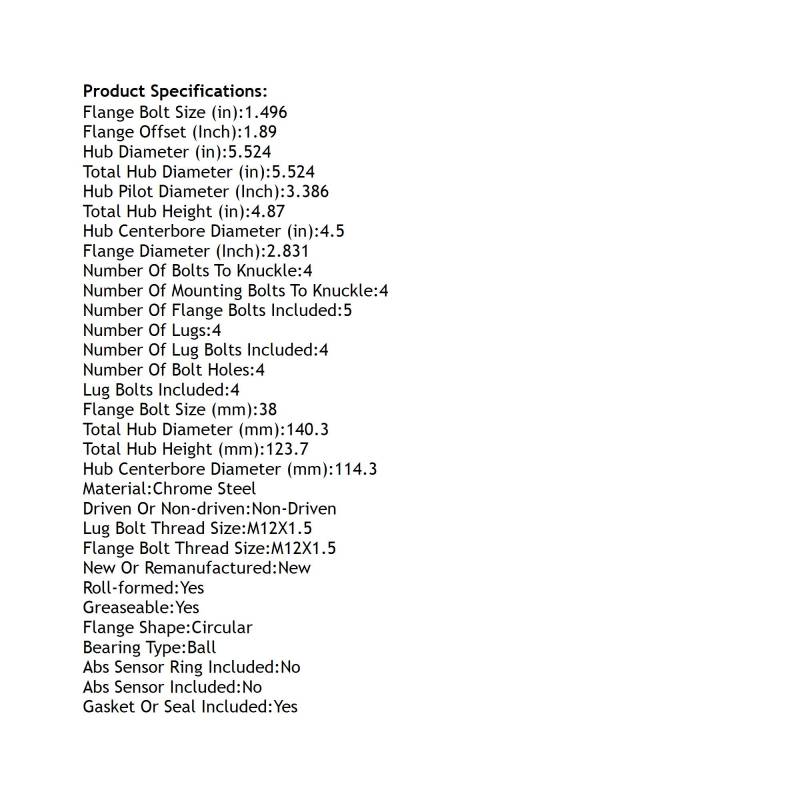

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.496
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.831
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.524
HUB PILOT DIAMETER (INCH): 3.386
LUG BOLT THREAD SIZE: M12X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.524
TOTAL HUB DIAMETER (MM): 140.3
TOTAL HUB HEIGHT (IN): 4.87
TOTAL HUB HEIGHT (MM): 123.7
REPLACES:
AUTOPART INTERNATIONAL: 1411-04527
BCA: WE61222
CENTRIC PARTS: 40567000E
FAG US: 102489
GSP: 123170
MEVOTECH: H512170
MOOG HUB ASSEMBLIES: 512170
NAPA: PBR930279
APPLICATIONS:
CHRYSLER VOYAGER (2001-2003)
DODGE CARAVAN (2001-2007)
DODGE GRAND CARAVAN (2001-2005)
CHRYSLER TOWN & COUNTRY (2004-2007)
