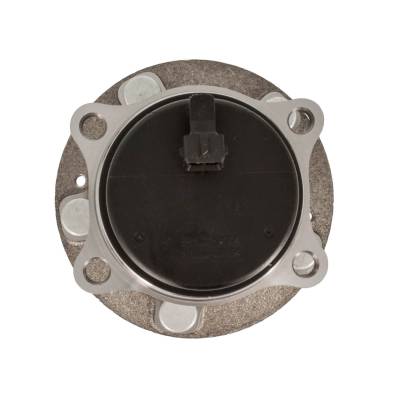

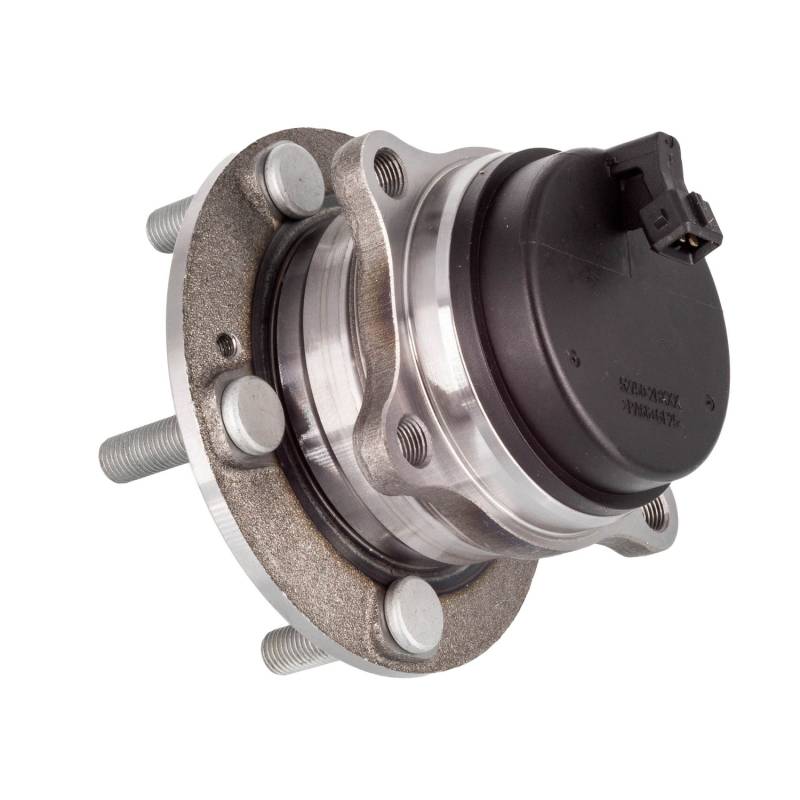

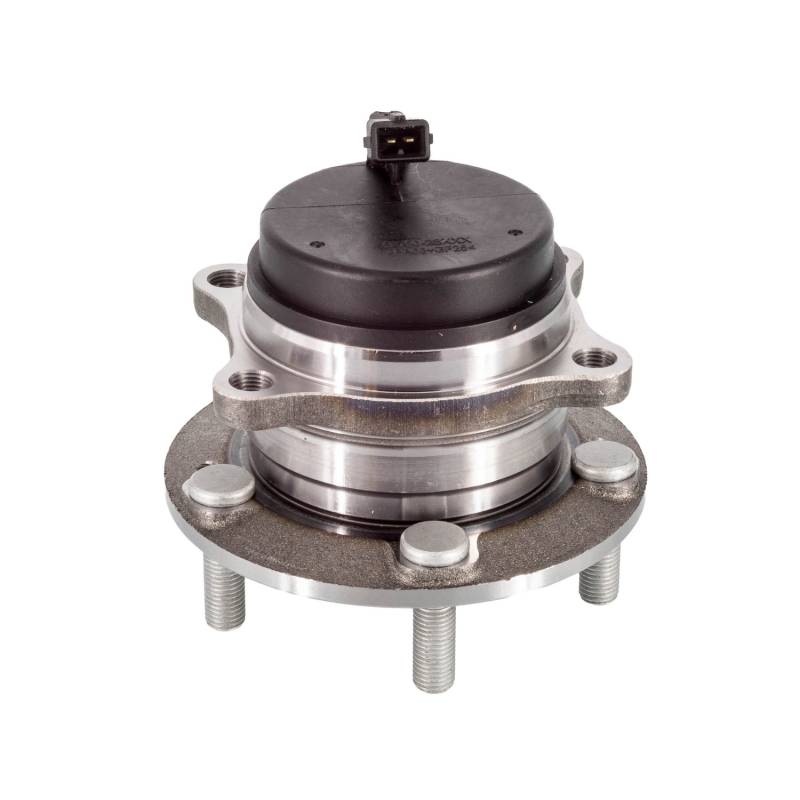

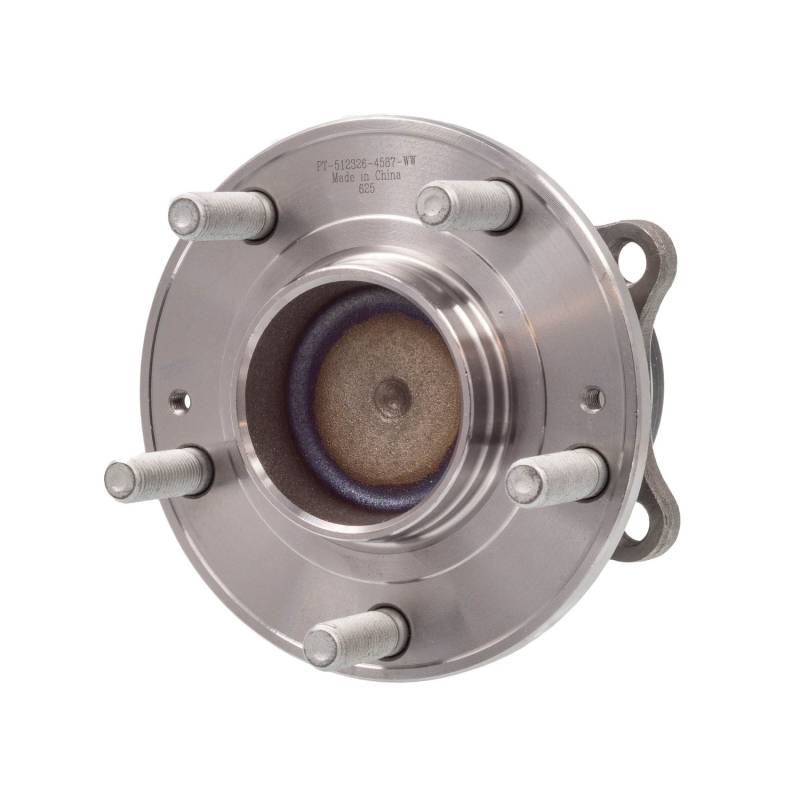

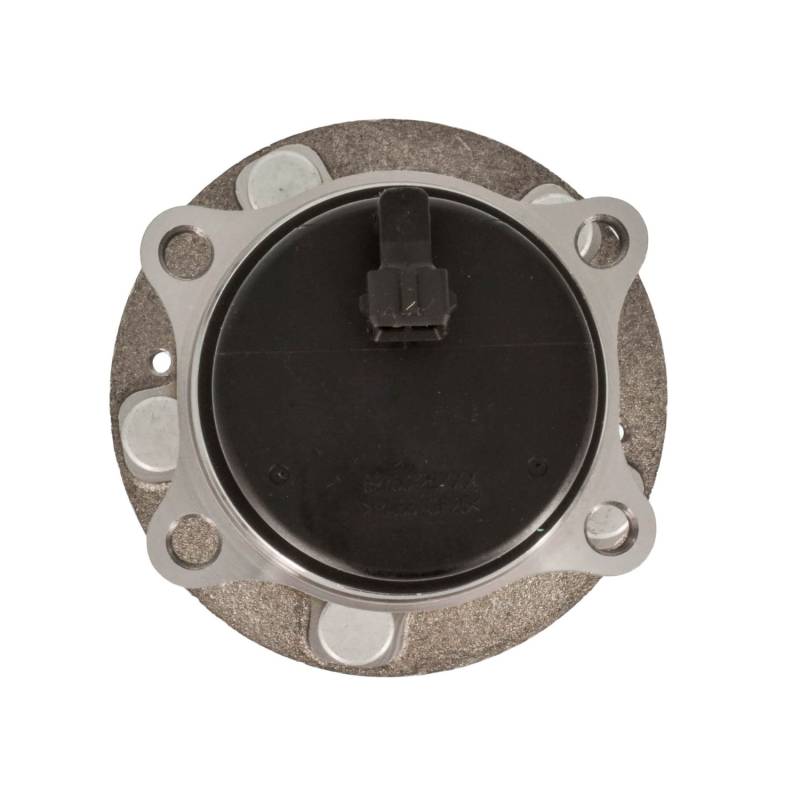

New Hub Assembly Compatible With Hyundai Kia Santa Fe Veracruz Sorento Santa Fe Sport Santa Fe Xl

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

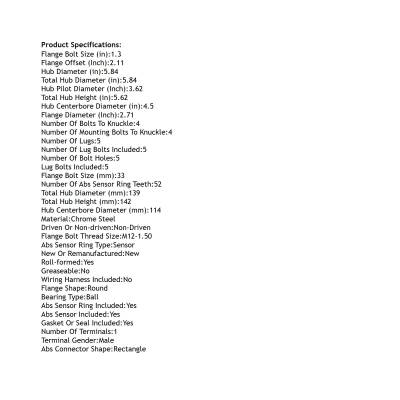

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.71
FLANGE OFFSET (INCH): 2.11
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.84
HUB PILOT DIAMETER (INCH): 3.62
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.84
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 5.62
TOTAL HUB HEIGHT (MM): 142
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-246663
BCA: WE60824
BECK/ARNLEY: 051-6225
CENTRIC PARTS: 40751000
FAG US: 101943
GSP: 373326
MEVOTECH: H512326
MOOG HUB ASSEMBLIES: 512326
NAPA: PBR930646
ZZZN: 52750-2B100

APPLICATIONS:
HYUNDAI SANTA FE (2007-2020)
HYUNDAI VERACRUZ (2007-2012)
KIA SORENTO (2011-2015)
HYUNDAI SANTA FE SPORT (2013-2018)
HYUNDAI SANTA FE XL (2013-2019)
