THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

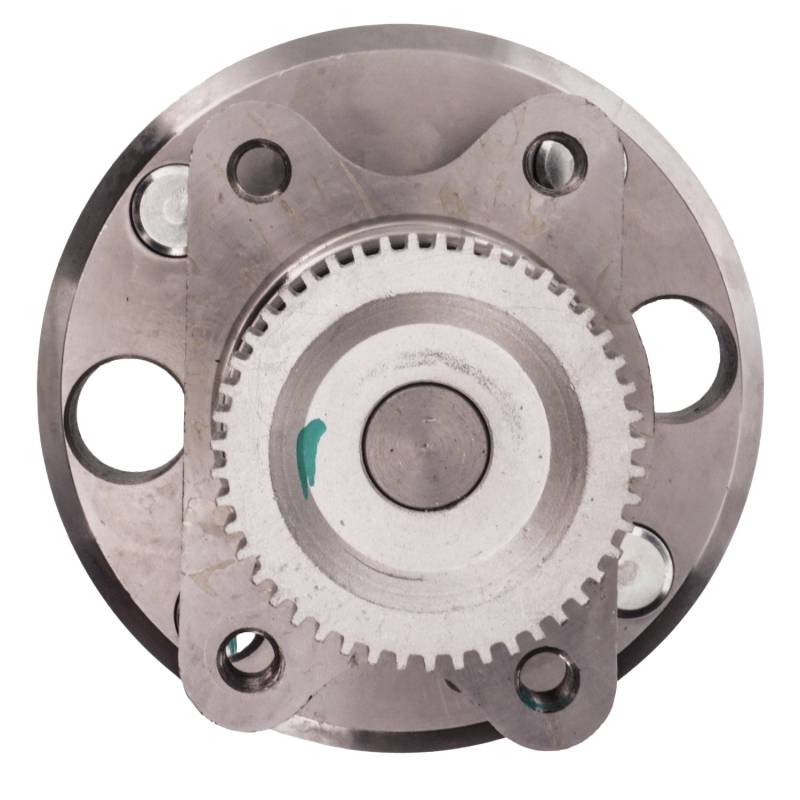

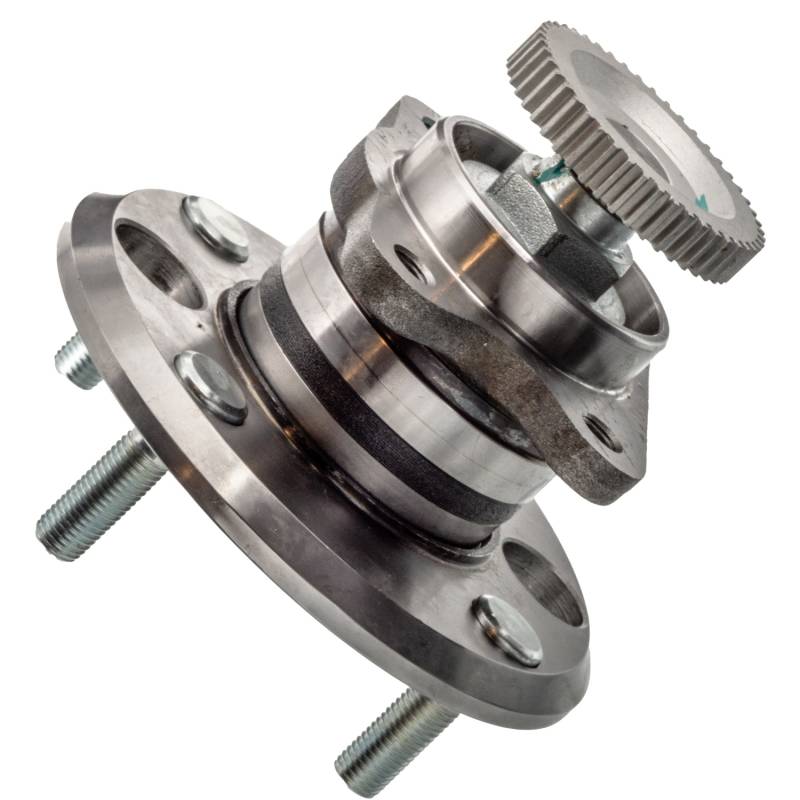

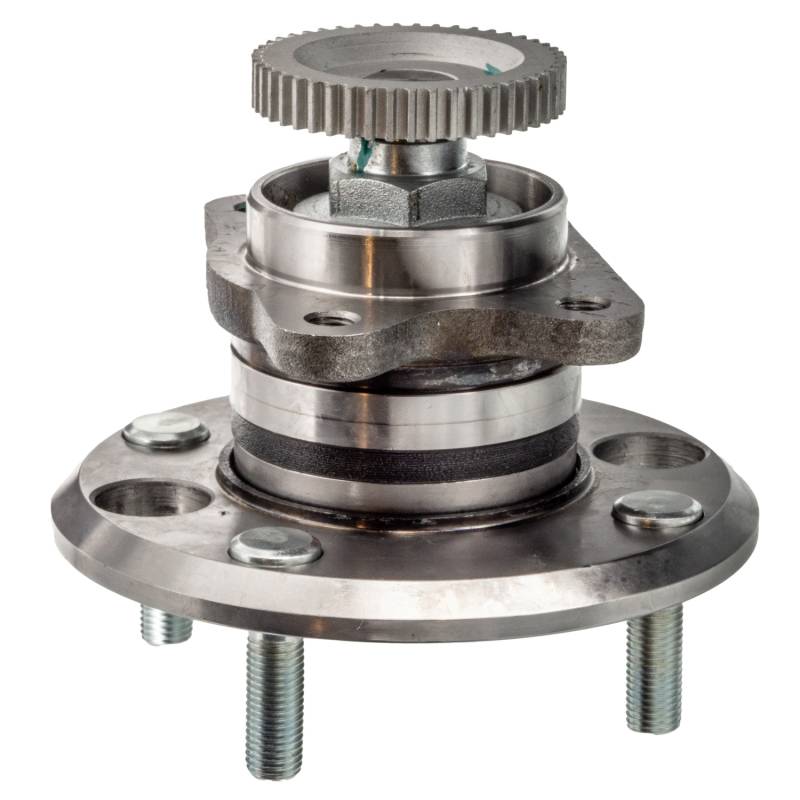

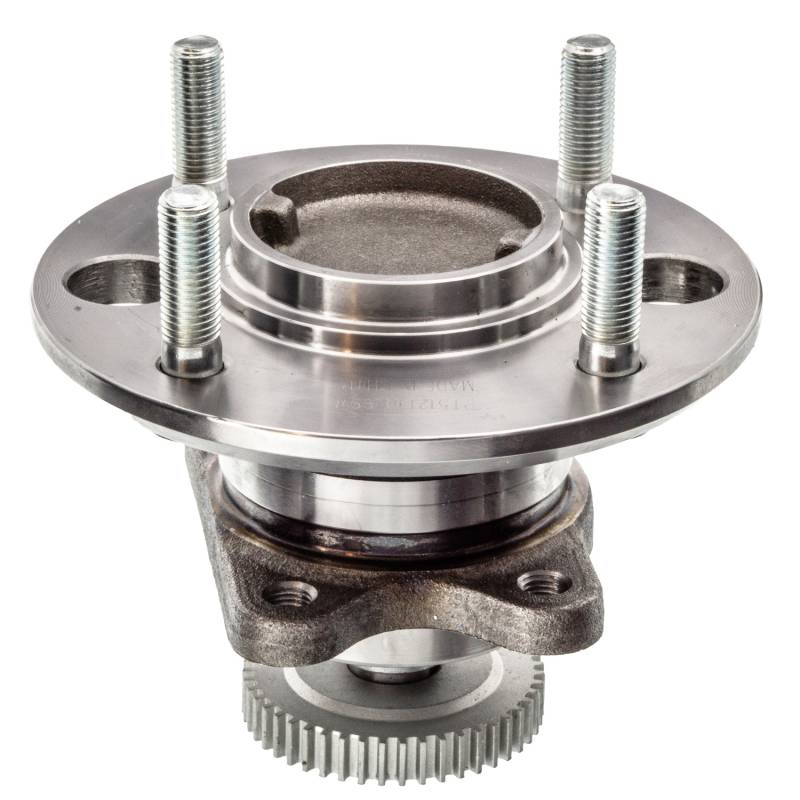

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.52
ABS SENSOR RING DIAMETER (MM): 64
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.421
FLANGE BOLT SIZE (MM): 36.1
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.988
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.827
HUB PILOT DIAMETER (INCH): 2.594
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 5.319
TOTAL HUB HEIGHT (MM): 135.1
REPLACES:
OTHER PART NUMBER: PT512190
SKF: BR930282
TIMKEN: 512190
AUTOPART INTERNATIONAL: 1411-44954
BCA: WE61278
BECK/ARNLEY: 051-6113
CENTRIC PARTS: 40651007
FAG US: 101677
GSP: 373190
MEVOTECH: H512190
MOOG HUB ASSEMBLIES: 512190
NAPA: PBR930282
ZZZN: 52730-38103
APPLICATIONS:
HYUNDAI SONATA (1999-2005)
KIA MAGENTIS (2001-2006)
KIA OPTIMA (2001-2006)
