THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

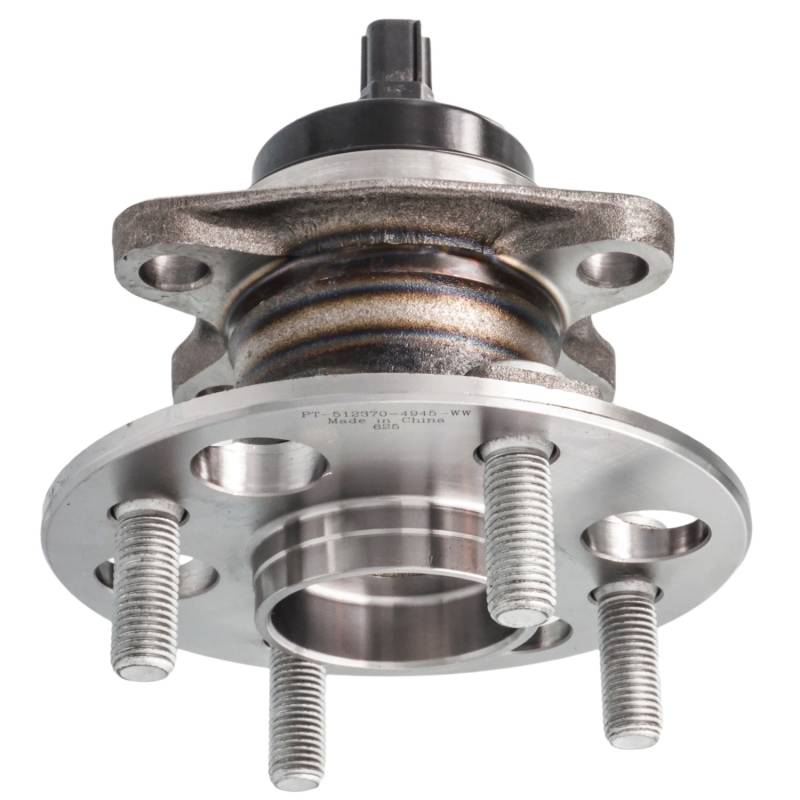

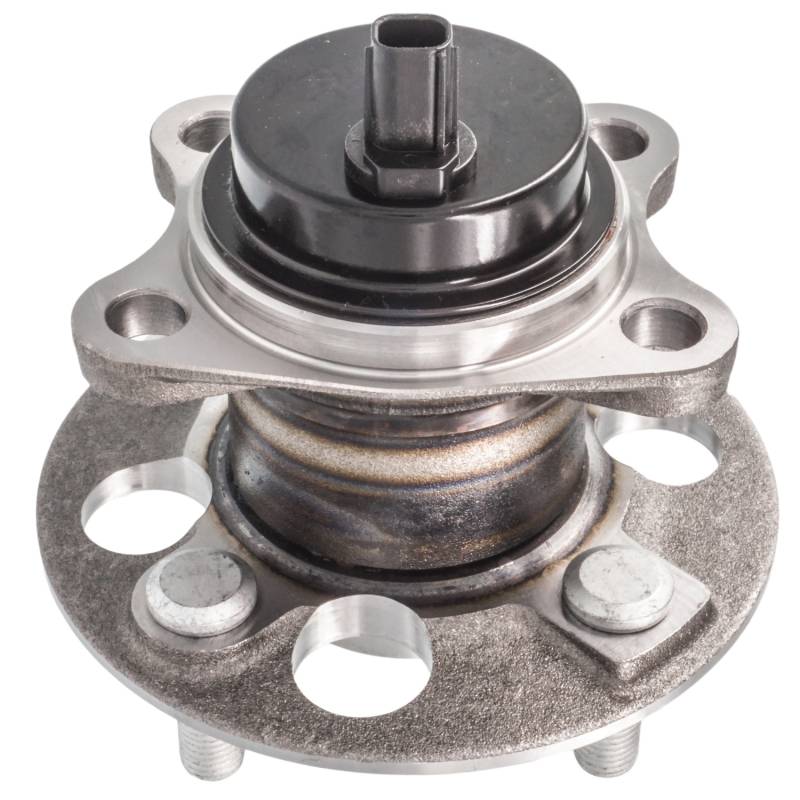

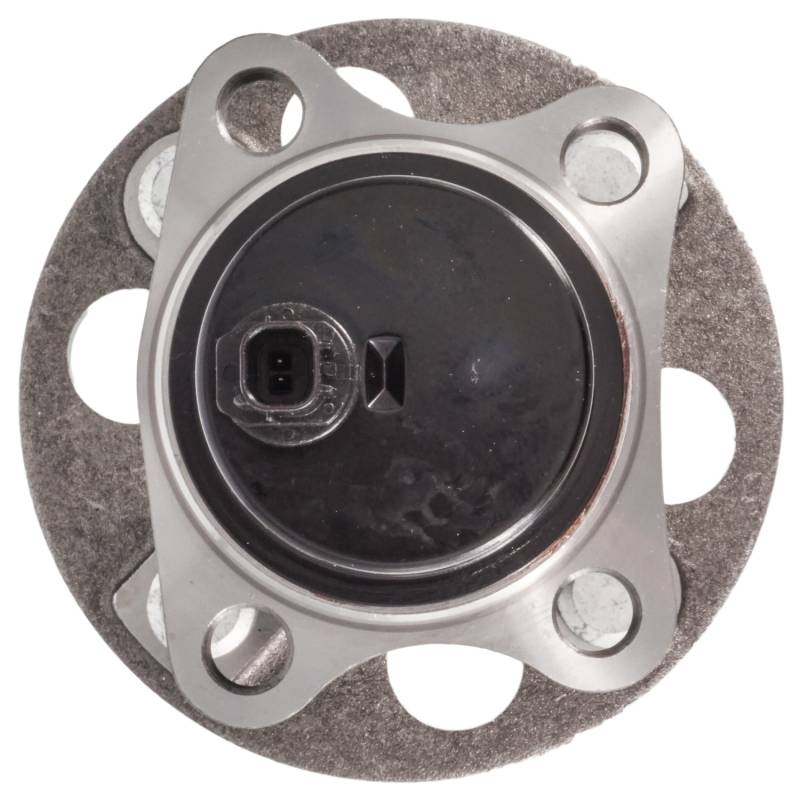

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

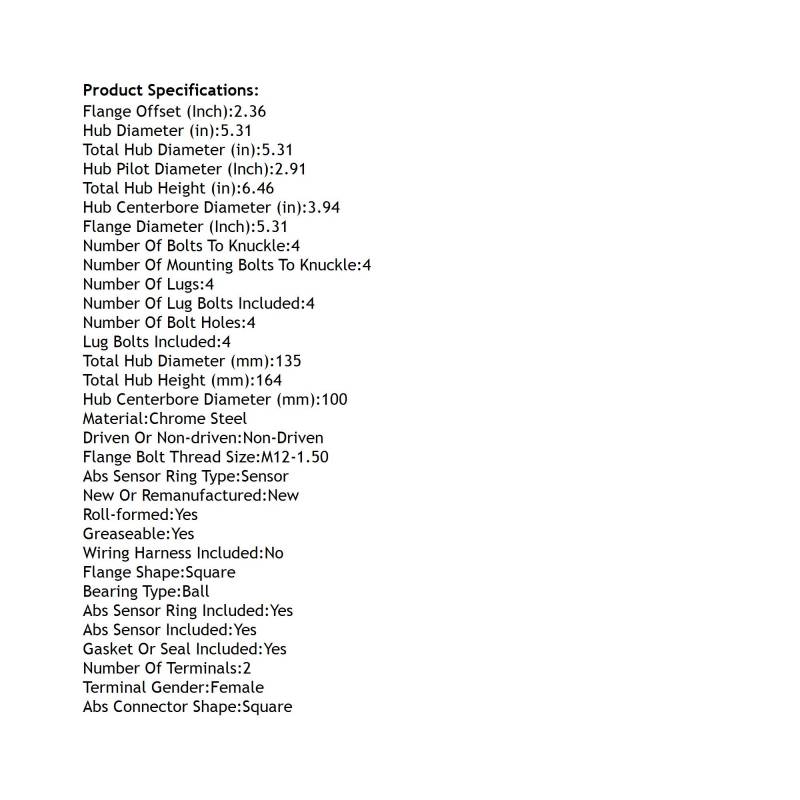

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 5.31
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.31
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 2
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.31
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 6.46
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-248476
BCA: WE60890
BECK/ARNLEY: 051-6272
CENTRIC PARTS: 40744017
FAG US: 101805
GSP: 693370
MEVOTECH: H512370
MOOG HUB ASSEMBLIES: 512370
NAPA: PBR930686
APPLICATIONS:
TOYOTA YARIS (2006-2014)
TOYOTA PRIUS C (2012-2019)
