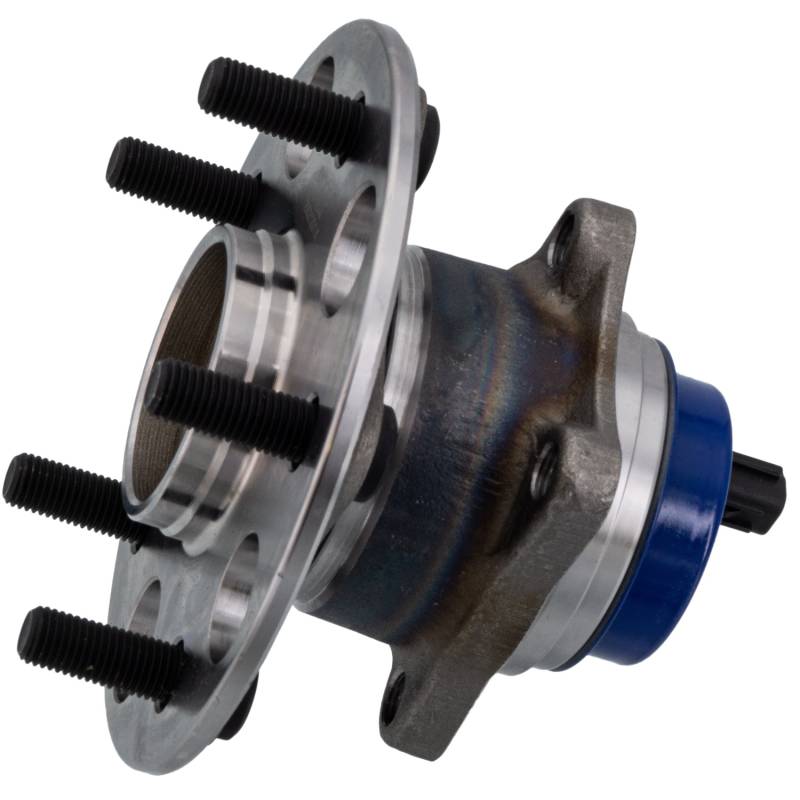

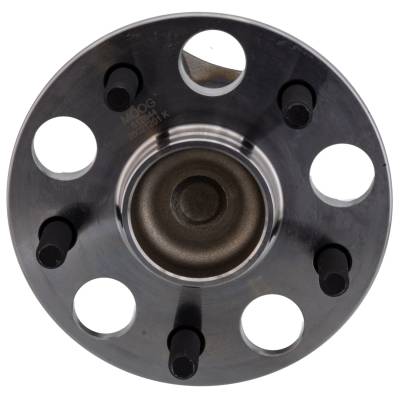

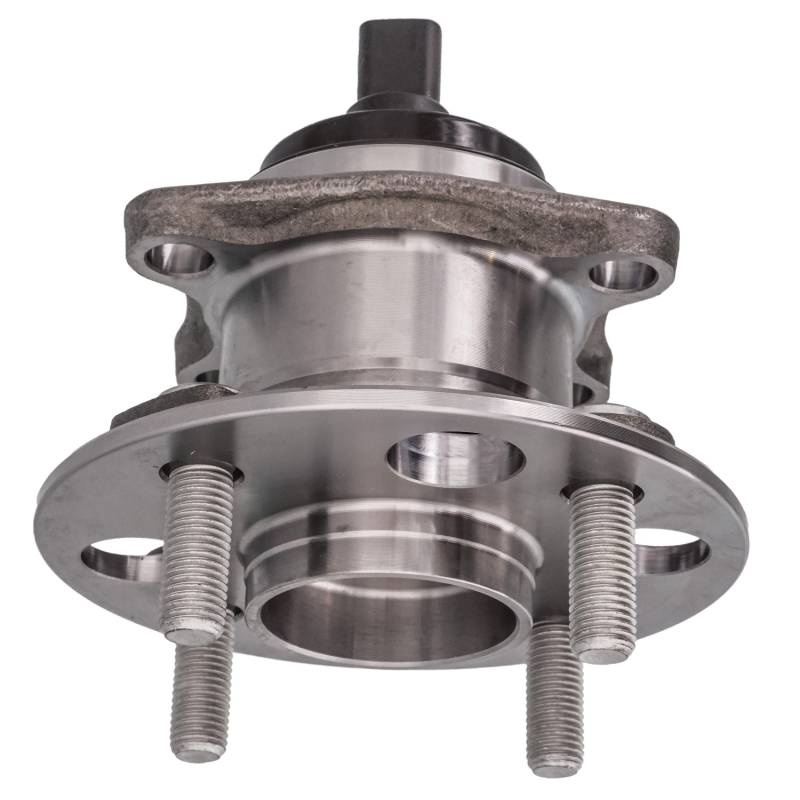

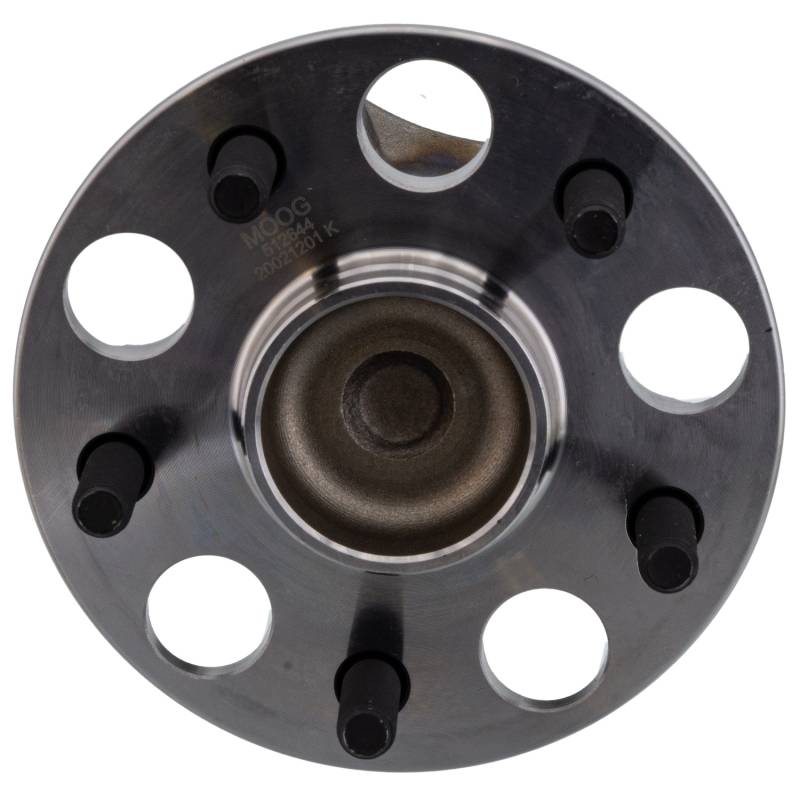

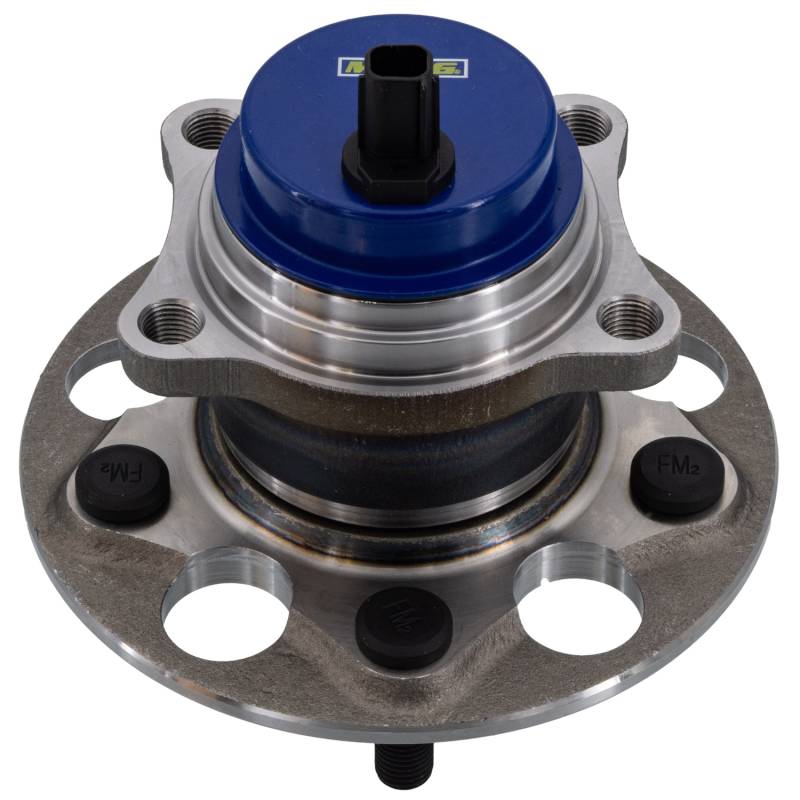

New Hub Assembly Compatible With Toyota Yaris Yaris Ia 1.5L 2015 2016 2017 2018 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

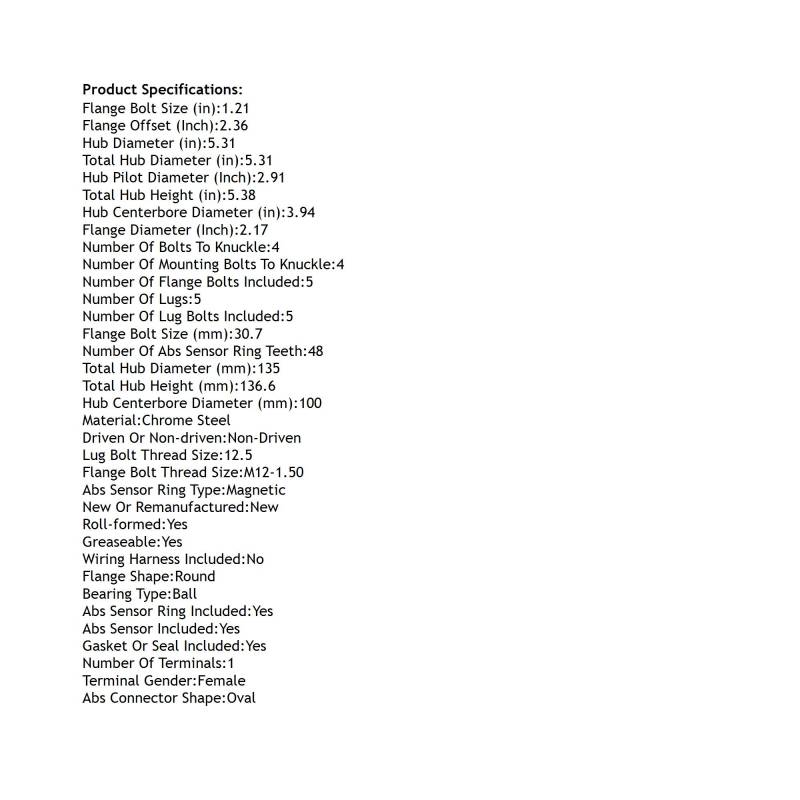

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.21
FLANGE BOLT SIZE (MM): 30.7
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.31
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLT THREAD SIZE: 12.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.31
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 5.38
TOTAL HUB HEIGHT (MM): 136.6
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-612766
GSP: 693636
MOOG HUB ASSEMBLIES: 512636

APPLICATIONS:
TOYOTA YARIS (2015-2018)
TOYOTA YARIS IA (2017-2018)
