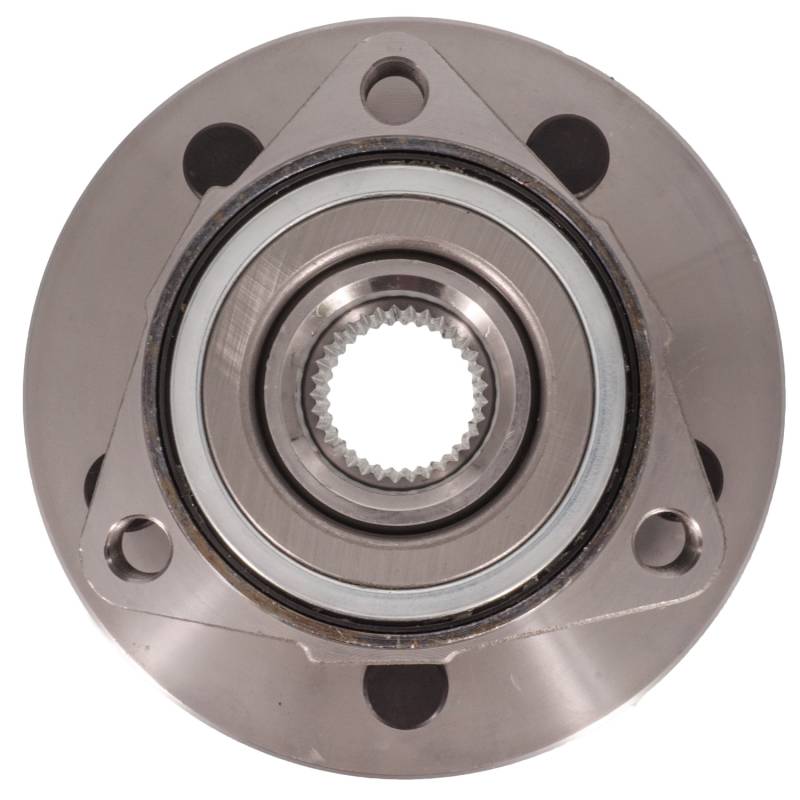

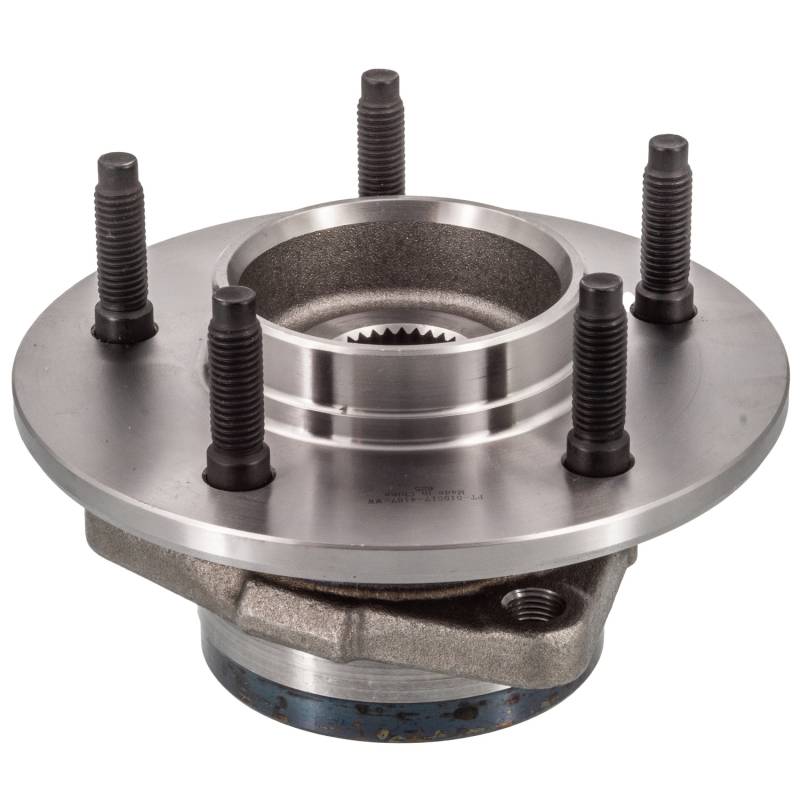

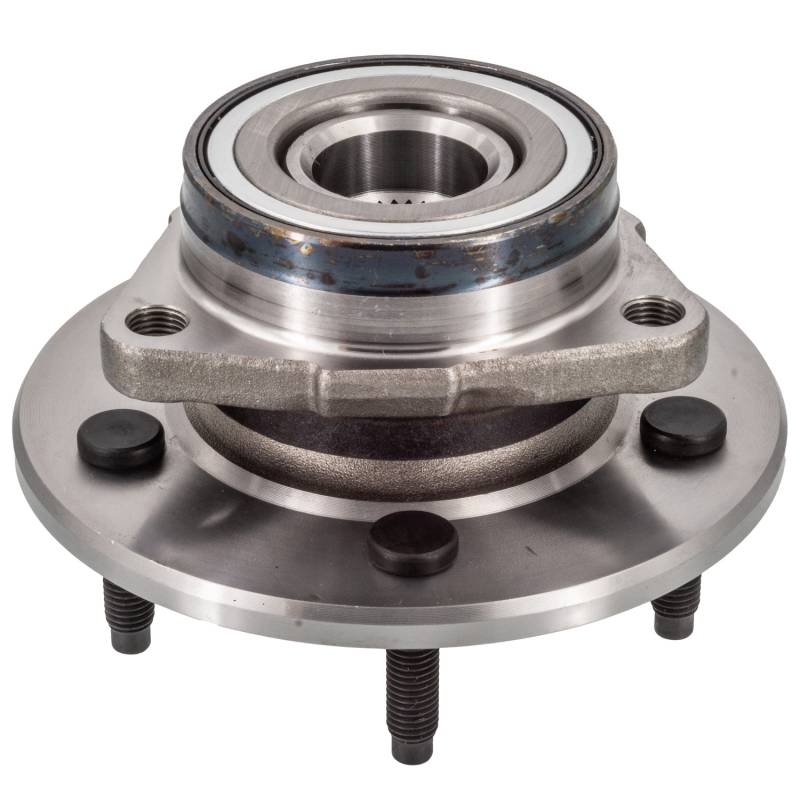

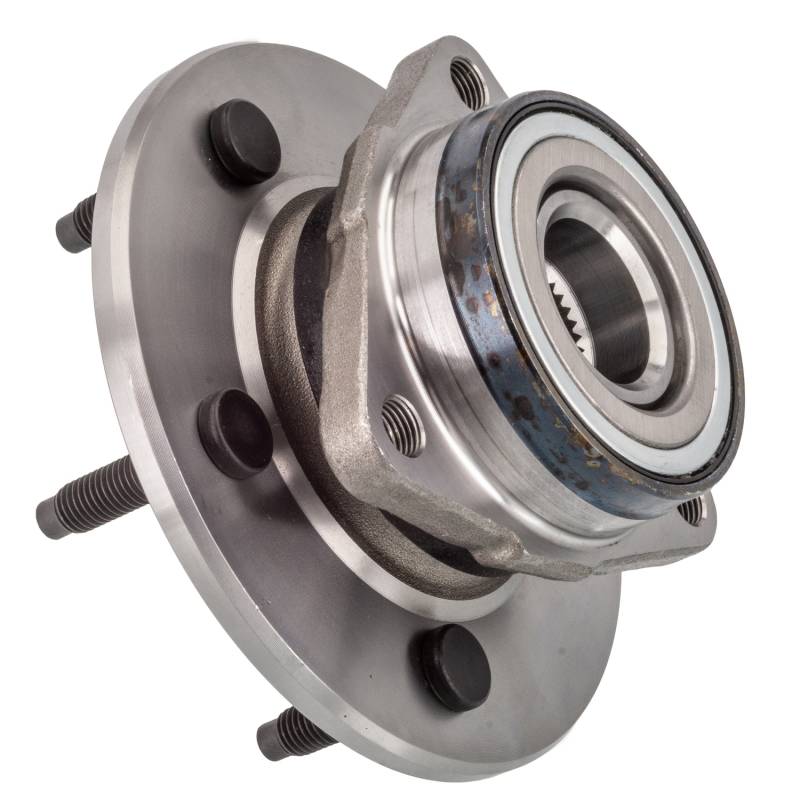

New Hub Assembly Compatible With Ford F-150 F-150 Lightning 1997 1998 1999 2000 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

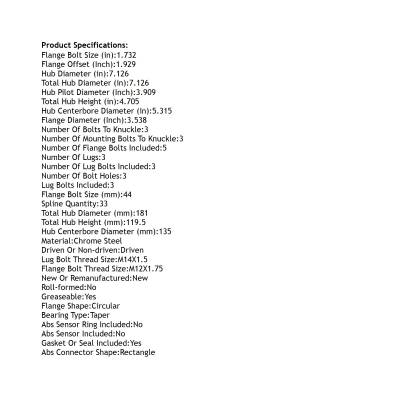

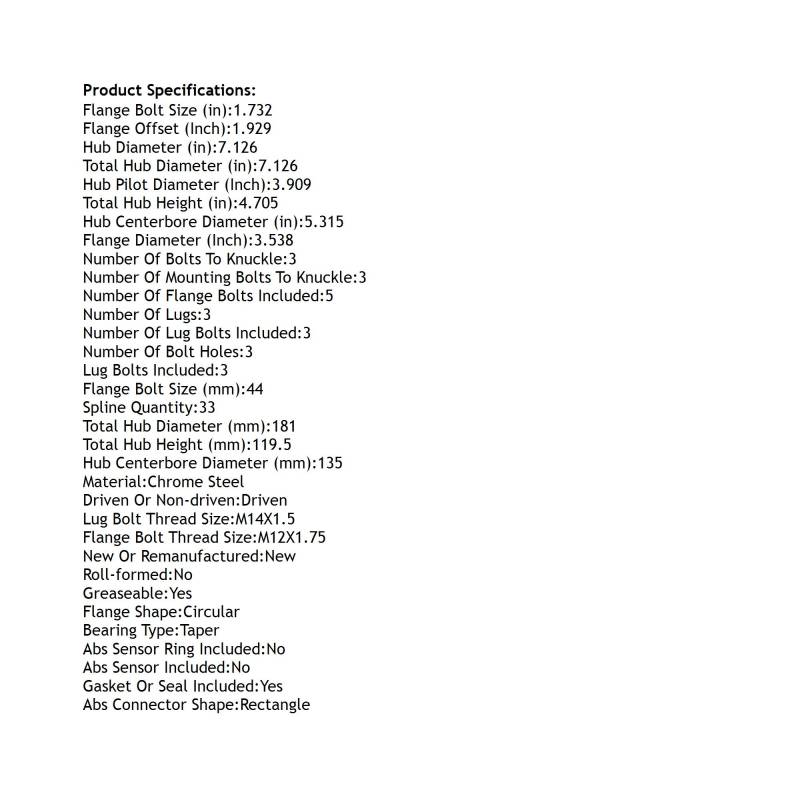

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.732
FLANGE BOLT SIZE (MM): 44
FLANGE BOLT THREAD SIZE: M12X1.75
FLANGE DIAMETER (INCH): 3.538
FLANGE OFFSET (INCH): 1.929
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.126
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 7.126
TOTAL HUB DIAMETER (MM): 181
TOTAL HUB HEIGHT (IN): 4.705
TOTAL HUB HEIGHT (MM): 119.5

REPLACES:
AUTOPART INTERNATIONAL: 1411-45591
BCA: WE60966
CENTRIC PARTS: 40065002E
FAG US: 101983
FORD: XL3Z 1104 BC G2MZ 1104 G
GSP: 116017
MEVOTECH: H515017
MOOG HUB ASSEMBLIES: 515017
MOTORCRAFT: HUB100 NHUB8
NAPA: PBR930218

APPLICATIONS:
FORD F-150 (1997-2000)
FORD F-150 LIGHTNING (1999-2000)
