New Hub Assembly Compatible With Ford F-150 Heritage F-150 4.2L 4.6L 5.4L 2004 2005 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

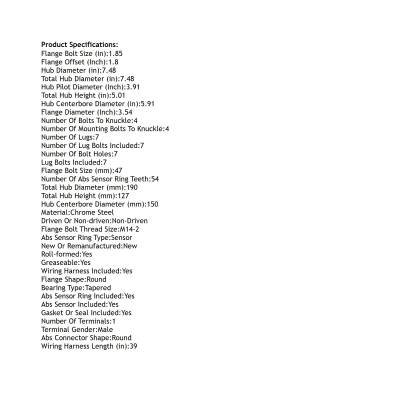

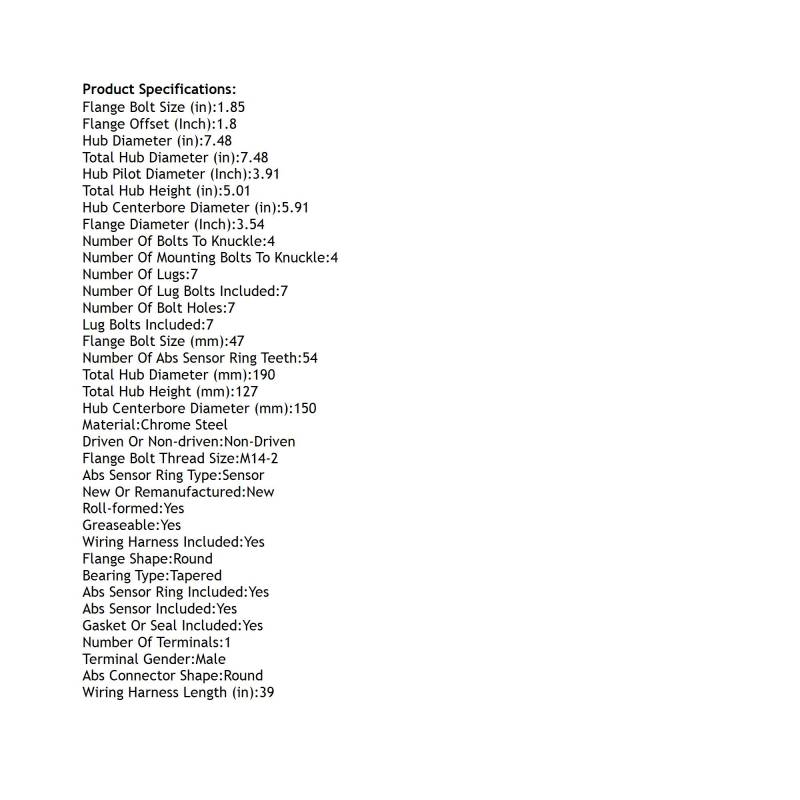

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.85
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.91
HUB CENTERBORE DIAMETER (MM): 150
HUB DIAMETER (IN): 7.48
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLTS INCLUDED: 7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 7
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 7
NUMBER OF LUGS: 7
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.48
TOTAL HUB DIAMETER (MM): 190
TOTAL HUB HEIGHT (IN): 5.01
TOTAL HUB HEIGHT (MM): 127
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39

REPLACES:
AUTOPART INTERNATIONAL: 1411-256009
BCA: WE61069
CENTRIC PARTS: 40265015
FAG US: 101999
FORD: G2MZ 1104 L
GSP: 116047
MEVOTECH: H51047
MOOG HUB ASSEMBLIES: 515047
MOTORCRAFT: NHUB-12 NHUB12
NAPA: PBR930454

APPLICATIONS:
FORD F-150 HERITAGE (2004-2004)
FORD F-150 (2004-2005)
