New Hub Assembly Compatible With Buick Chevrolet Pontiac Saturn Terraza Uplander Montana Relay 3.5L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

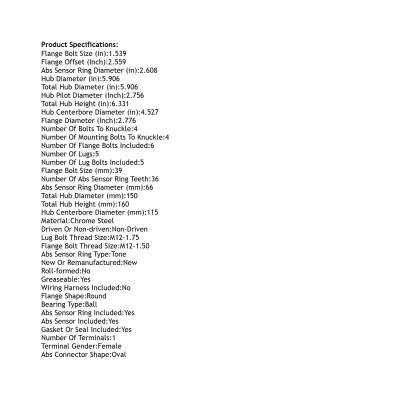

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.608
ABS SENSOR RING DIAMETER (MM): 66
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.539
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.776
FLANGE OFFSET (INCH): 2.559
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.527
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.906
HUB PILOT DIAMETER (INCH): 2.756
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 36
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.906
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 6.331
TOTAL HUB HEIGHT (MM): 160
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-85
AUTOPART INTERNATIONAL: 1411-246655
BCA: WE61048
CENTRIC PARTS: 40762006
FAG US: 102125
GENERAL MOTORS: 88967271
GSP: 103309
MEVOTECH: H512309
MOOG HUB ASSEMBLIES: 512309
NAPA: PBR930632

APPLICATIONS:
BUICK TERRAZA (2006-2007)
CHEVROLET UPLANDER (2006-2009)
PONTIAC MONTANA (2006-2009)
SATURN RELAY (2006-2007)
