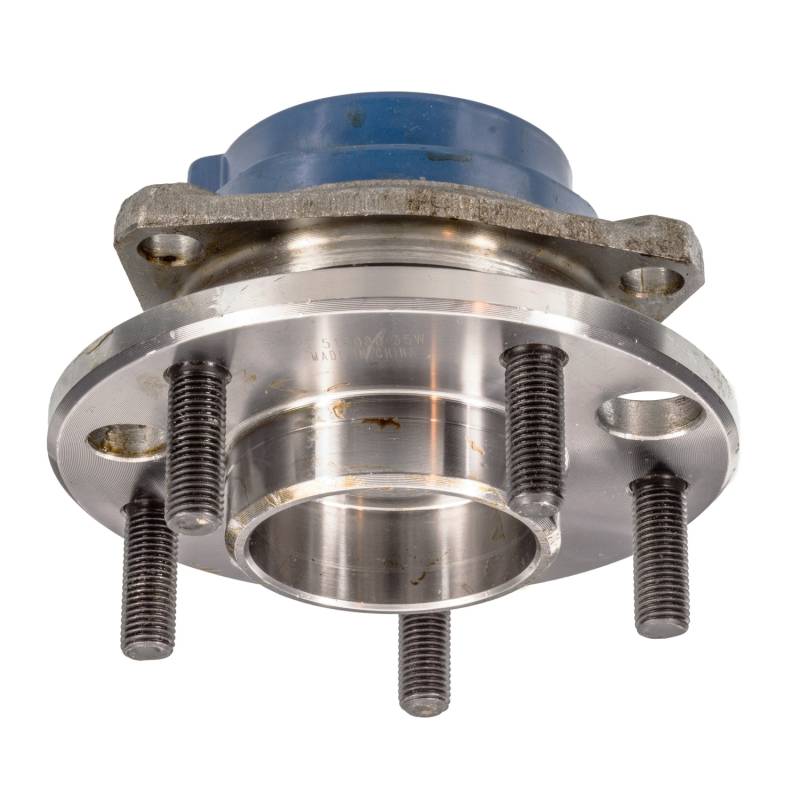

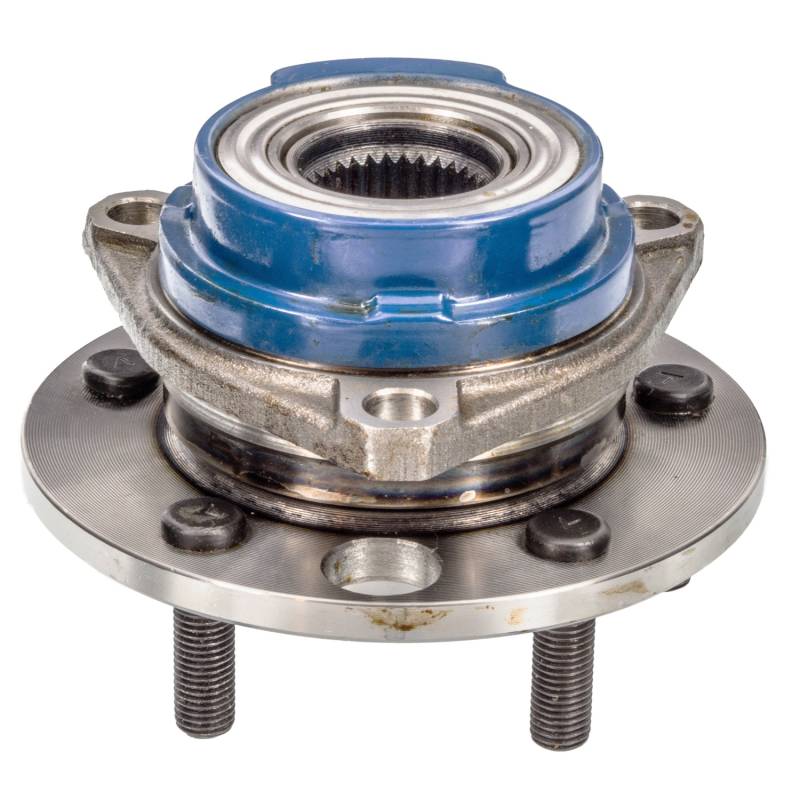

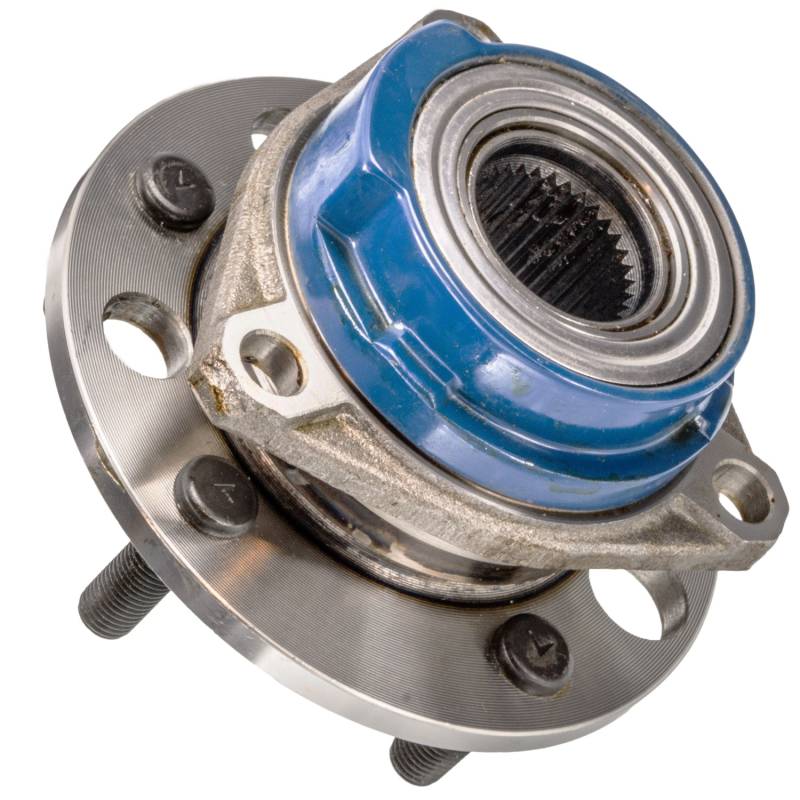

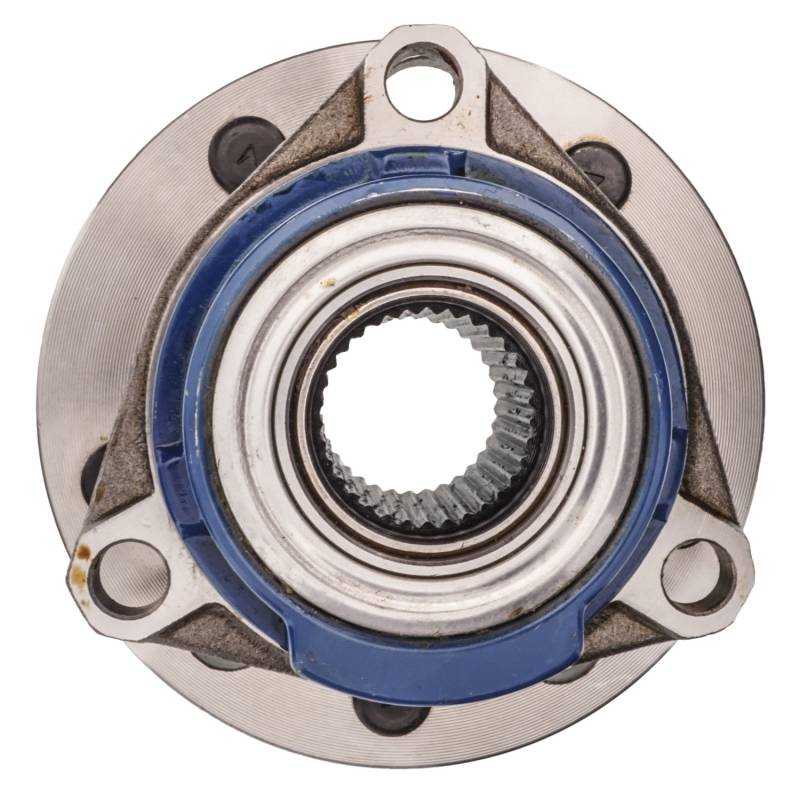

New Hub Assembly Compatible With Buick Oldsmobile Lesabre 88 3.8L 1992-1992 By Part Numbers Pt513088

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

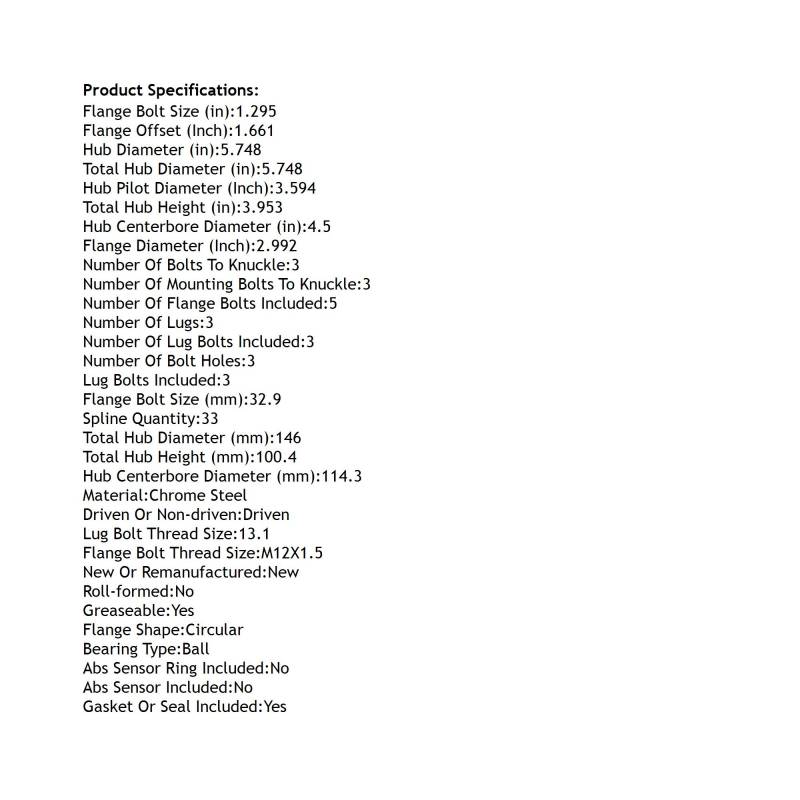

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.295
FLANGE BOLT SIZE (MM): 32.9
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.992
FLANGE OFFSET (INCH): 1.661
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.748
HUB PILOT DIAMETER (INCH): 3.594
LUG BOLT THREAD SIZE: 13.1
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.748
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 3.953
TOTAL HUB HEIGHT (MM): 100.4

REPLACES:
AUTOPART INTERNATIONAL: 1411-02104
CENTRIC PARTS: 40062001E
MEVOTECH: H513088
MOOG HUB ASSEMBLIES: 513088
NAPA: PBR930077

APPLICATIONS:
BUICK LESABRE (1992-1992)
OLDSMOBILE 88 (1992-1992)
