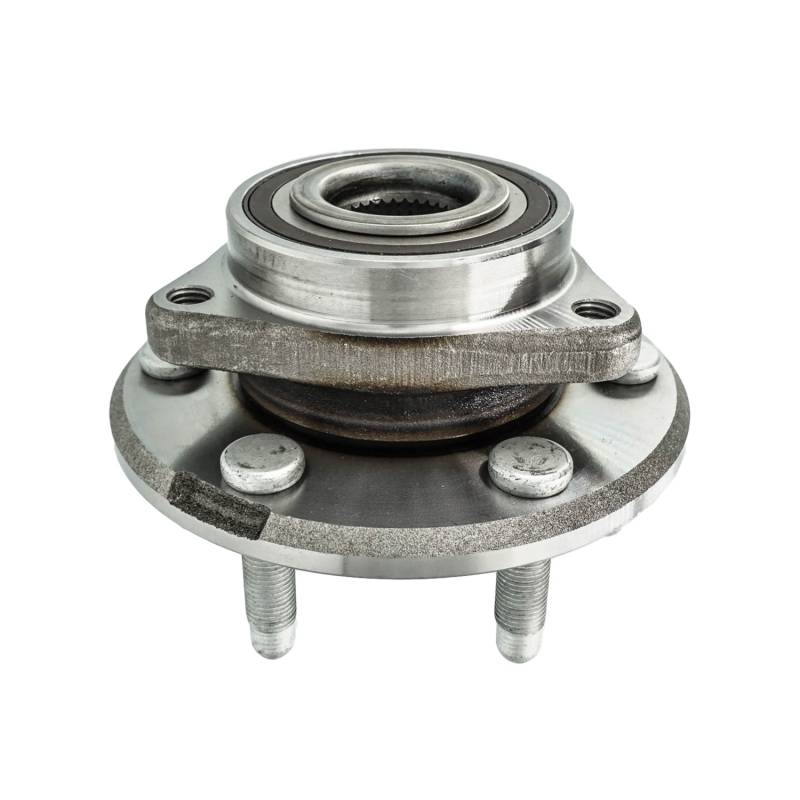

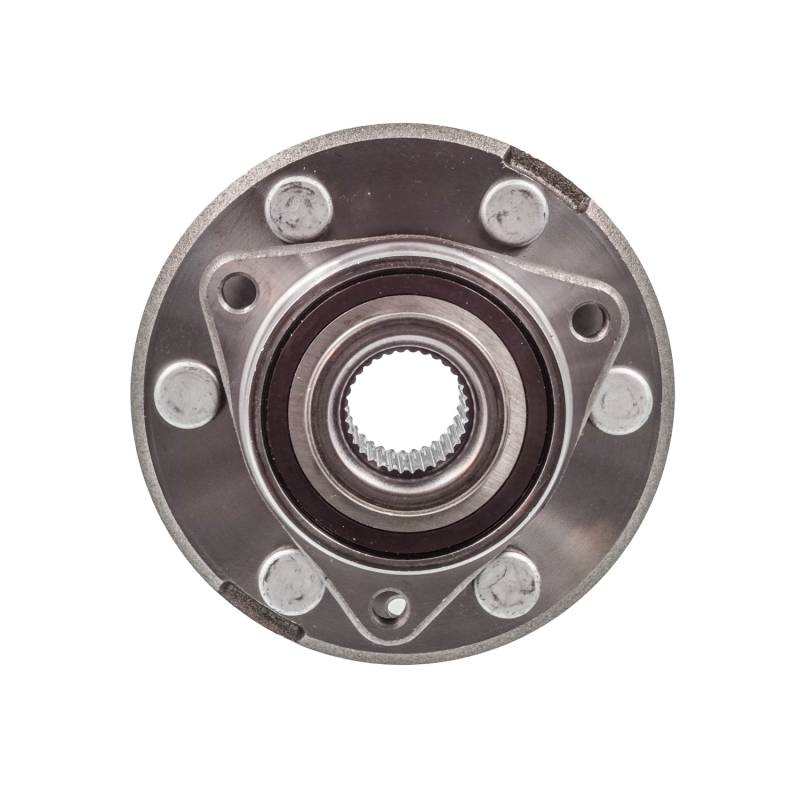

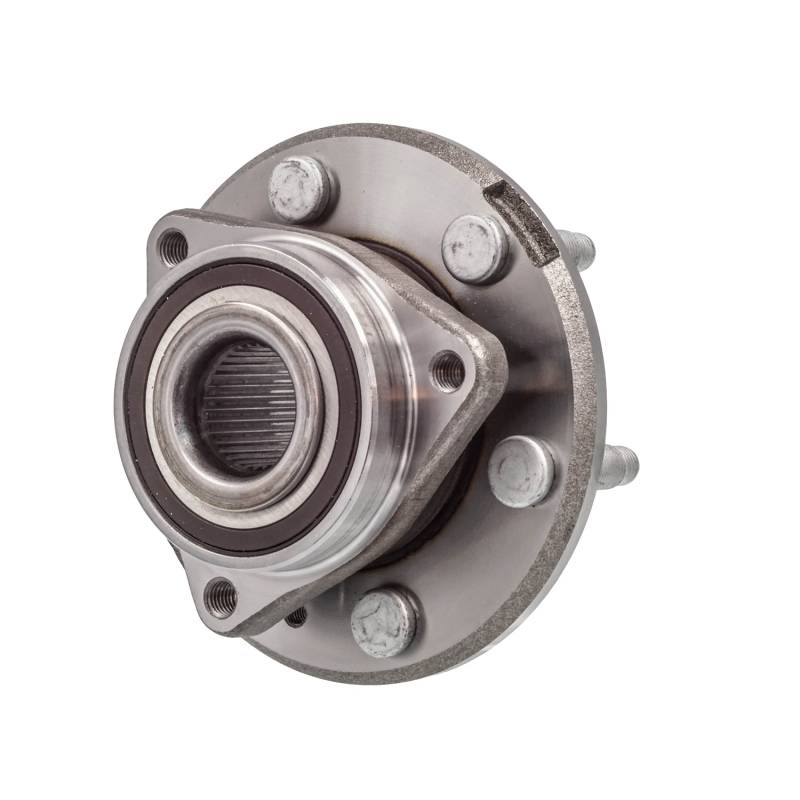

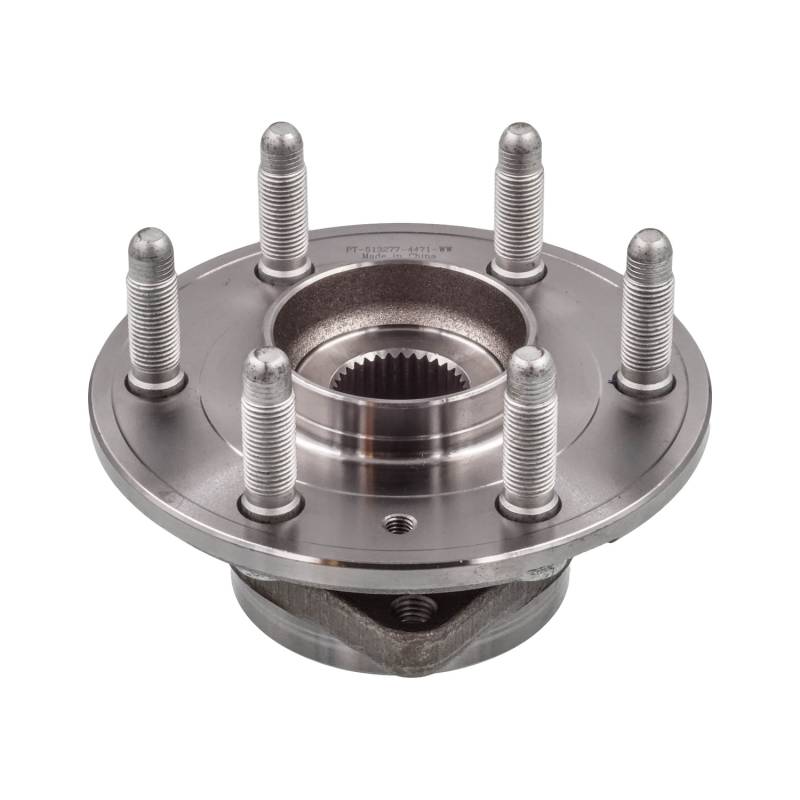

New Hub Assembly Compatible With Gmc Saturn Buick Chevrolet Acadia Outlook Enclave Traverse Acadia

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.209
ABS SENSOR RING DIAMETER (MM): 81.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.803
FLANGE BOLT SIZE (MM): 45.8
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.976
FLANGE OFFSET (INCH): 1.85
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.197
HUB CENTERBORE DIAMETER (MM): 132
HUB DIAMETER (IN): 6.638
HUB PILOT DIAMETER (INCH): 3.74
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 94
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 6.638
TOTAL HUB DIAMETER (MM): 168.6
TOTAL HUB HEIGHT (IN): 4.547
TOTAL HUB HEIGHT (MM): 115.5
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: 19434718 FW331
AUTOPART INTERNATIONAL: 1411-257974
BCA: WE61544
CENTRIC PARTS: 40062012
FAG US: 102226
GENERAL MOTORS: 22756832
GSP: 104277
MEVOTECH: H513277
MOOG HUB ASSEMBLIES: 513277
NAPA: PBR930532

APPLICATIONS:
GMC ACADIA (2007-2016)
SATURN OUTLOOK (2007-2010)
BUICK ENCLAVE (2008-2017)
CHEVROLET TRAVERSE (2009-2017)
GMC ACADIA LIMITED (2017-2017)
