THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

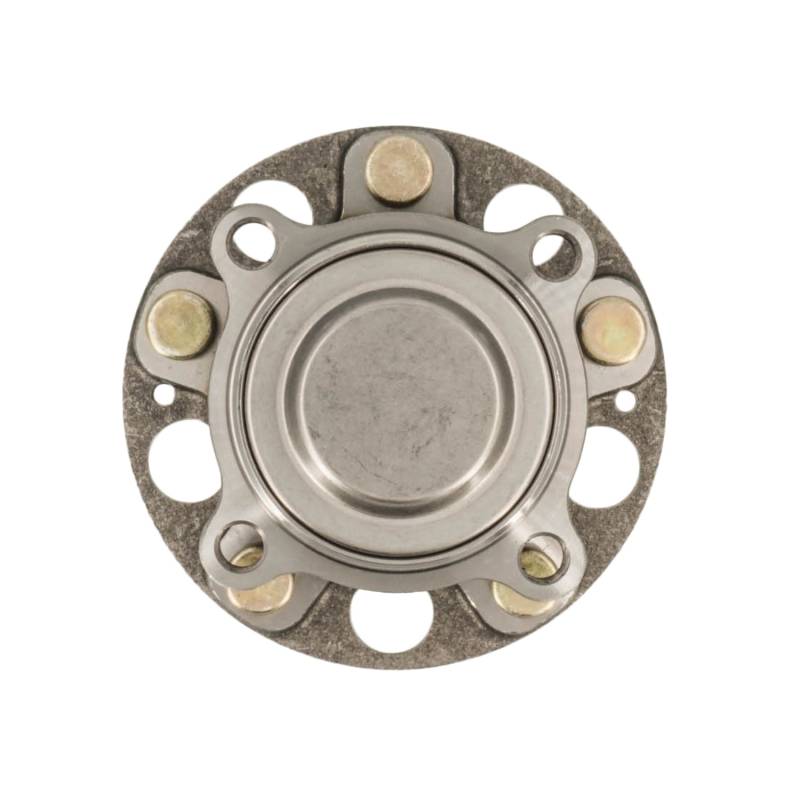

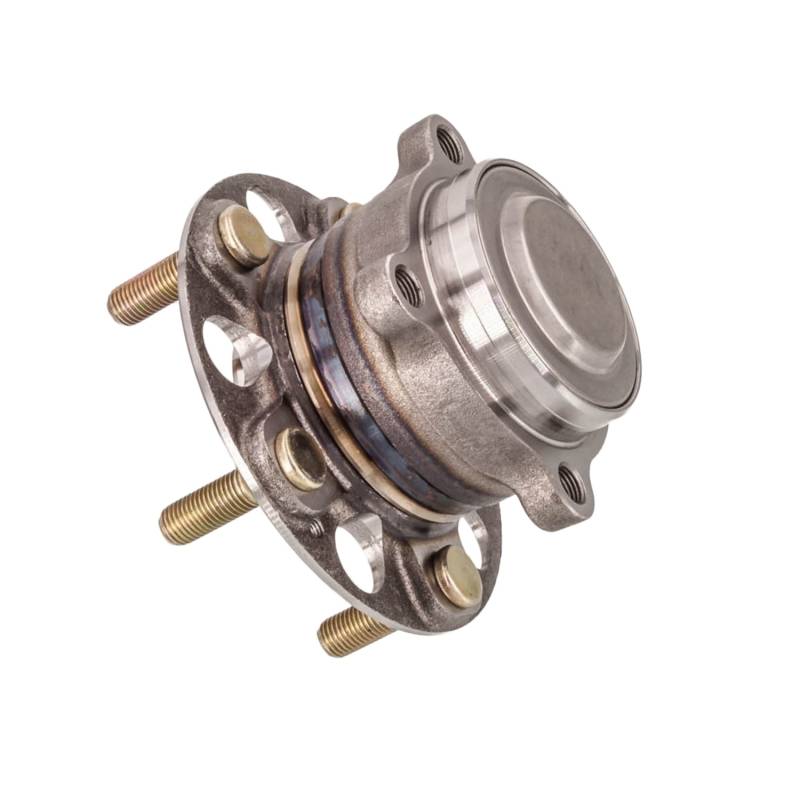

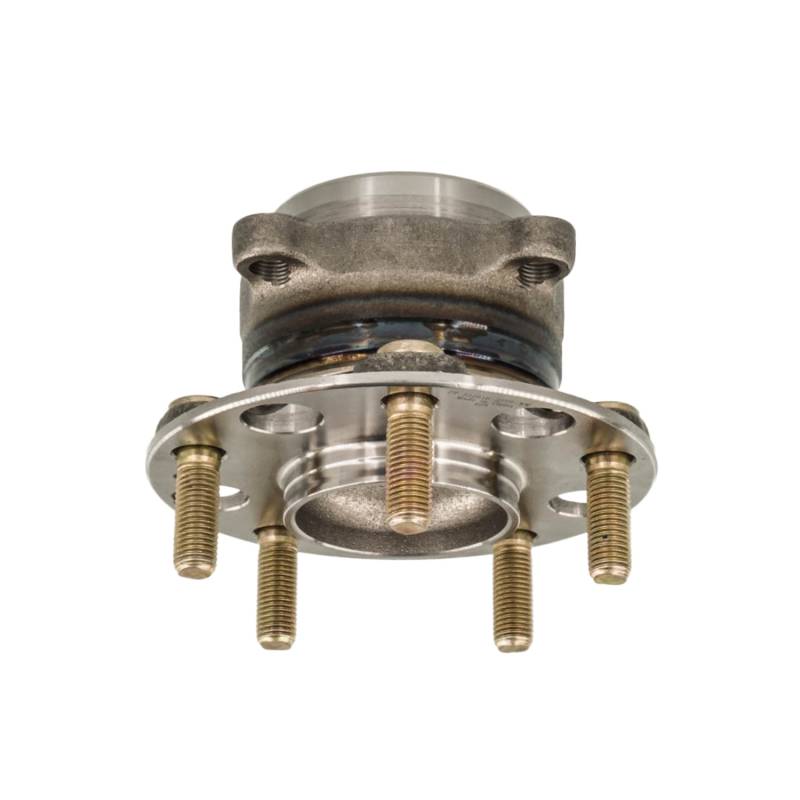

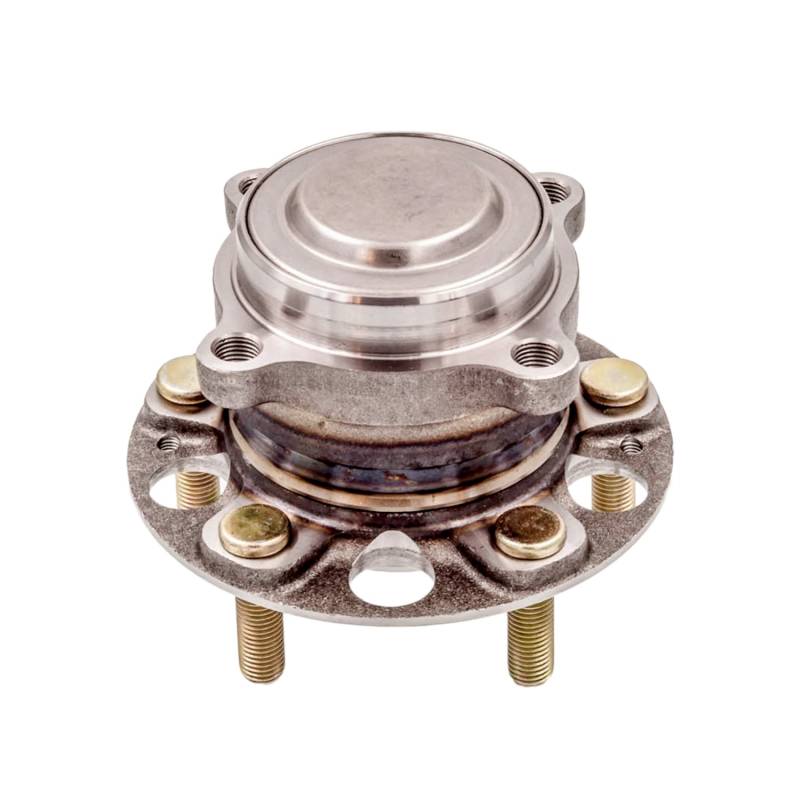

PRODUCT TYPE: HUB ASSEMBLY

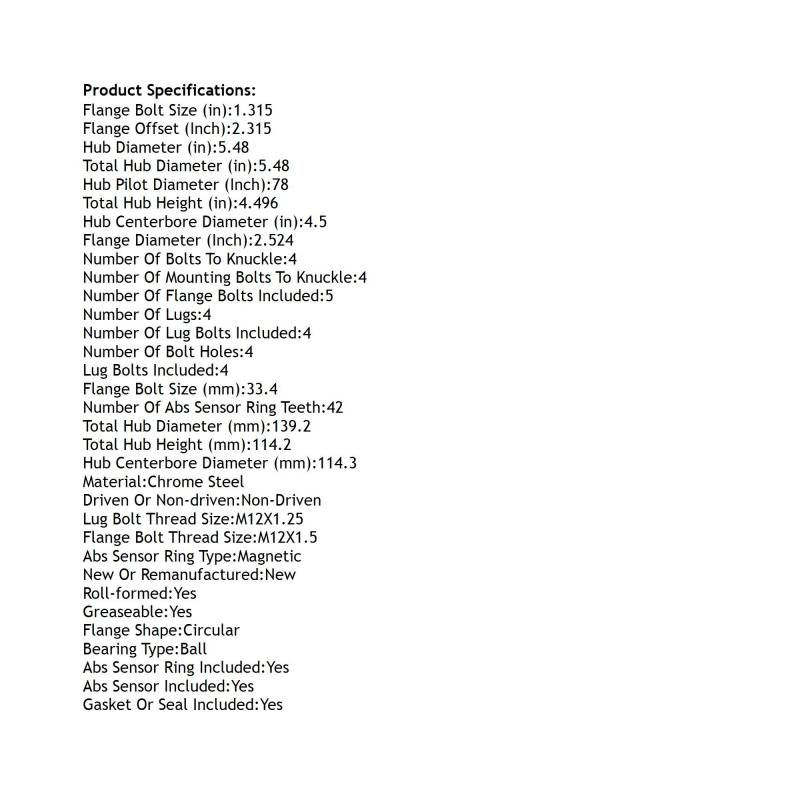

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.315
FLANGE BOLT SIZE (MM): 33.4
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.524
FLANGE OFFSET (INCH): 2.315
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.48
HUB PILOT DIAMETER (INCH): 78
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 42
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.48
TOTAL HUB DIAMETER (MM): 139.2
TOTAL HUB HEIGHT (IN): 4.496
TOTAL HUB HEIGHT (MM): 114.2
REPLACES:
AUTOPART INTERNATIONAL: 1411-540738
BCA: WE61863
CENTRIC PARTS: 80640035
COAST TO COAST: 900008
FAG US: 103222
GSP: 363516
MOOG HUB ASSEMBLIES: 512516
NAPA: PBR930891
ZZZN: 42200-T3V-A61
APPLICATIONS:
HONDA ACCORD (2014-2017)
