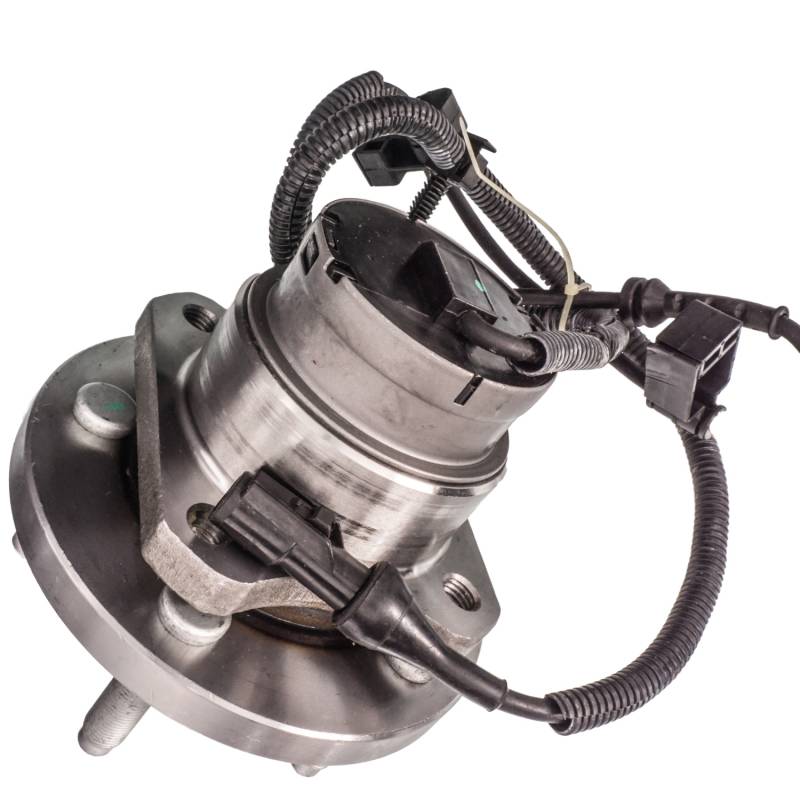

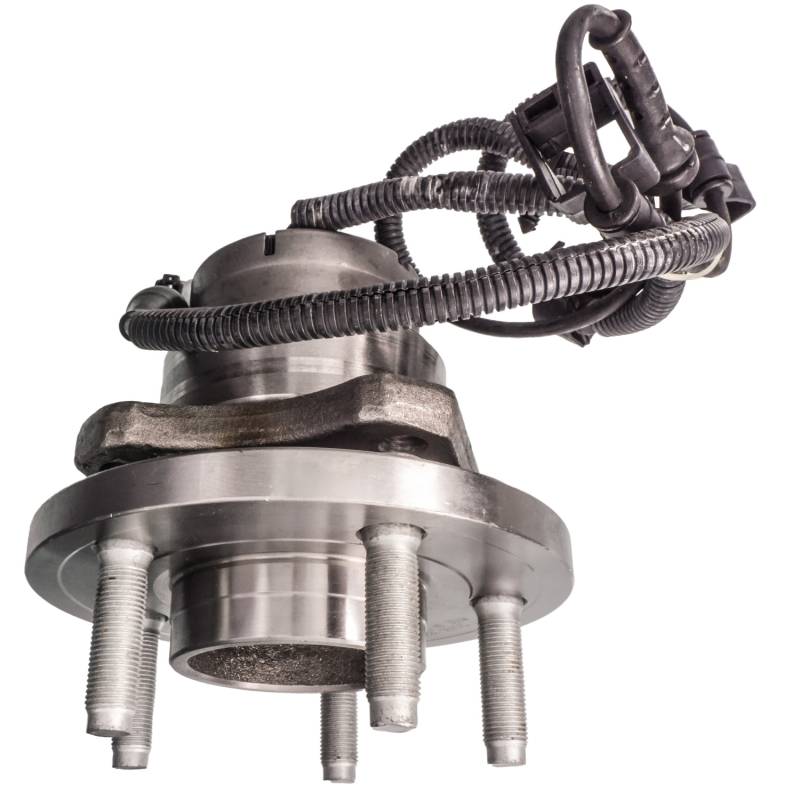

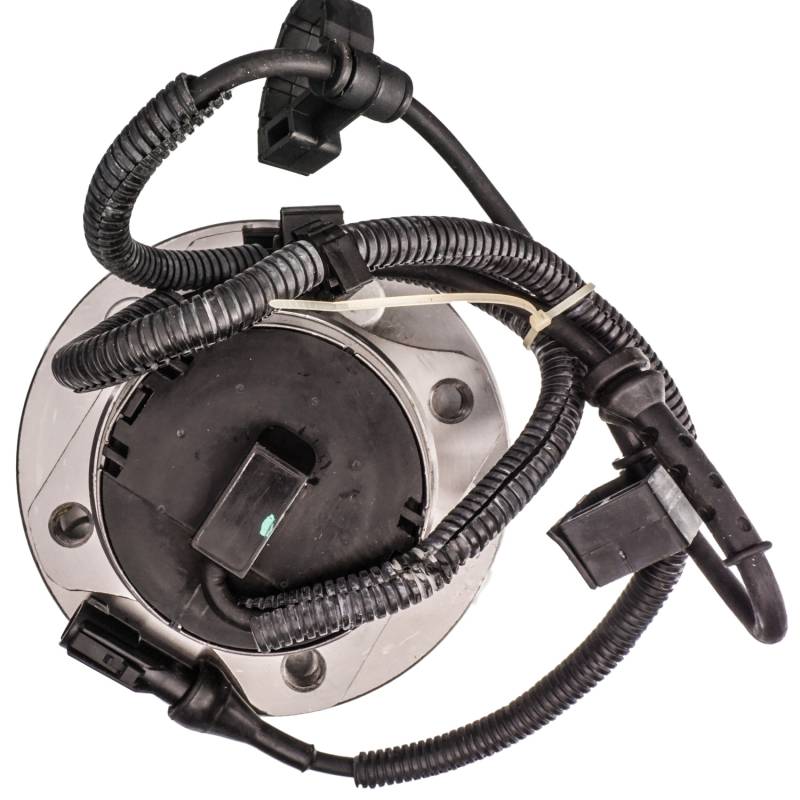

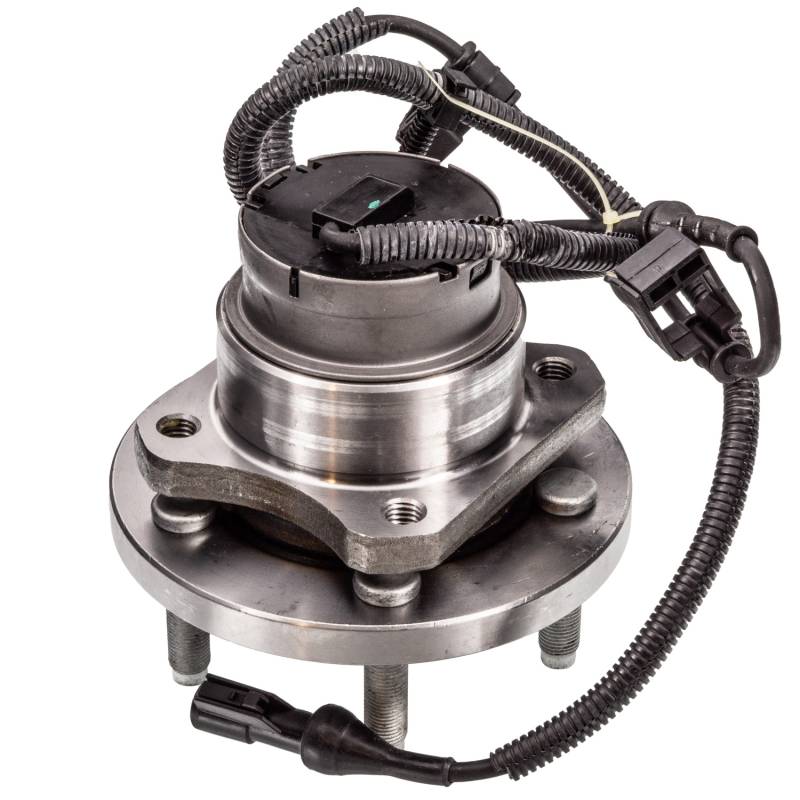

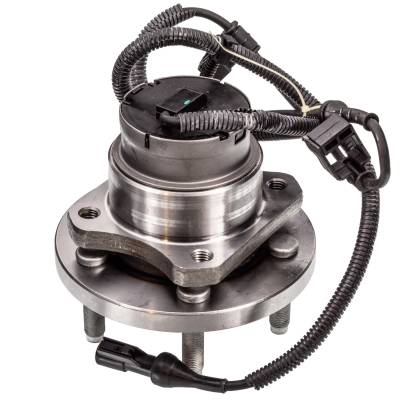

New Hub Assembly Compatible With Ford Lincoln Mercury Crown Victoria Town Car Grand Marquis Marauder

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.244
ABS SENSOR RING DIAMETER (MM): 57
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.748
FLANGE BOLT SIZE (MM): 44.4
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.819
FLANGE OFFSET (INCH): 1.476
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.953
HUB PILOT DIAMETER (INCH): 3.433
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.953
TOTAL HUB DIAMETER (MM): 151.2
TOTAL HUB HEIGHT (IN): 5.984
TOTAL HUB HEIGHT (MM): 152
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 46.457

REPLACES:
AUTOPART INTERNATIONAL: 1411-49148
BCA: WE61527
CENTRIC PARTS: 40761004E
FAG US: 102036
FORD: 5W1Z1104B
GSP: 114196
MEVOTECH: H513196
MOOG HUB ASSEMBLIES: 513196
MOTORCRAFT: HUB19
NAPA: PBR930506

APPLICATIONS:
FORD CROWN VICTORIA (2003-2005)
LINCOLN TOWN CAR (2003-2005)
MERCURY GRAND MARQUIS (2003-2005)
MERCURY MARAUDER (2003-2004)
