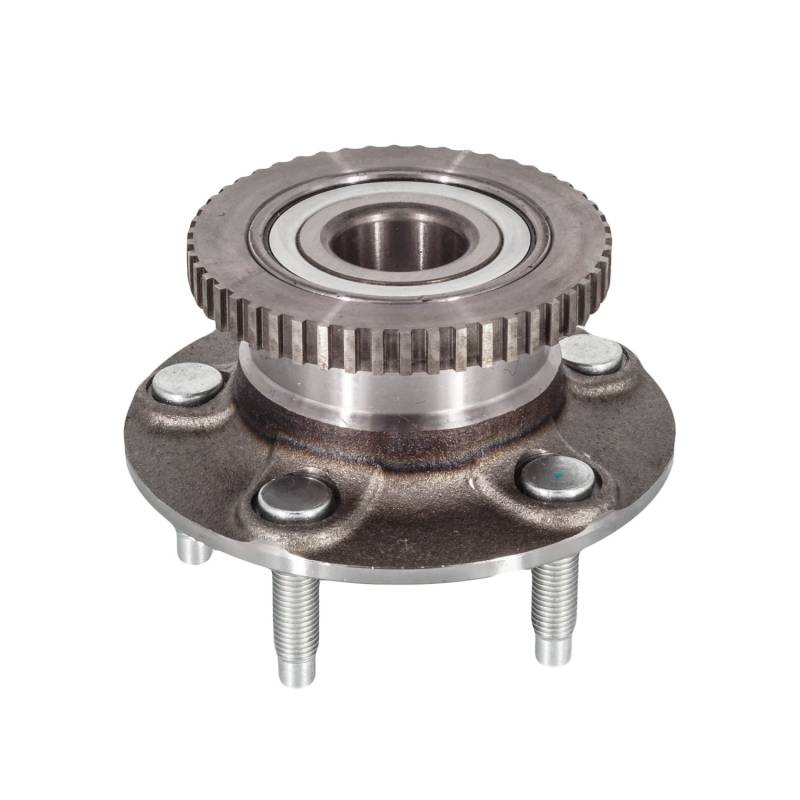

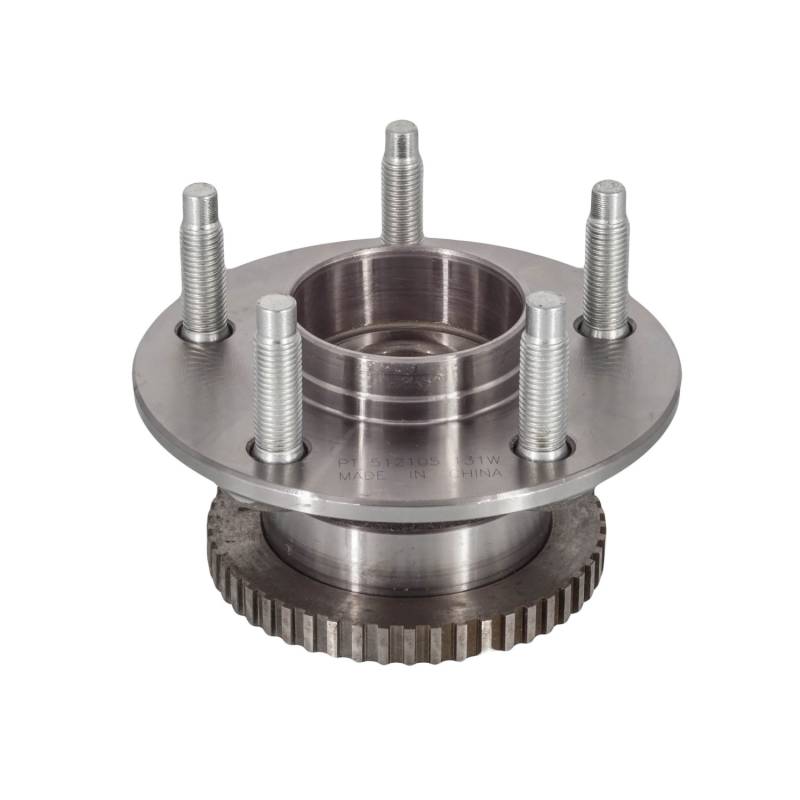

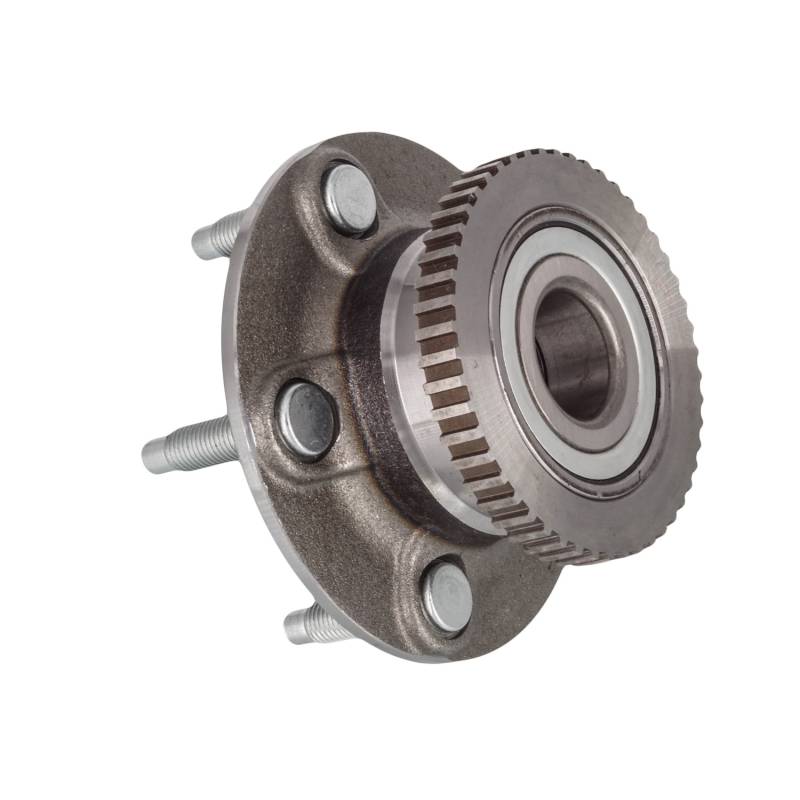

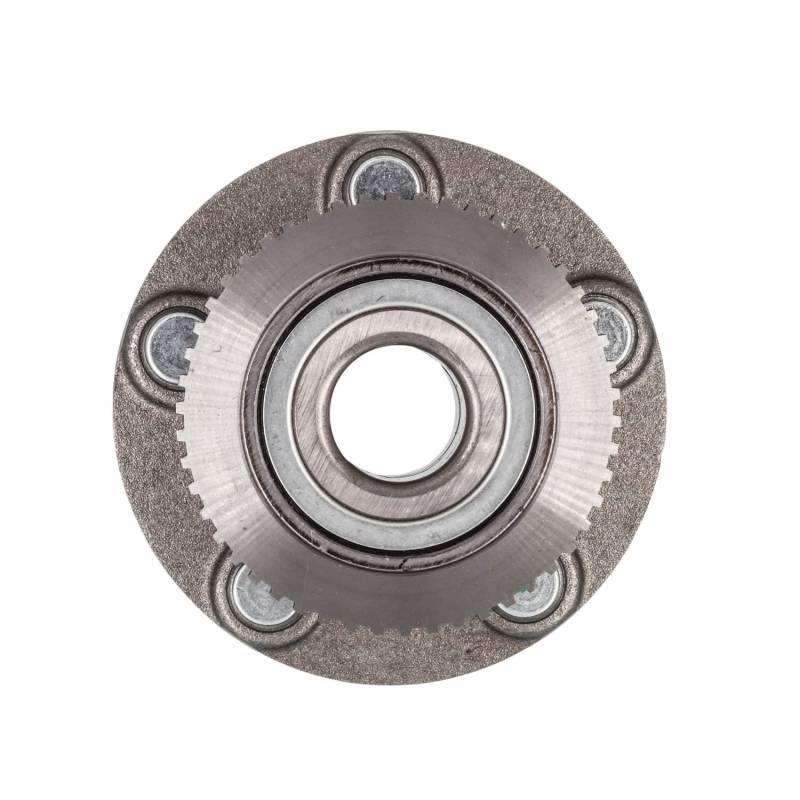

New Hub Assembly Compatible With Ford Lincoln Mercury Taurus Continental Sable 2.5L 3.0L 3.8L 1990

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

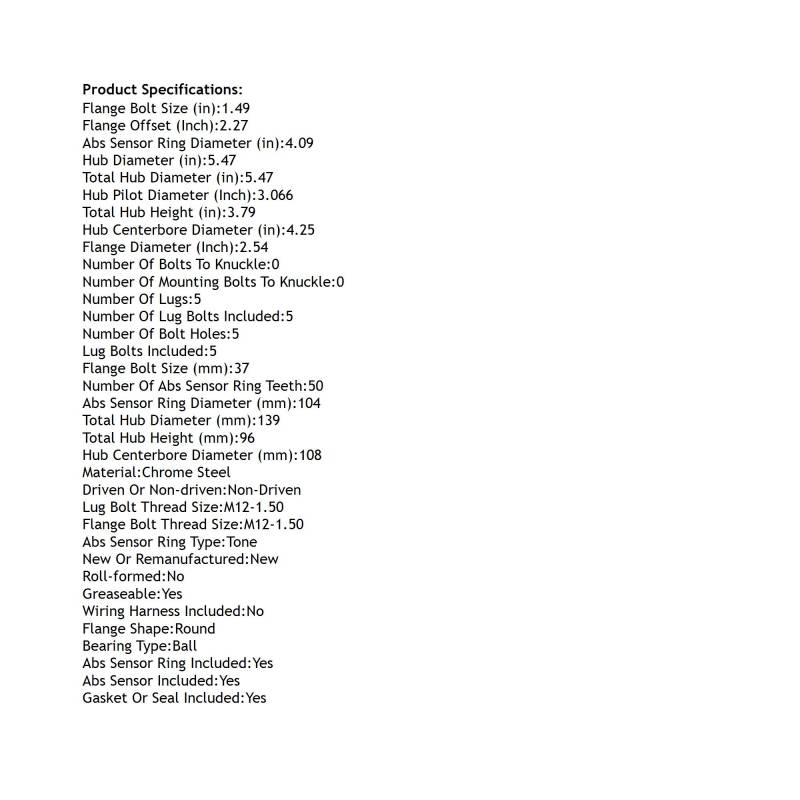

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.09
ABS SENSOR RING DIAMETER (MM): 104
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.49
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.54
FLANGE OFFSET (INCH): 2.27
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.47
HUB PILOT DIAMETER (INCH): 3.066
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.47
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.79
TOTAL HUB HEIGHT (MM): 96
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512105
SKF: BR930105
TIMKEN: 512105
AUTOPART INTERNATIONAL: 1411-49041
CENTRIC PARTS: 40661005E
FAG US: 102072
GSP: 123105
MEVOTECH: H512105
MOOG HUB ASSEMBLIES: 512105
NAPA: PBR930105

APPLICATIONS:
FORD TAURUS (1990-1992)
LINCOLN CONTINENTAL (1990-1992)
MERCURY SABLE (1990-1992)
