THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

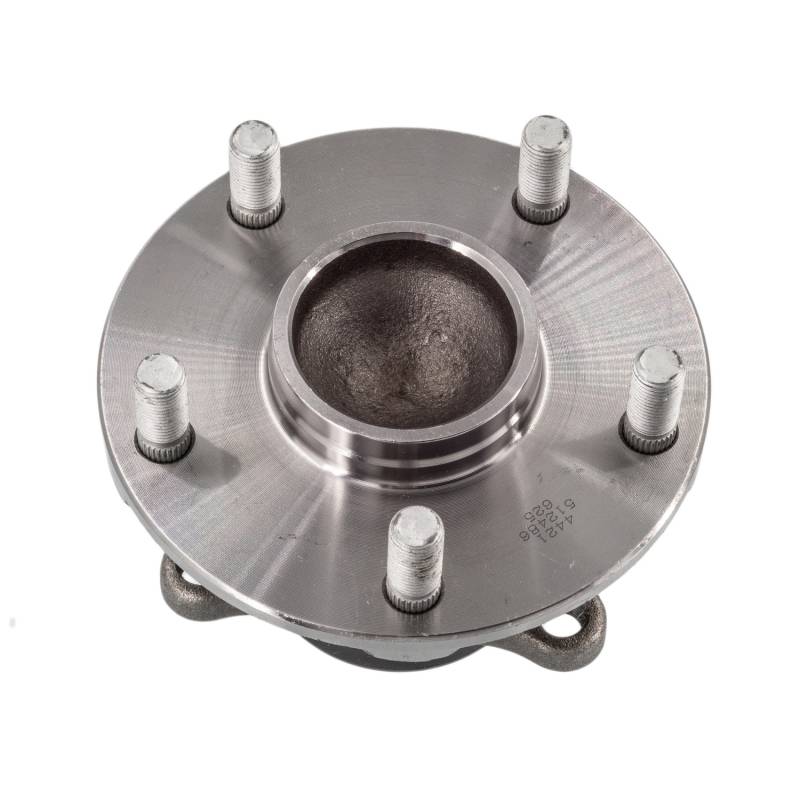

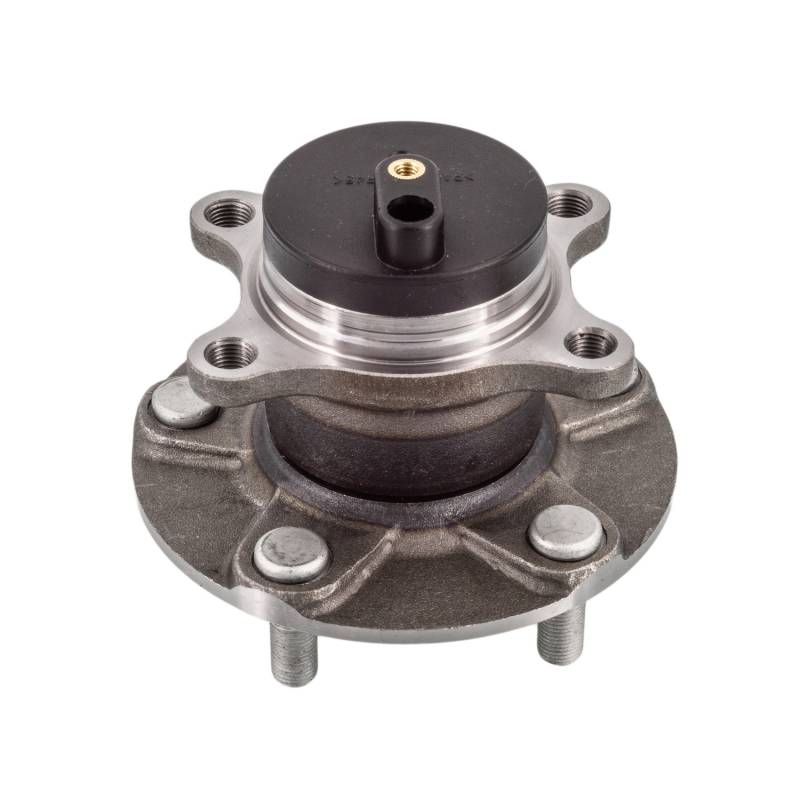

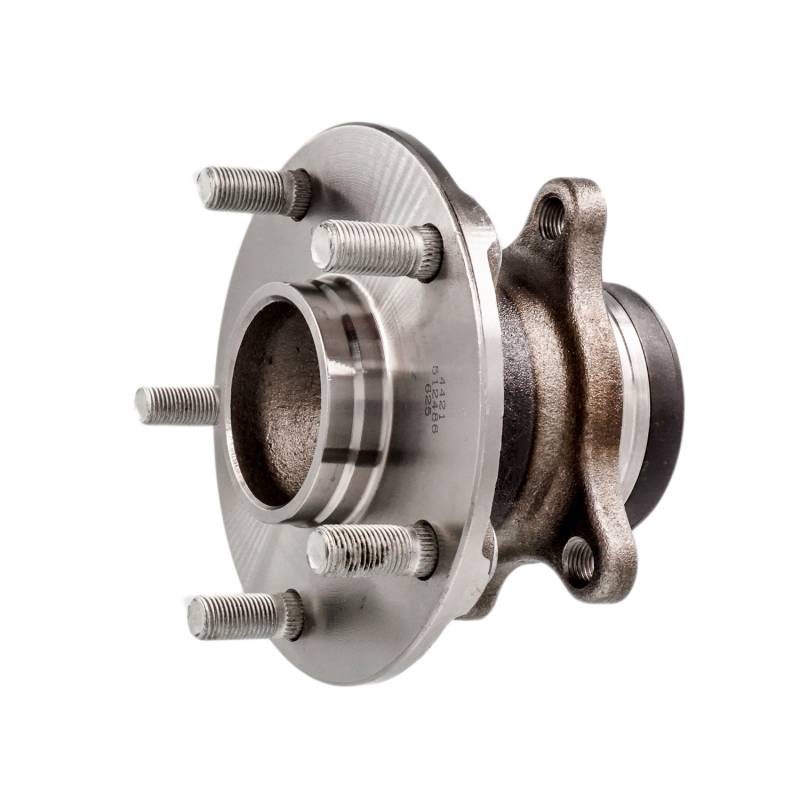

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.094
FLANGE BOLT SIZE (MM): 27.8
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 2.362
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.512
HUB PILOT DIAMETER (INCH): 2.835
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 40
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.512
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 4.862
TOTAL HUB HEIGHT (MM): 123.5
REPLACES:
AUTOPART INTERNATIONAL: 1411-425244
BCA: WE60499
BECK/ARNLEY: 051-6393
CENTRIC PARTS: 40748001E
FAG US: 102379
GSP: 683486
MEVOTECH: H512486
MOOG HUB ASSEMBLIES: 512486
NAPA: PBR930820
APPLICATIONS:
SUZUKI SX4 (2008-2013)
SUZUKI SX4 CROSSOVER (2010-2013)
