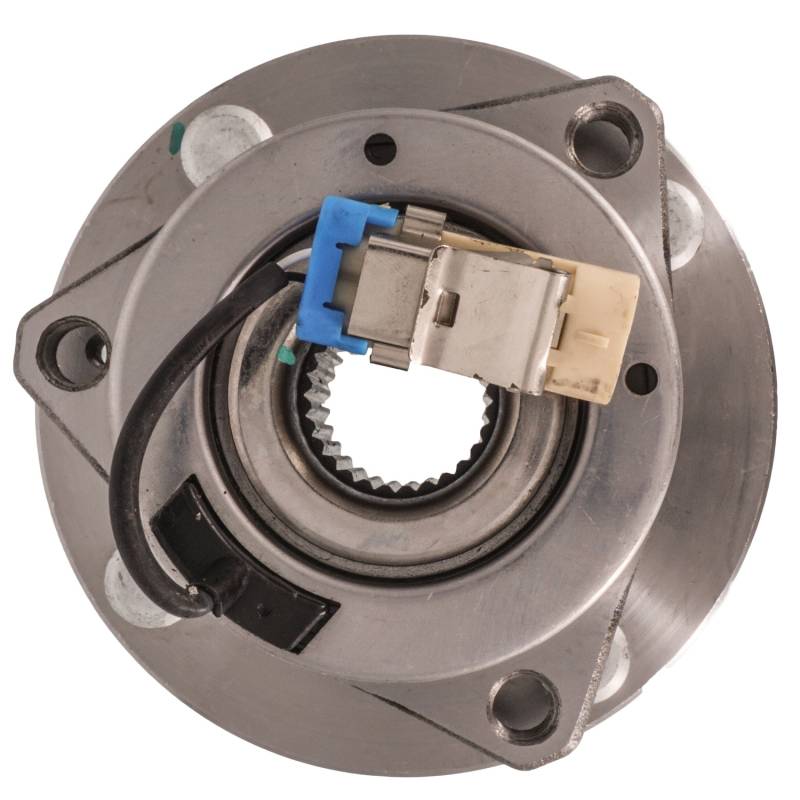

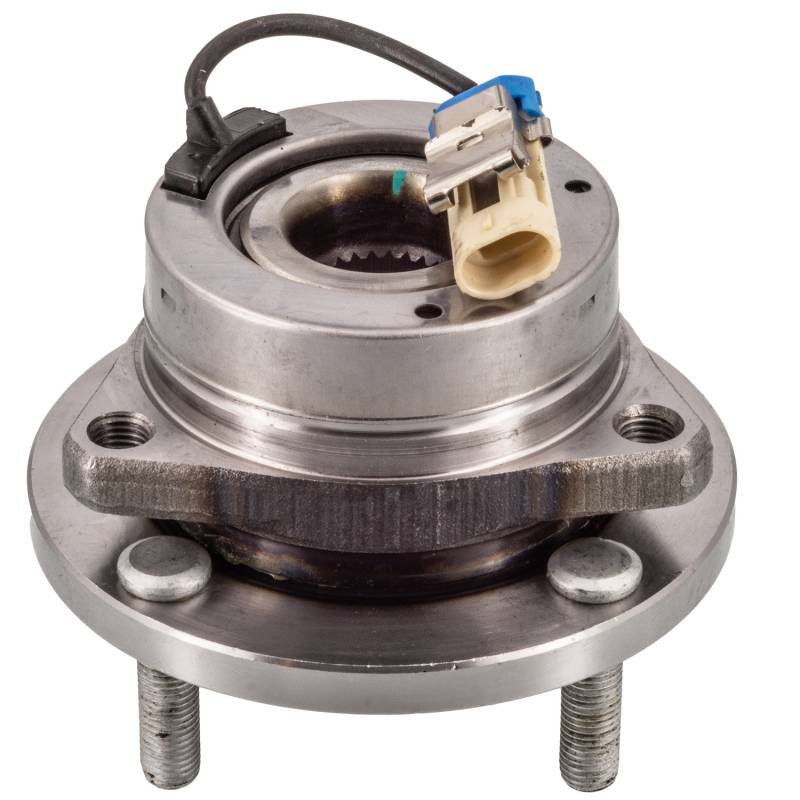

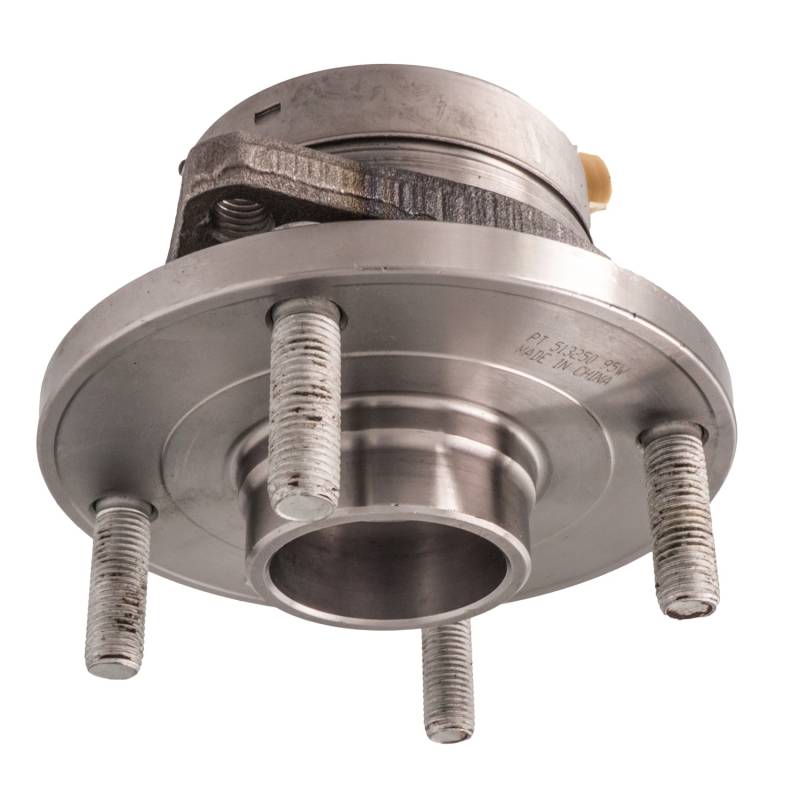

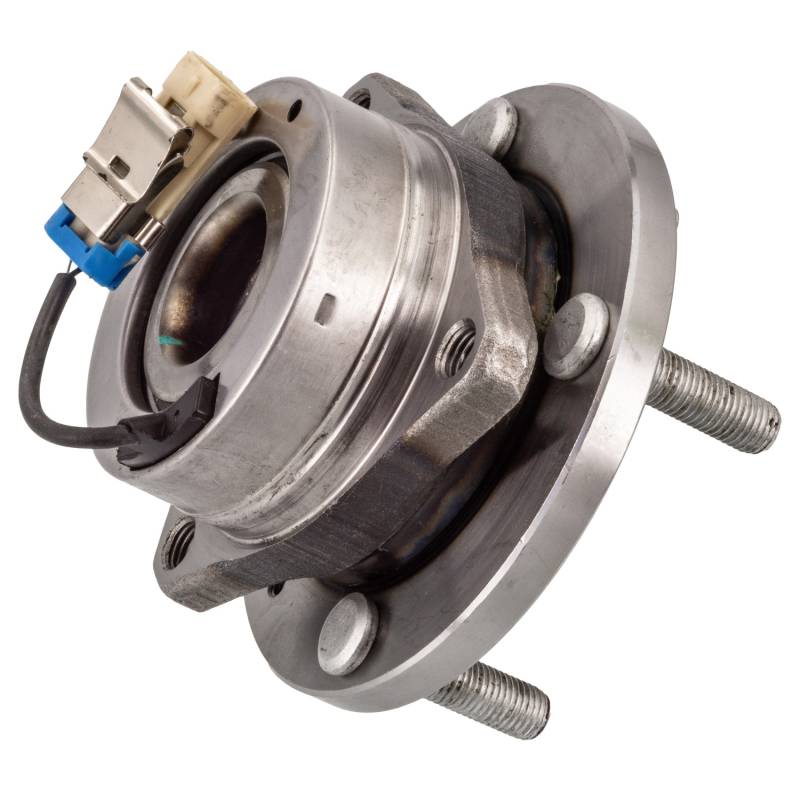

New Hub Assembly Compatible With Suzuki Verona 2.5L 2004 2005 2006 By Part Numbers Pt513250 Ha590115

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.74
ABS SENSOR RING DIAMETER (MM): 69
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.433
FLANGE BOLT SIZE (MM): 36
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.362
FLANGE OFFSET (INCH): 1.457
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.492
HUB PILOT DIAMETER (INCH): 2.224
LUG BOLT THREAD SIZE: M12-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 28
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.492
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.976
TOTAL HUB HEIGHT (MM): 101
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 2.938

REPLACES:
AUTOPART INTERNATIONAL: 1411-09877
BCA: WE61537
BECK/ARNLEY: 051-6299
CENTRIC PARTS: 40248000E
FAG US: 102218
GSP: 104250
MEVOTECH: H513250
MOOG HUB ASSEMBLIES: 513250
NAPA: PBR930466

APPLICATIONS:
SUZUKI VERONA (2004-2006)
