THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

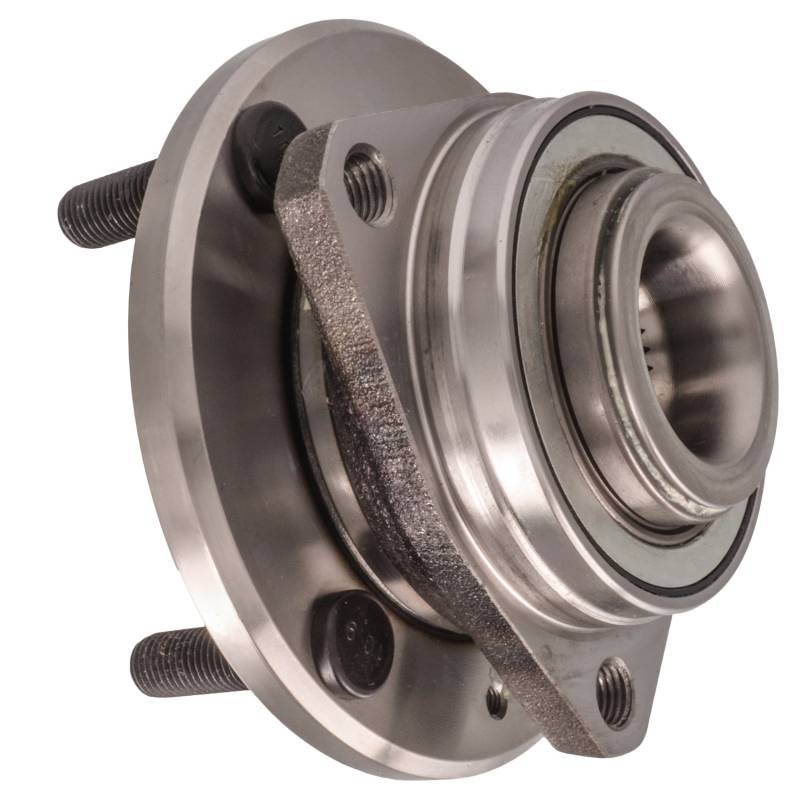

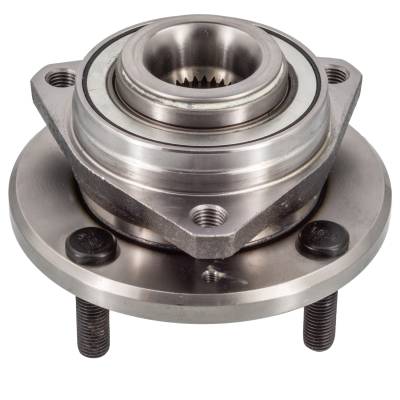

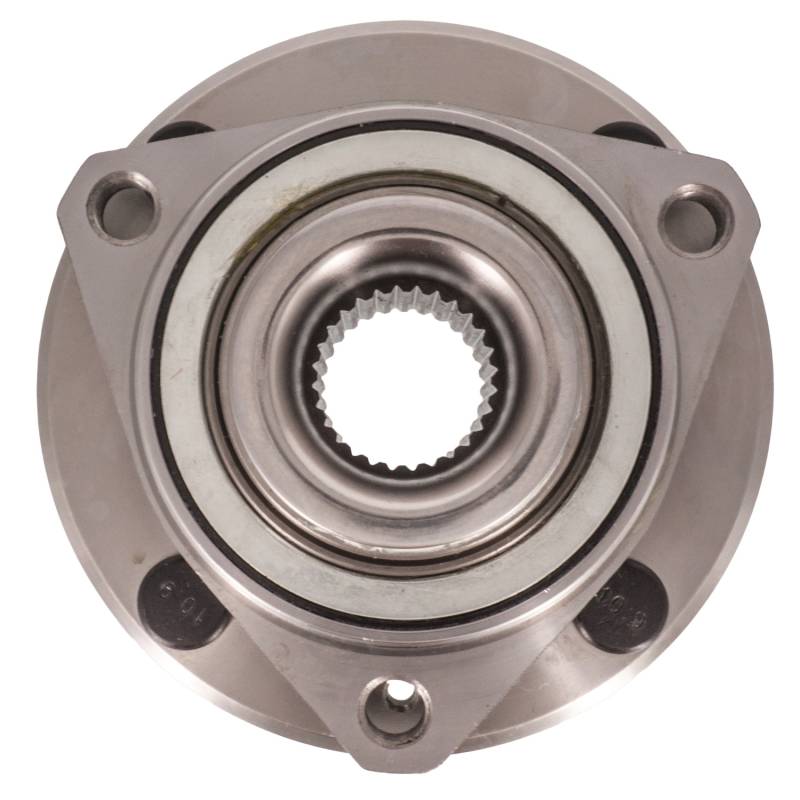

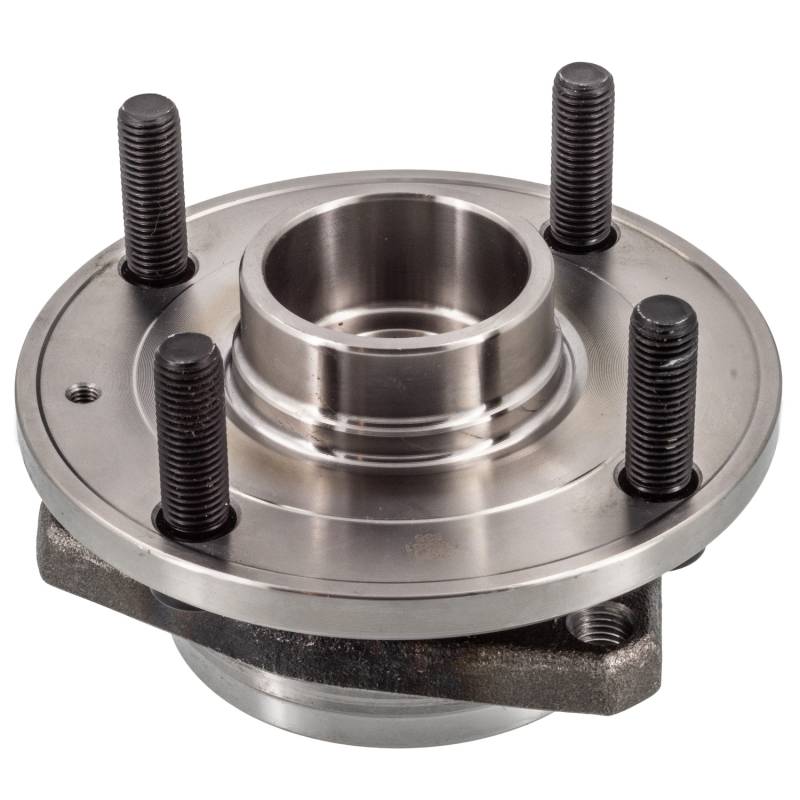

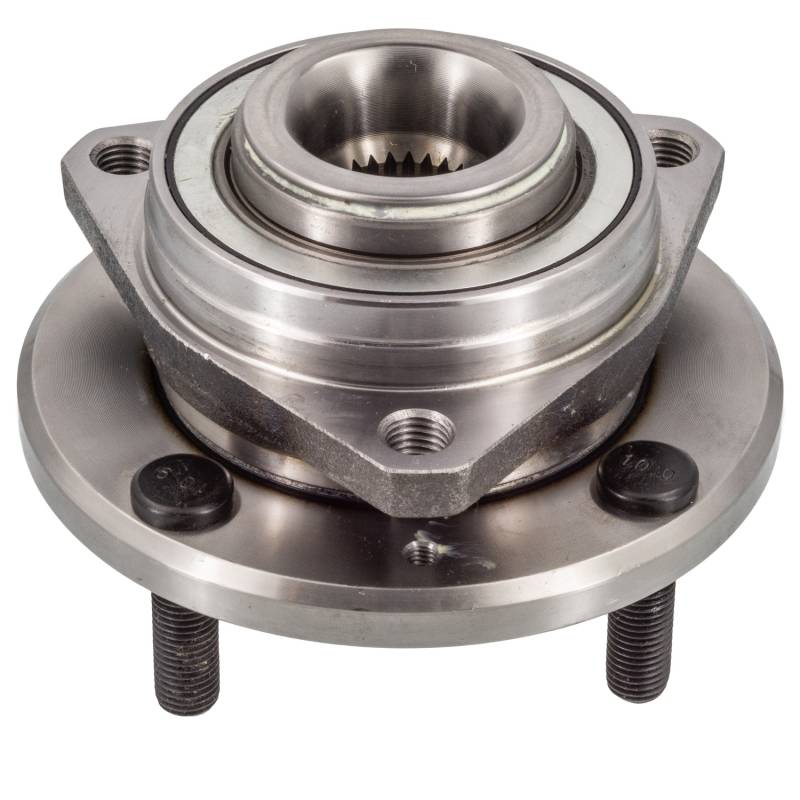

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.421
FLANGE BOLT SIZE (MM): 36
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.362
FLANGE OFFSET (INCH): 1.457
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.492
HUB PILOT DIAMETER (INCH): 2.224
LUG BOLT THREAD SIZE: M12-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.492
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.91
TOTAL HUB HEIGHT (MM): 99
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-246642
BCA: WE61538
CENTRIC PARTS: 40048000
FAG US: 102219
GSP: 684251
MEVOTECH: H513251
MOOG HUB ASSEMBLIES: 513251
NAPA: PBR930464
APPLICATIONS:
SUZUKI VERONA (2004-2005)
