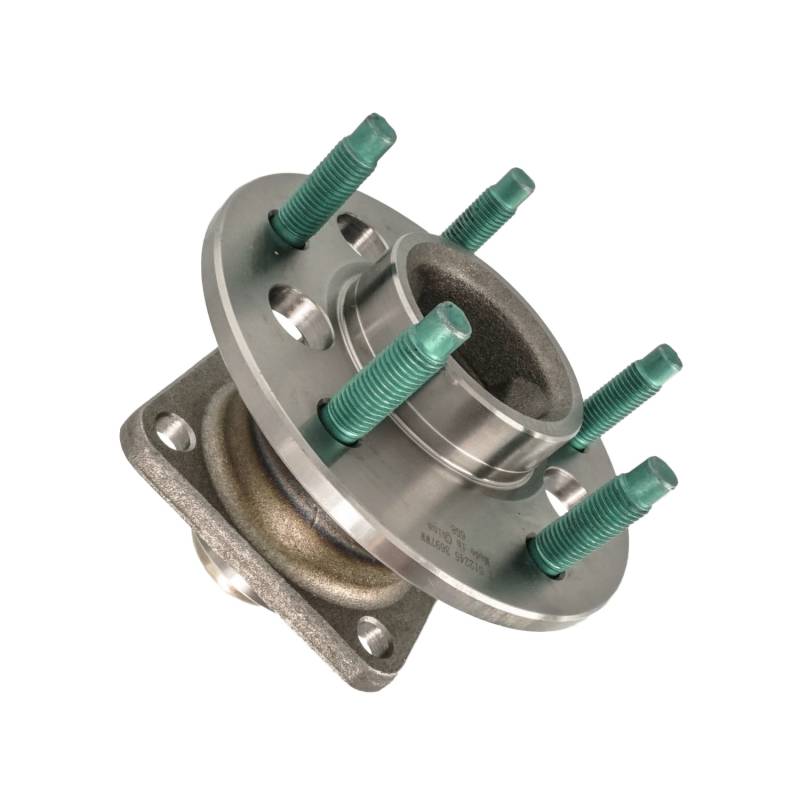

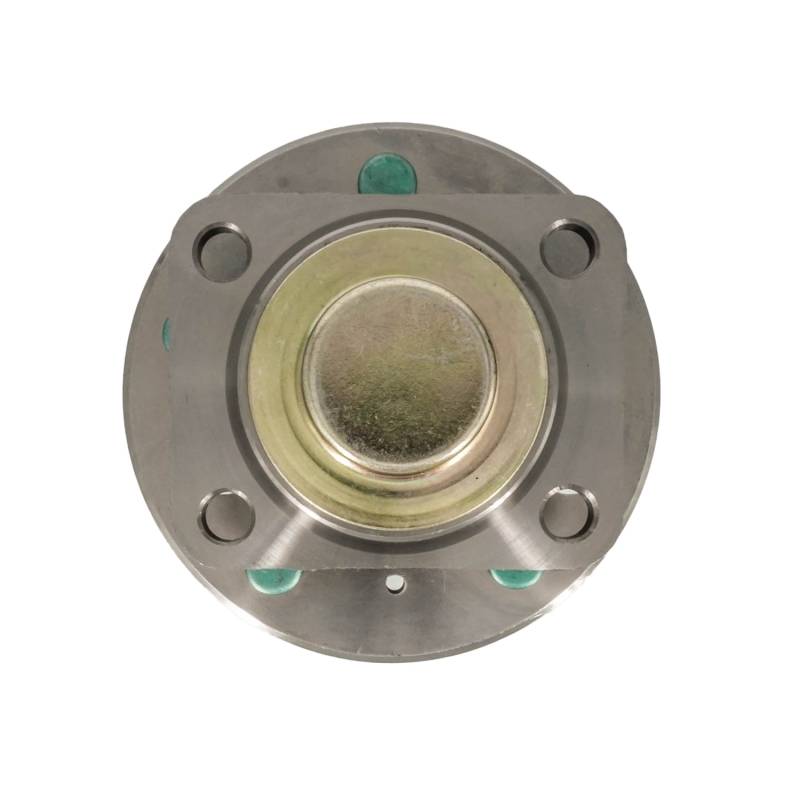

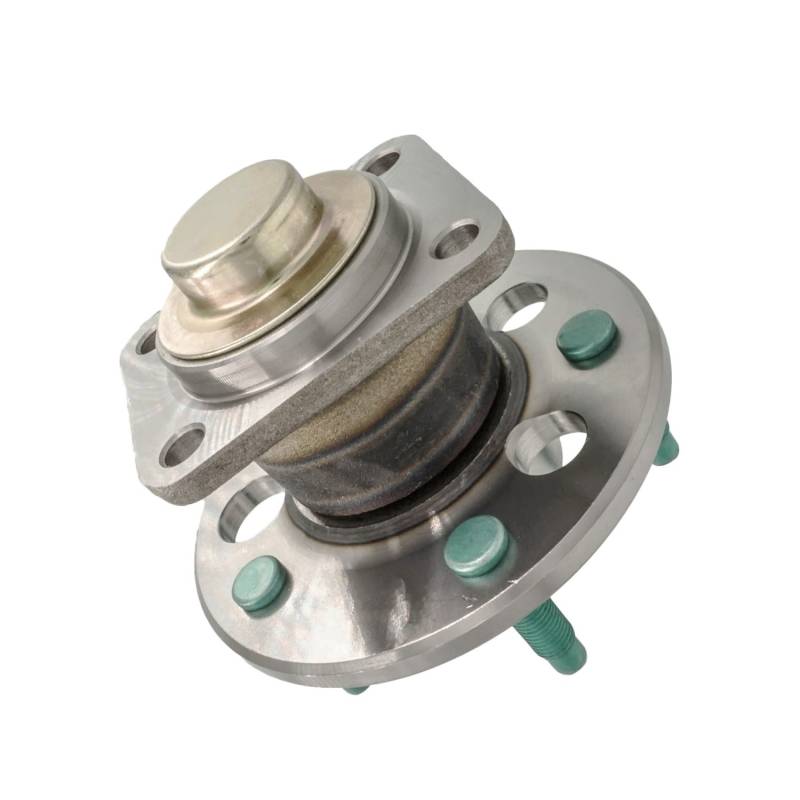

New Hub Assembly Compatible With Honda Fit 2013 2014 By Part Numbers Pt512545 Ha590529 Br930843

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.18
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.52
FLANGE OFFSET (INCH): 2.3
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 2.75
LUG BOLT THREAD SIZE: M12-1.25-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.98
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.29
TOTAL HUB HEIGHT (MM): 109
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-556368
BCA: WE61440
CENTRIC PARTS: 40640036E
MOOG HUB ASSEMBLIES: 512545
NAPA: PBR930843

APPLICATIONS:
HONDA FIT (2013-2014)
