THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

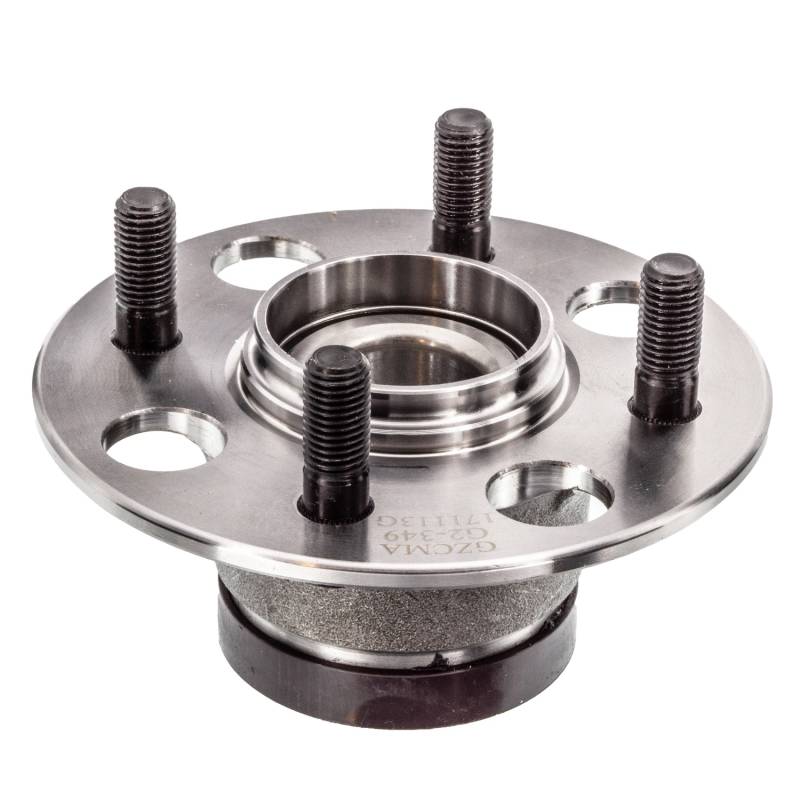

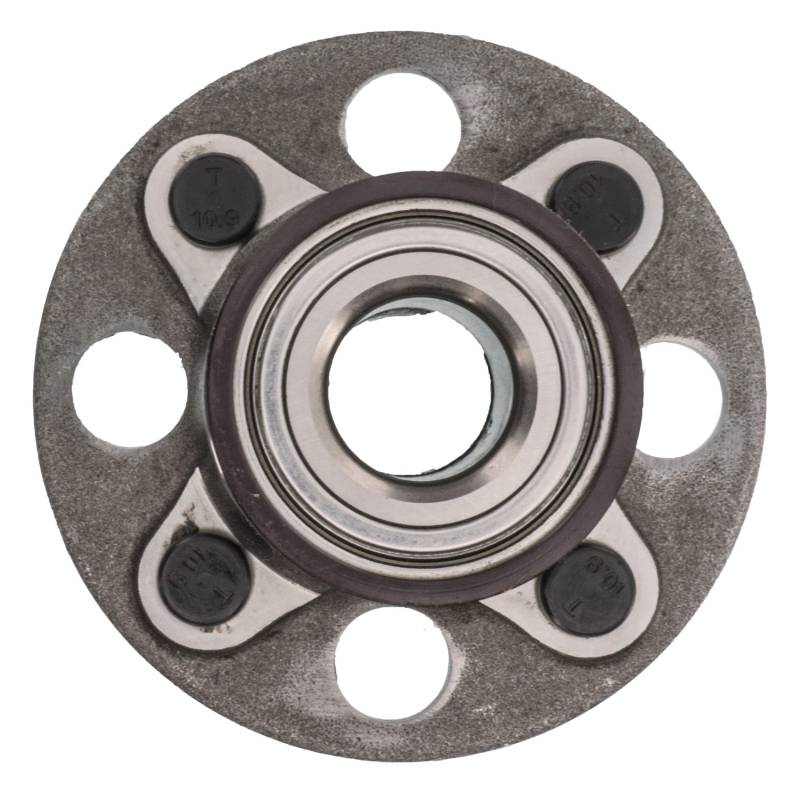

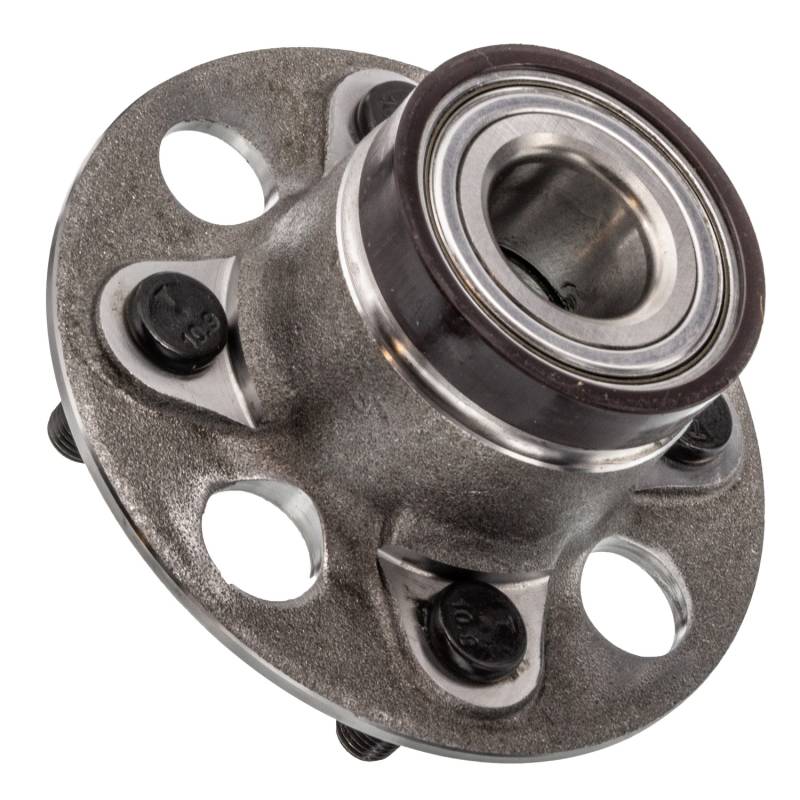

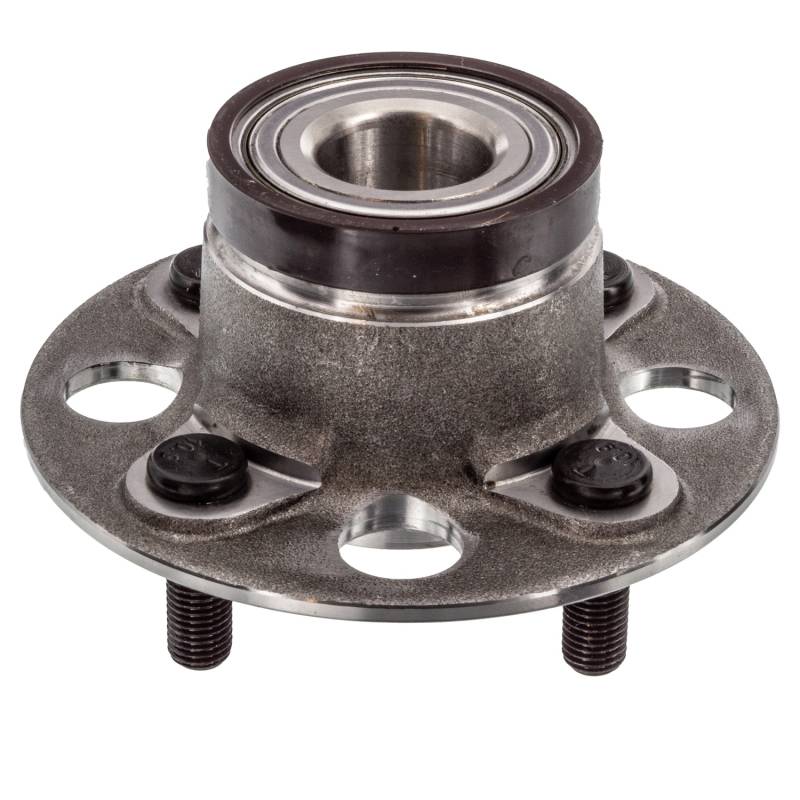

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.748
ABS SENSOR RING DIAMETER (MM): 69
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.181
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.401
FLANGE OFFSET (INCH): 2.24
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.465
HUB PILOT DIAMETER (INCH): 2.205
INNER RING WIDTH (IN): 2.205
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.465
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 3.409
TOTAL HUB HEIGHT (MM): 86
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512323
SKF: BR930613
TIMKEN: 512323
AUTOPART INTERNATIONAL: 1411-246659
BCA: WE60563
BECK/ARNLEY: 051-6252
CENTRIC PARTS: 40540026
FAG US: 102127
GSP: 363323
MEVOTECH: H512323
MOOG HUB ASSEMBLIES: 512323
NAPA: PBR930613
APPLICATIONS:
HONDA FIT (2007-2014)
HONDA INSIGHT (2010-2014)
