THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

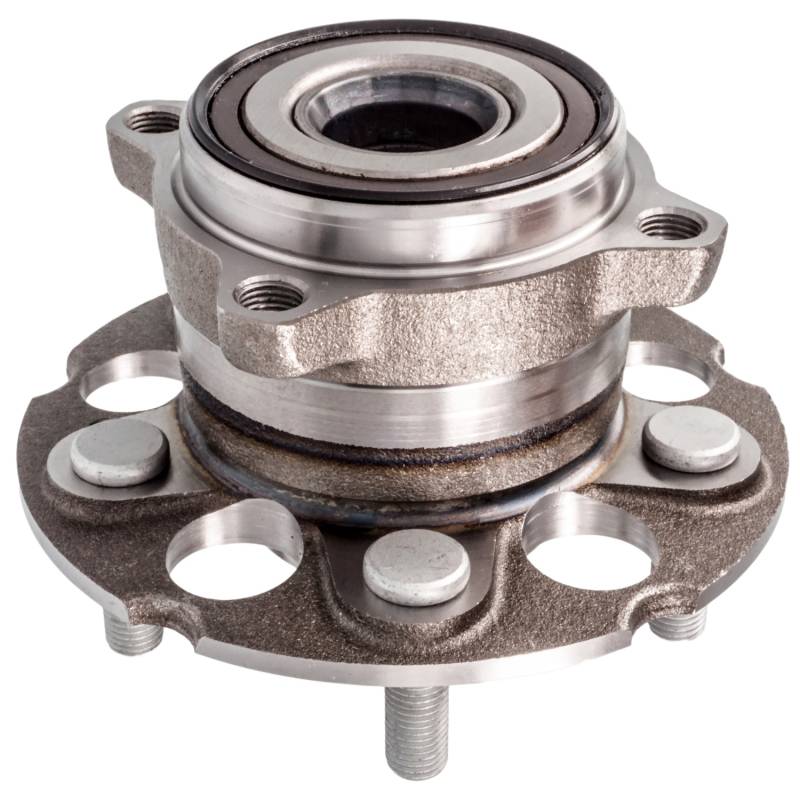

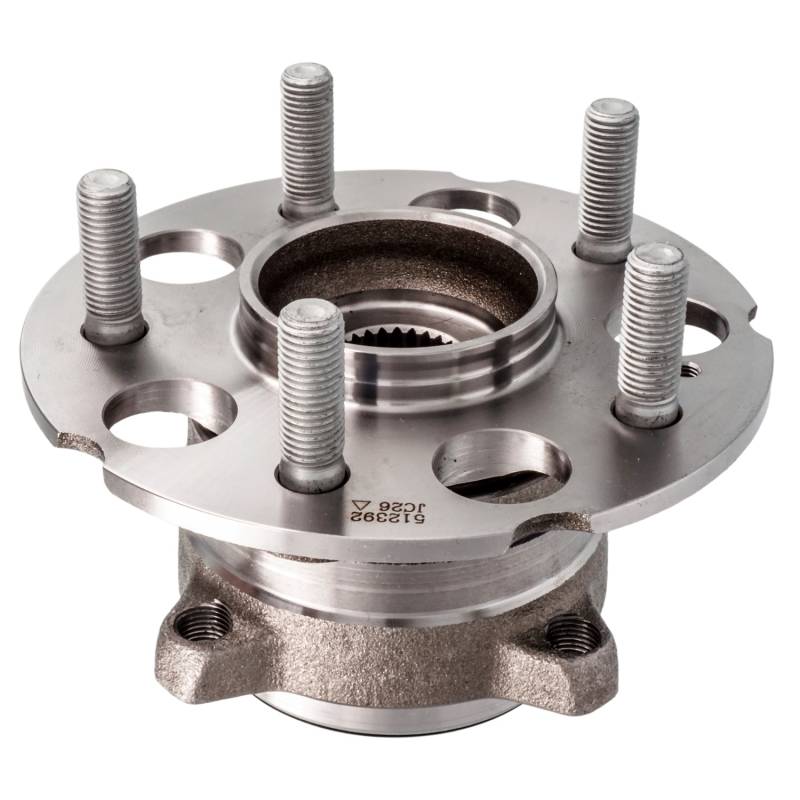

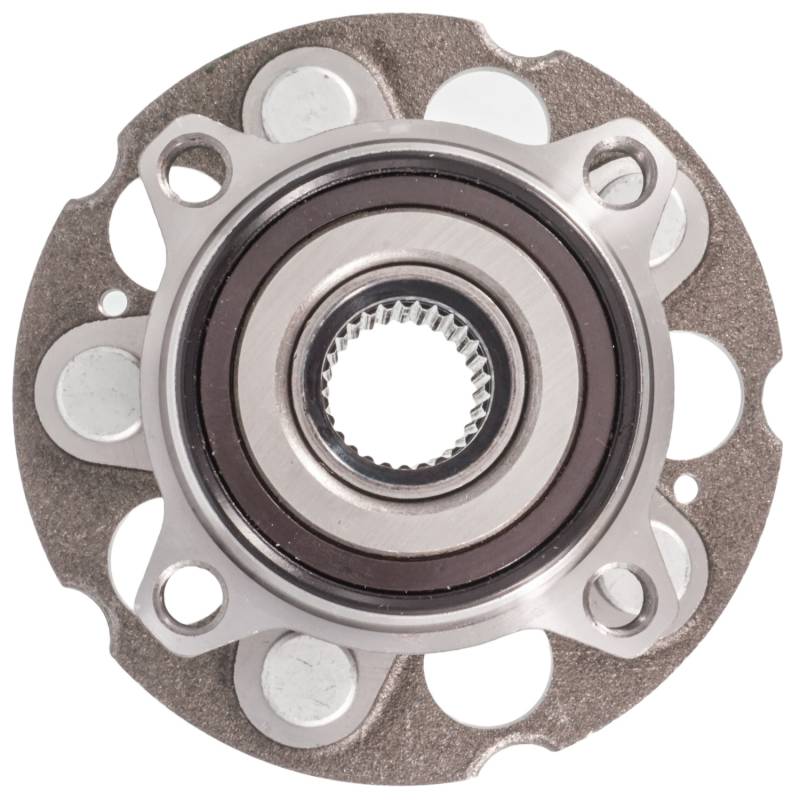

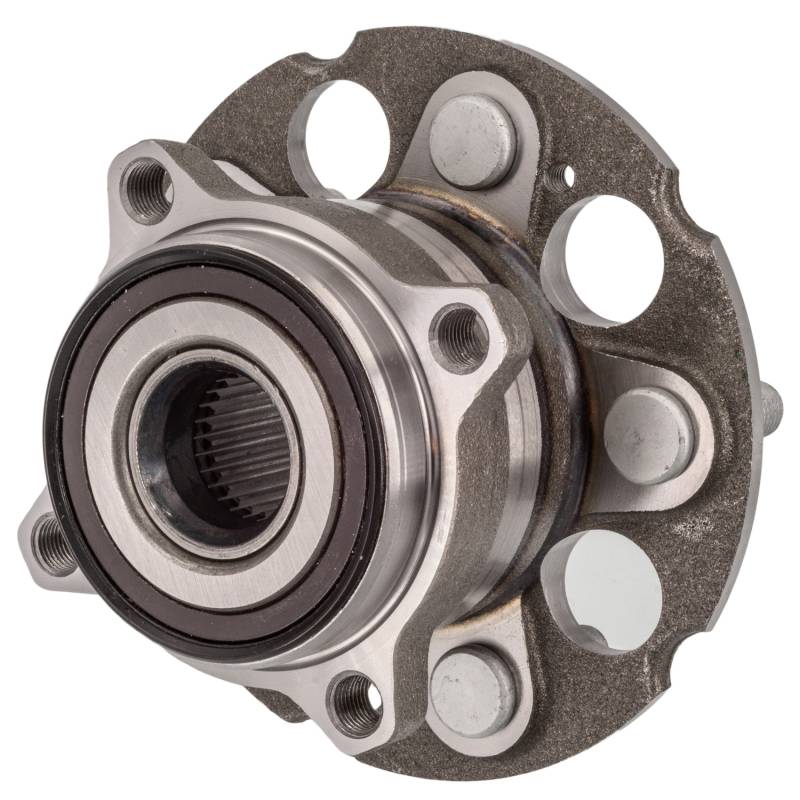

PRODUCT TYPE: HUB ASSEMBLY

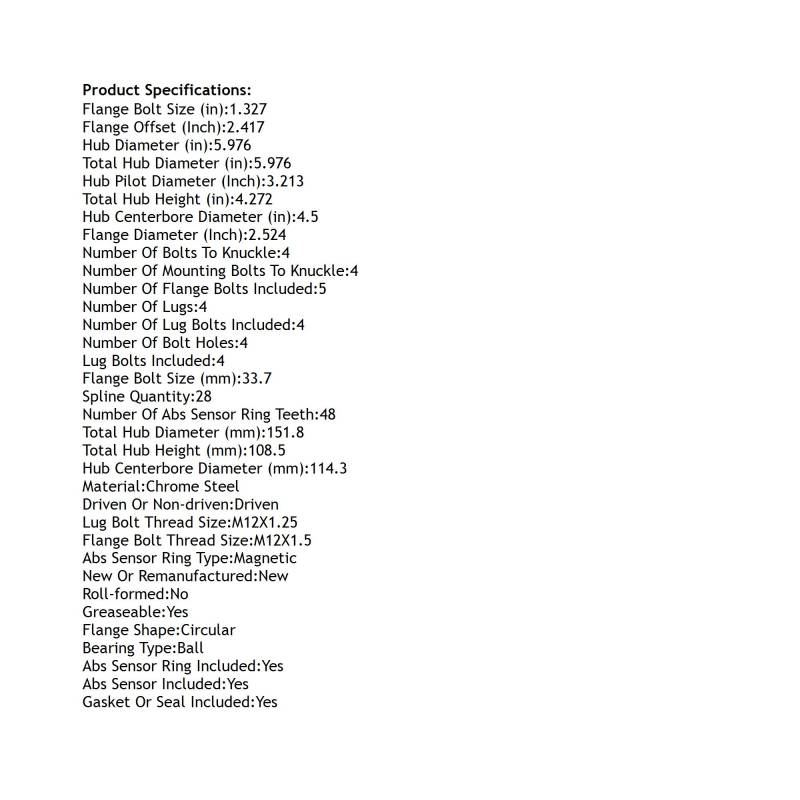

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.327
FLANGE BOLT SIZE (MM): 33.7
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.524
FLANGE OFFSET (INCH): 2.417
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.976
HUB PILOT DIAMETER (INCH): 3.213
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.976
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.272
TOTAL HUB HEIGHT (MM): 108.5
REPLACES:
AUTOPART INTERNATIONAL: 1411-425153
BCA: WE61383
CENTRIC PARTS: 40040005
FAG US: 102366
GSP: 363392
MEVOTECH: H512392
MOOG HUB ASSEMBLIES: 512392
NAPA: PBR930774
APPLICATIONS:
HONDA ACCORD CROSSTOUR (2010-2011)
HONDA CROSSTOUR EX (2012-2015)
HONDA CROSSTOUR (2012-2015)
