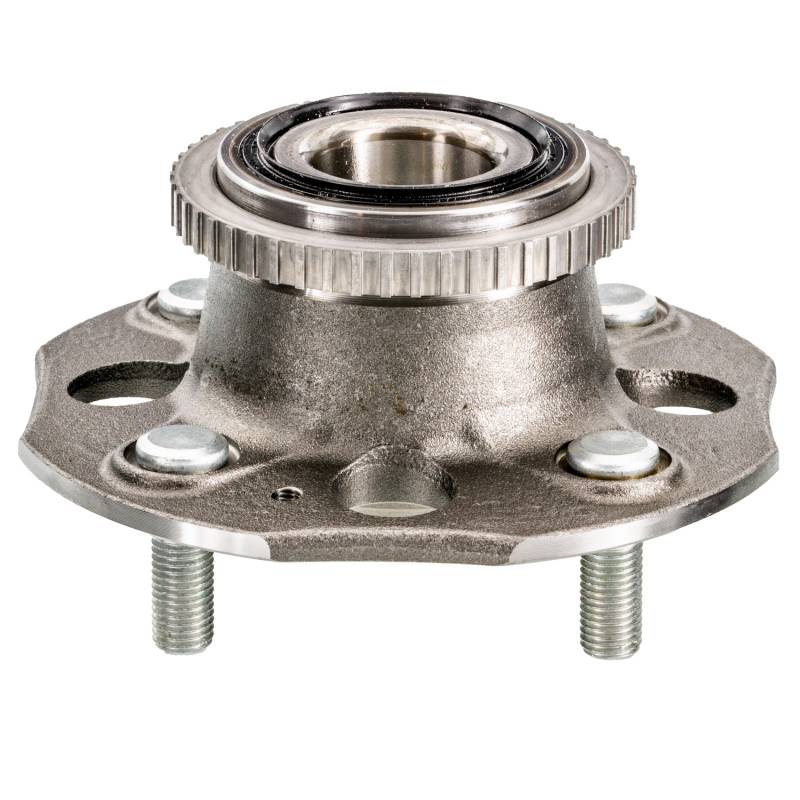

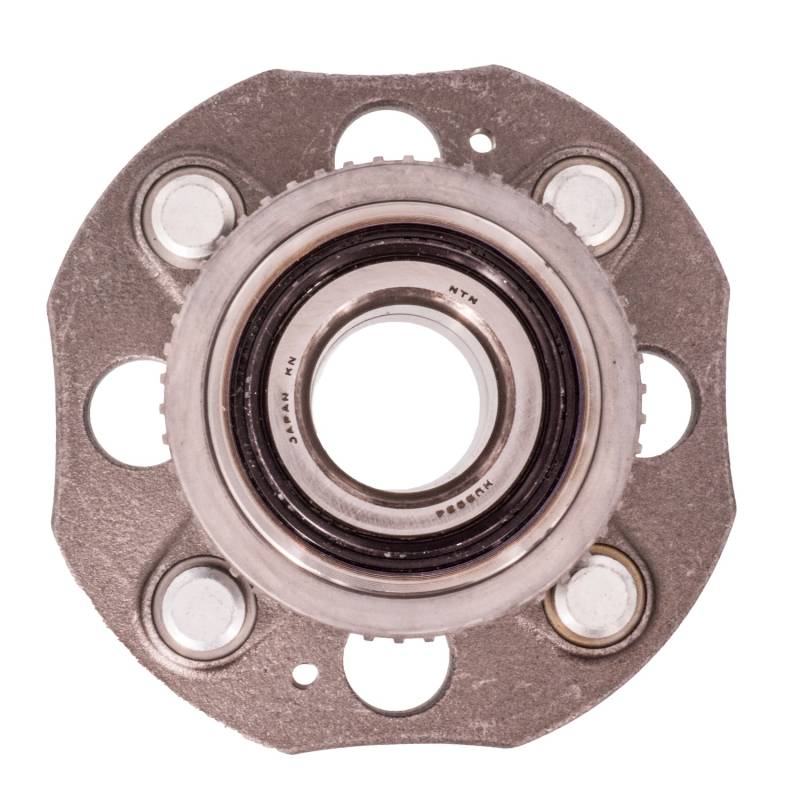

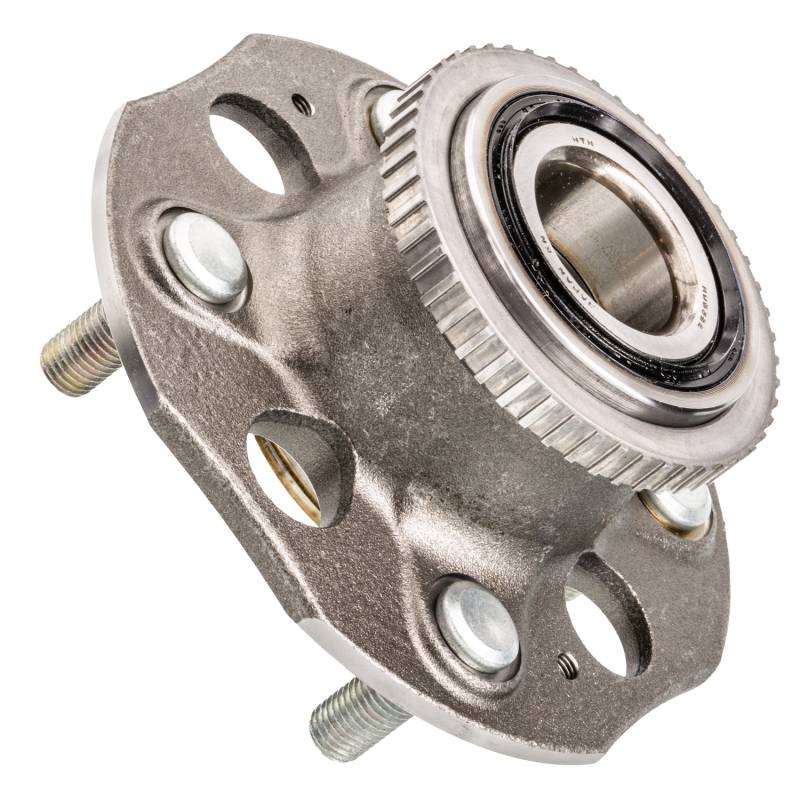

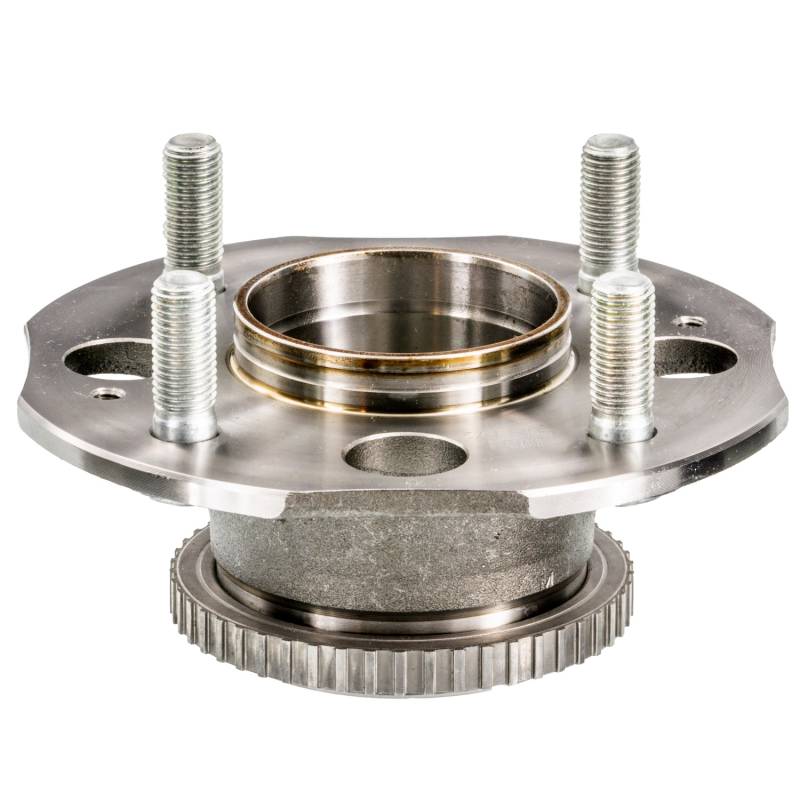

New Hub Assembly Compatible With Honda Acura Accord Cl 1994 1995 1996 1997 1998 1999 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

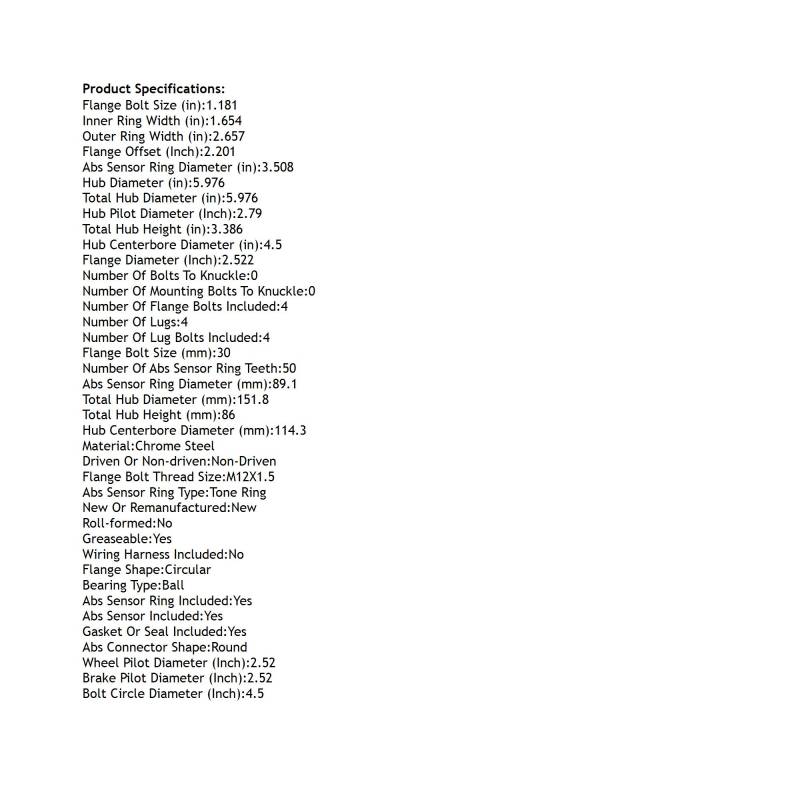

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.508
ABS SENSOR RING DIAMETER (MM): 89.1
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.52
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.181
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.522
FLANGE OFFSET (INCH): 2.201
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.976
HUB PILOT DIAMETER (INCH): 2.79
INNER RING WIDTH (IN): 1.654
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.657
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.976
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 3.386
TOTAL HUB HEIGHT (MM): 86
WHEEL PILOT DIAMETER (INCH): 2.52
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512172
SKF: BR930136
TIMKEN: 512172
AUTOPART INTERNATIONAL: 1411-45667
BCA: WE60474
BECK/ARNLEY: 051-6237
CENTRIC PARTS: 40640001
GSP: 213172
MEVOTECH: H512172
MOOG HUB ASSEMBLIES: 512172
NAPA: PBR930136

APPLICATIONS:
HONDA ACCORD (1994-1997)
ACURA CL (1997-1999)
