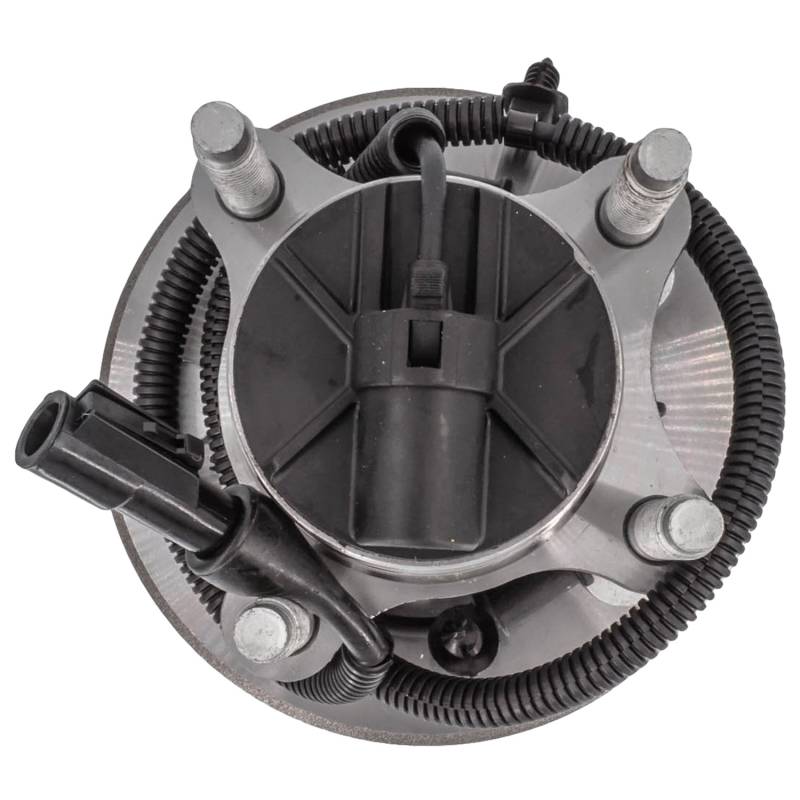

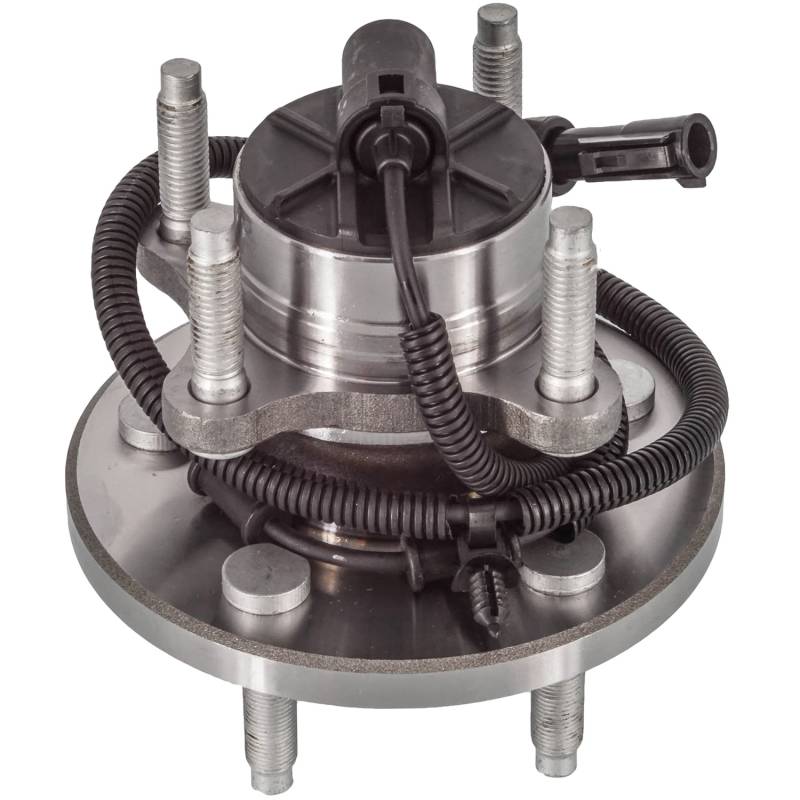

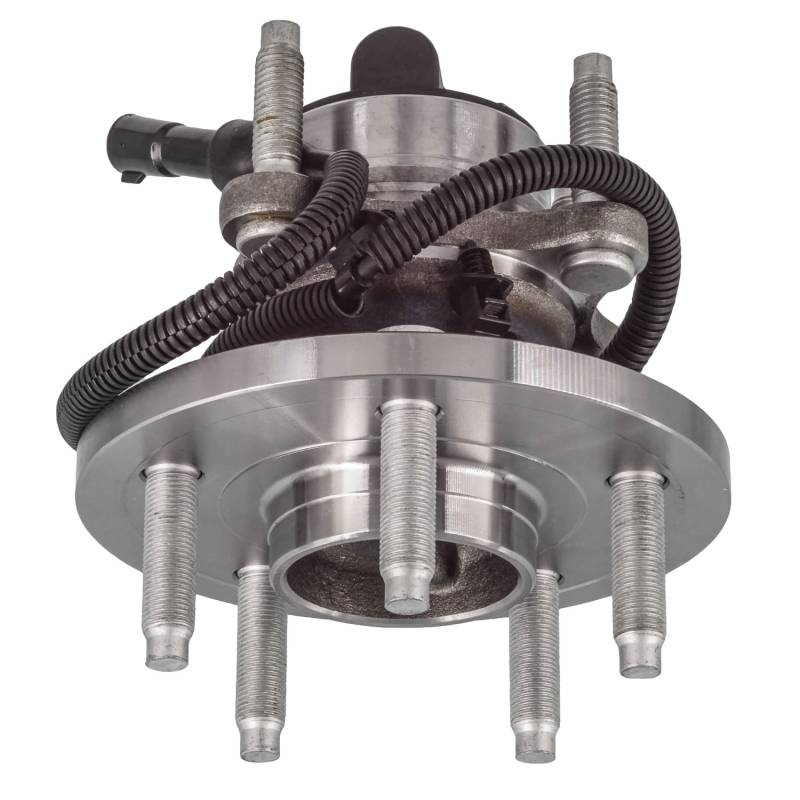

New Hub Assembly Compatible With Ford Mercury Freestar Monterey 3.9L 4.2L 2004 2005 2006 2007 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.85
ABS SENSOR RING DIAMETER (MM): 47
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.835
FLANGE BOLT SIZE (MM): 46.6
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.533
FLANGE OFFSET (INCH): 2.394
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 6.142
HUB PILOT DIAMETER (INCH): 2.913
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 36
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.142
TOTAL HUB DIAMETER (MM): 156
TOTAL HUB HEIGHT (IN): 6.457
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 41.654

REPLACES:
AUTOPART INTERNATIONAL: 1411-09866
BCA: WE60461
CENTRIC PARTS: 40761001E
FAG US: 102269
FORD: G2MZ 1109 A H2MZ 1109 P
GSP: 113312
MEVOTECH: H512312
MOOG HUB ASSEMBLIES: 512312
MOTORCRAFT: NHUB4 NHUB83
NAPA: PBR930489

APPLICATIONS:
FORD FREESTAR (2004-2007)
MERCURY MONTEREY (2004-2007)
