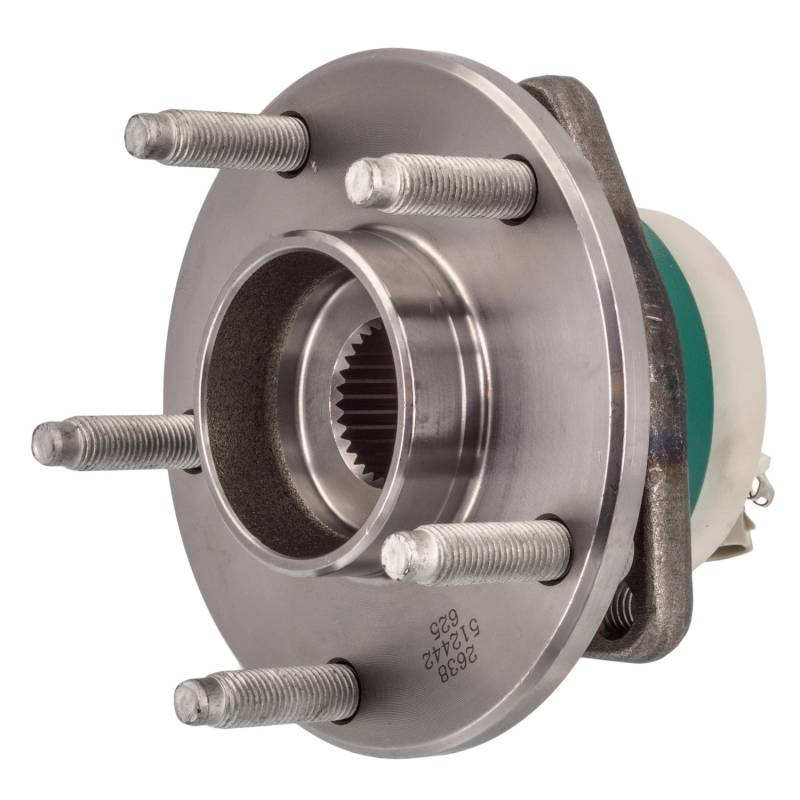

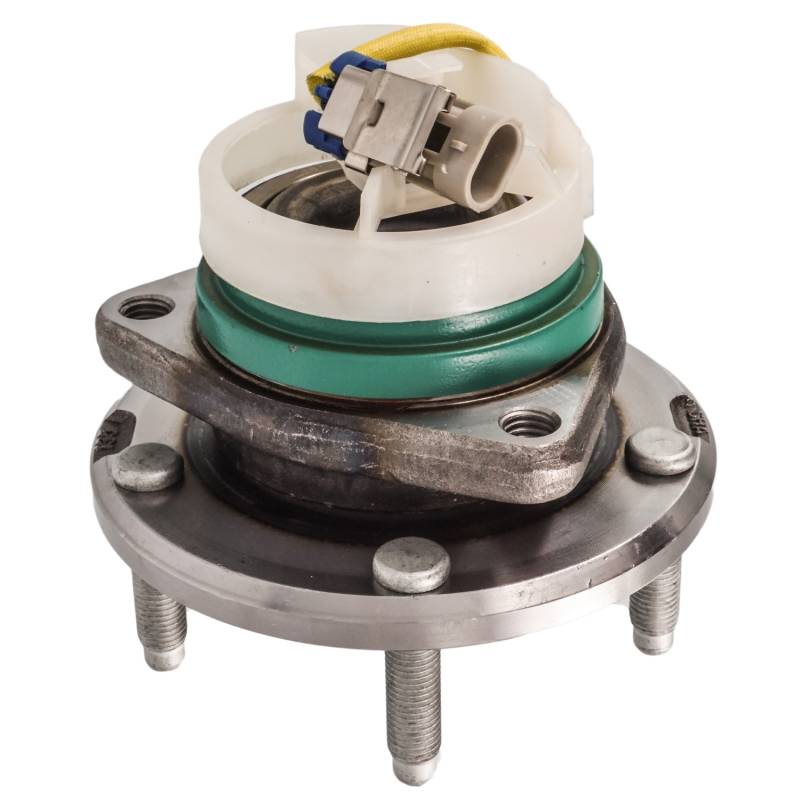

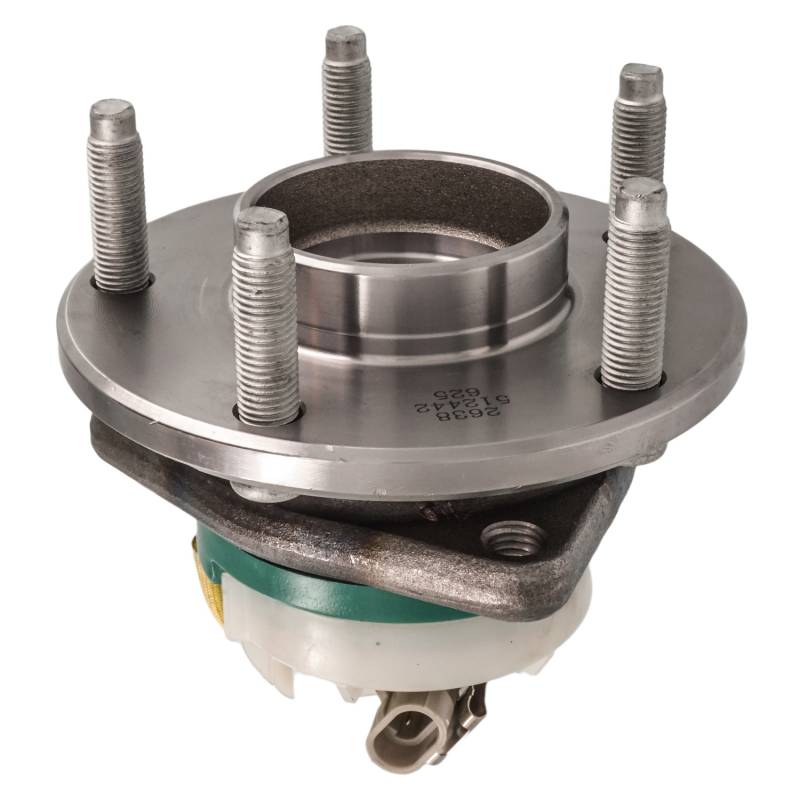

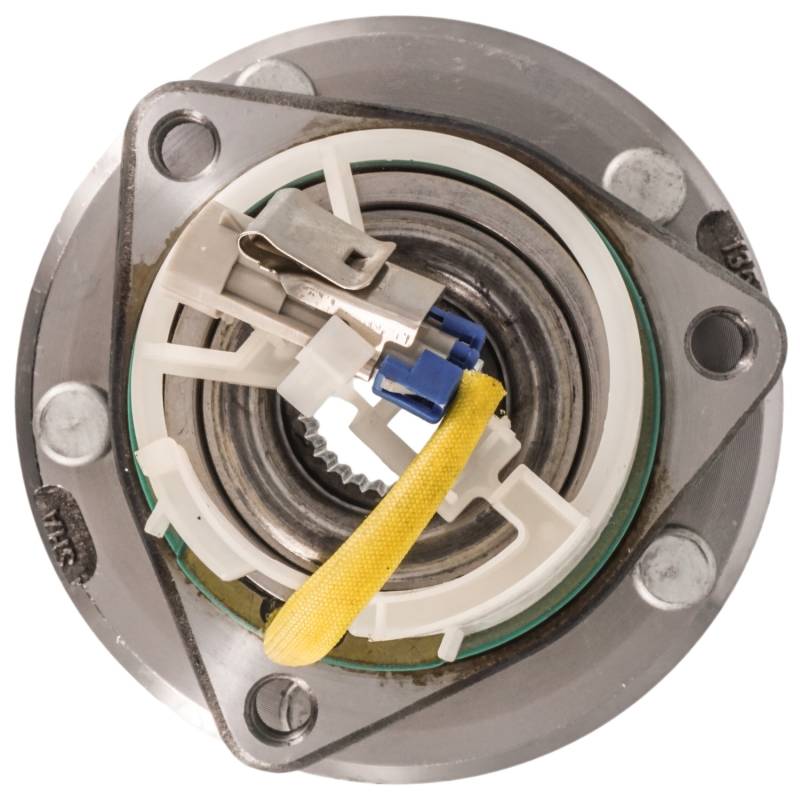

New Hub Assembly Compatible With Cadillac Chevrolet Xlr Corvette 4.4L 4.6L 6.2L 2009 2010 2011 2012

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.563
FLANGE BOLT SIZE (MM): 39.69
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.748
HUB CENTERBORE DIAMETER (MM): 120.6
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 4.201
TOTAL HUB HEIGHT (MM): 106.7
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 3.346

REPLACES:
ACDELCO: RW20-130
AUTOPART INTERNATIONAL: 1411-481308
BCA: WE61621
CENTRIC PARTS: 40262027
FAG US: 102283
GENERAL MOTORS: 19208047
GSP: 103441
MOOG HUB ASSEMBLIES: 512441
NAPA: PBR930757

APPLICATIONS:
CADILLAC XLR (2009-2009)
CHEVROLET CORVETTE (2009-2013)
