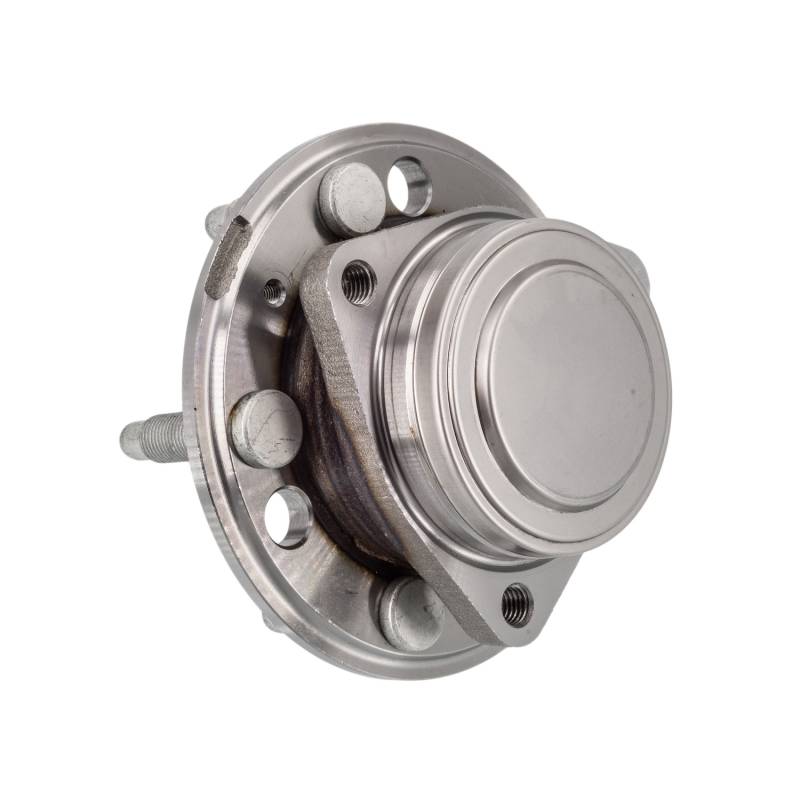

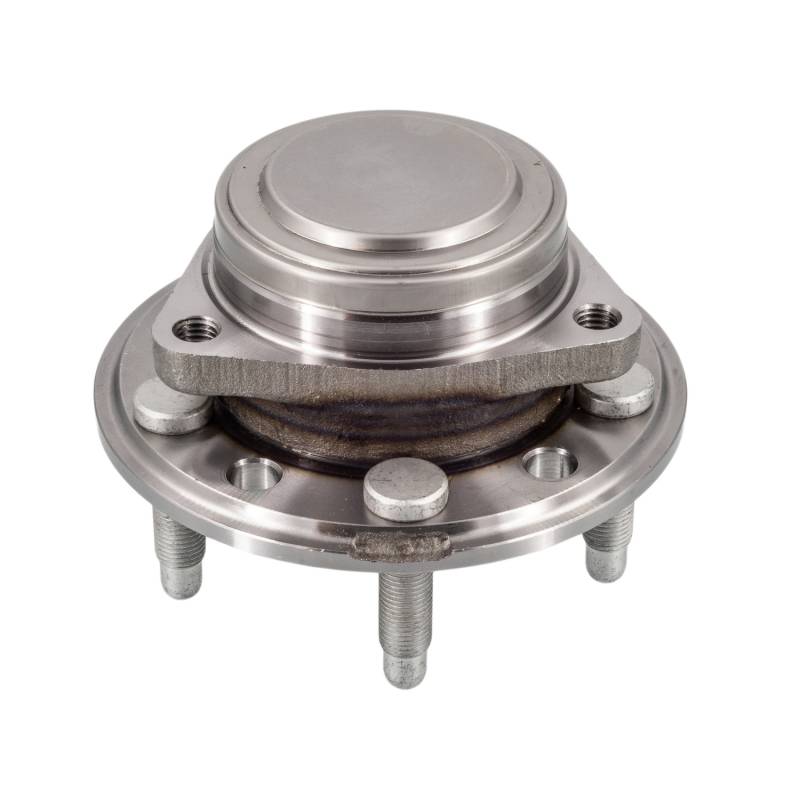

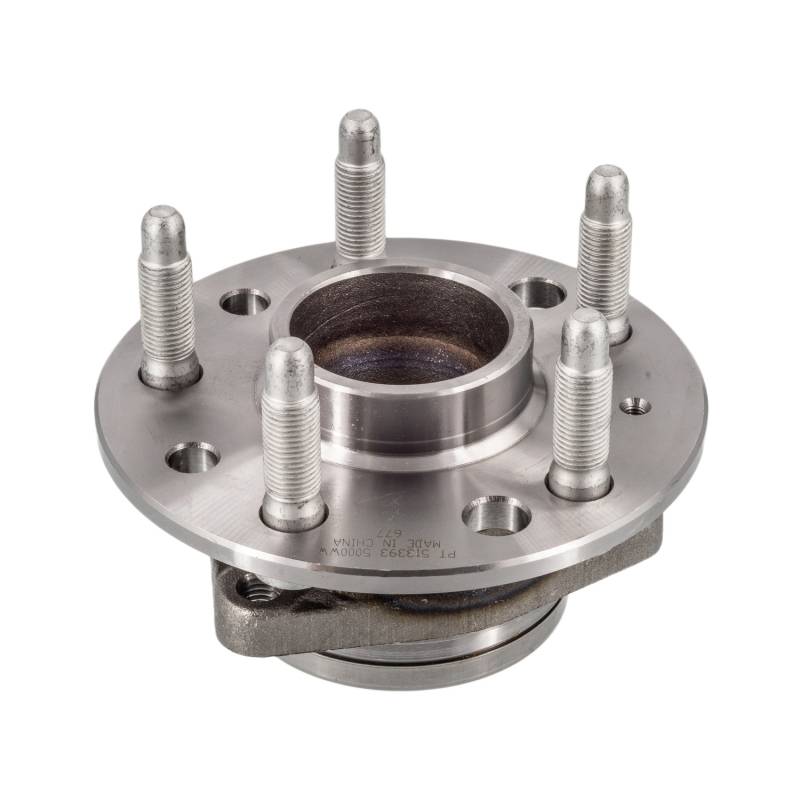

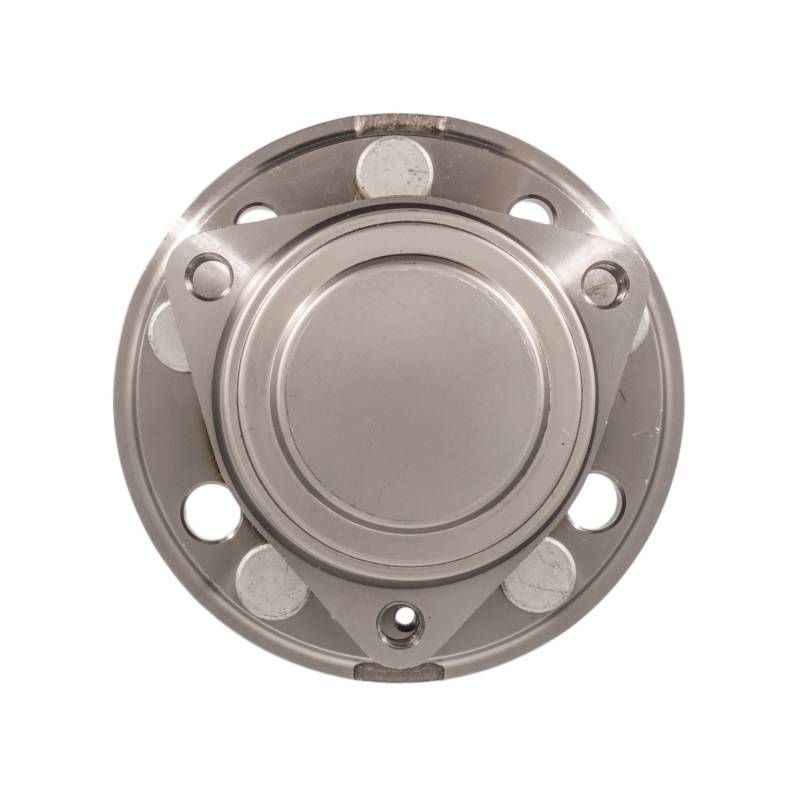

New Hub Assembly Compatible With Cadillac Cts 2.0L 3.0L 3.6L 2014 2015 2016 2017 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

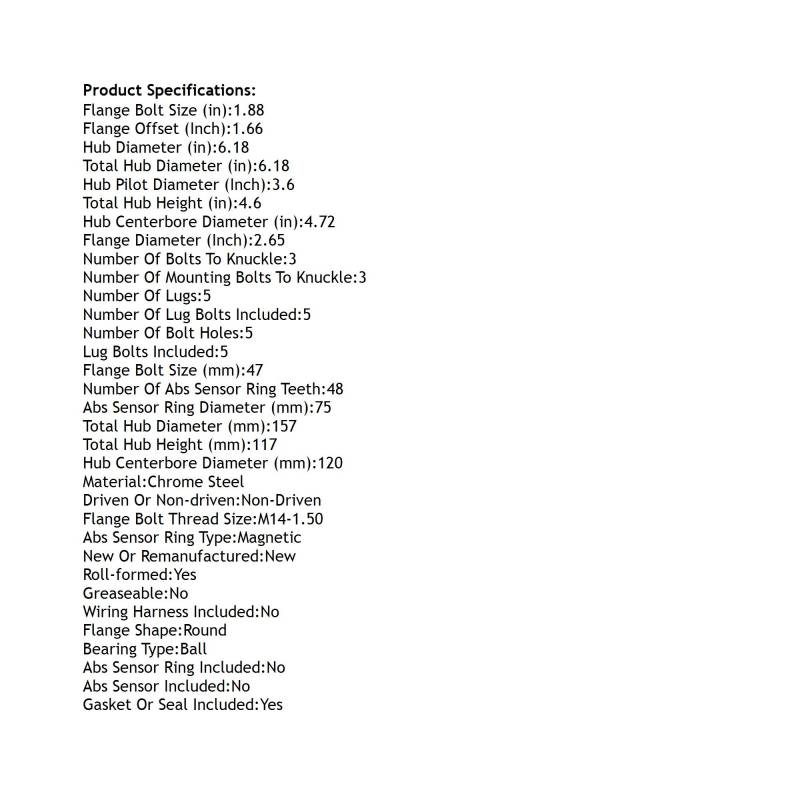

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (MM): 75
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.88
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.66
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.72
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.18
HUB PILOT DIAMETER (INCH): 3.6
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 6.18
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 4.6
TOTAL HUB HEIGHT (MM): 117
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: FW422
AUTOPART INTERNATIONAL: 1411-545833
BCA: WE60838
MOOG HUB ASSEMBLIES: 513393

APPLICATIONS:
CADILLAC CTS (2014-2017)
