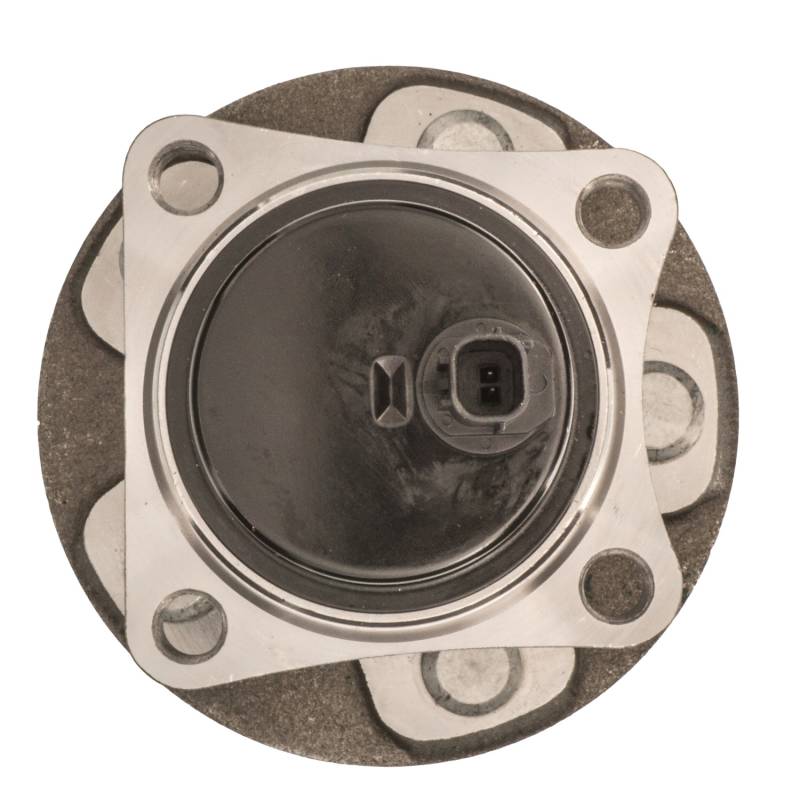

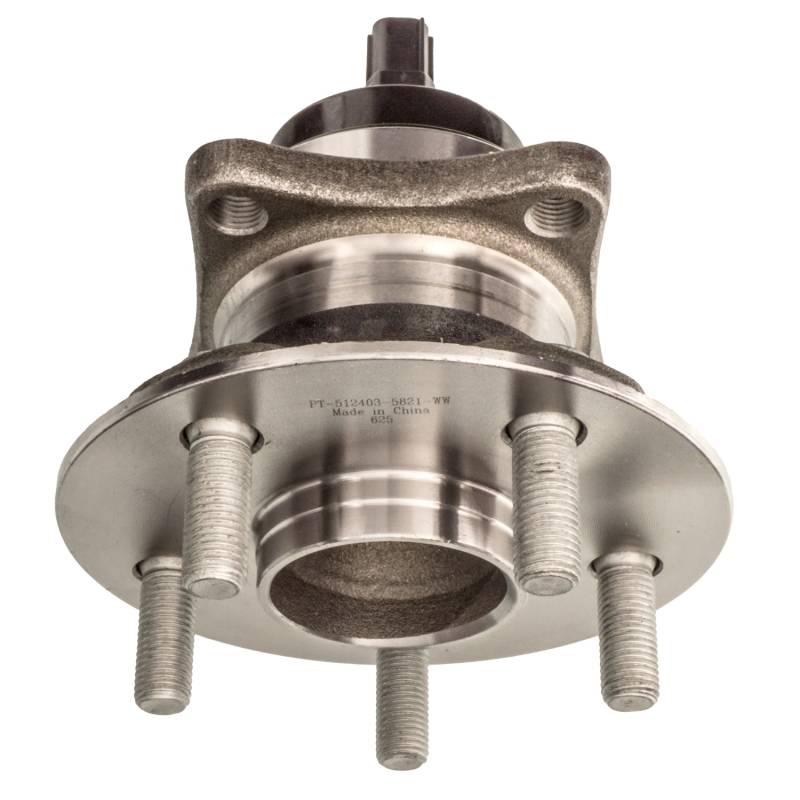

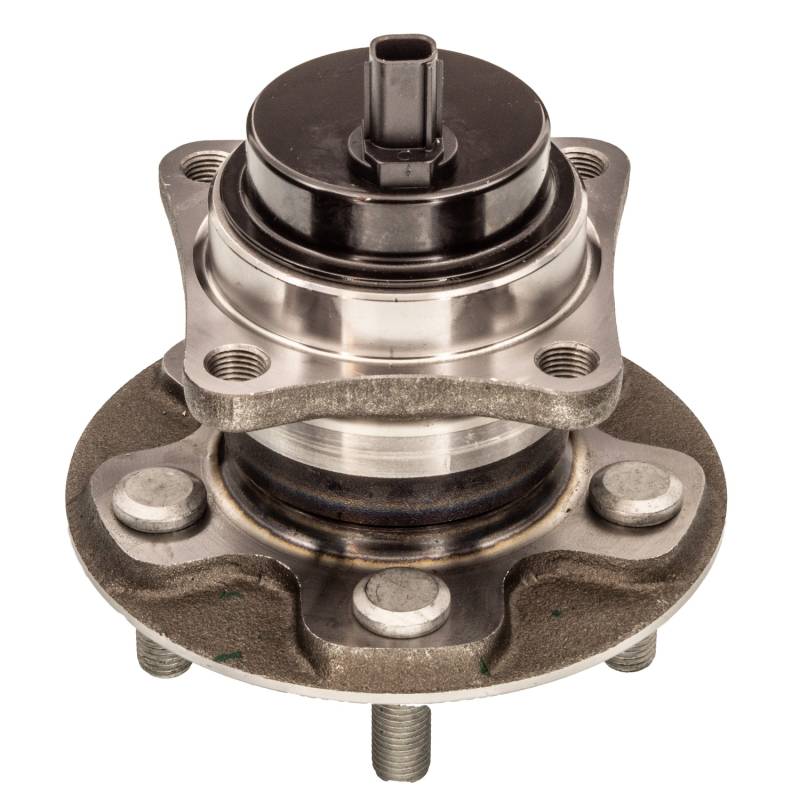

New Hub Assembly Compatible With Pontiac Toyota Vibe Corolla Matrix Corolla Im 1.8L 2.0L 2.4L 2009

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

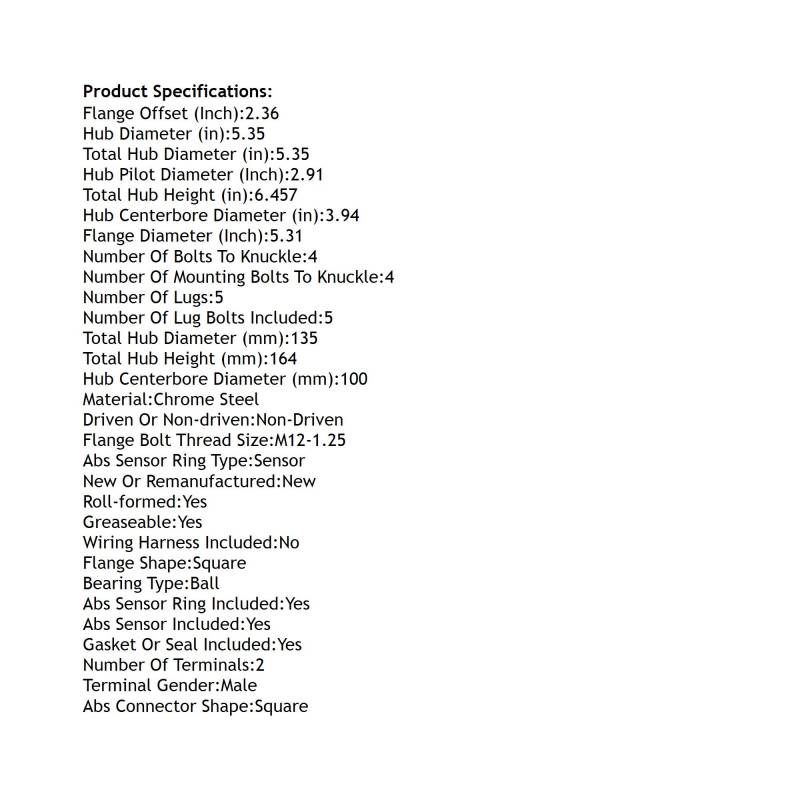

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.25
FLANGE DIAMETER (INCH): 5.31
FLANGE OFFSET (INCH): 2.36
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 2.91
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 2
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 6.457
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-113
AUTOPART INTERNATIONAL: 1411-327519
BCA: WE60761
BECK/ARNLEY: 051-6262 051-6374
CENTRIC PARTS: 40744014
FAG US: 102353
GENERAL MOTORS: 19184266
GSP: 103403
MEVOTECH: H512403
MOOG HUB ASSEMBLIES: 512403
NAPA: PBR930713

APPLICATIONS:
PONTIAC VIBE (2009-2010)
TOYOTA COROLLA (2009-2019)
TOYOTA MATRIX (2009-2014)
TOYOTA COROLLA IM (2017-2018)
