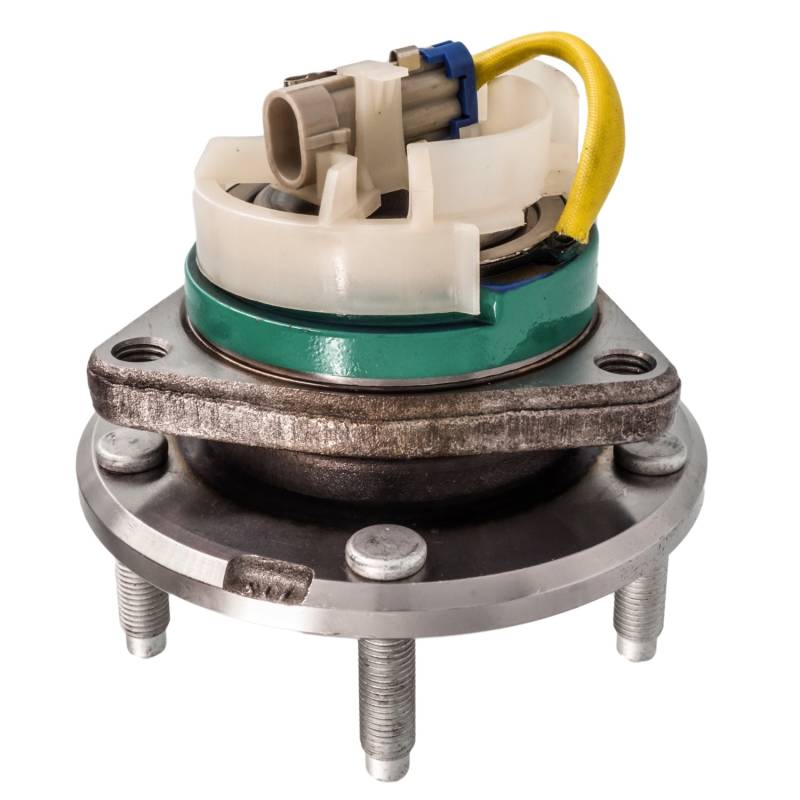

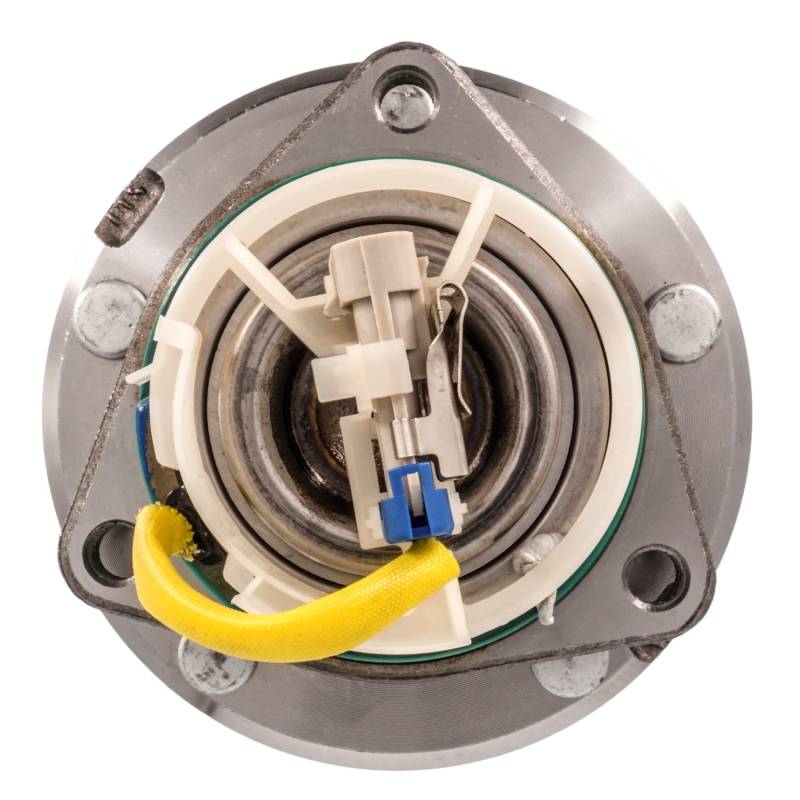

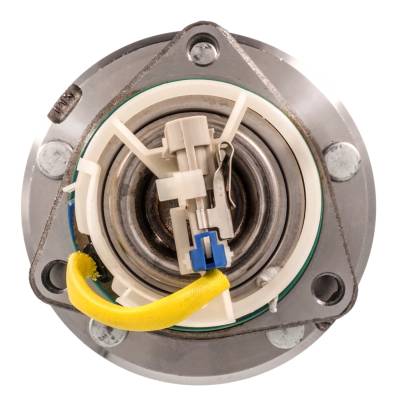

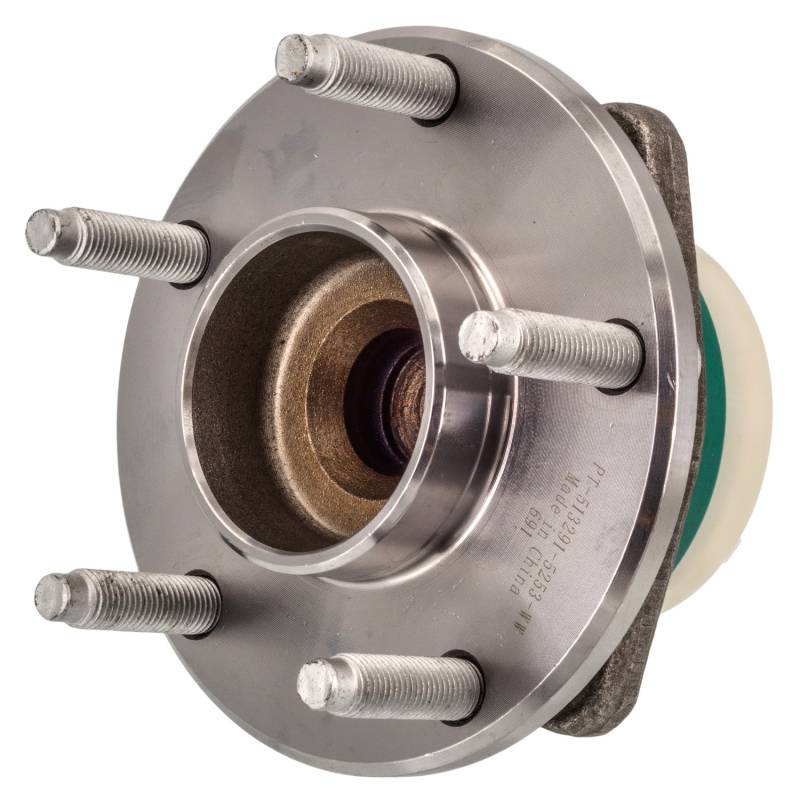

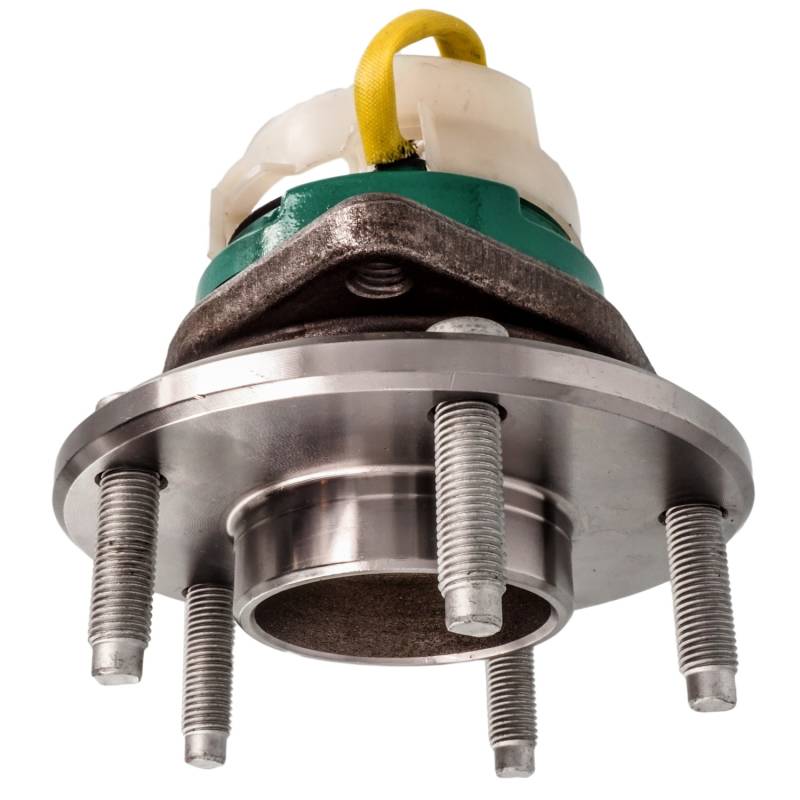

New Hub Assembly Compatible With Cadillac Chevrolet Xlr Corvette 2009 2010 2011 2012 2013 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

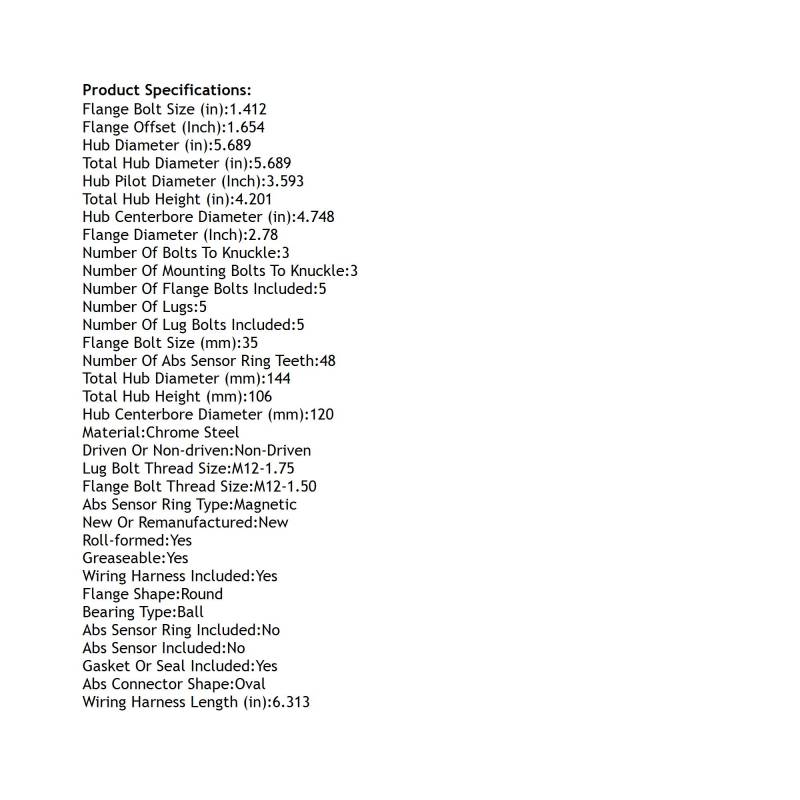

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.412
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.748
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.689
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.689
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 4.201
TOTAL HUB HEIGHT (MM): 106
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 6.313

REPLACES:
ACDELCO: FW370
AUTOPART INTERNATIONAL: 1411-423159
BCA: WE61627
FAG US: 102233
GENERAL MOTORS: 19208046
MEVOTECH: H513291
MOOG HUB ASSEMBLIES: 513291
NAPA: PBR930756

APPLICATIONS:
CADILLAC XLR (2009-2009)
CHEVROLET CORVETTE (2009-2013)
